DURAVIT L-Cube LC 7652 Manual de usuario

142

1010

7151268

74 76

113

710

118

2000

1051

751

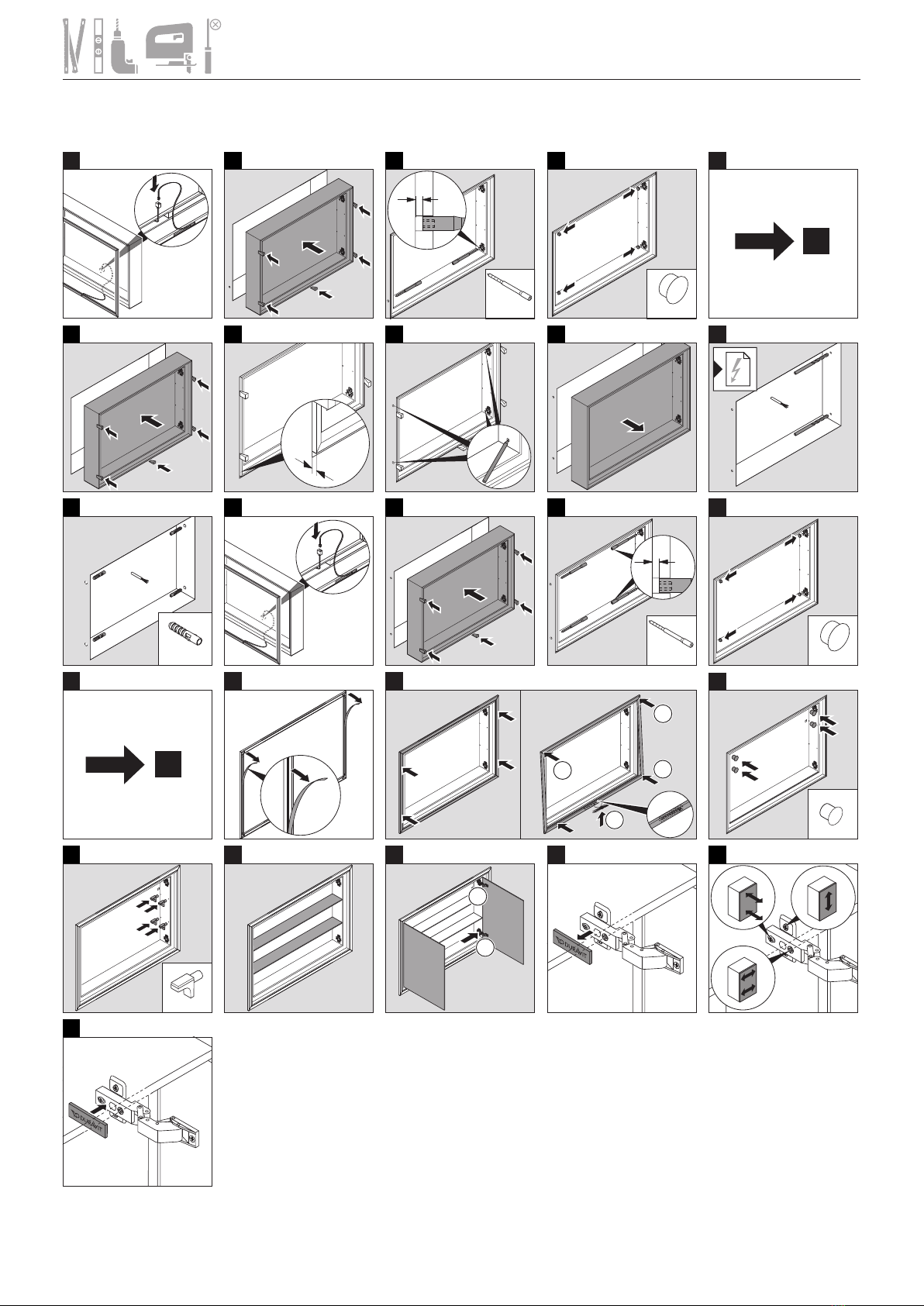

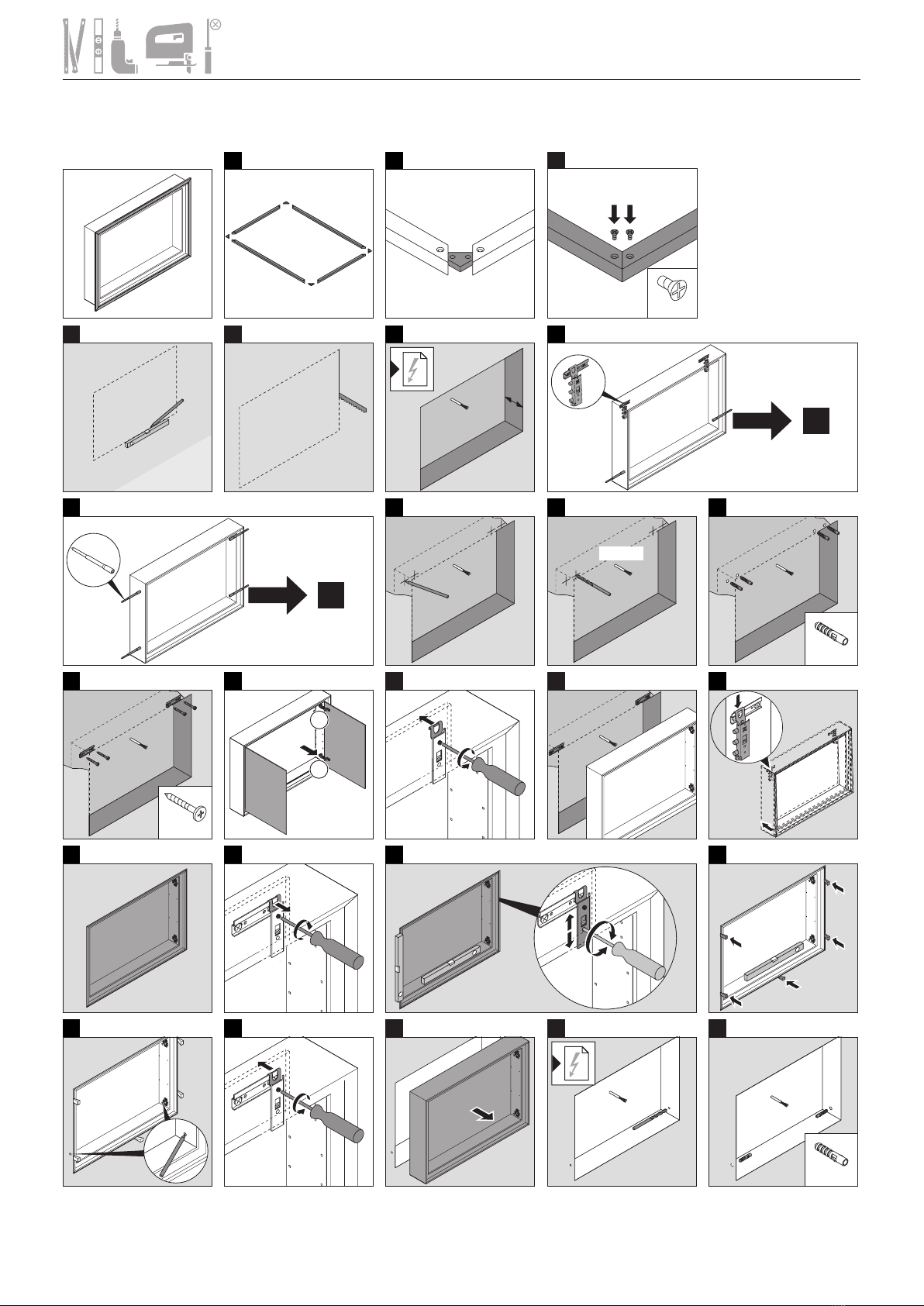

Mounting instructions

Instructions for use

A power supply of 110 V – 230 V must be available on site.

The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.

Direct contact with water should be avoided, for example, when showering.

We reserve the right to make technical improvements and design modifications to the products illustrated.

Cutout dimensions for built-in cabinets

Please observe the mounting instructions for bathroom furniture with a power supply.

MAL_L-Cube_LC7652/19.02.2

# LC 9687# LC 7652 # LC 9897

4x S8

4x 4,5x100

2x 100

4x S8

4x 5,5x50

L-Cube # LC 7652

142

Ø 8 mm

4x S8

4x 5,5x50

230 V

Ø 8 mm

2x S8

# LC 9687, # LC 9897 # LC 9687, # LC 9897 # LC 9687, # LC 9897 # LC 9687, # LC 9897

MAL_L-Cube_LC7652/19.02.2

Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, info@duravit.de, www.duravit.de

4 6 7

24232221

2019 211817

1615141312

11109108

321

4x S8 4x 4,5x100

Ø 8 mm

2x 4,5x100

# LC 9687, # LC 9897

# LC 9687

# LC 9897 # LC 9687

MAL_L-Cube_LC7652/19.02.2

Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, info@duravit.de, www.duravit.de

Best.-Nr. LC7652/19.02.2

56 57 58 29 3050495050

49484745

4342

4039383736

3229282726

3534333231

100%1-2 sec

LED

100% 10%>3 sec

LED

100%30%5%

5%30 sec30%30 sec10030 sec

Order no. LC7652/19.02.2

Duravit AG

P.O. Box 240

Werderstr. 36

78132 Hornberg

Germany

Phone +49 78 33 70 0

Fax +49 78 33 70 289

info@duravit.com

www.duravit.com

# LC 9687

1 2

1 2 3

Mounting instructions for bathroom furniture with a power supply

Safety 2

Electrical installation 3

Intended use

The mounting instructions come as part of the Duravit

product and are aimed at people who carry out the

electrical installation for the product. You must read

through the mounting instructions carefully and they must

be available at all times.

Target readership and qualifications

The electrical installation may only be carried out by

qualified electricians.

Protection rating of Duravit products

The protection rating of Duravit products with a power

supply complies with the IP 44 standard as a minimum.

Protection class of wall lights

Protection class Connecting cable

I H05VV-F, 3x 1.5 mm2

II H03VV-F, 2x 0.75 mm2

Standards and directives

Duravit products comply with the CE marking

directives:

Icons and symbols

Symbol Meaning

> Action required

Safety instructions

Danger to life

Contact with electricity may lead to an electric shock.

>Carry out the electrical installation in accordance with

the national, European and international directives and

standards.

>Observe protection zones for wet rooms in accordance

with country-specific standards, local regulations and

low voltage guidelines.

>Connect the electrics using a ground fault circuit

interrupter (GFCI) in wet rooms or other specially

equipped rooms.

>Disconnect electrical components from the power supply

before the installation.

>Check that all components are de-energised.

>Prevent the power supply from being switched on

accidentally.

Penetration of foreign bodies and water

Foreign bodies or water in equipment lead to a short circuit

that may cause damage to the product.

>Observe the protection zones for Duravit products.

Protection zones

600 600

2250

AA mirror cabinet with an IP 44 rating may protrude into zone 2.

BA socket in a mirror cabinet must be mounted outside the zones.

2MAL_51240/18.10.4

Safety

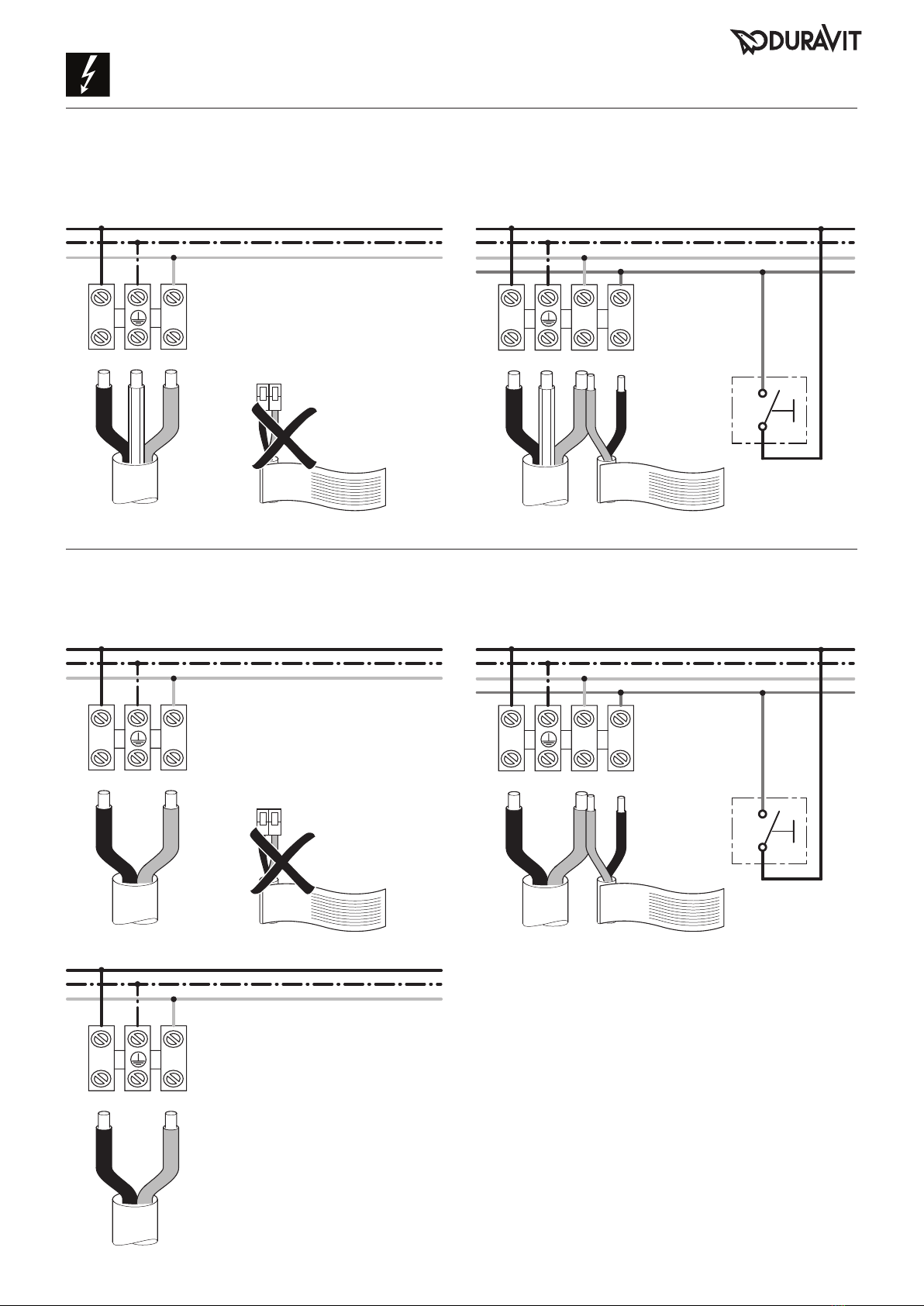

Electrical installation for protection class I

Electrical connection Optional connection of an external button

LNLNL'

Electrical installation for protection class II

Electrical connection Optional connection of an external button

LNLNL'

MAL_51240/18.10.4 3

Electrical installation

Order no. 51240/18.10.4 We reserve the right to make technical improvments and design modiﬁcations to the products illustrated.

DURAVIT AG

P.O. Box 240

Werderstr. 36

78132 Hornberg

Germany

Phone +49 7833 70 0

Fax +49 7833 70 289

info@duravit.com

www.duravit.com
