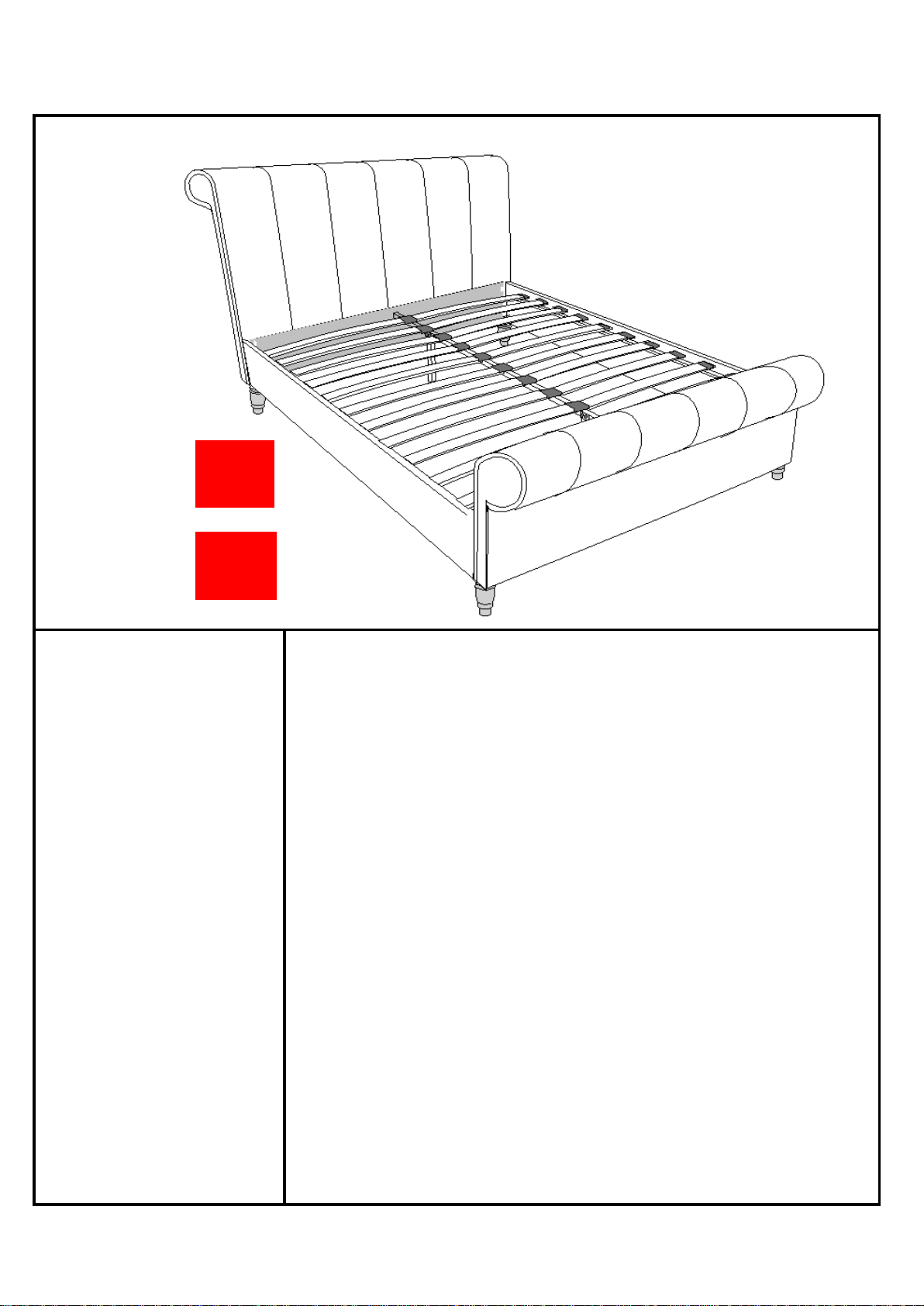

Page 1 of 6 LUD-181206 ADELE 5FT & 6FT BED
1. We suggest you spend a short time reading
through this leaflet and then follow the simple
step by step instructions.
2. If you follow the instructions carefully, the end
result should be worth the effort.
3. Do not discard any of the packaging until you
have checked that you have all the parts and
the pack of fittings.
4. Assemble this product on a carpet.
5. To ensure an easier assembly, we strongly
advise that all fittings are only finger-tightened
during initial assembly phase. Only upon
completion of the assembly should all fixing
points be fully tightened.
6. We recommend a periodic check on all fixing
points to make sure they remain fully tightened.
7. Keep any fittings out of children's reach.
BEFORE YOU
START, HERE
IS SOME
HELPFUL
ADVICE :
ASSEMBLY INSTRUCTIONS
Minimum No.
Of People
Recommended
To Assemble
This Product :
2
30
MINUTES
Approximate
Assembly
Time :
Page 2 of 6 ADELE 5FT & 6FT BED

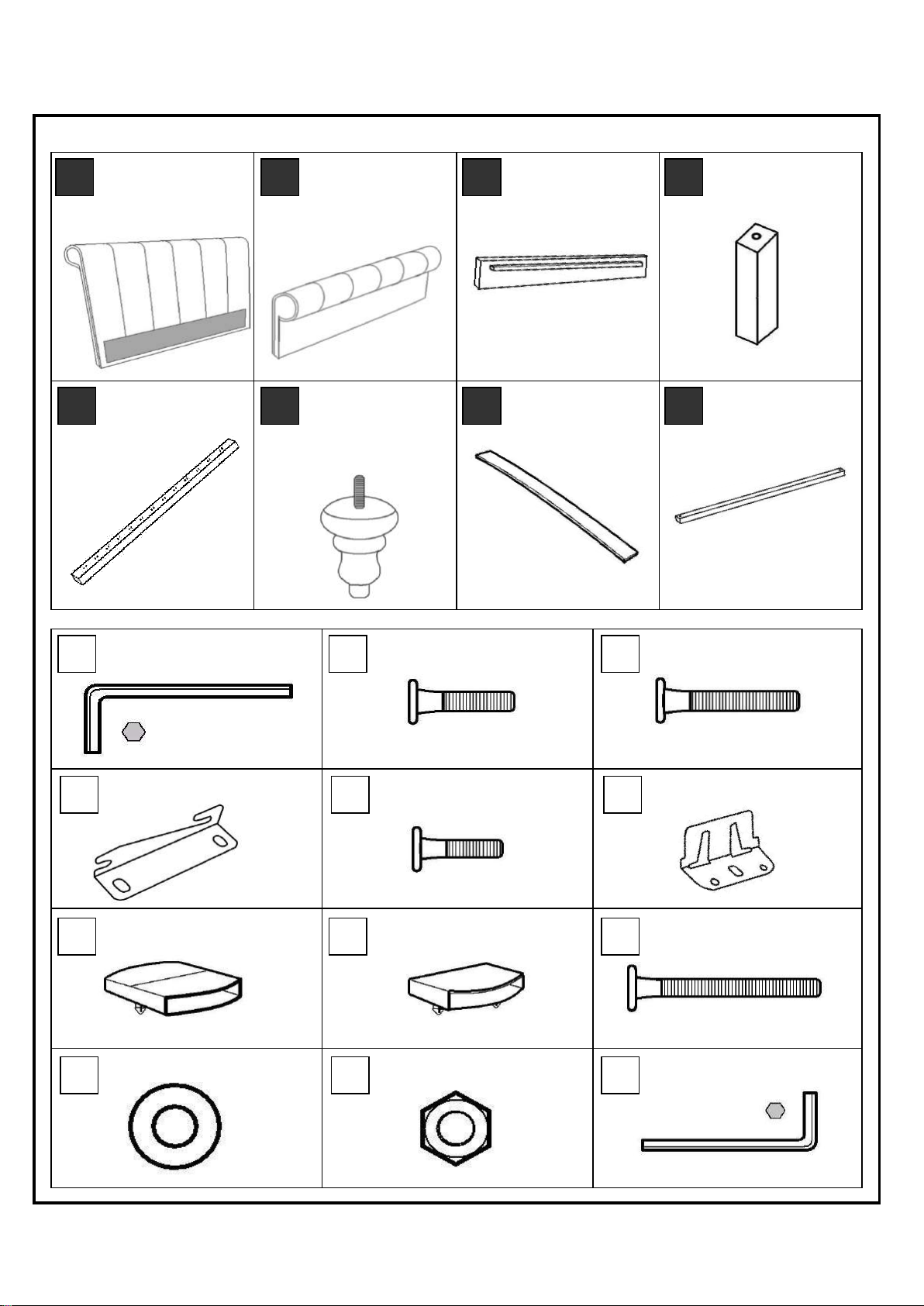

PARTS AND HARDWARE LISTS
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
I
J
K
M
x1pc
Headboard
x1pc
Footboard
x2pcs
Siderail
x2pcs
x1pc
Central Rail
x4pcs
Wooden Leg
x28pcs
Sprung Slat
x1pc
Across Bar
M8x25mm
x1pc
x16pcs
x2pcs
x4pcs
x2pcs
x2pcs
x14pcs
x28pcs
x2pcs
x2pcs
x2pcs
M8x40mm
M6x20mm
M6x60mm
smaller
x1pc
Page 3 of 6 ADELE 5FT & 6FT BED

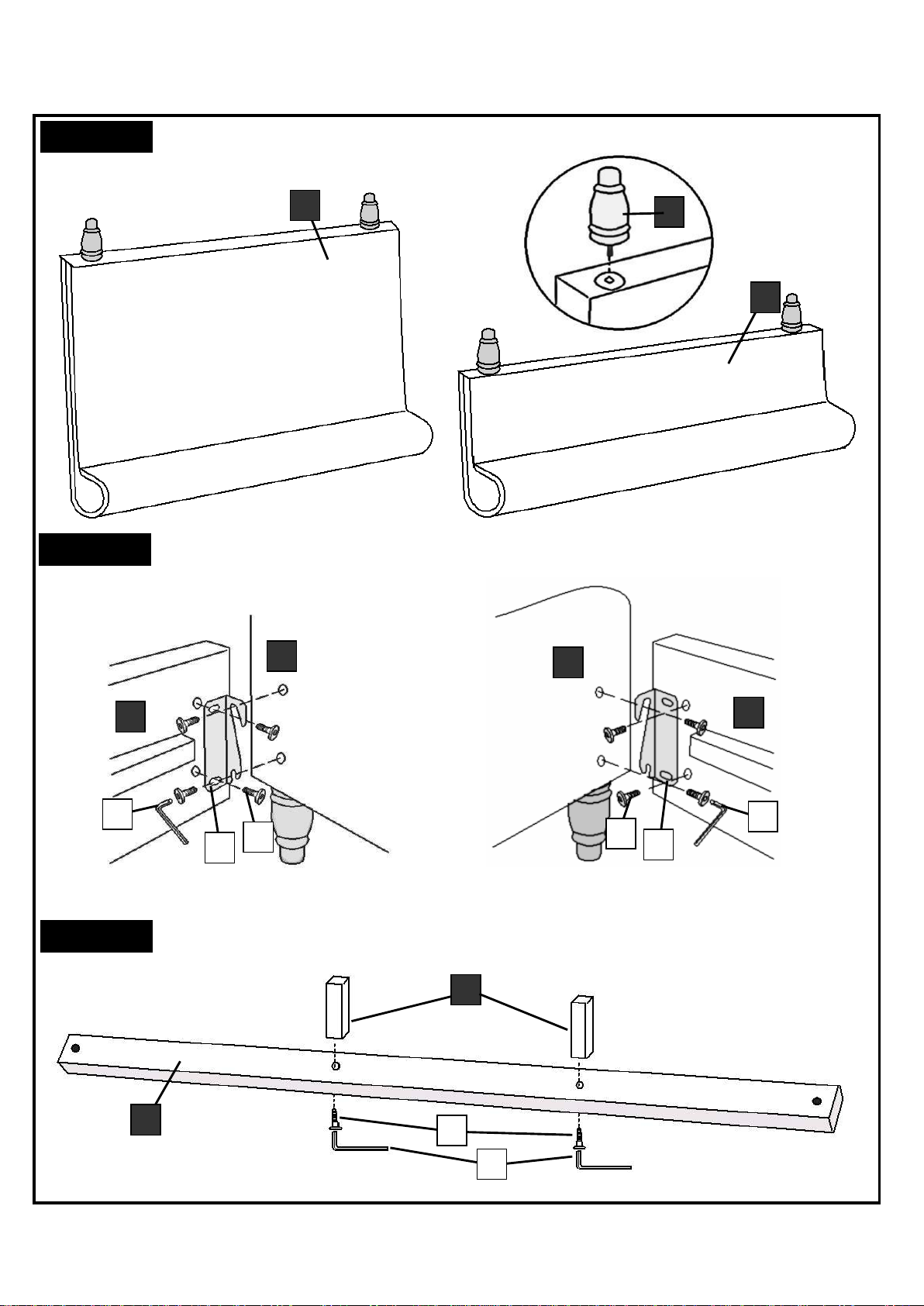

Fix the Wooden Legs (6) to the bottom of the Headboard (1) and Footboard (2)
STEP 1
STEP 2
Attach 2 of the Support Legs (4) to the Central Rail (5) with Screw (C) and tighten with
the Allen Key (A).
STEP 3
2
A
D
B
1
2
A
D
B
5
4
C
A
3
3
1
6
Attach the Screw (B) and slightly tighten with Allen Key (A). Mount both Siderails (3) to
Headboard (1) and Footboard (2) by pushing the Bracket (D) down to fit. Do not fully
tighten the screws at this moment.
Page 4 of 6 ADELE 5FT & 6FT BED
STEP 5
Attach the Central Rail (5) to the Headboard (1) and Footboard (2) with Screw (E) and
Bracket (F)
STEP 4
E
F
5
5
H
G
H
J
K
8
1
2
M
3
3
7
I

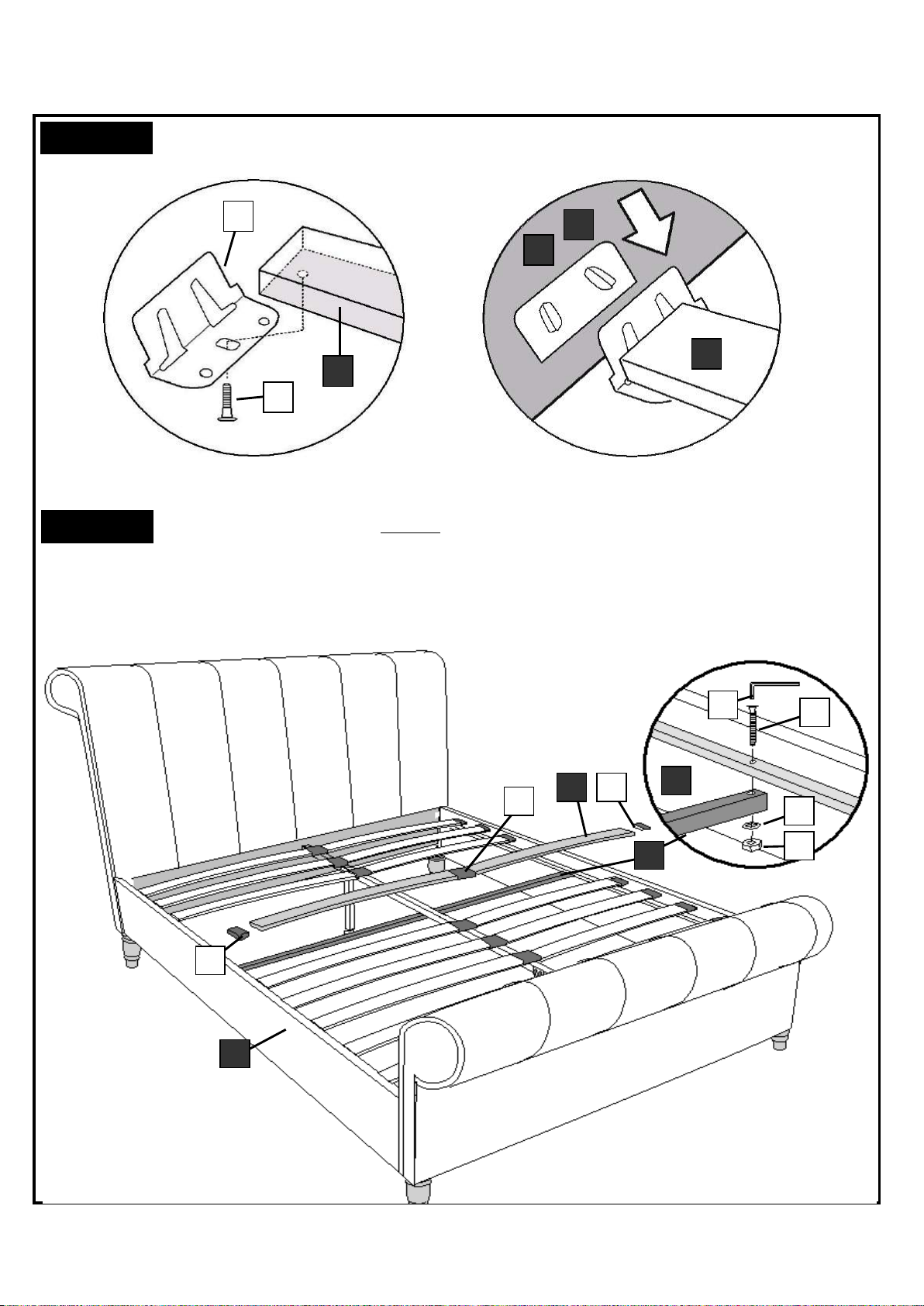

Attach Across Bar (8) to the bottom of the Sideral shelf (3) using Screw (I), Washer (J)
and Hex Nut (K) with the smaller Allen Key (M).
Insert the Sprung Slats (7) to both ends of slat Middle Holder (G) before attaching slat
End Holder (H) to the other end of Sprung Slats. Having done this, press down the
Middle Holder (G) and the End Holder (H) to the siderail shelf and Central Rail. Repeat
the above for balance rows.
Page 5 of 6 ADELE 5FT & 6FT BED
see our range on website:
www.limelightbeds.co.uk
LE9 8GZ
Please have the following information ready for our staff
- Product Name
- Part Number
Limelight Beds Ltd
Orbital House
Arthur Street
Barwell
Leicestershire
and
9.00am to 4.00pm FRIDAY
Tel : 01455 850 150
Fax: 01455 848 169
Email: info@limelightbeds.co.uk
9.00am to 5.00pm MONDAY to THURSDAY
PROBLEMS?
SHOULD YOU ENCOUNTER ANY DIFFICULTY WITH THE
ASSEMBLY OF YOUR BED, PLEASE DO NOT TROUBLE
YOUR RETAILER BUT
CALL, FAX, E-MAIL or WRITE to our
CUSTOMER SERVICES DEPARTMENT
BETWEEN THE HOURS OF
Page 6 of 6 ADELE 5FT & 6FT BED
n
PLEASE NOTE: GOODS THAT NEED TO BE RETURNED SHOULD
BE SENT BACK IN ITS ORIGINAL PACKAGING.
nWhen assembling your bed, please ensure that you have checked
the contents for all relevant parts.
nWhen tightening bolts, do make sure that they are fully tightened but
not forced.
nWhen moving your fully assembled bed, you must first remove the
mattress and lift the frame into position; taking care when lifting and
always have two people handling the bed. PLEASE DO NOT DRAG
THE BED as this will cause damage to the central support legs and
rail. Central legs MUST be in a vertical position at all times.
nDue to the nature of laminate flooring, we recommend that you place
non-slip material under the central support legs. This will stop the legs
from sliding on laminate/wooden floors and will prevent the bed from
collapsing.
nDue to the inherent nature of this fabric it can easily mark or rub in the
wrong direction, you can easily fix this by using a fabric brush to slowly
brush marks out.
nIt is advisable to use approved cleaning products when cleaning the
furniture and bed frame as certain chemical-based cleaners could
have an adverse effect on the bed's finish.
nAll Limelight beds are produced to the highest standards and are
packed to avoid damage in transit. Should you find that your new bed
does not meet your satisfaction, please contact Limelight's Customer
Services Department at 01455 850 150.
