DE-950 User’s Manual
Version : 1.51 DUALi Inc. (http://www.duali.com)
1. Introduction
DE-950 is refined design of proximity reader which supports Contactless ( ISO 14443 A/B type, Mifare® ,

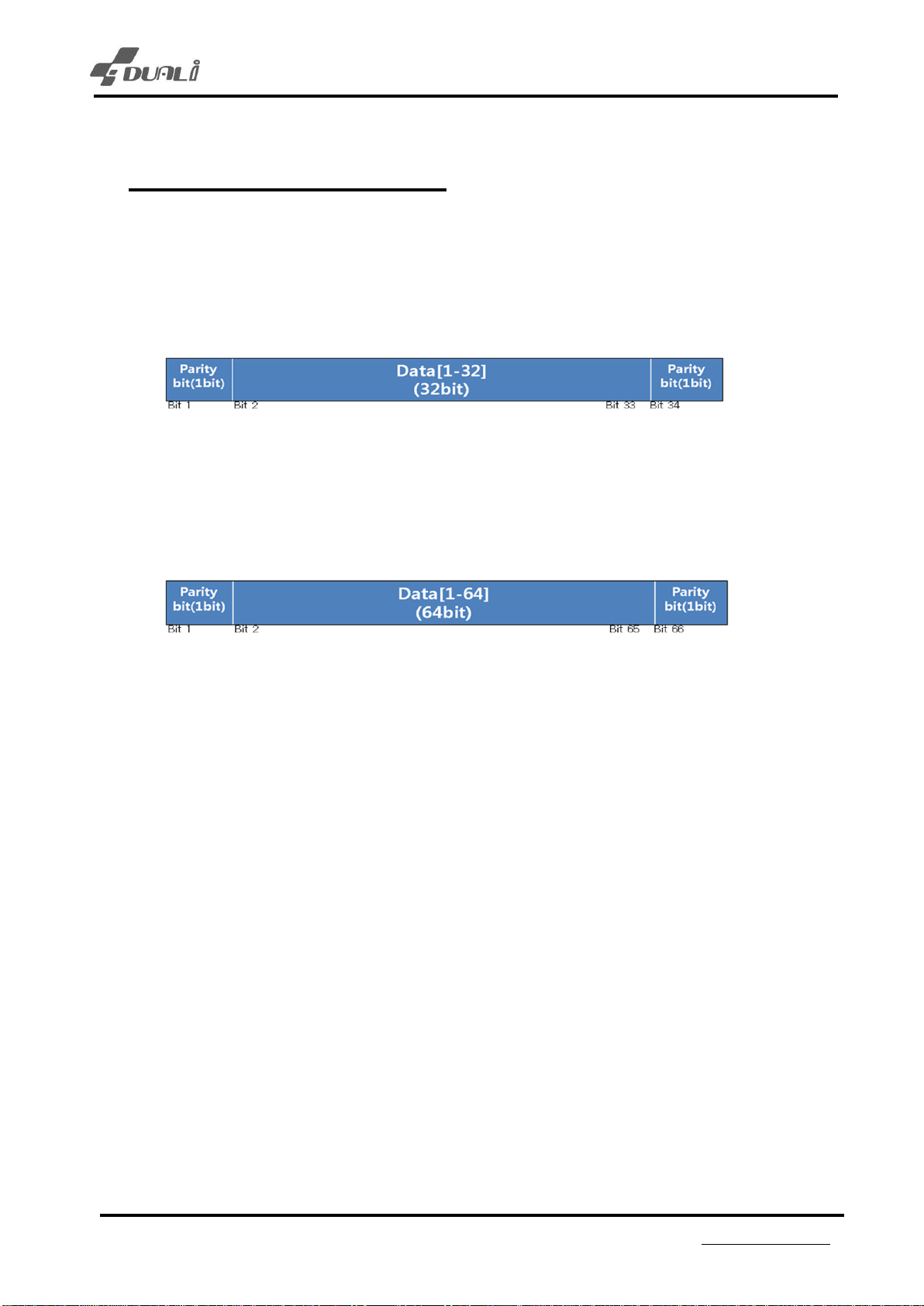

FeliCa™). It also supports 32/34/64/66-bit (26 bit is optional) Wiegand format with a Host communication
which is the most widespread system. DE-950 is a IP65 complaint (water proof) reader and it’s applicable to
various systems such as Access control system, Time attendance system, parking management or e-
Payment system.
2. Contents Confirmation
- The following items are contained in DE-950 package.
Reader bracket Manual screw
(1 ea) (1 ea) (1 ea) (1 ea)
3. Hardware Specifications
Read Range Up to 5cm
Input Voltage/Current DC 7-24V, MAX 200mA(12V)
LED/Beeper 2 LEDs(Red, Blue) / Magnetic Buzzer
Color BLACK(Body)
Operating Environment -20℃~ +60℃, 10~90% Humidity
Overall Size(WxHxD) 46 x 105 x 20mm
Output Format 32 / 34 / 64/ 66 bit Wiegand, RS-232/485
Material PC (Polycarbonate) for housing material
Urethane as filling material up on PCB for water proof
3*4 Flat head
machine screw
