Dual DC535Bi Instrucciones de funcionamiento

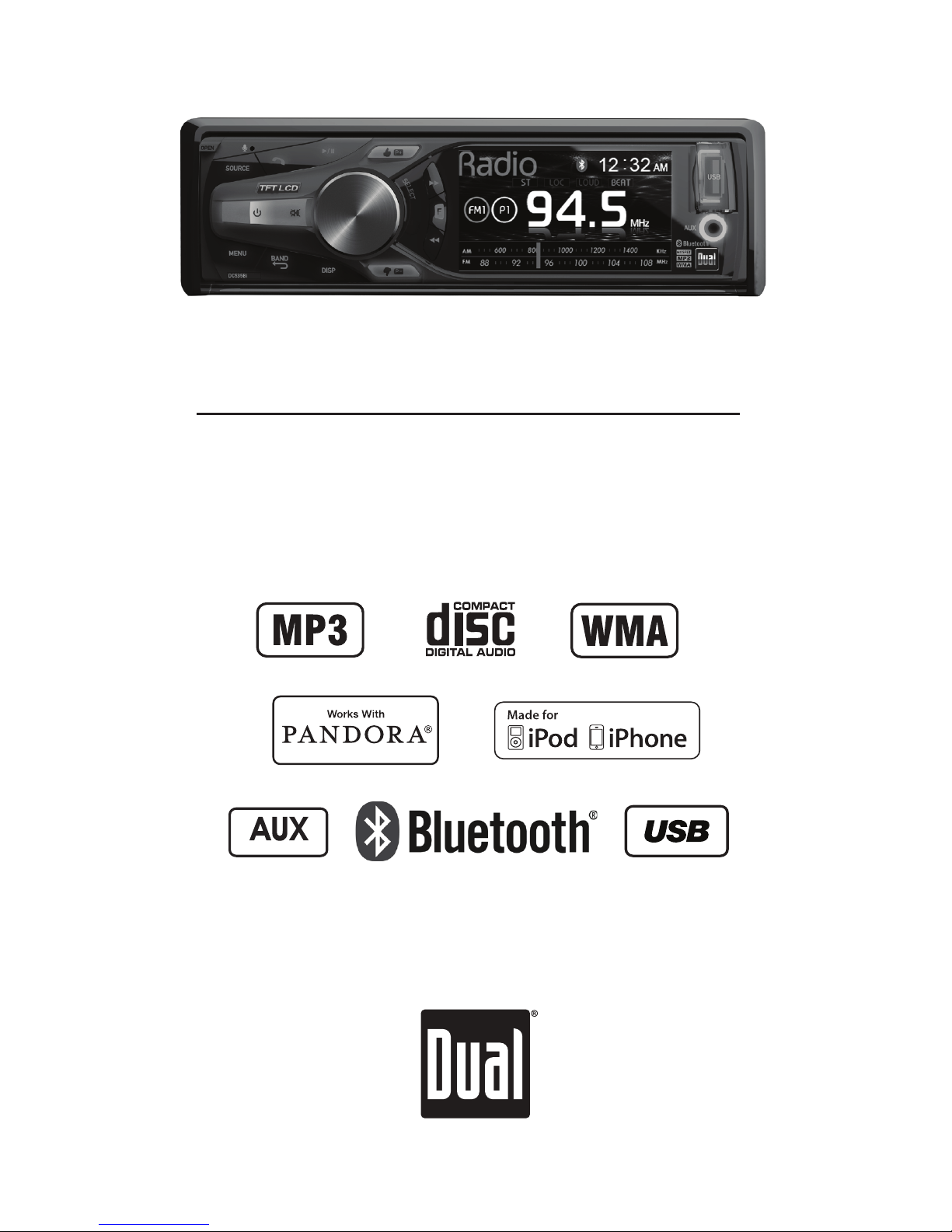

INSTALLATION/OWNER'S MANUAL

CD Receiver

DC535Bi

Front Input

DC535Bi

REMOVAL

KEYS

HEAD UNIT

MOUNTING SLEEVE

OPTIONAL REAR

MOUNTING SUPPORT

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit.

• Remove 2 transit screws located on top of the unit.

• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting

sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring harness adapter (sold

separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

Preparation

TYPICAL DIN FRONT-LOAD MOUNTING METHOD

DC535Bi

BLUE

BLACK

RED

YELLOW

Remote Turn-On

Connect to amplifier or power

antenna. Insulate wire if not used.

Ground

Connect to the vehicle

chassis ground.

Accessory

Connect to an existing ignition

circuit or switched 12 volt source.

Memory

Connect to the battery

circuit or constant 12 volt source.

Right Front

Gray/Black (-)

Gray (+)

Left Front

White/Black (-)

White (+)

Left Rear

Green/Black (-)

Green (+)

Right Rear

Violet/Black (-)

Violet (+)

SUBREARFRONT

L-CH

R-CH

Antenna

Connector

Rear Output

Front Output

Subwoofer Output

Steering Wheel

FUSE

When replacing the fuse,

make sure new fuse is the

correct type and amperage.

Using an incorrect fuse could

damage the radio.

The DC535Bi uses one

10 amp ATM fuse located

in-line.

Wiring Diagram

DC535Bi

Auxiliary Input

Tune / Track Down

Preset Down / Thumbs Down

Display

Mute

Band / Go Back

Power

Open

Source

Bluetooth Talk

Play / Pause

Volume Knob/ Select (push)

Preset Up / Thumbs Up

Tune / Track Up

Function

USB Port

1 2 3 4 9

1 10

2 11

3 12

4 13

5 14

6 15

7 16

1213

17 1516

Control Locations - Receiver

DC535Bi

Preset Up / Thumbs Up

Key 0 / Key +

Preset Down / Thumbs Down

Key 7 / Key *

Key 5 / Folder Down

Key 4 / Play / Pause

Key 1 / Repeat

Key 2 / Random

Talk

Tune / Track Down

Source

Volume Up

Power

Select

Tune / Track Up

Volume Down

Band / Go Back

Key 3 / Intro

Key 6 / Folder Up

Key 9 / Key #

Key 8 / Mute

Control Locations - Remote

DC535Bi

Press OPEN to open the face plate, then pull away from

the right side to remove. To re-install, insert right side of

faceplate first then push left side to secure.

Press or any other button to turn the unit on. Press to

turn the unit off.

Press SOURCE to enter the Source Menu, then press

SOURCE or rotate the volume knob to select between Tuner,

Disc, Auxiliary Input, USB, iPod, Bluetooth and Pandora

modes. Modes of operation are shown in the display.

The DC535Bi offers an auxiliary input ports for connecting

an audio device, MP3 player, etc. Press SOURCE to select

auxiliary input mode.

Adjust volume using volume knob (00-46).

Press DISP to toggle between ID3 tag and file/folder name

for MP3/WMA files being played from CDs or USB devices.

Press RESET upon initial installation or if abnormal

operation occurs. Reset button is located behind the front

panel.

The unit will display the time on the LCD display. Clock

settings are adjusted in the General setup menu.

The clock will display 12-hour AM/PM time or 24-hour time

(22:00). Frequency spacing is adjusted in the General setup

menu (refer to page 8).

Faceplate Removal

Power On/Off

Source

Auxiliary Input

Volume

Display

Reset

Set the Clock

12/24-hour Clock

General Operation

DC535Bi

General Operation

Audio Setup Menu

Menu Function Options

Equalization

Curves

Rotate the volume knob to cycle through the following equalization curves: Flat,

Pop, Jazz, Classic, Beat, Rock and User. Any manual adjustment to the Bass or

Treble settings are automatically saved as User.

Bass Level Rotate the volume knob to adjust the bass level setting

(-6 minimum / +6 maximum).

Bass Frequency Rotate the volume knob to select one of the following bass frequency settings:

60 Hz, 80 Hz, 100 Hz or 200 Hz.

Middle Level Rotate the volume knob to adjust the middle level setting

(-6 minimum / +6 maximum).

Middle Frequency Rotate the volume knob to select one of the following middle frequency settings:

500 Hz, 1 kHz, 1.5 kHz or 2.5 kHz.

Treble Level Rotate the volume knob to adjust the treble level setting

(-6 minimum / +6 maximum).

Treble Frequency Rotate the volume knob to select one of the following treble frequency settings:

10 KHz, 12.5 KHz, 15 KHz or 17.5 KHz.

Balance Rotate the volume knob to adjust the balance setting.

(12-L to 12-R; 0 represents equal balance).

Fader Rotate the volume knob to adjust the fader setting.

(12-F to 12-R; 0 represents equal balance)

Subwoofer Rotate the volume knob to turn subwoofer output ON or OFF.

Subwoofer Level Rotate the volume knob to adjust subwoofer level between 0 and 12.

Subwoofer

Frequency

Rotate the volume knob to select one of the following subwoofer center

frequency settings: Off, 80 Hz, 120 Hz and 160 Hz. "Off" represents a full range

subwoofer output.

Press MENU to toggle through and select one of the

following setup menus: Audio, General, Gain and Screen.

1. Once the desired menu is displayed, rotate the volume

knob to scroll through the list of menu features.

2. Press SELECT to select a specific feature to adjust, then

rotate the volume knob left/right to adjust or activate

the desired feature.

3. Press SELECT to confirm and save the changes.

Setup Menu

DC535Bi

General Operation

Menu Function Options Action

Tuner

Frequency

Spacing

USA Programs the unit to USA tuner spacing.

(200kHz for FM and 10kHz for AM).

S-America Programs the unit to South American tuner spacing.

(100kHz for FM and 10kHz for AM).

Europe Programs the unit to European tuner spacing.

(50kHz for FM and 9kHz for AM).

Auto Station

Store AUTO STORE Press SELECT to seek and save 6 strong stations in the

current band.

Local/Distance

Tuning

Off Activates distance tuning.

On Activates local tuning for strong station reception only.

Set the Clock Clock

Rotate the volume knob to adjust the hours, then press

SELECT to confirm. Repeat to adjust the minutes, and repeat

again to adjust AM/PM setting.

Clock Mode 12 Hour Programs the unit to display 12-hour AM/PM time (example:

10:00 PM)

24 Hour Programs the unit to display 24-hour time (example: 22:00)

Scrolling

Option

Off Programs the unit to not scroll any information on the

display.

Once Programs the unit to only scroll information once.

15Sec Programs unit to scroll information once every 15 seconds

(default).

On Programs unit to scroll information continuously.

iPod Control

Full Programs the head unit to advanced control of the iPod/

iPhone device.

Manual

Programs the head unit to manual control of the iPod/iPhone

device and allows music to be controlled from the iPod/

iPhone device.

Beep

Confirmation

Off Disables the confirmation beep.

On Enables the confirmation beep.

Programmable

Turn On Volume

Variable

Value

Programs unit to always turn on at a specific volume

(default is Off). A volume level of 1-30 can be selected.

General Setup Menu

DC535Bi

General Operation

Gain Setup Menu

Menu Function Options

Tuner Gain Rotate the volume knob to adjust the tuner gain.

(-6 minimum / +6 maximum)

Disc Gain Rotate the volume knob to adjust the gain for disc playback.

(-6 minimum / +6 maximum)

Aux Gain Rotate the volume knob to adjust the gain for the front auxiliary input.

(-6 minimum / +6 maximum)

Bluetooth Rotate the volume knob to adjust the gain for the rear auxiliary input.

(-6 minimum / +6 maximum)

USB Gain Rotate the volume knob to adjust the gain for USB playback.

(-6 minimum / +6 maximum)

iPod Gain Rotate the volume knob to adjust the gain for iPod playback.

(-6 minimum / +6 maximum)

Pandora Gain Rotate the volume knob to adjust the gain for Pandora playback.

(-6 minimum / +6 maximum)

Screen Setup Menu

Menu Function Options

Demo Rotate the volume knob to to enable (ON) or disable (OFF) the demonstration

mode.

Backlight Rotate the volume knob to adjust the brightness settings of the display screen

from 1 to 7.

DC535Bi

Manual Tuning

Seek Tuning

Band

Storing Station Presets

Recalling Station Presets

Press TUNE

or TUNE

momentarily to change

radio frequency up or down one step at a time. Press and

hold to advance quickly.

Press TUNE

or TUNE

for more than two seconds

(then release) to automatically seek and tune to the next

strong station.

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands.

Select the desired band and station. Press the

(F)unction button, turn the volume knob until the desired

preset number is highlighted, then press SELECT to store

the preset.

Press the P+ or P- buttons to cycle through the 1-6 presets

in the current band.

AM/FM Tuner Operation

Tabla de contenidos

Otros manuales de Receptor de coche de Dual

Dual

Dual DCBT304U Instrucciones de funcionamiento

Dual

Dual XRM49BT Instrucciones de funcionamiento

Dual

Dual XDMA6510 Instrucciones de funcionamiento

Dual

Dual XD5125 Instrucciones de funcionamiento

Dual

Dual XML8110 Instrucciones de funcionamiento

Dual

Dual SD XDMA6370 Instrucciones de funcionamiento

Dual

Dual XHD7720 Instrucciones de funcionamiento

Dual

Dual DVM179 Instrucciones de funcionamiento

Dual

Dual XHD7714 - V3 Instrucciones de funcionamiento

Dual

Dual DC416BT Instrucciones de funcionamiento

Dual

Dual XHD6425 Instrucciones de funcionamiento

Dual

Dual XDMA6855 Instrucciones de funcionamiento

Dual

Dual XDM6400 Instrucciones de funcionamiento

Dual

Dual XDVD1265BT Manual de usuario

Dual

Dual iPlug XDM6220 Instrucciones de funcionamiento

Dual

Dual XRM47RGB Instrucciones de funcionamiento

Dual

Dual XDVD1265BT Instrucciones de funcionamiento

Dual

Dual XDVDN8290N Instrucciones de funcionamiento

Dual

Dual XDVD8130 Instrucciones de funcionamiento

Dual

Dual AXXERA XDMA7600 Instrucciones de funcionamiento

Dual

Dual XDVD8182 Instrucciones de funcionamiento

Dual

Dual XDMA6510 Instrucciones de funcionamiento

Dual

Dual XDVD9101 Instrucciones de funcionamiento

Dual

Dual XDVD236BT Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
