DSPPA POE6463B Manual de usuario
POE6463B POE Powered Network Wall Mount Speaker
100/10Mbps, TCP/IP network transmission protocol adaptive
High class waterproof grille, engineering plastic mold design
Built-in 10W high efficiency digital amplifier with low power-consuming.
Audio source includes: Background music, emergency call, and alarm from the Host
1 auxiliary audio input, 1 auxiliary audio output and 1 microphone input
100V local emergency input, easy to connect with the local fire alarming system
Accept infrared remote control
POE power supply, easy for installation and cable laying
Features
POE6463B is a network full digital signal processor Hi-Fi speaker based on TCP/IP
protocol. With dual network interface design, it can be connect to anywhere the network
reaches. Under intelligent control of the system center, this terminal serves to output the
long distance audio data flow. Built in MP3 player, USB port, and SD slot, for local
program playing. With 1 aux input to connect with other audio source equipment; 1 aux
audio output for connection with other amplifiers for power extension; and 1 MIC input for
local Paging.
Description
Item
Technical specifications
AUX input
Input impedance
>10kΩ
Input sensitivity
1000 mV
Frequency response
50Hz-20kHz
Distortion
0.1%
Signal-to-noise ratio
80 dB
MIC input
Input impedance
>600Ω
Frequency response
50Hz-20kHz
Distortion
1%
Signal-to-noise ratio
75 dB
AUX output
Output impedance
<50Ω
Output sensitivity
1000mV
Frequency response
50Hz-20kHz
Distortion
0.1%
Signal-to-noise ratio
75 dB
Power amplifier output
Power
10W/4Ω
Frequency response
50Hz-20kHz
Distortion
0．1%
Signal-to-noise ratio
80dB
Built-in amplifier
Digital amplifier
1x10W
Built-in speaker
Maximum sound pressure level
100dB
Power
10W/4Ω
Frequency response
50Hz-20kHz
Distortion
0．1%
Signal-to-noise ratio
80dB
Interface
Dual Ethernet interface
CAT-5
AUX input
RCA jack
AUX output
RCA jack
MIC input
6.3 Socket
Auxiliary speaker output
3.81MM Phoenix socket
Digital audio
parameters
Decoding format
Support PCM\MP3 format
Sampling rate
8k-48kHz
Package size (L×W×H mm)
590×275×390
Machine size (L×W×H mm)
310×215×150
Net weight
4.2kg
Specification
II. Introduction of functions
POE LAN
SPEAKER
OUTPUT
AUX
lN L
AUX
IN R
AUX OUT
100V
AUDIO
INPUT
请勿打开,以免触电
警告
IN- IN+ A B
DCOUT
+
OUT COM
POE Network Speaker
1 Speaker
1×10W digital power amplifiers are
built in the machine, and the power of
the output port is 10W. It is used to
connect 1 constant resistance (4Ω)
sound box. (Note: please use it with
caution due to POE switch supply
power restrictions)
2 100V audio input interface (not opened to
the machine)
100V audio signal connected with the
third party system power amplifier.
3 Auxiliary input interface (AUX IN)
Expand the local audio source input, and
can connect local DVD \ radio and other
left and right sound channel output.
4 Auxiliary output interface (AUX OUT)
Connect with the high power amplifier,
so as to expand the terminal power.
5 LED matrix screen connecting port
(Not opened to the machine)
6 POE power supply port
The arrow points at POE power supply
port. The function of the next network
interface is not opened temporarily.
6
1
2
3
4
5
III. Connection legend

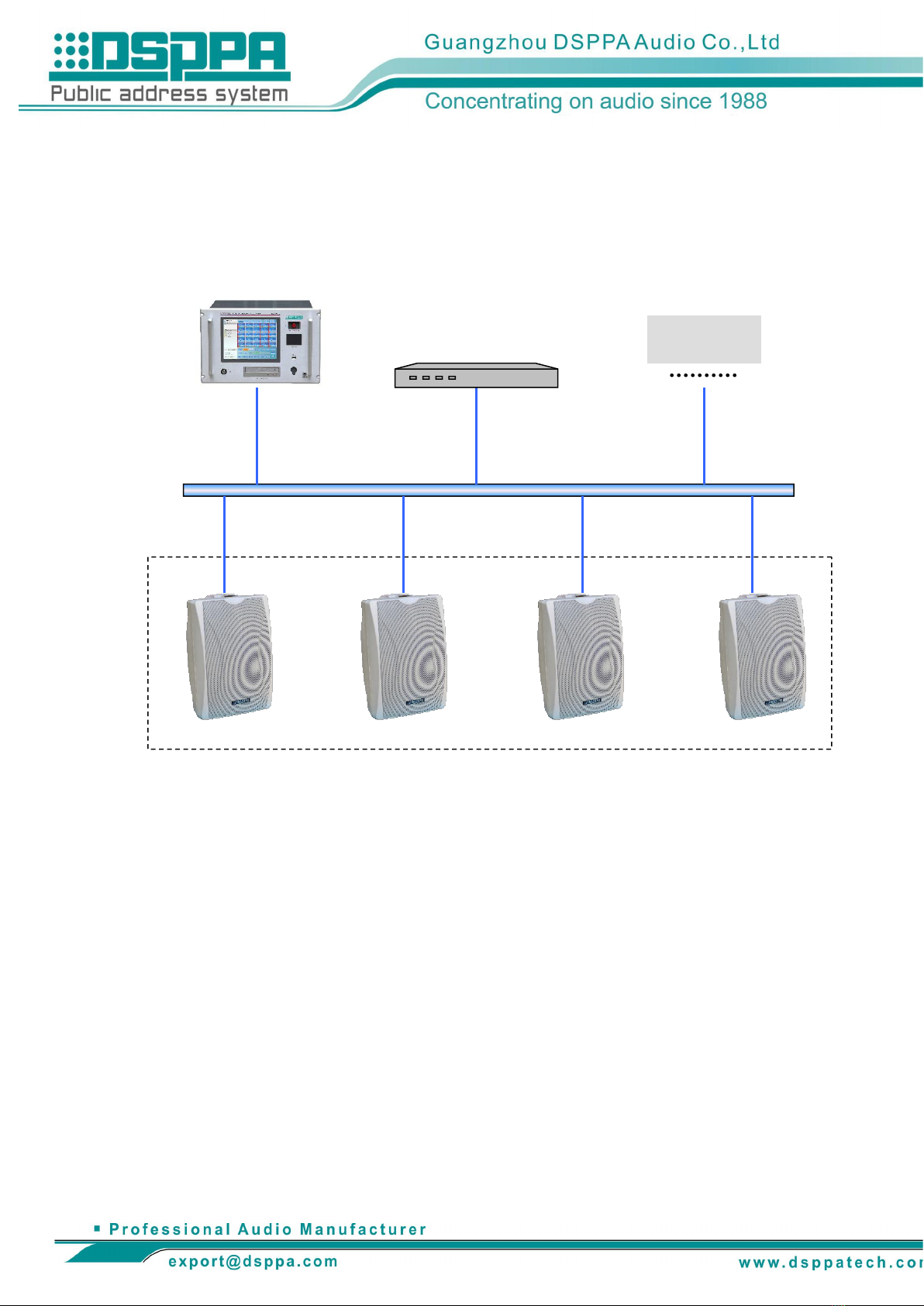

3.1 Schematic diagram of application of POE6463 in the system
1. Only the schematic description for connection of rough application of POE6463
networked speaker is made in the above figure. For connection of the whole system,
please refer to operation instructions for the networked control host.
2. It is illustrated by examples in the above figure. For specific connections, please
refer to the schematic diagram of system connection.
3. POE6463 must be connected in the system through the network switch, and the
corresponding address shall be arranged for connection with the host machine.
Other equipment of the network
broadcasting system
Network
broadcasting
system
Control host of the network
broadcasting system
Termin
al
Termin
al
Termin
al
Termin
al
3.2 Schematic diagram of connection of interface of POE6463
Except for playing the program of host machine broadcast, the machine is also
provided with a way auxiliary input and a way auxiliary output, so as to connect other
audio sources and power amplifiers. The customized design can satisfy demands for
high power and multiple audio sources on terminal site. The peripheral audio source
and other power amplifiers can be connected in the application with individual
demands. The network audio stream of the machine can realize sound amplification at
most public places.
The schematic diagram of interface connection of the machine is shown in the
following figure:
POE LAN
SPEAKER
OUTPUT
AUX
lN L
AUX
IN R
AUX OUT
100V
AUDIO
INPUT
请勿打开,以免触电
警告
IN- IN+ A B
DCOUT
+
OUT COM
POE Network Speaker
POE switch
CD player
4Ω, 10W
Power
amplifier
