DSPPA DSP8063B Manual de usuario

DSP8063B 30W Wall Mount Speaker with Power Tap

Input 70V/100V/4-16Ω

Wide Freq.Resp.:80Hz-20KHz

Max SPL:105±2dB

High sensitivity:90±2dB

Wall mount type loudspeaker

Metal grille and ABS enclosure of black color

Equipped with hanging holes for mounting convenient

Features

The DSP8063 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is

realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel

connection of multiple loudspeakers possible.

Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high

sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where

background music and paging is needed.

Description

Specification

Model

DSP8063

Speaker Unit

5"×1, 1"×1

Rated Power

30W

Input

Constant voltage

70/100V

Constant resistance

8Ω

Sensitivity(1M,1W)

90±2dB

Max SPL(1M)

105±2dB

Freq. Resp

80Hz-20kHz

Weight

3.2 kg

Dimension(H×W×D)

280×194×185mm

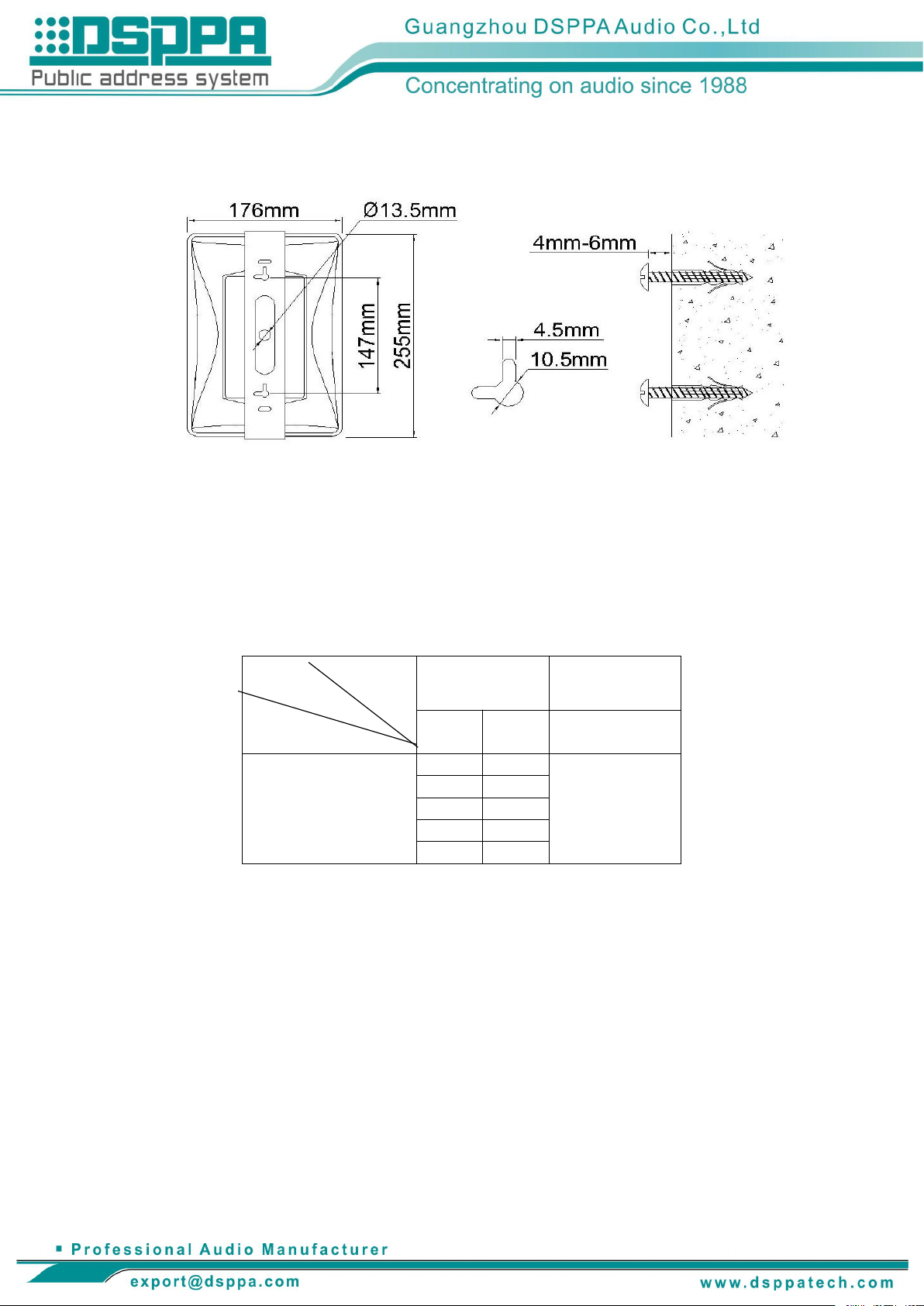

1. Fit two Ø4mm nails on wall where it is needed to install a speaker system.

2. Connect audio broadcasting wire to the speaker according to the table below.

Constant voltage

Constant

resistance

70V

100V

8Ω

Red--White

30W

15W

30W

15W

2.5W

Note:

When the audio line is the constant voltage, prohibit the knob to the 8Ω.

Prohibit to adjust to“—” under state at 100V cause speaker damage!

3. Position the speaker, then adjust the direction of it and examine whether it is steady.

Installation

Hanging hole Nail For Mounting

Input Voltage

Terminal

Power

DSP8 063

Horizontal directivity pattern

D SP8 063

Vertical directivity pattern

FREQ. RESPONSE DISTORTION

(dB SPL、1W、1m) (THD< 1.5% 1W、1m、200Hz~12kHz)
