Introduction

Installation

Mounting the Cabinet

When mounting a new cabinet for the PC5400,

select a dry location near the F1/F2 subset for

DVACS communications.

To mount the PC5400:

1. Press the four white circuit board stand-offs

into the raised mounting holes from the back

of the cabinet.

2. Hold the cabinet in position and pull the wires

into the cabinet.

3. Mount the cabinet securely to the wall using

the mounting screws provided. Use the

appropriate wall anchors when securing the

panel to the drywall, plaster, concrete, brick or

other similar surfaces.

4. With the cabinet mounted press the PC5400

module into the stand-offs.

Wiring

Refer to the Hook-up Diagram included in this

manual.

RED, BLK, YEL and GRN Terminals

Connect the RED, BLK, YEL and GRN terminals to

the RED, BLK, YEL and GRN terminals on the

control panel. Refer to the control panel

Installation Manual for complete instructions on

keybus wiring.

T1 and T2

Connect T1 and T2 to a normally closed switch

that will be used to monitor tampers. If no tamper

switch is desired place a wire between T1 and T2.

Features

Allows compatible alarm control panels to be

connected to a DVACS communications network.

Module Specifications

•4 wire (QUAD) hook-up to keybus

•Normal current draw of 35mA

•Tamper and Trouble reporting codes

•Maximum cable length: 61m (200 ft)

PC5400 connected to a DVACS network

•Automatic programming for DVACS

reporting codes.

•Monitoring for DVACS line fault.

•Module self diagnostics.

Compatible Panels

•PC5015

•PC5010

•PC5008

•PC1575

•PC1555

•PC580

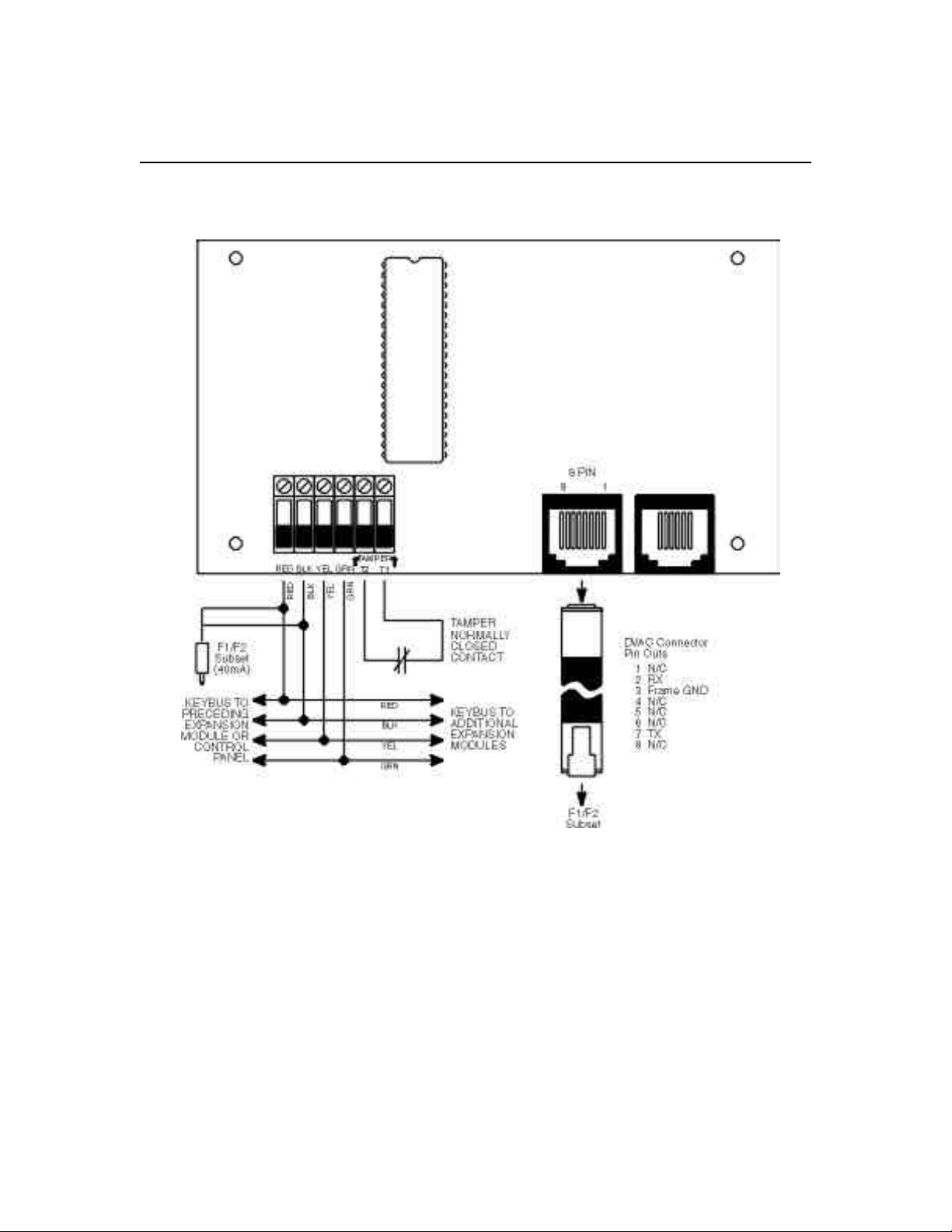

PC5400 Hookup Diagram

Programming Section Descriptions

If you will be connecting the PC5400 to a PC5010, PC5015, PC1555 or PC580 control panel, access the

PC5400 programming sections at a system keypad by entering [*][8][Installer's Code][803]. Then enter

the 2-digit number of the section you want to program.

If you will be connecting the PC5400 to a PC1575, access the PC5400 programming sections at a

system keypad by entering [*][8][Installer's Code][87]. Then enter the 2-digit number of the section you

want to program.

Section [06], Option [2]: AC Communications

To change from standard DVACS (150 baud) to AC communications protocol (300 baud) program this

option as ON.

Section [07]: Subsystem Number

Program the DVACS Subsystem number in this section.

Section [08]: Group Number

Program the DVACS Group number in this section.

Section [09]: Panel DVACS Identifier Code

Program the DVACS ID code in this section.

Sections [10-17], and [50-52]: DVACS Reporting Codes

Program the DVACS reporting codes in these sections (see Appendix A: ADT DVACS Transmission

Table):

•To have the PC5400 transmit a pre-programmed code from the internal table, leave the

programming at the default value FF.

•To prevent the PC5400 from reporting an event, program the code as 00.

•To have the PC5400 transmit a different code, program a value from 01-FE.

Sections [18-27]: Transmission Options

To prevent the PC5400 from transmitting a group of reporting codes (e.g. zone troubles or zone trouble

restorals) program the appropriate option as OFF. All options are ON by default.

Sections [28-35]: Zone Assignments

The programming in these sections tells the PC5400 which partitions each zone is assigned to (on

control panels which are capable of partitioning) and/or which zones in active use.

If the PC5400 is connected to a control panel using partitions, make sure that the zone/partition

assignments match those programmed in the control panel.

If the PC5400 is connected to a control panel without partitions, you must still program these sections:

for each used zone on the control panel, turn ON the option that assigns the zone to partition 1.

Sections [36-39]: Zone Definitions

Make sure that the zone definitions match those programmed in the control panel.

NOTE: If you change any of the above options from the default settings, test the PC5400 to make sure

it is operating as desired.

If you will be connecting the PC5400 to a PC5010, PC5015, PC5008, PC1555 or PC580 control panel,

access the PC5400 programming sections at a system keypad by entering [*][8][Installer's Code][803].

Then enter the 2-digit number of the section you want to program. See page 7 for PC5010, PC5015,

PC5008, PC1555, PC580 programming sections.

If you will be connecting the PC5400 to a PC1575, access the PC5400 programming sections at a

system keypad by entering [*][8][Installer's Code][87]. Then enter the 2-digit number of the section you

want to program. See page 15 for PC1575 programming sections.

Program the following sections for all control panels:

[06] Miscellaneous Options

Default Option ON Option OFF

OFF I____IOption 1 For future use

OFF I____IOption 2 AC Communications DVACS Communications

OFF I____IOption 3-8 For future use

[07] Subsystem Number

Default

0 0 I____I____I (Valid entries are 00-99)

[08] Group Number

Default

0 0 I____I____I (Valid entries are 00-99)

[09] Panel Identifier

Default

0 0 I____I____I (Valid entries are 00-63)

Programming Worksheets

PC5010, PC5015, PC5008, PC1555, PC580 Programming Sections

(see page 15 for PC1575 programming sections)

[10] Zone 1-8 Reporting Codes

Default Default

FF I____I____IZone 1 FF I____I____IZone 5

FF I____I____IZone 2 FF I____I____IZone 6

FF I____I____IZone 3 FF I____I____IZone 7

FF I____I____IZone 4 FF I____I____IZone 8

[11] Zone 9-16 Reporting Codes

Default Default

FF I____I____IZone 9 FF I____I____IZone 13

FF I____I____IZone 10 FF I____I____IZone 14

FF I____I____IZone 11 FF I____I____IZone 15

FF I____I____IZone 12 FF I____I____IZone 16

[12] Zone 17-24 Reporting Codes

Default Default

FF I____I____IZone 17 FF I____I____IZone 21

FF I____I____IZone 18 FF I____I____IZone 22

FF I____I____IZone 19 FF I____I____IZone 23

FF I____I____IZone 20 FF I____I____IZone 24

[13] Zone 25-32 Reporting Codes

Default Default

FF I____I____IZone 25 FF I____I____IZone 29

FF I____I____IZone 26 FF I____I____IZone 30

FF I____I____IZone 27 FF I____I____IZone 31

FF I____I____IZone 28 FF I____I____IZone 32

[14] Keypad 1-8 Reporting Codes

Default Default

FF I____I____IKeypad 1 FF I____I____IKeypad 5

FF I____I____IKeypad 2 FF I____I____IKeypad 6

FF I____I____IKeypad 3 FF I____I____IKeypad 7

FF I____I____IKeypad 4 FF I____I____IKeypad 8

[15] Zone Expander 1-6 Reporting Codes

Default Default

FF I____I____IExpander 1 FF I____I____IExpander 5

FF I____I____IExpander 2 FF I____I____IExpander 6

FF I____I____IExpander 3 FF I____I____IPC5100

FF I____I____IExpander 4 FF I____I____IFor future use

[16] Miscellaneous Reporting Codes

Default Default

FF I____I____I2 Wire Smoke FF I____I____IKeypad [F,A,P]

FF I____I____IFor future use FF I____I____ITLM Trouble

FF I____I____IPhone #1 FTC FF I____I____IBell Supervisory

FF I____I____IPhone #2 FTC FF I____I____IFor future use

[17] Module Reporting Codes

Default Default

FF I____I____IPC5132 FF I____I____IESCORT5580

FF I____I____IPC5208 FF I____I____IPC59xx

FF I____I____IPC5204 FF I____I____IDownlook Module

FF I____I____IPC5400 FF I____I____IAlternate Communicator

[18] First Transmission Options

Default Option On Option Off

ON I____IOption 1 Zone Alarms Disabled

ON I____IOption 2 Zone Alarm Restorals Disabled

ON I____IOption 3 Zone Troubles Disabled

ON I____IOption 4 Zone Trouble Restorals Disabled

ON I____IOption 5 Zone Tampers Disabled

ON I____IOption 6 Zone Tamper Restorals Disabled

ON I____IOption 7 Zone Low Battery Disabled

ON I____IOption 8 Zone Bypass Common Partial Closing

[19] Second Transmission Options

Default Option On Option Off

OFF I____IOption 1 Keypad Fire Disabled

OFF I____IOption 2 Keypad Auxiliary Disabled

OFF I____IOption 3 Keypad Panic Disabled

OFF I____IOption 4 Duress Disabled

ON I____IOption 5 Keypad Supervisory Disabled

ON I____IOption 6 Keypad Supervisory Restore Disabled

ON I____IOption 7 Keypad Tamper Disabled

ON I____IOption 8 Keypad Tamper Restore Disabled

[20] Third Transmission Options

Default Option On Option Off

ON I____IOption 1 Zone Expander Supervisory Disabled

ON I____IOption 2 Zone Expander Superv. Restore Disabled

ON I____IOption 3 Zone Expander Tamper Disabled

ON I____IOption 4 Zone Expander Tamper Restore Disabled

ON I____IOption 5 PC5132 Supervisory Disabled

ON I____IOption 6 PC5132 Supervisory Restore Disabled

ON I____IOption 7 PC5132 Tamper Disabled

ON I____IOption 8 PC5132 Tamper Restore Disabled

[21] Fourth Transmission Options

Default Option On Option Off

ON I____IOption 1 PC5400 Supervisory Disabled

ON I____IOption 2 PC5400 Supervisory Restore Disabled

ON I____IOption 3 PC5400 Tamper Disabled

ON I____IOption 4 PC5400 Tamper Restore Disabled

ON I____IOption 5 Downlook Module Supervisory Disabled

ON I____IOption 6 DLK Mod. Supervisory Restore Disabled

ON I____IOption 7 PC5204 Output 1 Fail Disabled

ON I____IOption 8 PC5204 Output 1 Restore Disabled

[22] Fifth Transmission Options

Default Option On Option Off

ON I____IOption 1 PC5204 Supervisory Disabled

ON I____IOption 2 PC5204 Supervisory Restore Disabled

ON I____IOption 3 PC5204 Tamper Disabled

ON I____IOption 4 PC5204 Tamper Restore Disabled

ON I____IOption 5 PC5204 AC Failure Disabled

ON I____IOption 6 PC5204 AC Restore Disabled

ON I____IOption 7 PC5204 Battery Trouble Disabled

ON I____IOption 8 PC5204 Battery Restore Disabled

[23] Sixth Transmission Options

Default Option On Option Off

ON I____IOption 1 PC5208 Supervisory Disabled

ON I____IOption 2 PC5208 Supervisory Restore Disabled

ON I____IOption 3 PC5208 Tamper Disabled

ON I____IOption 4 PC5208 Tamper Restore Disabled

ON I____IOption 5 PC59xx Supervisory Disabled

ON I____IOption 6 PC59xx Supervisory Restore Disabled

ON I____IOption 7 ESCORT5580 Supervisory Disabled

ON I____IOption 8 ESCORT5580 Supervisory Restore Disabled

[24] Seventh Transmission Options

Default Option On Option Off

ON I____IOption 1 Closing By User Disabled

OFF I____IOption 2 Recent Closing Disabled

ON I____IOption 3 For future use

ON I____IOption 4 Automatic Closing Disabled

ON I____IOption 5 Quick Arm Disabled

ON I____IOption 6 Closing By Maintenance Code Disabled

ON I____IOption 7 Closing By Keyswitch Zone Disabled

ON I____IOption 8 Closing By Downloading Disabled

[25] Eighth Transmission Options

Default Option On Option Off

ON I____IOption 1 Opening By User Disabled

OFF I____IOption 2 Auto Arm Cancellation Disabled

ON I____IOption 3 Opening By Maintenance Code Disabled

ON I____IOption 4 Opening By Keyswitch Zone Disabled

ON I____IOption 5 Opening By Downloading Disabled

OFF I____IOption 6 Opening After Alarm Disabled

ON I____IOption 7 Late to Close Disabled

ON I____IOption 8 Downlook Module Remote Trigger Disabled

[26] Ninth Transmission Options

Default Option On Option Off

ON I____IOption 1 Battery Trouble Disabled

ON I____IOption 2 AC Failure Disabled

ON I____IOption 3 Fire Trouble Disabled

ON I____IOption 4 Keybus Failure Disabled

ON I____IOption 5 Police Code Disabled

ON I____IOption 6 Delinquency Disabled

ON I____IOption 7 PC5100 Supervisory Disabled

ON I____IOption 8 PC5100 Supervisory Restore Disabled

[27] Tenth Transmission Options

Default Option On Option Off

ON I____IOption 1 PC5204 Trouble Disabled

ON I____IOption 2 PC5204 Trouble Restore Disabled

ON I____IOption 3 Alternate Communicator Supervisory Disabled

ON I____IOption 4 Alternate Comm. Superv. Restore Disabled

ON I____IOption 5 Alternate Communicator Tamper Disabled

ON I____IOption 6 Alternate Comm. Tamper Restore Disabled

ON I____IOption 7 PC5100 Tamper Disabled

ON I____IOption 8 PC5100 Tamper Restore Disabled

Tabla de contenidos

Otros manuales de Unidad de control de DSC

DSC

DSC PowerSeries Manual de usuario

DSC

DSC Misterhouse PC5401 Manual de usuario

DSC

DSC AMP-704 Manual de usuario

DSC

DSC PC6216 Manual de usuario

DSC

DSC Power Series PC5904 Manual de usuario

DSC

DSC Maxsys PC4701 Manual de usuario

DSC

DSC PC5928 Manual de usuario

DSC

DSC PC5108 Manual de usuario

DSC

DSC MAXSYS PC4850 Manual de usuario

DSC

DSC RXL2-433 Manual de usuario

DSC

DSC MAXSYS PC4851 Manual de usuario

DSC

DSC PowerSeries Manual de usuario

DSC

DSC PCL422 Manual de usuario

DSC

DSC Sur-Gard DVACS PC54OO Manual de usuario

DSC

DSC PowerSeries PC585 Manual de usuario

DSC

DSC PC5200 Manual de usuario

DSC

DSC Power Series Manual de usuario

DSC

DSC Downlook DLM-7 Manual de usuario

DSC

DSC PC5700 Manual de usuario

DSC

DSC Maxsys PC4116 Manual de usuario

DSC

DSC PowerSeries Neo V1.2 Manual de usuario

DSC

DSC IT-100 Manual de usuario

DSC

DSC PC6216 Manual de usuario

DSC

DSC ESCORT558OTC Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
