Dräger Infinity Central Station Manual de usuario

This Infinity Quick Reference

Guide is not a replacement or

substitute for the Instructions

for Use (IFU). It is for informa-

tional purposes only.

Software Level: VG1

Quick Reference Guide

Infinity Central Station

With M300 Telemetry Unit

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 2

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Content

Electrode & Lead Placement

3-6

M300 Equipment Overview

7-9

ICS Overview

10-13

Alarms

14-15

ICS Features

16-18

Assignment of Monitor to ICS

15-16

Admitting a Patient

Recording

Setting Alarms

ECG Menu Options

SpO

Monitoring

Accessing Trends & Data

Full Disclosure

Strip Recording

Events

Locking/unlocking Full disclosure/Events

Electronic Calipers

Discharge

Transfer of Data

Telemetry ECG Troubleshooting Techniques

33-36

Cleaning Instructions

Note: Some actions can only be performed at the device, not the ICS. This is noted

where applicable throughout this document.

Warning! This “Quick Reference Guide” is not intended to replace the Instructions for

Use manual. For full information concerning the performance characteristics of the

Dräger devices described in this Quick Reference Guide, each user must carefully read

and fully comprehend the Instructions for Use before operating the respective device.

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 3

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Electrode & Lead Placement

DO’S & DO NOT’S

Do place the electrode on a clean and dry

area of skin.

Do utilize soap, water, and dry skin thor-

oughly.

Do remove hair if necessary for proper elec-

trode placement.

Do change electrodes Q 24-

48 hours, or per

hospital policy.

Do Not utilize alcohol to dry and clean area

of skin for electrode placement.

Do Not place electrodes over bony promi-

nences or area of increased muscle move-

ment/activity.

Do Not assume electrodes are “good” if the

tape portion is attached to the patient’s skin.

Do Not braid, tie or knot leads.

*Always follow hospital

-approved practices or the recommen-

dations of the electrode manufacturer.

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 4

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

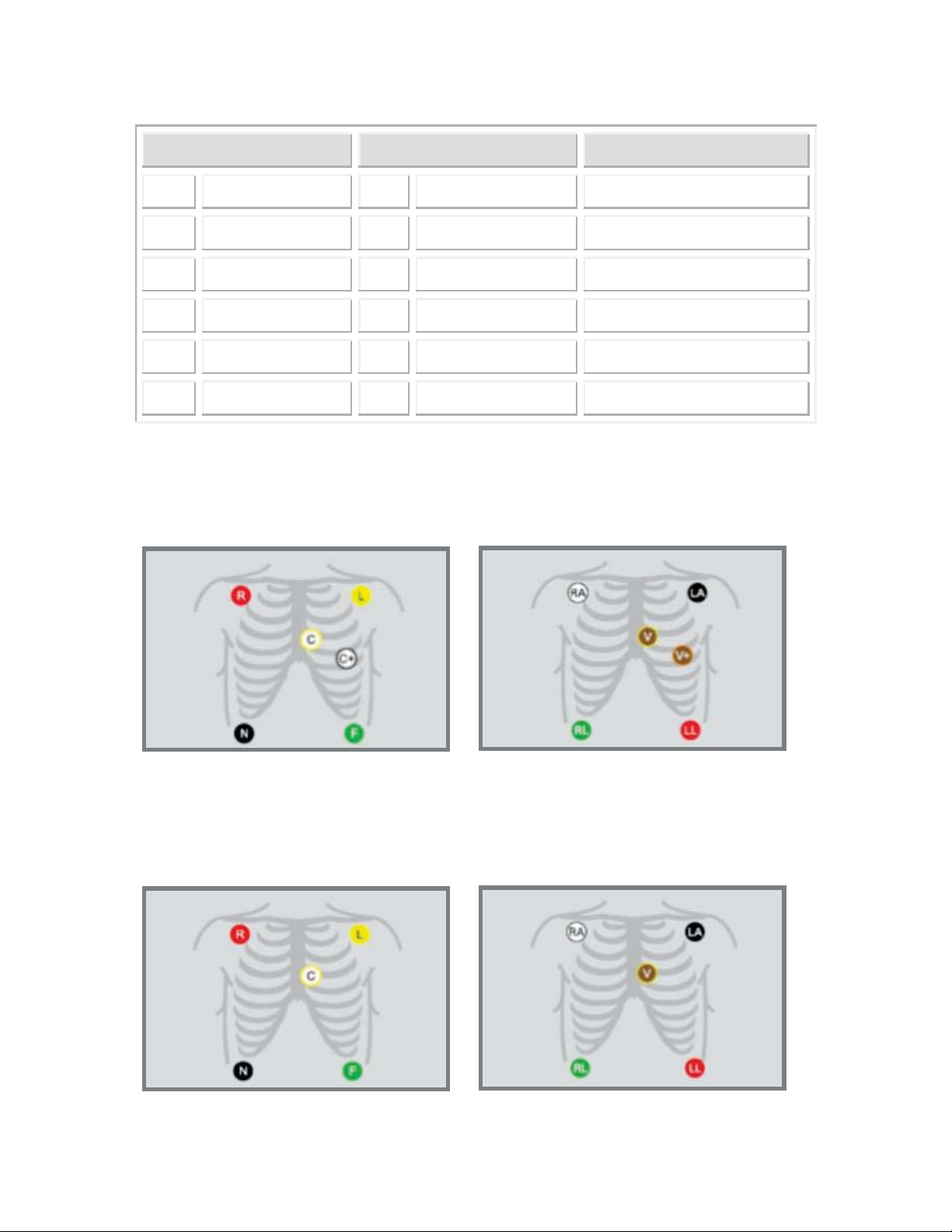

Electrode Colors*

IEC

AHA/US

Electrode

Location

Yellow

Black

Left arm

Green

Red

Left leg

Red

White

Right arm

Black

Green

Right leg (neutral)

White

Brown

Moveable

chest

C+

Gray

& White

V+

Gray

& Brown

2nd M

oveable

chest

Standard

Lead

Configuration

IEC

Standard 5 Lead Configuration

IEC

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 5

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

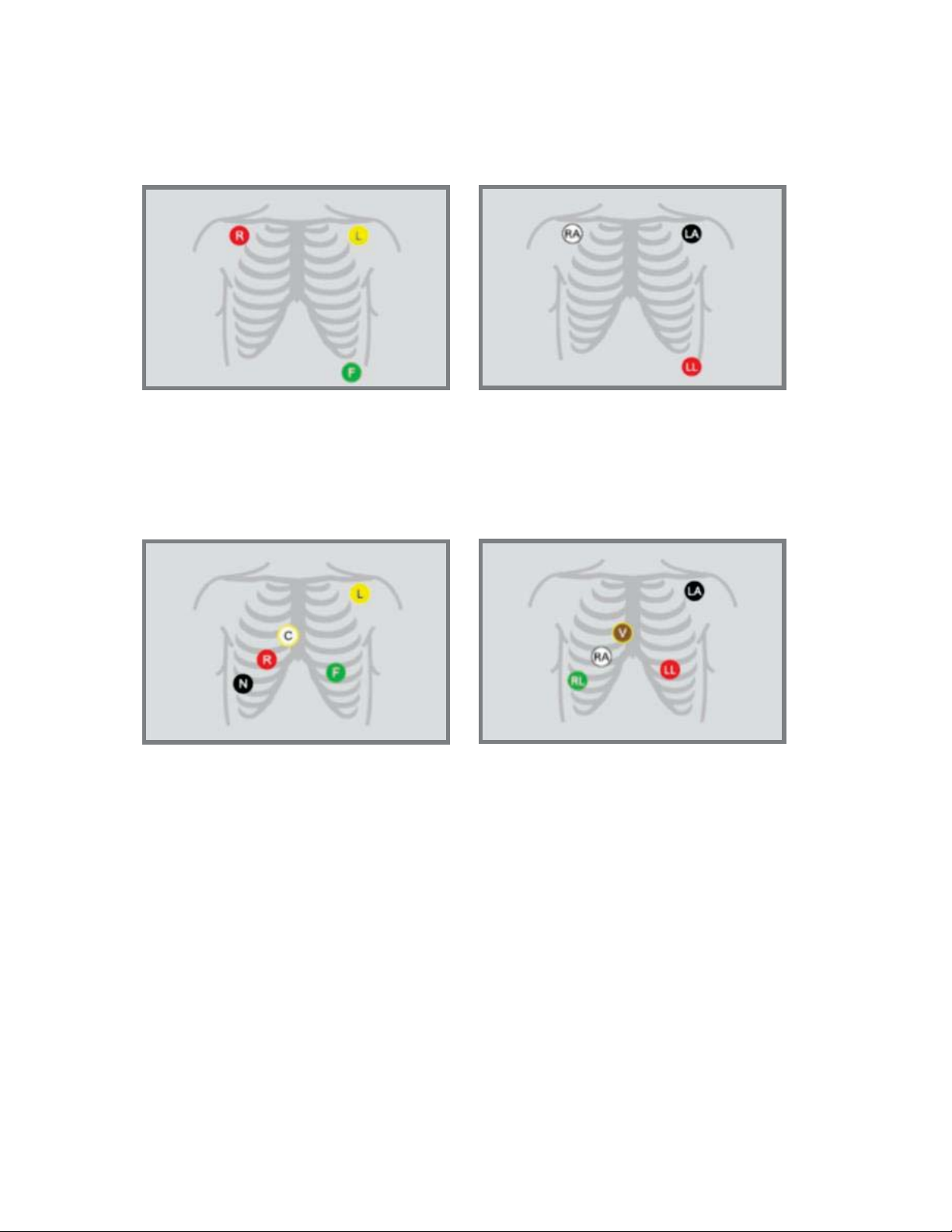

Standard 3 Lead Configuration

IEC

Pacemaker Configuration 5 electrodes

IEC

Warning: Make sure the pacemaker detection is turned OFF for

patients without pacemakers and that it is ON for patients with

pacemakers. Always keep pacemaker patients under close surveil-

lance.

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 6

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

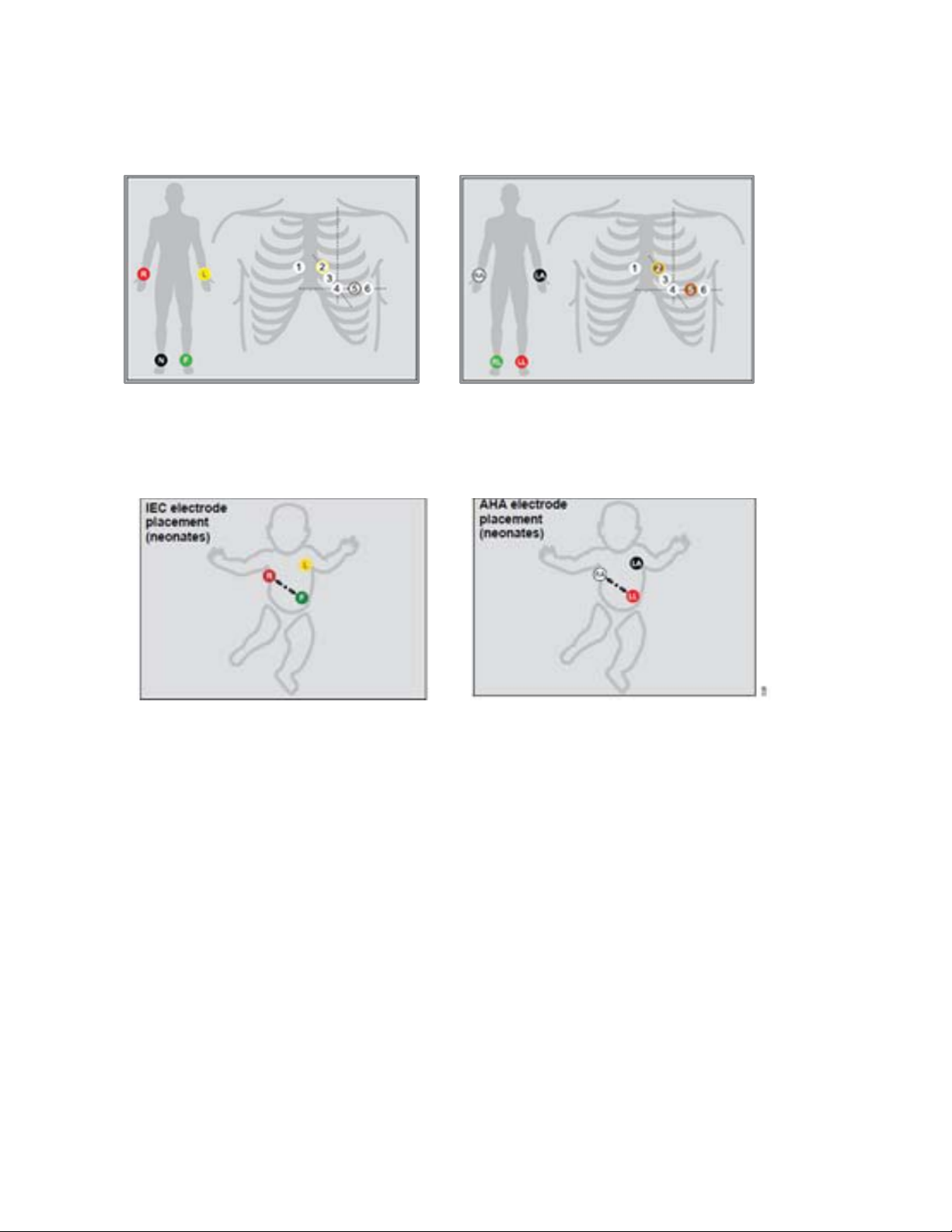

12-Lead Configuration (ten electrodes)

IEC

Respiratory lead placement for infants

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 7

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

M300 Telemetry

PATIENT

WORN MONITORING

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 8

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

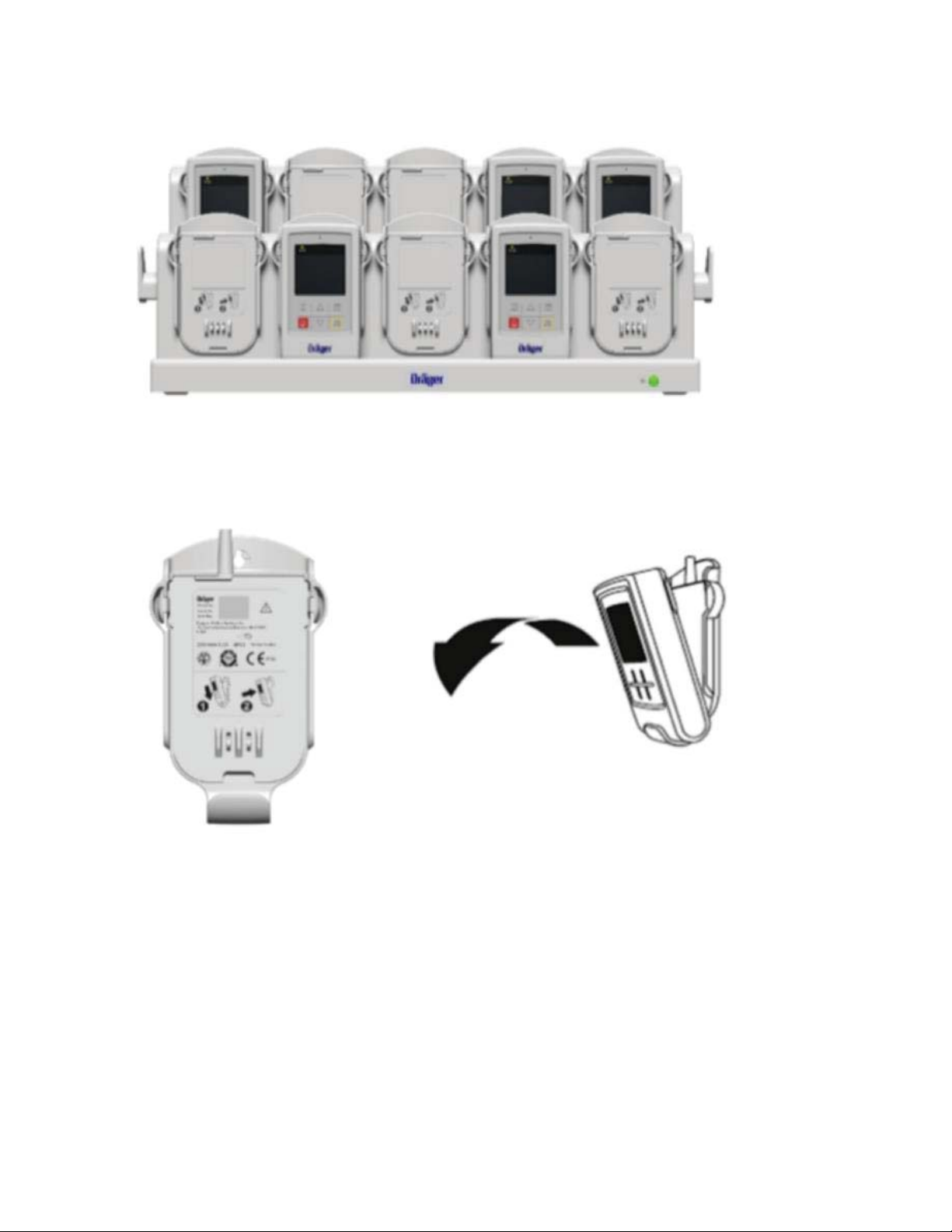

REMOVE

M300 FROM

BEDSIDE CHARGER

CENTRAL

CHARGER

Note: The M300 enters a deep-discharge state when it is stored away from

either the Bedside Charger or the Central Charger for extended periods. To

exit the deep-discharge state, place the M300 in either the Bedside Charger

or the Central Charger for at least 30 minutes.

BEDSIDE

CHARGER

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 9

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

M300 Telemetry

Record

Key

- Press to generate a strip recording and store an

event at the ICS or press to cancel. (if enabled).

Staff Alert

- Press to send staff alert message to the ICS (trig-

gers a Medium-priority alarm at the ICS,

if ena-

bled).

Up/Down

Arrow

- Press to scroll through waveforms.

Press to increase or decrease a setting in an

M300 window.

Press both keys longer than 3 seconds to turn

the M300 power on/off.

View Key

- Press and hold longer than 3 seconds to turn the

M300 screen on & off.

Press to scroll through the Main, Lead

Status, Volume & Demographics screens.

Press to cancel Standby Mode.

- Press to accept/confirm user-selected values.

Alarm

Pause

- Press and hold longer than 3 seconds, follow

prompts. (if enabled), press again to cancel

during

all alarms paused status.

- Suppresses alarm monitoring of the corresponding

patient at the ICS and the M300 to pre-

configured

alarm pause period time.

2014 Draeger

Medic

Inc

INFINITY CENTRAL STATION & M300 QUICK REFERENCE GUIDE

| 10

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

ICS Ter

minolog

INFINITY CENTRAL STATION (ICS)

Provides simultaneous central monitoring and critical care man-

agement of up to 32 patients per ICS. It is the primary patient mon-

itoring display and alarm source for M300 patients. It is the sec-

ondary patient monitoring display and alarm source for Infinity pa-

tient monitors displayed on the Main screen.

MAIN SCREEN

The primary ICS screen displays up to 16 patients (up to 32 patients

in dual screen configuration) which are assigned at the ICS for cen-

tral monitoring.

VIEWPORT

A slot on the ICS Main screen that is assigned to a patient; it con-

sists of a waveform area, a parameter box and a header.

BEDVIEW

A window on the ICS displaying the content of a bedside monitor or

M300.

M300

A patient-worn transceiver that uses the ICS as the primary patient

monitoring display and primary alarm source.

INFINITY PATIENT MONITORS

Monitors located at the bedside of the patient or accompanying the

patient on transport that provide continuous monitoring and data

collection of multiple parameters. Often referred to as the bedside

monitor in this document.

HL7

An interface for patient admission and laboratory values, which re-

quires an Infinity Gateway.
