Dräger Infinity C700 Manual de usuario

Infinity Acute Care System

This Infinity Quick Reference

Guide is not a replacement or

substitute for the Instructions for

Use (IFU). It is for informational

purposes only.

Software Level: VG4

Quick Reference Guide

Infinity Cockpit

C700 / C500

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |2

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Content

Electrode & Lead Placement

3-6

Docking, Transport, Power and Keys

7-9

Blue Header Bar, Quick Access & Function Keys

10-12

Patient Category and Admit

Discharge, Standby and Privacy

Alarm Priorities

Alarm Pause & Alarm Setup

16-18

Screen Setup Restore Profile and Views

19-20

Parameter Setup

ECG

21-22

RRi/Impedance Respirations

22-23

SpO2

23-24

NIBP

Mainstream etCO2 Monitoring

25-26

12 lead ECG

Invasive Pressures

PAWP

Cardiac Output

28-29

Calculations

Warning! This “Quick Reference Guide” is not intended to replace the Instructions for Use manual.

For full information concerning the performance characteristics of the Dräger devices described in

this Quick Reference Guide, each user must carefully read and fully comprehend the Instructions for

Use before operating the respective device.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |3

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Electrode & Lead Placement

DO’S & DO NOT’S

Do place the electrode on a clean and dry

area of skin.

Do utilize soap, water, and dry skin thor-

oughly.

Do remove hair if necessary for proper elec-

trode placement.

Do change electrodes Q 24-

48 hours, or per

hospital policy.

Do Not utilize alcohol to dry an

d clean area

of skin for electrode placement.

Do Not place electrodes over bony promi-

nences or area of increased muscle move-

ment/activity.

Do Not assume electrodes are “g

ood” if the

tape portion is attached to the patient’s skin.

Do Not braid, tie or knot leads.

Note:

Always follow hospital-approved practices or the recom-

mendations of the electrode manufacturer.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |4

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Electrode Colors*

IEC

AHA/US

Electrode

Location

Yellow

Black

Left arm

Green

Red

Left leg

Red

White

Right arm

Black

Green

Right leg (neutral)

White

Brown

Moveable

chest

C+

Gray

& White

V+

Gray

& Brown

2nd M

oveable

chest

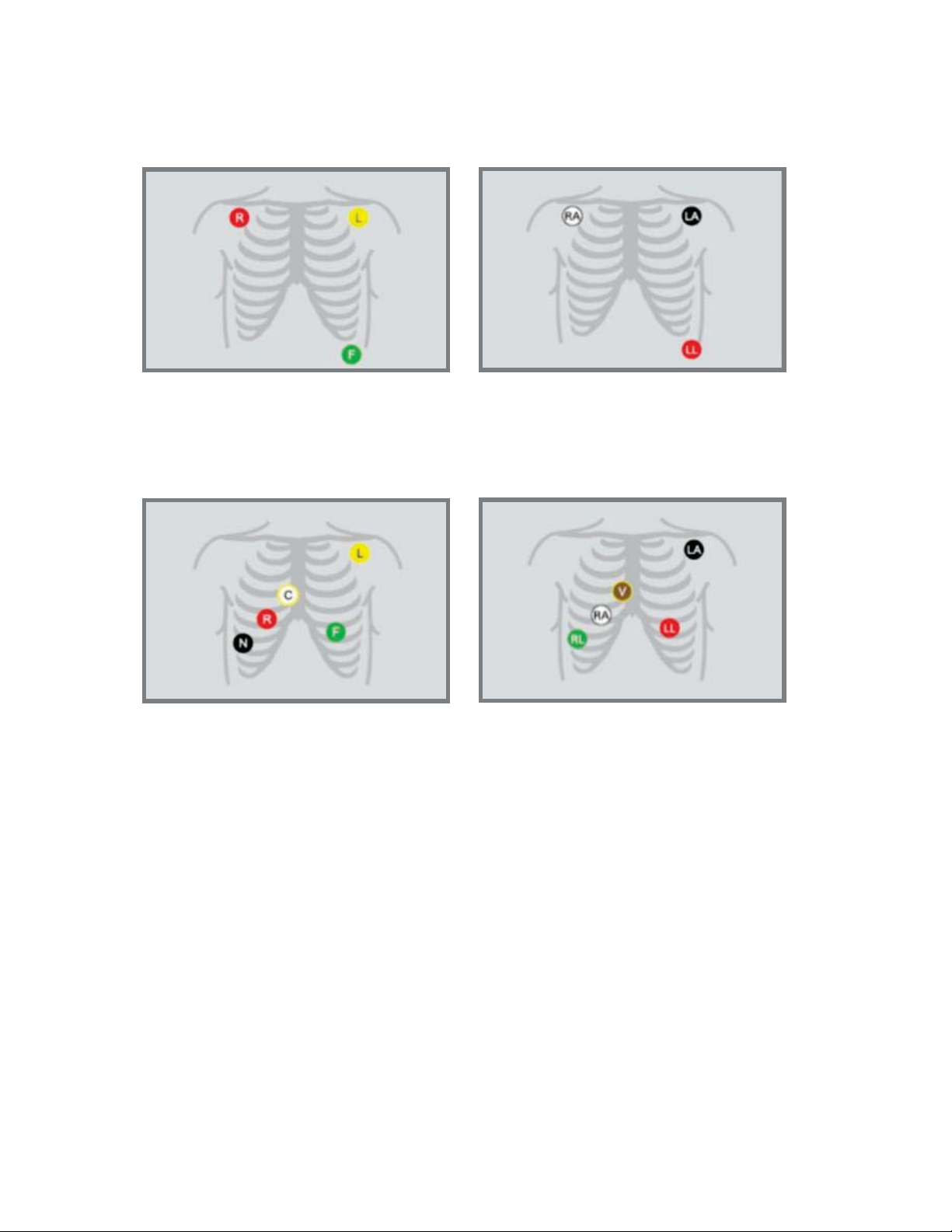

Standard

Lead

Configuration

IEC

Standard 5 Lead Configuration

IEC

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |5

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Standard 3 Lead Configuration

IEC

Pacemaker Configuration 5 electrodes

IEC

Warning: Make sure the pacemaker detection is turned OFF for patients

without pacemakers and that it is ON for patients with pacemakers. Al-

ways keep pacemaker patients under close surveillance.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |6

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

12-Lead Configuration (ten electrodes)

IEC

Respiratory lead placement for infants

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |7

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Docking and Transport, Power &

Frequently Used Keys

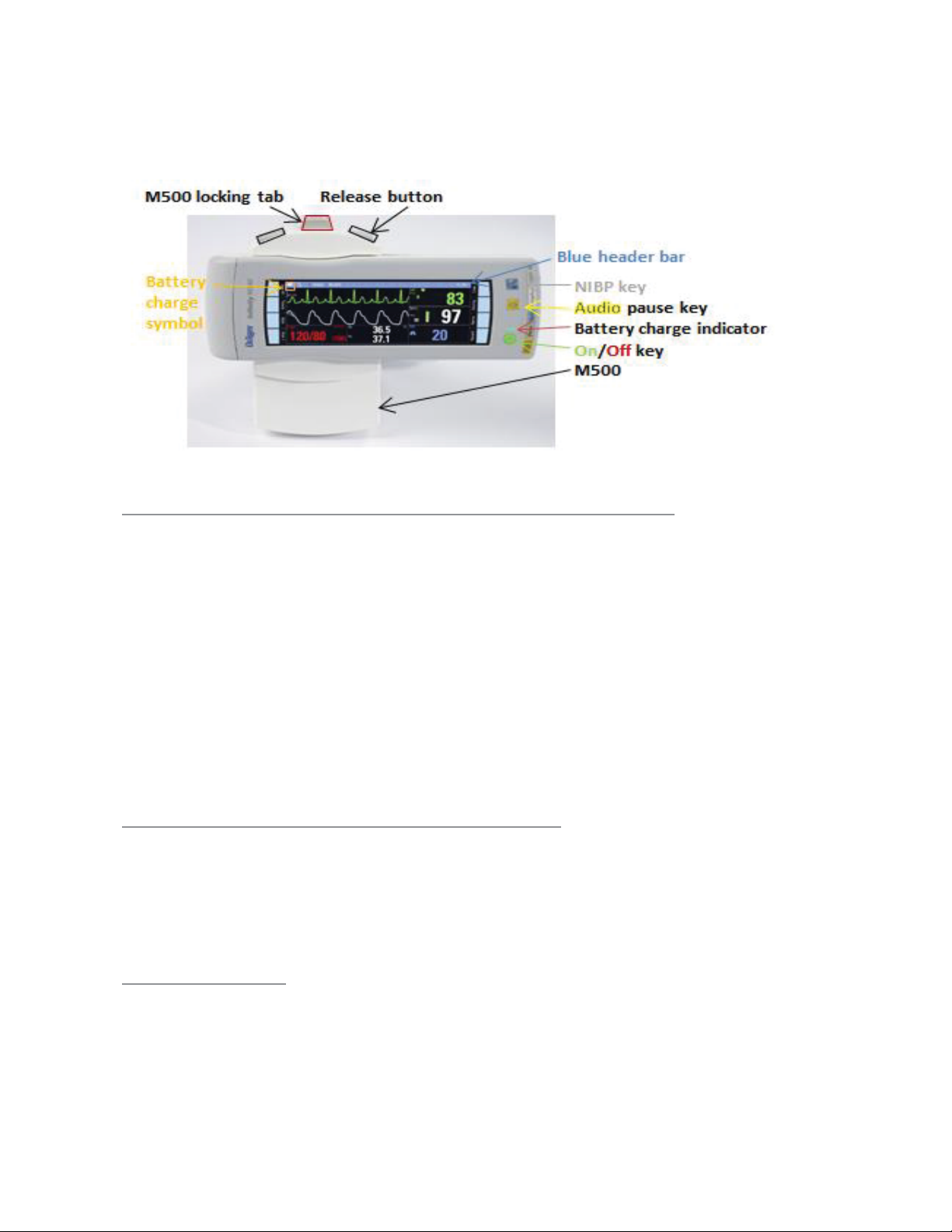

M500 DOCKING STATION WITH M540 AND COCKPIT

1. M500 secures and powers the M540 monitor

2. M500 connects M540 to the Cockpit and the Infinity network

that may include an Infinity Central Station (ICS), a network re-

corder, and a network printer.

3. M540 facilitates transport of patient when undocked, by main-

taining all patient connections and alarm settings.

4. M540 when configured as wireless can send information to the

ICS over a Wi-Fi network.

TO UNDOCK M540 (release for transport)

1. Push locking tab toward the back of M500

2. While holding the M540 firmly with one hand press one of the

release buttons on M500 and remove from M500

TO DOCK M540

1. Align curved portions of M540 and M500

2. Press M540 into M500 until it clicks in place.

3. Push the locking tab toward the front of M500.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |8

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

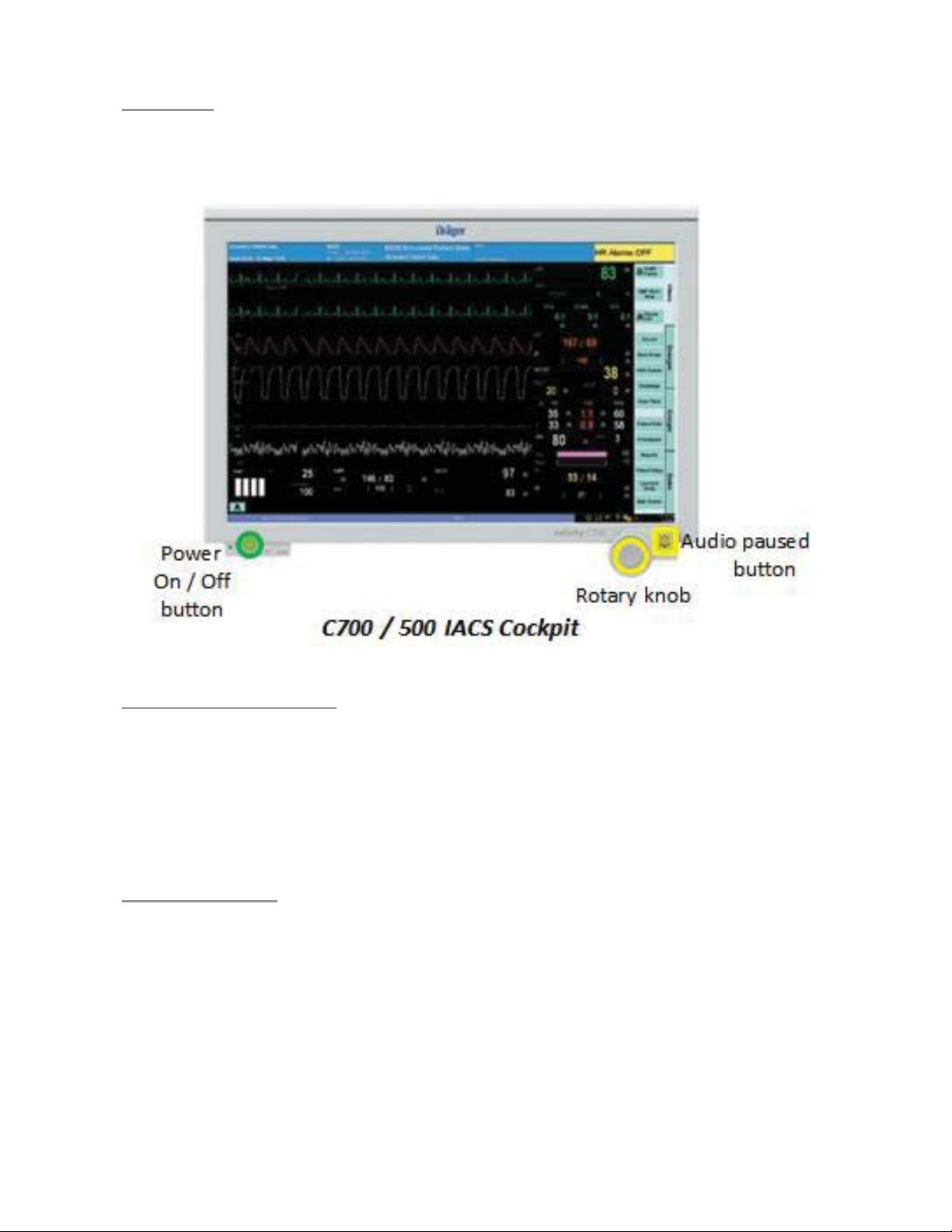

COCKPIT

Refers to the C500/C700 medical cockpit. The main user interface

for the IACS

TO POWER ON/OFF

1. Press the Power On/Off key

2. Select Shutdown inside the dialog window. The message

3. System is shutting down appears on the screen while the

4. Infinity Medical Cockpit is being powered down.

ROTARY KNOB

Navigates through menus and tables to define settings

1. Touch a Parameter box or Function key to display a menu.

Turn the Rotary knob to the left or right to increase or de-

crease a numeric value, to scroll down a list, or navigate

through a menu.

2. Press the Rotary knob to accept a selected setting.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |9

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

AUDIO PAUSE KEY

This key is located to the right of the rotary knob.

Pauses acoustic alarm signals for two minutes.

Note: Quiet Mode is Activated – If a new alarm condition with a priority

higher than the currently paused alarm occurs, a truncated alarm tone

sounds. In addition, the alarm is represented by visual alarm signals corre-

sponding to the alarm priority. If the new alarm is of lower priority than the

paused alarm, the new alarm condition is only represented by a visual alarm

signal. No acoustic alarm tones sound.

If Quiet Mode is Deactivated - Any new alarm condition breaks through the

Audio Pause period with full acoustic and visual alarm annunciation.

TO CALIBRATE THE C700 / 500 SCREEN

1. Press the rotary knob for 30 sec. until the Calibrate Touch

Screen popup appears. (Requires several seconds)

2. Select the Calibrate button in the popup or press the rotary

knob again to access the calibration screen.

3. Follow the onscreen prompts

4. Depress the circles until they turn Dark Blue.

2015 Draeger

Medic

Inc

INFINITY COCKPIT QUICK REFERENCE GUIDE |10

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Blue Header Bar, Quick Access Icons, &

Function Keys

BLUE HEADER BAR

Appears along the top of the screen and displays the following:

1. Patient category field (adult pediatric, neonate)

2. System data field

3. Patient name field

4. Time and date field

5. Alarm message field

6. Alarm banner field
