DPS Telecom “Techno Knowledge” Paper

“Your Partners in Network Alarm Management”

Configuring Netguardian USB TKP.doc11/24/2010 -1

Problem: Unable to configure NetGuardian IP Address via USB Craft Port

________________________________________________________________________

In order to use the NetGuardian’s web interface, you’ll first have to configure the unit’s IP

address, subnet mask, and default gateway. To do this, you must establish a physical

connection to your NetGuardian and configure the unit using the TTY interface.

This “techno knowledge” paper will help you if:

You’re attempting to install the driver for your NetGuardian

You need to identify the NetGuardian’s emulated COM port

You’re having trouble configuring the unit using HyperTerminal

________________________________________________________________________

Quick Reference Chart

(For details, review the troubleshooting checklist, starting on the next page)

________________________________________________________________________

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -2

Troubleshooting Checklist

1Connect the NetGuardian to a PC using a USB cable

Connect the NetGuardian’s USB craft port to any computer with a terminal

emulator such as HyperTerminal. (All Windows-based PCs should have

HyperTerminal.)

Note: Make sure you’re using a standard USB A-B cable. This is the same cable

commonly used for connecting a printer to a PC. If you don’t have the proper USB

cable, you can order one directly from DPS Telecom.

2Install the NetGuardian’s USB Driver on your PC

You should see a “Found New Hardware” message.

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -3

Click the “Found New Hardware” message to launch the “Found New

Hardware Wizard.

Select “Install from a list or specific location (Advanced)”

Click “Next >”

Select “Search for the best driver in these locations”

Insert your NetGuardian Resource Disk into your PC

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -4

Click “Browse”

In the “Browse for File” prompt, select the Driver folder of your NetGuardian

480 G3 Resource Disk and click “OK”.

You should see a message requiring you to confirm the installation of a new

“USB Communications Port”

Click “Finish” to close the wizard.

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -5

3Now that the driver has been installed, a new COM port is being emulated on your PC.

To connect to the NetGuardian using HyperTerminal, you must first Use Windows

Device Manager to Confirm the Identity of the New “Virtual” COM Port.

Right-click the “My Computer” icon on your desktop or in your start menu

(depending on your version of windows and other properties).

Select “Manage”

Click “Device Manager” in the left pane of the Computer Management

window

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -6

Expand the “Ports (COM & LPT)” section in the right pane. Look for USB

Communications Port (COMx). Note the number of the COM port (COM3 in

the example above).

4Now that you know which COM port to use, it’s time to Connect to the NetGuardian

using HyperTerminal. You may use other terminal emulation software if you choose,

but this Techno Knowledge Paper focuses on HyperTerminal.

Click on the Start menu > select Programs > Accessories >

Communications > HyperTerminal.

At the Connection Description screen, enter a name for this connection. You

may also select an icon. The name and icon do not affect your ability to connect

to the unit.

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -7

At the Connect To screen, use the drop-down menu to select the COM port

you found earlier in the Device Manager.

Select the following COM Port Options:

oBits per second: 9600

oData bits: 8

oParity: None

oStop bits: 1

oFlow control: None

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -8

Click Apply.

Once connected, you will see a blank, white HyperTerminal screen.

Press Enter.

You will be prompted for the user name and password. Enter admin

for the Login and dpstelecom for the password.

Note: If you don’t receive a prompt for the Login and Password, return to step

two to confirm the COM port being used for the NetGuardian.

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -9

5The NetGuardian’s main menu will appear. Here you can Configure the

NetGuardian’s IP Address Using HyperTerminal.

Type C for C)onfig, then E for E)thernet.

Configure the unit’s IP Address, subnet mask, and default

gateway.

Unable to Configure NetGuardian IPA Proprietary and Confidential

Configuring Netguardian USB TKP.doc11/24/2010 -10

Press ESC to return to the main menu.

When asked if you’d like to save your changes, type Y for Y)yes.

Reboot your NetGuardian to save its new configuration.

Now you’re ready to finish configuring the NetGuardian via LAN using the web

interface. For help regarding the web interface, see your NetGuardian manual.

________________________________________________________________________

If you continue having trouble, please contact DPS Telecom tech support at (559) 454-1600 or

[email protected].

________________________________________________________________________

_____

Otros manuales para NetGuardian 480

Tabla de contenidos

Otros manuales de Instrumento de medición de DPS Telecom

DPS Telecom

DPS Telecom NetGuardian 216 Manual de usuario

DPS Telecom

DPS Telecom NetGuardian SUI Manual de usuario

DPS Telecom

DPS Telecom T/Mon LNX Manual de usuario

DPS Telecom

DPS Telecom T/Mon LNX Manual de usuario

DPS Telecom

DPS Telecom T/Mon NOC Manual de usuario

DPS Telecom

DPS Telecom BVM 48 Manual de usuario

DPS Telecom

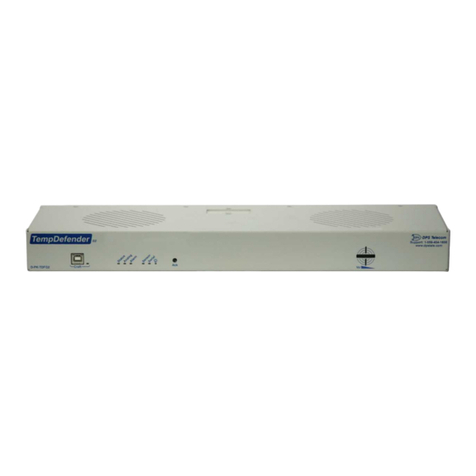

DPS Telecom TempDefender G2 Manual de usuario
