DONG IL TECHNOLOGY LTD AMF-AE1 Manual de usuario
Instruction Manual
Read this instruction manual before using the product in order to achieve maximum performance.
Keep this instruction manual within your reach after reading so that it can be used at any time.
ION BLOWER AMF-AE Series
28, Namyang-ro 930beon-gil, Hwaseong-si, Gyeonggi-do, Korea
Tel 82.31.299.5453 Fax 82.31.357.2610
1. Product Introduction……………………………………………………………03Page
1.1 Features 1.2 Specification
1.3 Dimensions 1.4 Performance
1.5 Package contents 1.6 Parts’ names and functions
2. Installation……...………..……………………………………………..................09Page
2.1 Installation 2.2 Wiring diagram
2.3 Cautions
3. Cautions & Maintenance………….………………………….….…………..12Page
3.1 Cautions for operation 3.2 Cleaning & replacement of ion emitters
4. Settings……………….………………………………………………………………..15Page
4.1 How to set values 4.2 Explanation on Menu options
APPENDIX ……………………………………………………………….………………17Page
1. Trouble shooting
2. Warranty
Before installation, be sure to read carefully at least
1.7 Cautions
2. Installation & Connection parts
2
DONG IL TECHNOLOGY LTD
CONTENTS
1.1 Features
3
1. 제품 소개 DONG IL TECHNOLOGY LTD
Welcome to become a DIT customer!
AMF-AE series is a pulsed AC ion blower neutralizing static electricity using Corona
Discharge method.
AMF-AE series,
• is easy to maintain with auto cleaning function for emitter pin.
• has flexible assembly configuration according to customer’s needs combining up to
3 fan modules and needed number of space boxes.
• can be adjusted air volume up to 5-levels
Category 1 –Fan 2 - Fan 3 - Fan
Input voltage AC100~240V(50/60Hz) or DC 24V±10%
Input current(AC) Max 0.61A Max 1.22A Max 1.83A
Input current(DC) Max 1.5A X X
Ion generating method Pulsed AC
Output Frequency 10Hz ~ 50Hz(adjustable)
Ion emitter pin Tungsten
Ion balance < ±30V Typical
Decay time Better than 2.0 seconds at 600mm [Fan Speed Max(Level 5)]
Air volume Max 6.4㎥/min per Fan
Ozone generation Under 0.005ppm
Display 7segment-Display ,High Voltage Alarm LED(G/R), Fan Alarm LED(G/R)
※ Green : Normal, Red : Abnormal
Manual control Fan Speed, Operating frequency, Ion-balance, Auto-cleaning,
PLC Alarm Select, Address, Ionizer On/Off, Password
Weight Max 7kg
Ambient temperature 0℃~50℃
Relative humidity 35~65%RH(No Condensation)
1.2 Specification
※ Specification can be changed without notice for performance improvement
4
DONG IL TECHNOLOGY LTD

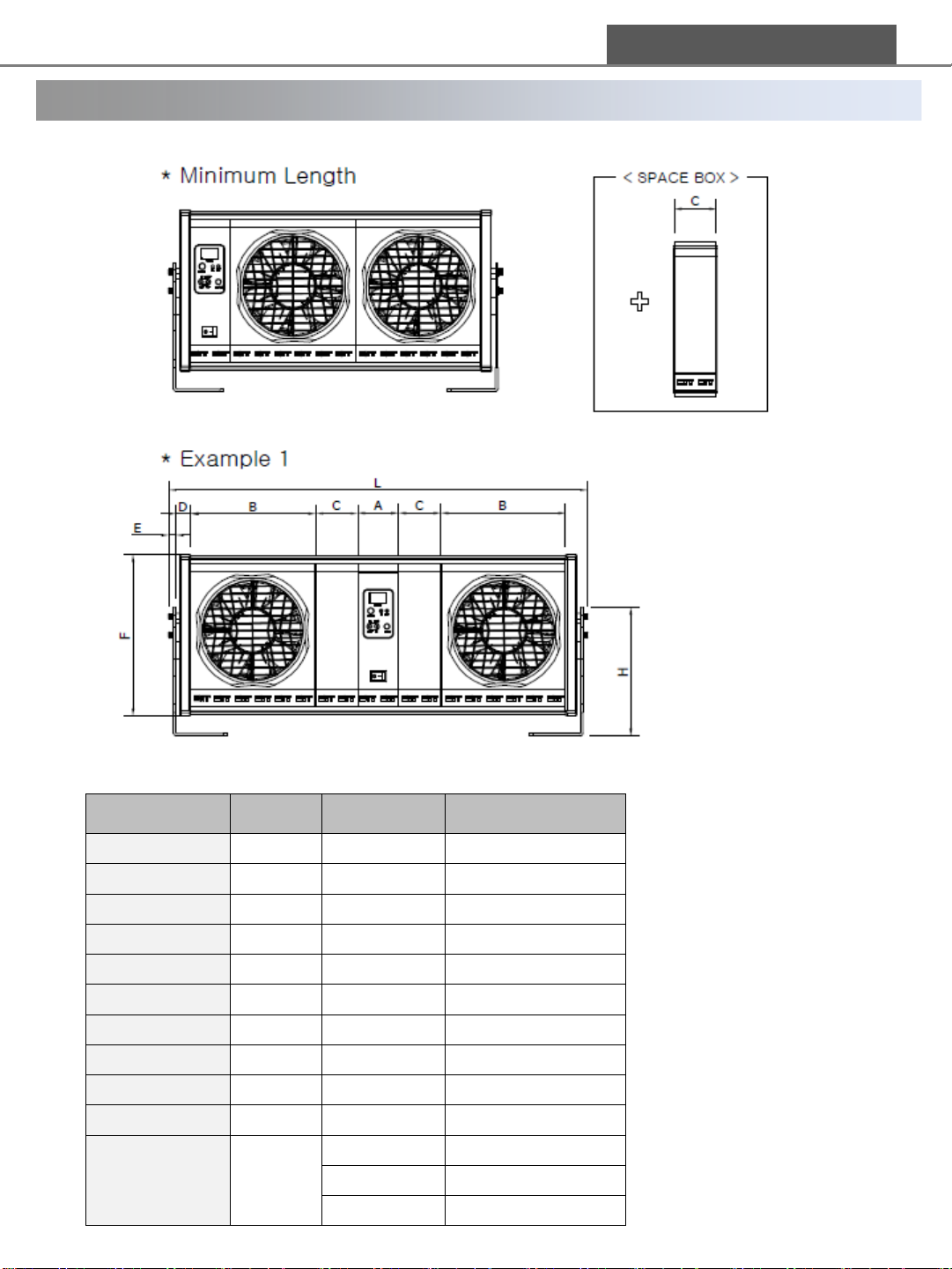

1.3 Dimensions
Category Code Length [mm] Remarks
Controller A 54.6
Fan Module B 170.0
Space Box C 56.6
Side Cover D 18.6
Bracket Ass'y E 9.6
Height F 217.8
Width G 106.1
Bracket Height H 173.6
Bracket Width I 97.5
Bracket Depth J 68.0
Blower Length L 262 Min. Length
5
DONG IL TECHNOLOGY LTD
1.3 Dimensions
Category Code Length [mm] Remarks
Controller A 54.6
Fan Module B 170.0
Space Box C 56.6
Side Cover D 18.6
Bracket Ass'y E 9.6
Height F 217.8
Width G 106.1
Bracket Height H 173.6
Bracket Width I 97.5
Bracket Depth J 68.0
Blower Length L
432 Min. Length (2Fans)
602 Min. Length (3Fans)
1,000 Max. Length
6
DONG IL TECHNOLOGY LTD
1.4 Performance
. Relation between Distance and Decay Time
. Relation between Distance and Decay Time
．Fan Speed: L 5
．Frequency : 30Hz
．Measure Condition: 1kV →100V
．Charged plate size : 150 x 150㎜
．Charged plate Capacitance : 20㎊
．Ambient conditions : 25℃, 45%RH
7
DONG IL TECHNOLOGY LTD
②Standard Bracket
1.5 Package contents
Be sure to check the package contents before installation.
①Main body ②Standard brackets ③AC power cable [1,800㎜]
④DC Power Cable 1500mm (Including ground wire)
⑤Remote controller ⑥RJ45 CABLE (8Pin) [PLC/RS485 Communications]
※ Options ※ Options
①Main body (ex. 1–Fan & 2–Fan)
④DC Power Cable (including
ground wire)
③AC Power Cable
⑥RJ45 CABLE (8Pin)
[PLC/RS485 Communications]
⑤Remote controller
*options*options
8
DONG IL TECHNOLOGY LTD
1.6 Parts’ names and functions
<Front-side>
①Control
- Display operation condition, menu and setting value
- Control on/off AC input power
②Air outlet and front cover
③Emitter fixing cover
④Ion emitter
⑤Bracket fixing wrench bolt (M5)
⑥Bracket
①②
③
⑥
⑤
④
9
DONG IL TECHNOLOGY LTD
1.6 Parts’ names and functions
LAMP
Red Green
Check
HV NG Good Ion Emission
<Controller>
<Display and control function>
①DISPLAY
Display operation condition, menu
and setting value
②Remote Control receiver
③Output power alarm (LED Green/Red)
Shows the state of ion emissions
④Fan malfunction alarm (LED Green/Red )
Shows whether fans are functioning
properly or not
⑤Menu operation keys
⑥Auto pin cleaning key
⑦AC input power on/off key
LAMP
Red Green
Check
FAN NG Good Fan Status
<Product condition and check point regarding LED>
①
②
③
⑥
⑤
⑦
④
10
DONG IL TECHNOLOGY LTD
1.6 Parts’ names and functions
<Back-side>
①AC POWER Connector
②DC POWER Connector (Only for AMF-AE1 Model)
- Be sure to check a diagram(page 13.) before wiring.
③RJ 45 Connector
- PLC cable, RS485 communication
④Filter Cover Lock
⑤Air inlet
①
②
③
⑤
④
