Dolomite MELODY Manual de usuario

DOLOMITE MELODY, SOPRANO

DOLOMITE MELODY

Maximum user weight 135 kg

DOLOMITE SOPRANO

Maximum user weight 160 kg

GB OPERATING INSTRUCTIONS

Do not use as a wheel-

chair or transport chair.

DOLOMITE MELODY, SOPRANO

OPERATING INSTRUCTIONS

Study the operating instructions carefully

before use. The walker is suitable for use

both indoors and outdoors.

SAFETY

- Do not under any circumstances stand on

the walker. The walker must not be used as

a wheelchair.

- Both brakes must be in the parking position

when the walker is used as a seat.

-The walker must be fully unfolded when

used as walking support. N.B. The walker

may only be used as a walking support.

-Be extra careful when using the walker on

a sloping surface.

- Be extra careful when carrying heavy loads

in the basket. The maximum load in the

basket is 7 kg for DOLOMITE MELODY S

10 kg DOLOMITE MELODY M, L and 12 kg

for DOLOMITE SOPRANO.

Loads may only be carried in the basket or

on the tray (DOLOMITE SOPRANO).

NB! Check that there is no pressure on the

safety catch from load in basket or tray.

FOLDING

If basket is used, it must be dismantled before

folding the walker.

1. Press down the safety catch.

2. Pull the seating tube upwards.

3. The walker can be folded into two different

positions.

AThe walker is to be folded to the first posi-

tion if it is to be parked when folded.

BIt is recommended that the walker is folded

to a further stage, the inner position, if it is

to be transported when folded. Note that

the walker cannot stand upright when in

this position.

CUnfolding from transport position.

OPERATING POSITION

When unpackning or unfolding from transport

position lift front frame according to fig. C.

1. Unfold the walker by pressing down on the

seating tube. Check that the safety catch is

in the locked position when the walker is

completely unfolded.

2. The seat can be folded up to provide a lar-

ger walking space, and in order to increase

accessibility.

7,10/12 KG

BRAKE

Apply the brakes by pulling both brake hand-

les upwards.

PARKING BRAKE

1. Press the brake handles carefully donwards

to apply the parking brakes. A clear sound

is heard when the brakes are applied

correctly. It is important that both parking-

brakes are applied.

2. Release the parking brakes by pulling the

handles upwards.

For users who feel that the walker rolls

too quickly and who therefore make fre-

quent use of the brake, we recommend a

walker with a slow-down brake (accessory).

ADJUSTING THE

HANDLEBARS

NB! The brake must not be in the on position

when adjusting the handle.

1. Loosen the height adjustment knobs, but

do not remove them completely.

2. Adjust the handlebars to the correct

height. The handlebars should normally

be placed at the height of the user's wrists.

3. The handles can be adjusted such that

they point inwards in order to provide a

more comfortable hand position. This may

also be required if the user has limited

wrist mobility.

4. Tighten the height adjustment knobs.

If there is a risk of the user removing the

height adjustment knobs, these should be

replaced by locking screws (available as an

accessory).

1 (4) 2

ASSEMBLING THE TRAY

AND THE BASKET

A DOLOMITE MELODY

B DOLOMITE SOPRANO

DOLOMITE MELODY, SOPRANO

The label on the DOLOMITE MELODY and

SOPRANO provides all important technical informa-

tion.

1: Article number

2: Product name

3: Serial number

4: Date of manufacture

5: Max. user weight

6: NB! See user manual.

7: In- and outdoor rollator.

8: Max. width of rollator.

9: Manufacturer's name.

DOLOMITE AB, Box 55, 334 21 ANDERSTORP, SWEDEN

TEL +46 (0)371 58 84 00, FAX +46(0)371 170 90

E-mail: [email protected], www.dolomite.se

CARE OF THE WALKER

In order to maintain good performance and safety, you should regularly ensure that the following

measures are carried out:

• Clean the walker with a solvent-free household cleaner. Dry thoroughly. Keep the wheels clean.

• Check that screws and adjustments are properly tightened.

• Immediately contact your prescriber if the walker develops a fault. Never use a defective walker.

DOLOMITE will not accept responsibility for adaptations, faulty repairs, etc., that lie out-

side of the company's control. The user's maximum weight for DOLOMITE MELODY is 135

kg, and for DOLOMITE SOPRANO 160 kg.

INSTRUCTIONS FOR DESTRUCTION OF PRODUCT AND PACKAGING:

When the product can no longer be used, it and its accessories, together with packaging mate-

rial, should be sorted properly. The individual parts can be separated and handled according to

the materials description.

ADJUSTING THE BRAKE

EFFECT

Allen key number 3 (not supplied) can be

used to increase the braking effect. The

distance between the brake head and the

wheel should be 0,5 mm.

82181 07-01:4

XXX KG XXcm

XXXXX - XX - XX

X XXXXXX XXXXXX

XXXXXX - XXXXXX

xxxx - xx

2 6

435

Otros manuales para MELODY

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Ayuda a la movilidad de Dolomite

Dolomite

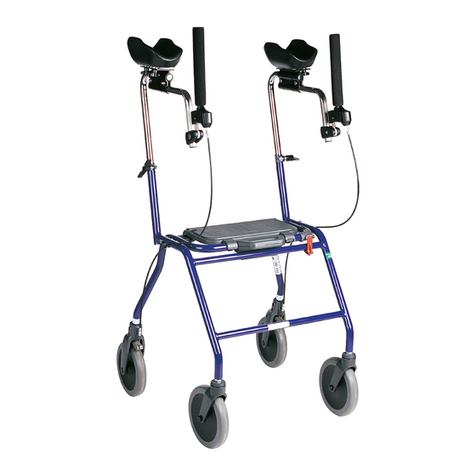

Dolomite Alpha Advanced Manual de usuario
