Do-it DT-06 Manual de usuario

EN : This Dat asheet is present ed by the m anuf acturer.

Please visit our websit e for pricing and availabilit y at w w w.h est or e. hu .

TL-

Man

OIT.

iFi

Doctors o

r M

User

V1.0

Intelligence

nua

anu

& Technolo

for

Tra

l for

ar., 31

y Co., Ltd (

TL-

smi

octors of

TL-W

017

ww.doit.am

WiF

sion

Intelligen

Fi Mo

No.:

)

Tra

e & Techn

dule

BH010C

2014-2017

spa

logy Co.

T-06

ent

DOIT.AM®

Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017

Achieve Update

Date Version Update

Mar, 31 2017 V1.0 First

DOIT.AM®

Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017

Catalog

User Manual for TTL-WiFi Transparent Transmission.........................................................................................1

1.Introduction...................................................................................................................................................................4

2. Interface definition............................................................................................................................................................5

3. Usage of Web configuration.............................................................................................................................................7

3.1 STATUS sub-configuration..................................................................................................................................9

3.2 MODULE configuration page............................................................................................................................10

Serial (serial configuration) ................................................................................................................................10

WiFi (WiFi configuration)..................................................................................................................................12

Networks configuration ......................................................................................................................................15

3.3 MORE configure...................................................................................................................................................16

Restart .................................................................................................................................................................16

Restore the factory setting ..................................................................................................................................16

Version................................................................................................................................................................17

4.Built-in AT command set ...........................................................................................................................................17

5.A classical configuration example ..............................................................................................................................20

5.1 Transparent transmission example in local network .............................................................................................20

5.2 Cloud transmission based on Doit Cloud ..............................................................................................................22

6.Minimum system for the module................................................................................................................................27

7.Shape and Size............................................................................................................................................................27

8.Recommended Installation .........................................................................................................................................28

Appendix.1 Parameters of TTL-WiFi Module ...................................................................................................................31

Appendix. 2.........................................................................................................................................................................31

DOIT.AM®

User Manual for TTL-WiFi DT-06

Shenzhen Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017 Page 4

1. Introduction

TTL-WiFi is designed and developed based on ESP-M2 WiFi module from our company Shenzhen

Doctors of Intelligence & Technology Co., Ltd., which is extracted the TTL, EN, STATE and other pins.

Importantly, the TTL-WiFi is already built-in the serial transparent transmission firmware programmed

by our company (SZdoit), which can realize the transparent transmit the data to the cloud on the real-time,

together with low-power control, status indictor. This board can replace the old wiring serial WiFi device

to realize the data collection and control. It has the following features.

Fully compatible with the original electrical interface and physical interface for the serial transparent

Bluetooth;

Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using

the Web Configuration;

Built-in the high performance WiFi module ESP-M2 with size: 34mm*17mm*4mm;

Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V);

Provided pins: STATE, TXD, RXD,EN;

Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode;

Support serial AT command;

Support re-programmable, OTA firmware update;

Seamless transparent transmission between serial and WiFi;

Built-in HTTP Web Server, support configure parameters by web page;

Support re-connect automatically at WiFi STA mode and TCP Client;

Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;

Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/

230400/460800/921600/1843200/3686400

Support AP enable, self-defined SSID/password, self-defined IP and network duration;

Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP;

Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;

Support DNS resolution automatically for the remote sever address;

Support checking the status by AT command;

Provide IO4 to show the WiFi status;

Working temperature: -40℃-125℃;

Applications: smart home, wireless data connection and transparent transmission, smart car control,

wireless serial printer, LED light industrial control etc.

DOIT.AM®

User Manual for TTL-WiFi DT-06

Shenzhen Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017 Page 5

The Structure of TTL-WiFi can be shown as follows.

Fig. 1.1 Structure for TTL-WiFi module

Give up the complex AT command, Simply configure parameters by Web page to

transparently transmit data.

TTL-WiFi transparent transmission firmware is developed by Shenzhen Doctors of Intelligence &

Technology Co., Ltd based on the ESP-M2 wireless WiFi module, which can realize the real-time

transparent transmission between serial and WiFi. After our deep research, the performance of firmware

can be satisfied with industrial requirements on the stability and functionality. In this time, we have

already greatly optimized the receive and transmit performance. Especially, we design the reconnection

mechanisms at STA and TCP Client modes to guarantee the stable connection and transmission for the

data link.

2. Interface definition

The interface definition of TTL-WiFi can be shown in the following.

ESP-M2

Antenna onboard

LED

STATE

FLASHRST

RXD

TXD

GND

VCC

DOIT.AM®

User Manual for TTL-WiFi DT-06

Shenzhen Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017 Page 6

LED

SW2 SW1

1 2 3 4 5 6

STATE

RXD

ESP‐M2

1 2 43 5 6 7

TXD

GND

VCC

TTL‐WiFi

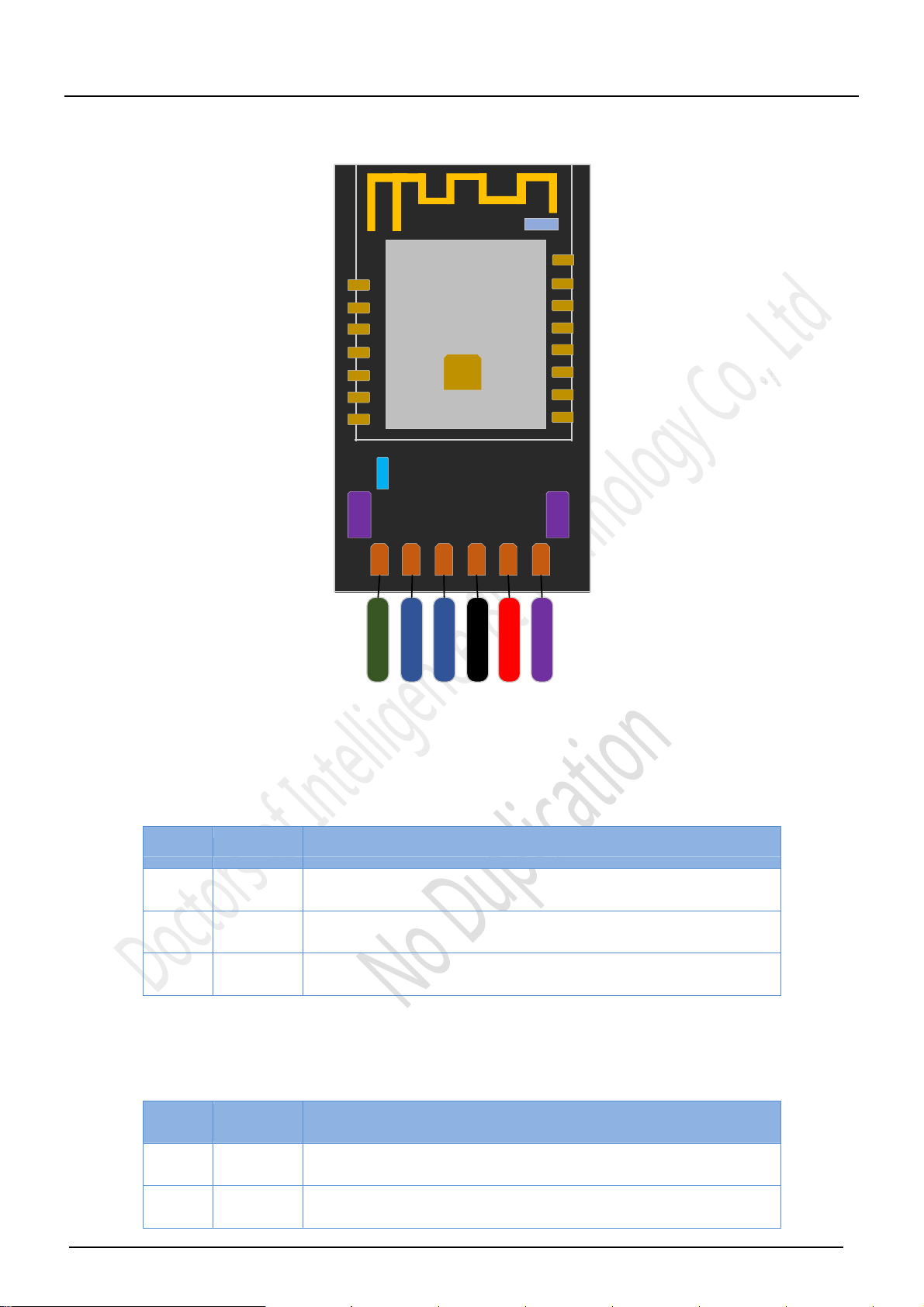

Fig. 2.1 TTL-WiFi Interface definition

Functions of button and LED

Table 2.1 Functions of button and LED

Num. Type Function illustration

1 LED

LED connected to VCC3.3

y a pull up resitance, and other is

connected to GPIO4

2 SW1

Connected to GPIO0 to coordinate with SW2

utton to download

the firmware.

3 SW2 Connect to RST, to coordinate with SW1 to download the firmware

Importantly, when downloaded the firmware, please firstly press SW1 button, and then press SW2

button, and at last loose the button to finish the download. (Refer to the ESP-M2 module)

Table 2.2 LED definition

Num LED

indicator Function

1 Always

lighting

Successfully connect to the wireless router when WiFi module is a

STA or STA+AP mode

2 Lighting

slowly

Level for IO switches once each 1s; if works at AP mode, it shows tha

the WiFi module unsuccessfully connected to the wireless WiFi router;

DOIT.AM®

User Manual for TTL-WiFi DT-06

Shenzhen Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017 Page 7

If at STA mode, the module is trying to connect the wireless router;

If at AP+STA mode, the module is trying to connect to the wireless

router.

3 Fast lighting

When press SW1/Flash

utton, if the serial received the data, or the

network received the data from the serial, LED would light fast.

4 Extinguish

WiFi module doesn’t work since the power isn’t normal or isn’t the

transparent transmission firmware.

Definition of pins is listed as follows.

Table 2.3 Definition of pins

Num Pin Type Function

1 STATE

I/O

GPIO4;

built-in transparent transmission firmware, to show the net

connection status: connect to wireless router at STA mode. STATE

is low level.

2 RXD

I/O

GPIO3;

Module is already serially connected to a 22Ωcurrent-limiting resistance in

the inner, thus can connect 5.0V voltage;

Can used as the UART Rx when built in the flash.

3 TXD

I/O

GPIO1;

Module is already serially connected to a 22

current-limiting resistance

in the inner, thus can connect 5.0V voltage;

Can used as the UART Tx when built in the flash.

4 GND

P GND

5 VCC P Module power:

4.5V~6.0V, recommended voltage is 5.0V

6 EN

I Enable, high level: enable to let chip work normally; low level, chip is

closed.

3. Usage of Web configuration

This module is already built-in the HTTP Server. Thus, it can configure the parameters by the browsers

on pc or mobile phone or other smart devices, without of need of any other tools or Apps. In the factory

settings, the module works at AP mode, and the signal is “Doit_WiFi_xxxxxx” , where, “xxxxxx” is the

last 6 number of MAC address of this module. Then, one can connect this WiFi hotspot by PCs or

phones , and other smart deveices (supportable Android and Ios, Windows) with no password.

OIT.

Shenzhen

After su

hen open t

following

octors of I

cessful co

e configur

telligence &

nection, i

tion, there

Technology

Fig. 3. 2

put the def

Fig. 3. 3 I

is three su

User Manu

Co., LTD (

efault Wi

ult IP add

formation

-pages, ST

l for TTL-Wi

ww.doit.am)

i hotspot

ess: “192.1

for hotspot

TUS, M

i DT-06

68.4.1”.

DULE, an

2014-2017

MORE, a

s shown in

e 8

OIT.

Shenzhen

STATUS

octors of I

sub-confi

telligence &

uration

Fig.

Technology

Fig.

. 5 Succes

User Manu

Co., LTD (

. 4 Config

ful connec

l for TTL-Wi

ww.doit.am)

ratio

ion at ST

i DT-06

mode

2014-2017

e 9
