DK2 Power OPD811 Manual de usuario

BIG DUMP ASSEMBLY GUIDE

MODEL: OPD811

1100 LB ELEC DUMP CART

DETAIL K2 INC.

DK2 POWER USA

4301 S Valley View Blvd STE 10-11

Las Vegas, NV 89103

1-702-331-5353

ELEC DRIVE

HYDRAULIC DUMP

ALL TERRAIN TIRES

1100LB BIG DUMP CART

REV 1 –10/16/2019

DETAIL K2, INC.

1080 Clay Avenue Unit 2

Burlington, Ontario, Canada L7L0A1

DK2 USA EAST

6245 Industrial Parkway

Whitehouse, OH 43571

PARTS AND SERVICE 702-331-5353 OR WWW.DK2POWER.COM CONTACT US

OPD811 BIG DUMP ELEC DRIVE

HYDRAULIC DUMP

Included with Carry-All

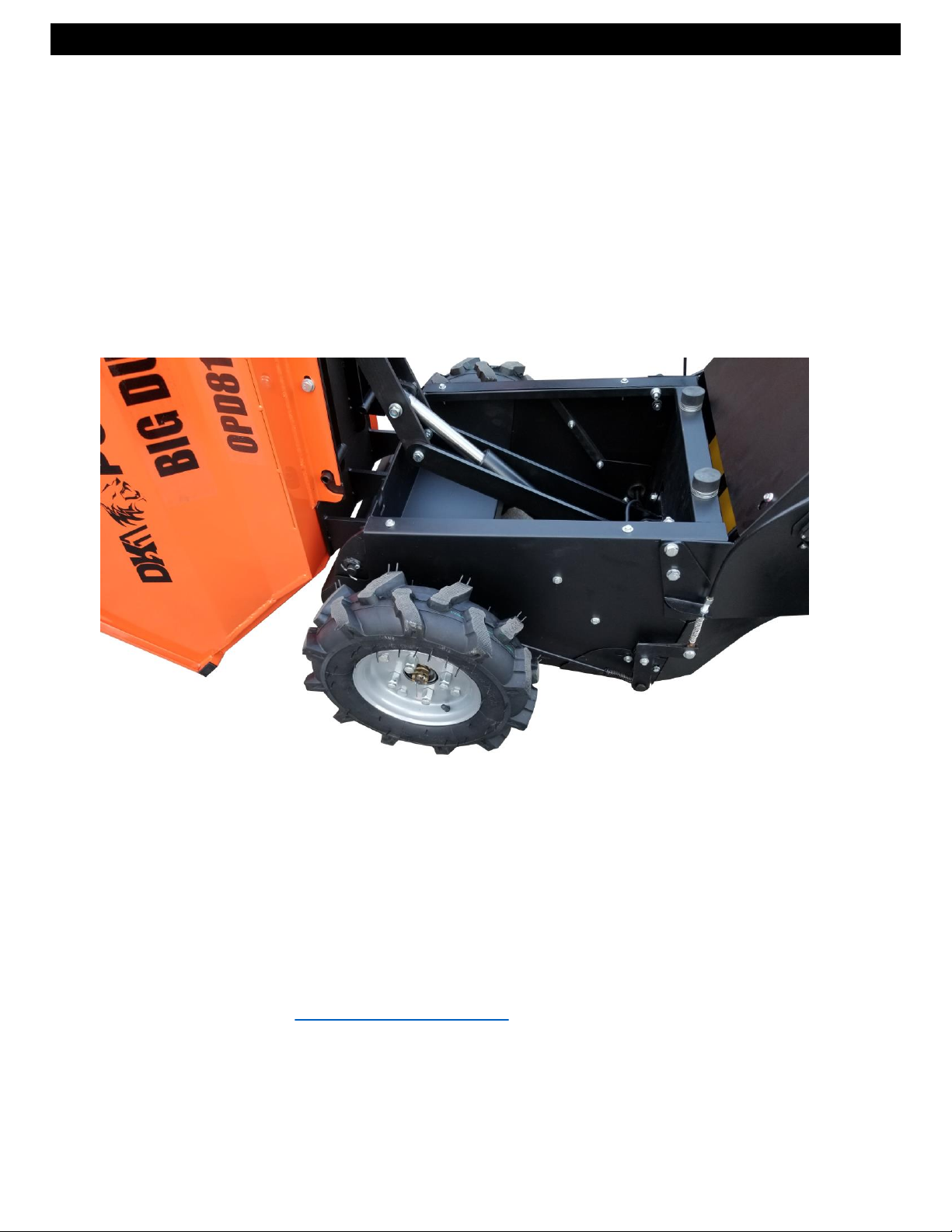

STEP 1:

Install both wheels

NOTE: UPON INSPECTION OF PARTS IF YOU FIND ANY DAMAGE OR MISSING

PARTS PLEASE CALL DK2 POWER AT 702-331-5353 OR CONTACT US VIA

OUR WEBSITE WWW.DK2POWER.COM

WE WILL REPLACE ANY MISSING PARTS TO YOU FREE

PLEASE DO NOT RETURN TO THE STORE

STEP 2:

1. Tip Bucket forward

2. Pin the lift rod

PIN THE LIFT ROD

STEP 3:

1. Assemble axle and nut

STEP 4:

1. Install the right handle assembly with 4 bolts

2. Install the left handle assembly with 4 bolts

4 BOLTS EACH SIDE

STEP 5:

1. TURN ON MACHINE

2. FORWARD AND REVERSE CONTROLS

3. BUCKET LIFT

4. BRAKE

STEP 6:

1. YOUR UNIT IS ALSO SUPPLIED WITH A CARRY ALL

2. TIP WET BUCKET FORWARD AND REMOVE BOLTS

3. SLIDE BUCKET OFF

4. REPLACE WITH CARRY ALL

REMOVE BOLTS

STEP 7:

1. ASSEMBLE THE CARRYALL

2. INSERT DUMP GATE END BETWEEN THE 2 POSTS

3. BOLT THE END POSTS INTO PLACE

4. BOLT THE REAR PANEL INTO PLACE

5. ASSEMBLE SIDES WITH HINGES, FOLD CLOSED AND LATCH

6. USE YOUR CARRYALL TO HAUL BOARDS, FEEDBAGS,

CONCRETE BAGS, GRAVEL, DIRT AND MORE.

Ref

.No.

Description

Ref

.No.2

Description

Bucket

16 lock nut

Handle

cover

Rearaxle

mud guard

Switch

Motor

hanger

Right

handrail

*6.5-8 wheel

Brake

assemble

Rear

axle assembly

Brake

fitting tube

Rear

axle mud guard

Brake

fitting flat tube

Rear

axle controller

Electric

box

19*Ø11*58 spacer

Push

bar switch

Rear

axle fitting plate

Thermal

overload

6002

bearing

Main

switch

Right

brake fitting

Brake

handle

Brake

connect rod

Backward

switch

Left

brake fitting

Brake

cable

6204

bearing

Left

handrail

Rear

wheels brace

Battery

*Ø21*Ø25 spacer

Battery

box bottem

Rear

wheel frame

Battery

box cover plate

16*95 screw

Battery

cover

Rear

wheel

Charge

point

Right

main frame cover plate

Parking

cable

Left

main frame cover plate

Bucket

fitting plate

Electrical

box under the baffle

Log

rod

Right

brake handle

Right

short rod

Electric

push rod switch box

*Ø12*Ø20 Spacer

Electric

push rod switch box cover

Pusher

rod

Small

bucket assembly

Left

short rod

Trailer

*Ø11*Ø15 Spacer

Small

bucket back panel

Shocking

reduction

Switch

Main

frame cover

3 The pipe pin

Rear

wheel frame

13*Ø17*53 compression spring

Main

frame

10*Ø27washer

4 cotter pin

Small

bucket front panel

Brake

cable fitting plate

Small

bucketfront panel right fixed tube

Frone

wheel brake rod

Small

bucketfront panel left fixed tube

12*26 pin axle

Small

bucket left plate

Spring

Hinge

fastener

Adjust

nut

Hinge

Rearaxle

side cover

Small

bucket right plate

Bucket

rotate axle

Small

bottom plate

Parking

wire fitting plate
