CHIPPER ASSEMBLY GUIDE
MODEL: OPC524
4 INCH KINETIC COMMERCIAL CHIPPER
DETAIL K2 INC.
DK2 POWER USA
4301 S Valley View Blvd STE 10-11
Las Vegas, NV 89103
1-702-331-5353
SWING CHUTES
TOWABLE
KOHLER ENGINE
COMMERCIAL CHIPPER
REV 1 -12-12-20
DETAIL K2, INC.
1080 Clay Avenue Unit 2
Burlington, Ontario, Canada L7L0A1
DK2 USA EAST
6245 Industrial Parkway
Whitehouse, OH 43571
PARTS AND SERVICE 702-331-5353 OR WWW.DK2POWER.COM CONTACT US
STEP 1: CHECK THE PACKING
Open and unpack all items. Leave lots of working space.
Inspect all parts.
The Chipper is shipped in a crate. Leave the sides folded
down and use as your work space.
NOTE: UPON INSPECTION OF PARTS IF YOU FIND ANY DAMAGE OR
MISSING PARTS PLEASE CALL DK2 POWER AT 702-331-5353 OR CONTACT
US VIA OUR WEBSITE WWW.DK2POWER.COM
WE WILL REPLACE ANY MISSING PARTS TO YOU FREE
PLEASE DO NOT RETURN TO THE STORE
STEP 2:
1. Remove all hardware from axle.
2. Install wheel with stem facing out, then washer, then nut,
ASSEMBLY STEPS
1. Install wheel with valve
stem on the outside
2. Washer
3. Nut
STEP 3:
1. Tip the unit back and balance it with a helper.
2. Place chip chute on the chipper.
STEP 4: INSTALL FEED CHUTE
1. Install the feed chute on the 2 hinges. To seat the hinge pins
for the first time a rubber mallet may be used to tap the
pins into the hinges. These are tight fitting to reduce
vibration noise.
2. Close the Chute and latch it.
3. Plug the safety key shut off wire connectors together.
4. You can now use the chute by the handles to tip the unit
back so you can perform the next step to install the hitch.
STEP 5: INSTALL THE TOWBAR AND STAND ASSEMBLY
1. GRAB THE FEED CHUTE AND TIP THE UNIT BACK, RAISING
THE FRONT END UP.
2. WITH THE FRONT END RAISED, INSTALL THE TOW BAR HITCH
USING BOLTS.
3. ASSEMBLE TOW STAND AND INSERT THE HITCH PIN
4. LOWER THE UNIT BACK TO LEVEL TO REST ON THE DROP
STAND.
5. INSERT TOW BAR AND SECURE WITH TOW BAR SCREW LOCK
STEP 6: INSTALL CHIP CHUTE
1. INSTALL AXLE ASSEMBLY
STEP 7: INSTALL CHIP CHUTE DEFLECTOR
1. Install the Chip Chute Directional Deflector and tighten the
locking handles.
STEP 8:

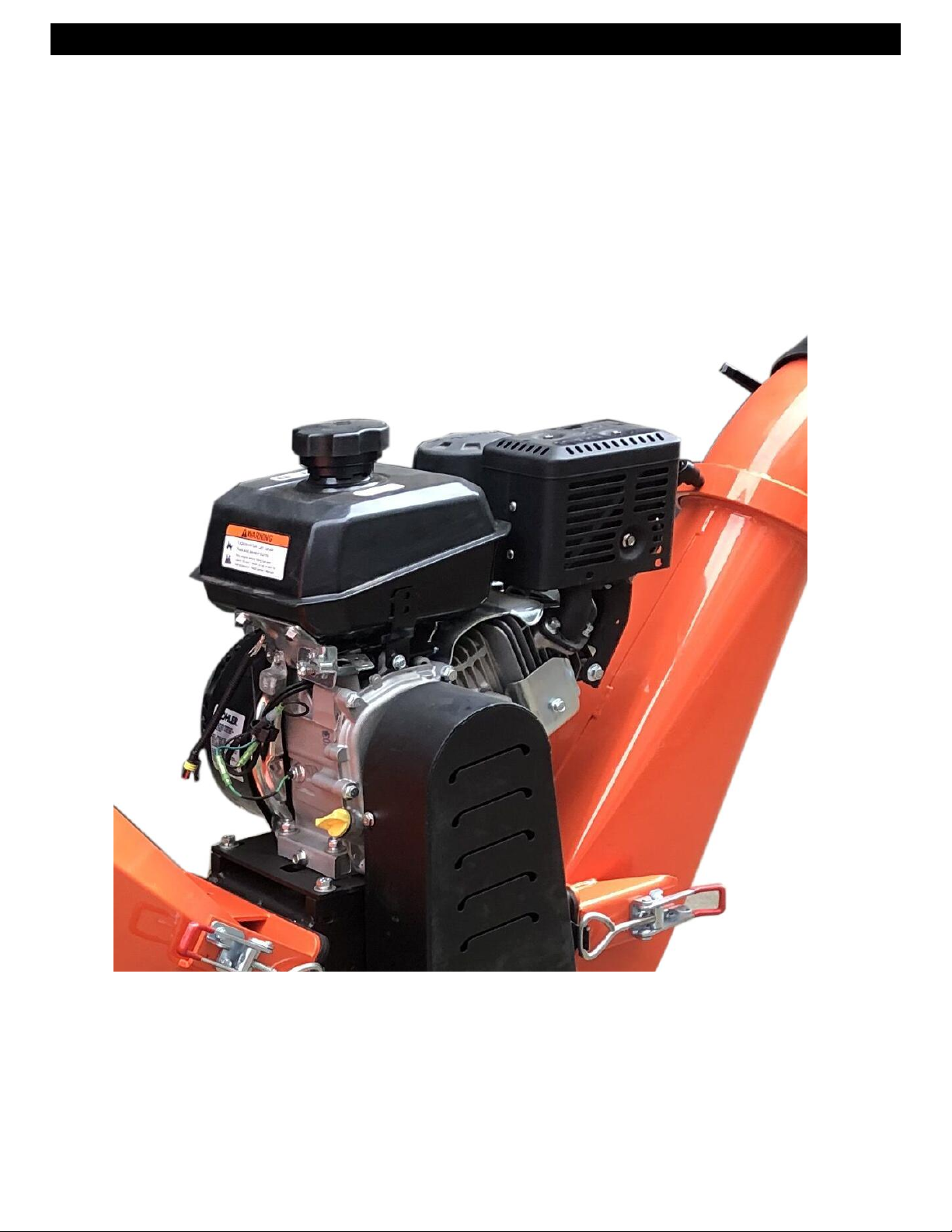

READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR
UNIT FOR FULL ENGINE OPERATION, SAFETY, AND
MAINTENANCE.
