MAVIC 2
PRO
Aircraft
The DJITM MAVICTM 2 Pro features omnidirectional Vision Systems and Infrared Sensing
Systems*, and a fully stabilized 3-axis gimbal with a 1" CMOS sensor camera (jointly
developed by DJI and Hasselblad) that shoots 4K video and 20-megapixel photos.
DJI signature technologies such as Obstacle Sensing and Intelligent Flight Modes like
HyperLapse, ActiveTrackTM 2.0, QuickShot, Panorama, and Advanced Pilot Assistance
Systems, help you capture complex shots effortlessly. The Mavic 2 Pro boasts a maximum
ight speed of 44.7 mph (72 kph) and a maximum ight time** of 31 minutes.
13
14
19
18
16
17
15
20
1
2
3
4
56
7
8
910
11
12
1. Gimbal and Camera
2. Forward Vision System
3. Downward Vision System
4. Lateral Vision System
5. Downward Infrared
Sensing System
6. Auxiliary Bottom Light
7. microSD Card Slot
8. Front LEDs
* The Vision Systems and Infrared Sensing Systems are affected by surrounding conditions. Read the Disclaimer
and Safety Guidelines, User Manual, and watch the tutorial videos in the DJI GOTM 4 app or on the ofcial DJI
website to learn more. http://www.dji.com/mavic-2
** Maximum ight time was tested in an environment with no wind while ying at a consistent 15.5 mph (25 kph). This
value is for reference only.
9. Motors
10. Propellers
11. Antennas
12. Aircraft Status Indicator
13. Upward Infrared Sensing System
14. Backward Vision System
15. Intelligent Flight Battery
16. Battery Level LEDs
17. Power Button
18. Battery Buckles
19. USB-C Port
20. Link Button/Linking
Status Indicator
1
3
4
6
7
2
8
9
10
11
5
12 13
14 15
17
16
18
Remote Controller
Built into the remote controller is the DJI’s long-range transmission technology OCUSYNCTM 2.0,
offering a maximum transmission range of 5 mi (8 km) and displaying video from the aircraft to
the DJI GO 4 app on your mobile device at up to 1080p. An on-board LCD screen gives real-
time aircraft data information and the detachable control sticks make the remote controller
easier to store.
Maximum run time: 2 hours and 15 minutes*
1. LCD Screen
2. Flight Pause Button
3. 5D Button
4. Removable Control Sticks
5. Power Button
6. Antennas
7. RTH Button
8. Control Sticks Storage Slot
9. Reserve Video-Downlink
Port (USB)
10. Mobile Device Clamp
11. Flight Mode Switch
12. Gimbal Dial
13. Aperture/Shutter Adjustment Dial
14. Record Button
15. Focus/Shutter Button
16. Video-Downlink/Power Port
(micro USB)
17. C1 Button (Customizable)
18. C2 Button (Customizable)
Folded
* The remote controller is able to reach its maximum transmission distance (FCC) in a wide-open area
with no electromagnetic Interference at an altitude of about 400 ft (120 m).
The maximum runtime is tested in a laboratory environment. This value is for reference only.
DJI GO 4 is compatible with iOS 9.0 (or later) or Android 4.4 (or later).
1. Download the DJI GO 4 App and Watching Tutorial Videos
Search “DJI GO 4” in the App Store or Google Play or scan the
QR code below to download the app on your mobile device.
Watch the tutorial videos at www.dji.com/mavic-2 or in DJI GO 4 by
tapping the icon in the top right corner of your screen.
2. Preparing the Aircraft

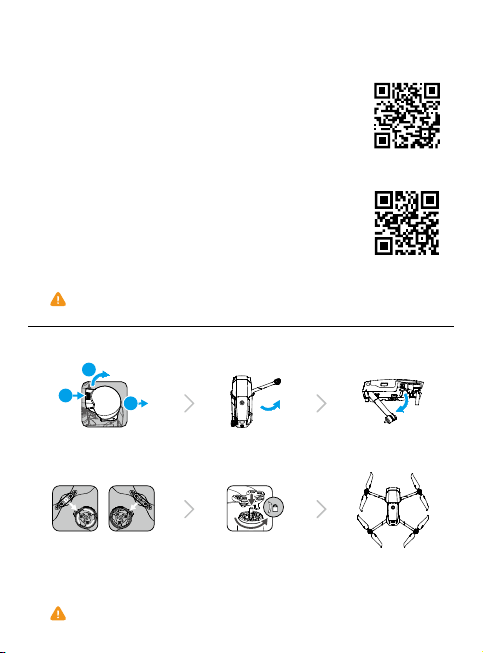

Remove the gimbal
cover from the camera.
Unfold the front arms. Unfold the rear arms.
Unfolded
Unfold the front arms and the propellers before the rear ones. All arms and propellers
must be unfolded before takeoff.
1
2
3
1
2
3
Press the propellers
down rmly and rotate
in the lock direction.
Match the propellers
to motors.
Marked Unmarked
Tutorial videos
DJI GO 4
B
A
A
B
Remove the remote controller cable before charging.
3. Charging the Batteries
Use the provided charger to fully
charge the Intelligent Flight Battery
before rst use.
Remove the Intelligent Flight Battery
Charging Time:
~1 hour 30 minutes
Charging Time:
~2 hour 15 minutes
Power Outlet
100 - 240V
Low
High
Checking the Battery Levels and Powering On/O
Press once to check the battery level.
Press, then press and hold to turn on/off.
Press once to check the battery level on
the LCD screen.
Press once, then press and hold to turn on/
off the remote controller.
1
2
3
Ensure the control sticks are rmly mounted.
The remote controller cable with the Lightning connector is mounted by default. Use the
appropriate cable for your mobile device to connect to the remote controller. When using an
iPad or tablet, use the USB port on the remote controller.
Do not use the Micro USB and the USB ports simultaneously for linking video.
4. Preparing the Remote Controller
Unfold the antennas and mobile device clamps,
then attach the control sticks.
Place one end of the RC cable to the
end of the slot.
Attach your mobile device within the clamps.
Charging Time:
~2 hour 15 minutes
Set the antennas parallel to each other
Optimal Transmission Range
Strong
Weak
DJI GO 4
App
6. Flight
Ready to Go (GPS)
OR
Auto Takeoff
Left stick up (slowly)
to take off
Left stick down (slowly) until you touch the
ground
Hold a few seconds to stop the motors
Auto Landing
Before taking off, make sure the Aircraft Status Bar in
DJI GO 4 displays “Ready to Go”.
Combination stick command to start/stop
the motors
Auto Takeo / Landing
Manual Takeo / Landing
The motors can only be stopped mid-ight when the ight controller detects critical
error.
5. Preparing for Takeoff
Power on the remote controller Power on the aircraft Launch DJI GO 4
Use your DJI account to activate the aircraft. Activation requires an internet connection.
Internet
Remote Controller Operation
In DJI GO 4
Left Stick
Up
Down
Turn Left Turn Right
Right Stick
Forward
Backward
Left Right
QuickShot
TapFlyWaypoints
HyperLapseNormal
Point of Interest
ActiveTrack
Cinematic Mode
The default ight control is known as Mode 2. The left stick controls the aircraft's altitude
and heading, while the right stick controls its forward, backward, left and right movements.
The gimbal dial controls the camera's tilt.
Press the Flight Pause button for emergency braking during ight.
Watch the tutorials in DJI GO 4 or at the ofcial DJI website to learn more.
Always set an appropriate RTH altitude before takeoff. When the aircraft is returning to
the Home Point, you should guide it with the control sticks.
120m
≥10 m/s
Fly in Open
Areas
Strong GPS
Signal
Maintain Line of
Sight
Fly Below 400 Feet
(120 m)
Avoid flying over or near obstacles, crowds, high voltage power lines, trees or
bodies of water.
DO NOT fly near strong electromagnetic sources such as power lines and base
stations as it may affect the onboard compass.
DO NOT use the aircraft in adverse weather conditions such as rain, snow, fog
and wind speeds exceeding 10 m/s or 22 mph.
No Fly Zone
Stay away from the rotating propellers
and motors.
Learn more at:
http://flysafe.dji.com/no-fly
MAVIC is a trademark of DJI.
Copyright © 2018 DJI All Rights Reserved. Designed by DJI. Printed in China.
7. Fly Safe
It’s important to understand basic ight guidelines, for the safety of both you and
those around you. Don't forget to read the Disclaimer and Safety Guidelines.
Specications
Aircraft
Weight 907 g
Max Speed 44.7 mph (72 kph) in Sport mode without wind
Max Service Ceiling Above
Sea Level 19685 ft (6000 m)
Operating Temperature 14° to 104° F (-10° to 40° C)
GNSS GPS + GLONASS
Operating Frequency 2.4-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power
(EIRP)
2.4 GHz
FCC: ≤26 dBm; CE/MIC: ≤20 dBm; SRRC: ≤20 dBm
5.8 GHz
FCC: ≤26 dBm; CE: ≤14 dBm; SRRC: ≤26 dBm
Gimbal
Controllable Range Pitch: -90° to +30°
Camera
Sensor 1" CMOS; Eective pixels: 20M
Lens FOV: approx. 77°
35 mm format equivalent: 28 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
ISO Range Video: 100-6400
Photo: 100-3200 (auto); 100-12800 (manual)
Electronic Shutter Speed 8-1/8000 s
Max Image Size 5472×3648
Still Photography Modes Single shot
Burst shooting: 3/5 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV
Bias
Interval
Video Recording Modes 4K Ultra HD: 3840×2160 24/25/30p
2.7K: 2688×1512 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p
Video Storage Bitrate 100 Mbps
Photo JPEG, DNG (RAW)
Video MP4, MOV (MPEG-4 AVC/H.264, HEVC)
Supported SD Cards microSD
Max Capacity: 128 GB (UHS-I Speed Grade 3 rating required)
Remote Controller
Operating Frequency 2.4-2.4835 GHz; 5.725-5.850 GHz
Max Transmission Distance
(Unobstructed and free of
interference) FCC: 5 mi (8 km); CE/MIC: 3.1 mi (5 km); SRRC: 3.1 mi (5 km)
Operating Temperature 32° to 104° F (0° to 40° C)
Battery 3950mAh @ 3.83V
