Dixon ZTR 3361 Manual de instrucciones

TECHNICAL DATA BROCHURE

ZTR Model 3361

IMPORTANT -READ OPERATOR'S MANUAL BEFORE OPERATING OR MAKING ADJUSTMENTS

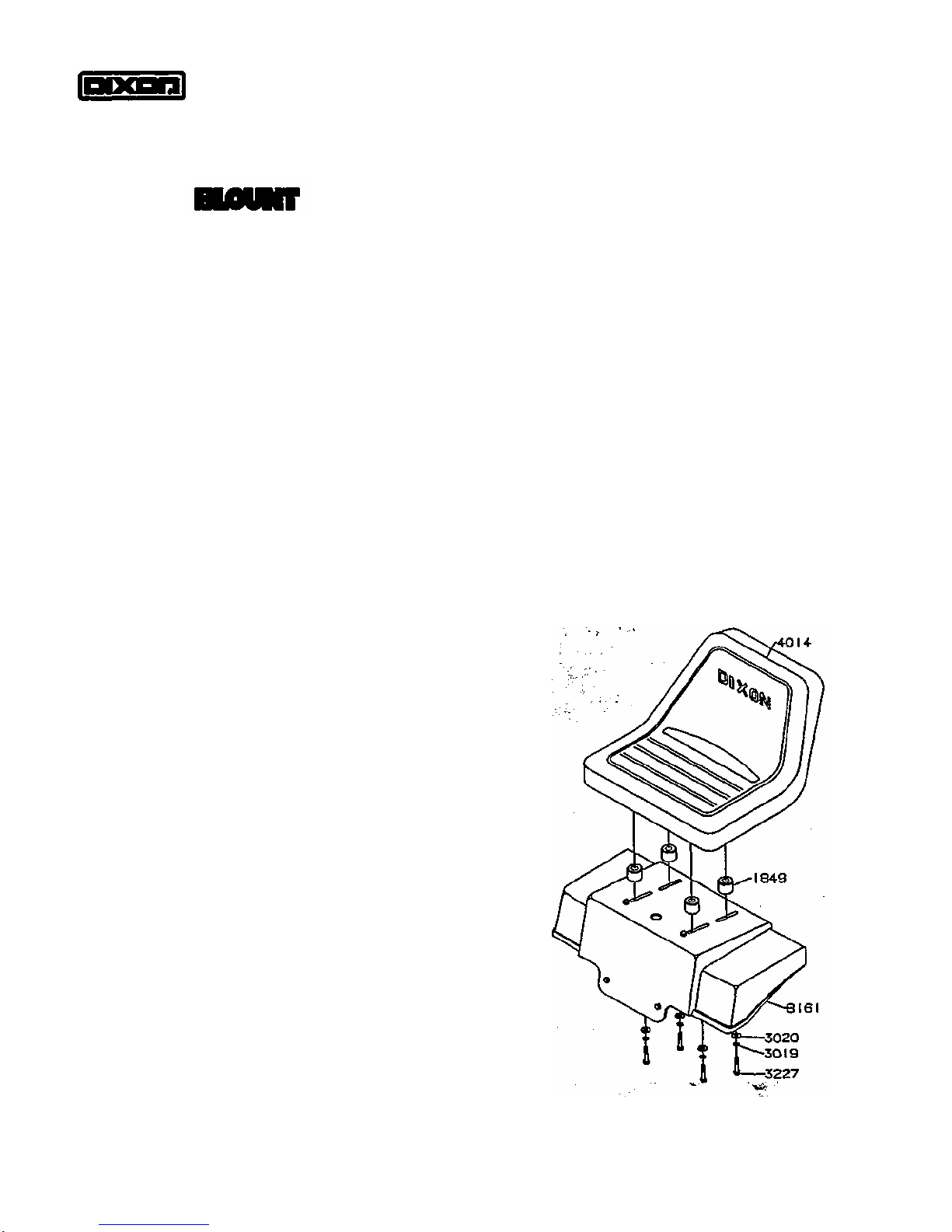

SEAT ADJUSTMENT

1. Pull or lift body retention latch P/N 3954 from

transaxle backing plate, raise and push body

and seat assembly forward.

2. Loosen four seat adjustment bolts

P/N 3227 and slide seat forward or backward

to desired position.

3. Re-tighten seat adjustment bolts P/N 3227.

NOT operate mower without seat

adjustment bolts properly tightened.

4. Close upper body and push re tention latch

P/N 3954 over transaxle backing plate.

DIXON INDUSTRIES, INC.

BLOUNT COMPANY AIRPORT

INDUSTRIAL PARK

PO BOX 1569

COFFEYVILLE KS 67337 0945

3162512000

FAX 316 251 4117

Page 1 of 8

BODY REMOVAL

1. The 3361 has a two-piece polyethylene body. The upper body can be folded forward to

expose the transaxle. In some cases, it may be necessary to remove the upper body to

service the transaxle.

2. To remove upper body, remove two bolts P/N 3093 from the front of upper body hinge

located on the brake shaft P/N 9283. Disconnect seat switch P/N 4761 at plug-in.

3. Reverse above procedure to reinstall.

ADJUSTMENT OF MOWER DECK DRIVE BELT

Belt tension is controlled and adjusted by tightening nut P/N 3205 on L -rod P/N 2841. Proper belt

tension can be measured by pushing against belt at mid-point on the left side of the mower chassis.

Belt should deflect approximately 3/4" to 1" when adjusted.

REMOVING MOWER BLADES

1. Secure mower blade P/N 1324 from turning.

2. Observe blade position when removing.

3. Remove blade bolt P/N 3268, and blade washer P/N 6260.

4. To reinstall, reverse above procedure. Tighten to 50-60 ft pounds of torque.

WARNING: Sharp edges on blade can cause injury!

Caution should be exercised when service Is required on the blade.

REMOVING MOWER DECK

1. Remove deck drive belt by loosening nylok nut P/N 3205 on L-Rod tensioner P/N 2841 until

belt

can be removed from electric clutch.

2. Remove the clevis pins P/N 3072 from L-rods at rear of deck and slide free from slots.

3. Remove the clevis pin P/N 3072 from the lift linkage at the front of deck.

4. Remove cotter pin from shaft P/N 1332 located at front of mower deck on slide plates welded

at battery box. Slide shaft free.

5. Raise front of mower chassis and roll mower free of mower deck assembly.

6. To install deck, reverse above procedure.

Page 2 of 8

MOWER BLADE OPERATION

1. To start mower blades, pull up slightly on blade drive switch handle and move it forward to

the "ON" position.

2. To stop mower blades, move switch handle to the "OFF" position

SAFETY CHECKS

IMPORTANT -PERFORM SAFETY CHECKS AFTER MAKING ANY REPAIRS OR ADJUSTMENTS

1. After reassembly, while seated on mower, attempt to start engine with mower deck

engaged. Engine should /VO7"start. If engine does start, return the mowerto an Authorized

Dixon dealer for adjustment or repair. ',\

2.Disengage mower deck and start engine. With the operator in the normal seated position,

engage mower deck and remove weight from seat. The engine should stop. If the engine

does NOT stop when operator rises from seat, return the mower to an Authorized Dixo n

dealer for adjustment or repair.

3. Engage. Then disengage mower blade in each cutting height. Insure that blade

disengages and comes to a stop within (5) seconds in each height position. If blade does

NOT disengage properly, contact your Authorized Dixon dealer.

CAUTION: DO NOT OPERATE MOWER IF ANY SAFETY FEATURE IS NOT FUNCTIONING CORRECTLY

PARKING BRAKE ADJUSTMENT

Tighten nut on brake rod P/N 2533, located in front of the transaxle on each side,just enough

to prevent brake from slipping when engaged.

CAUTION:

Over tightening may cause premature wear on the brake band P/N 5085.

Revised 7/93

P/N 8111

Page 3 of 8

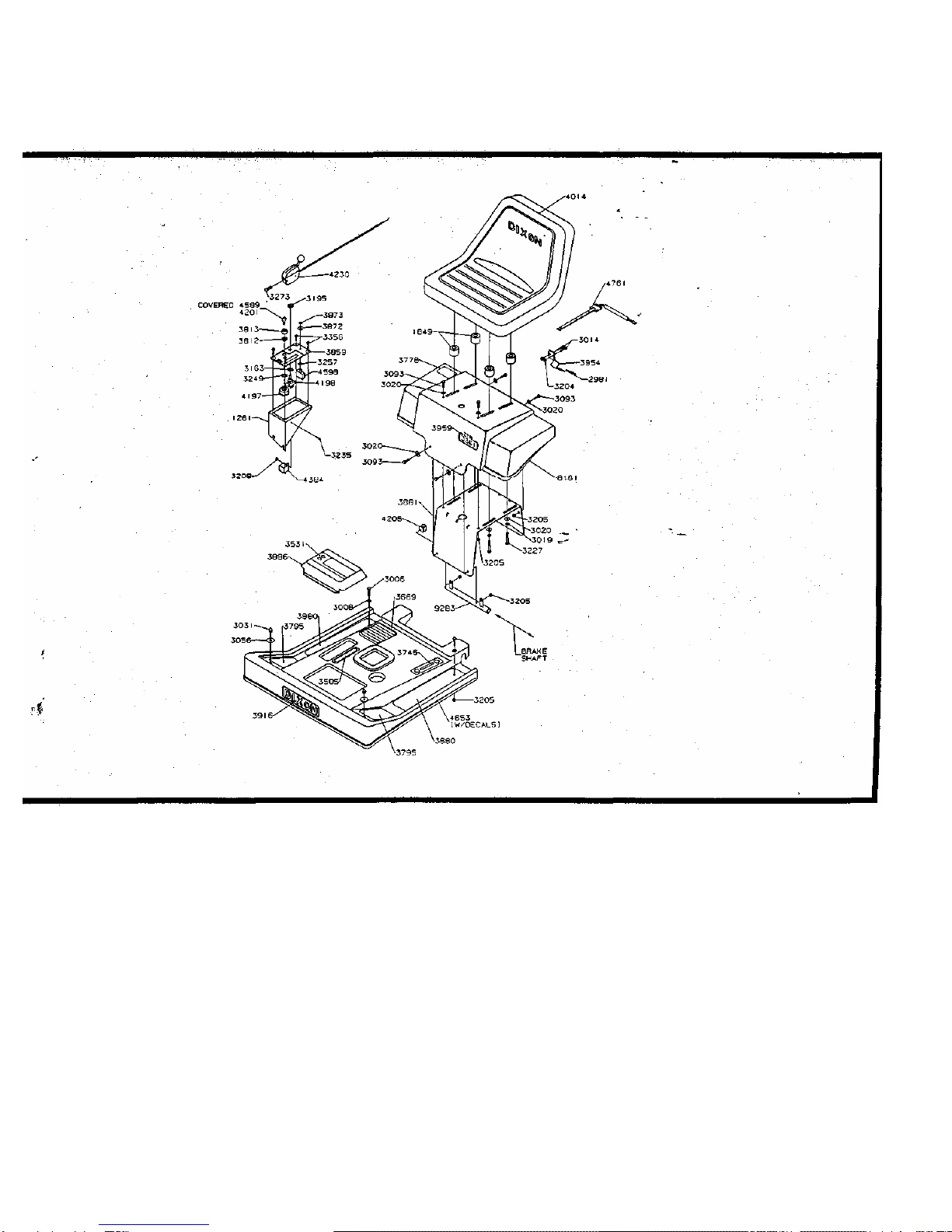

3361 BODY ASSEMBLY

Page 5 of 8

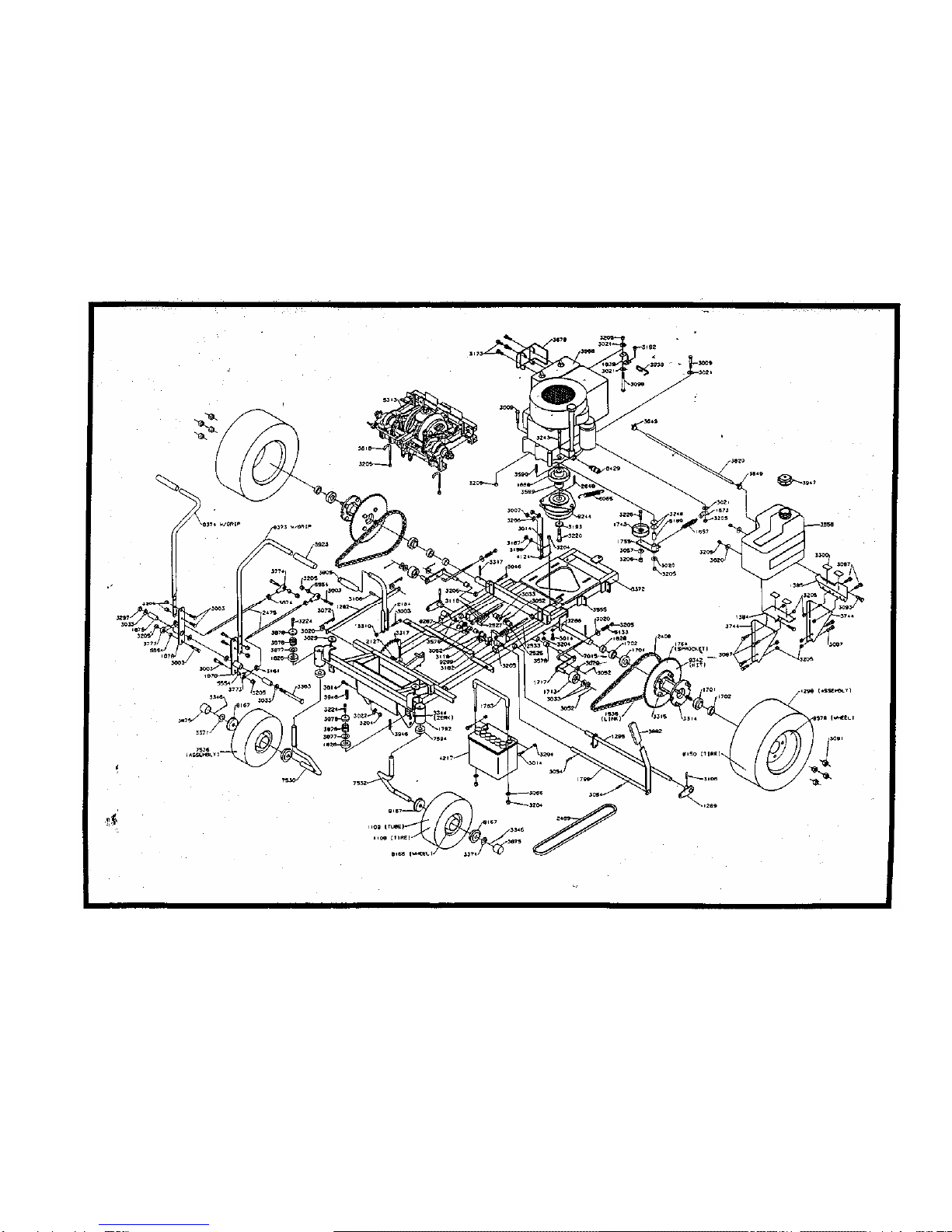

3361 CHASSIS ASSEMBLY

Page 6 of 8

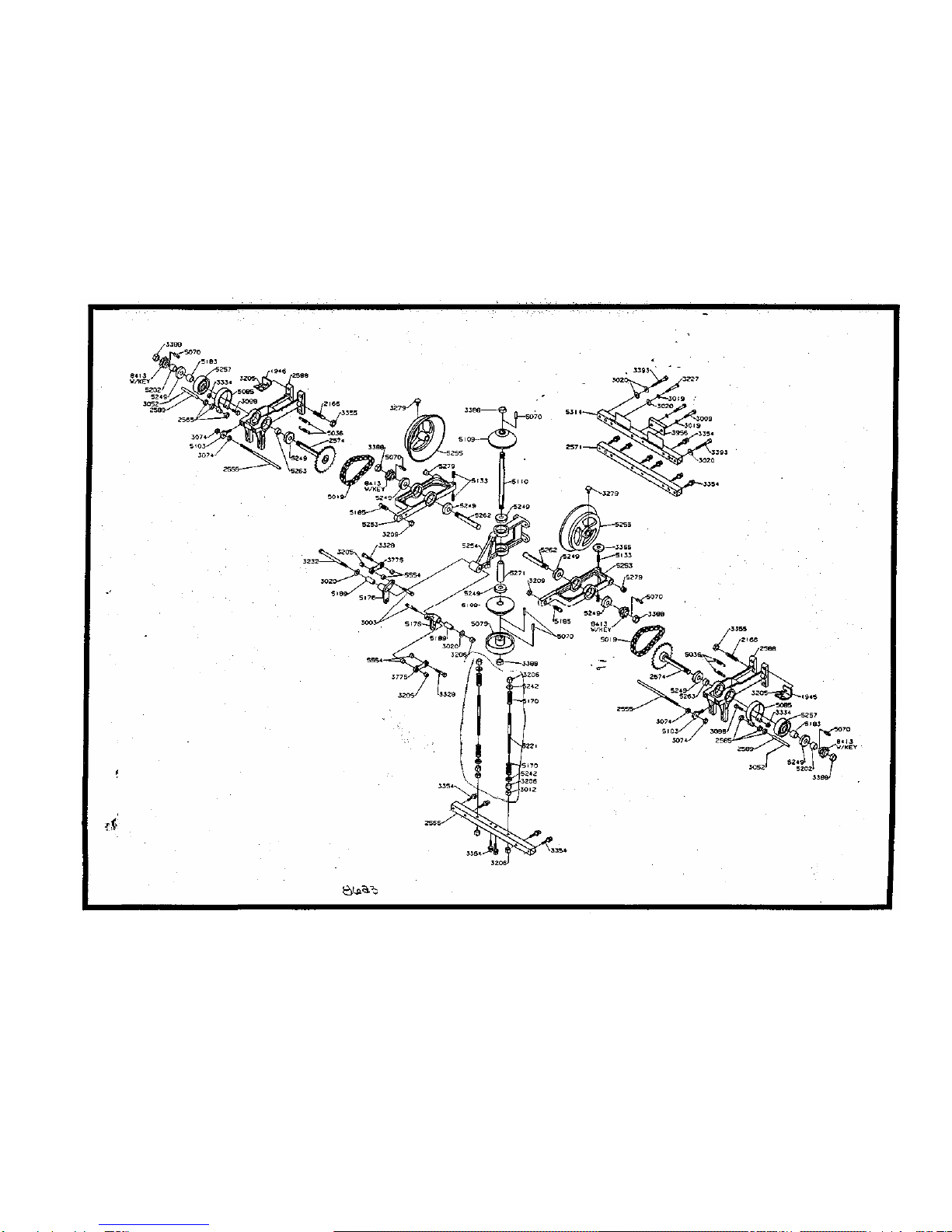

3361 TRANSAXLE ASSEMBLY

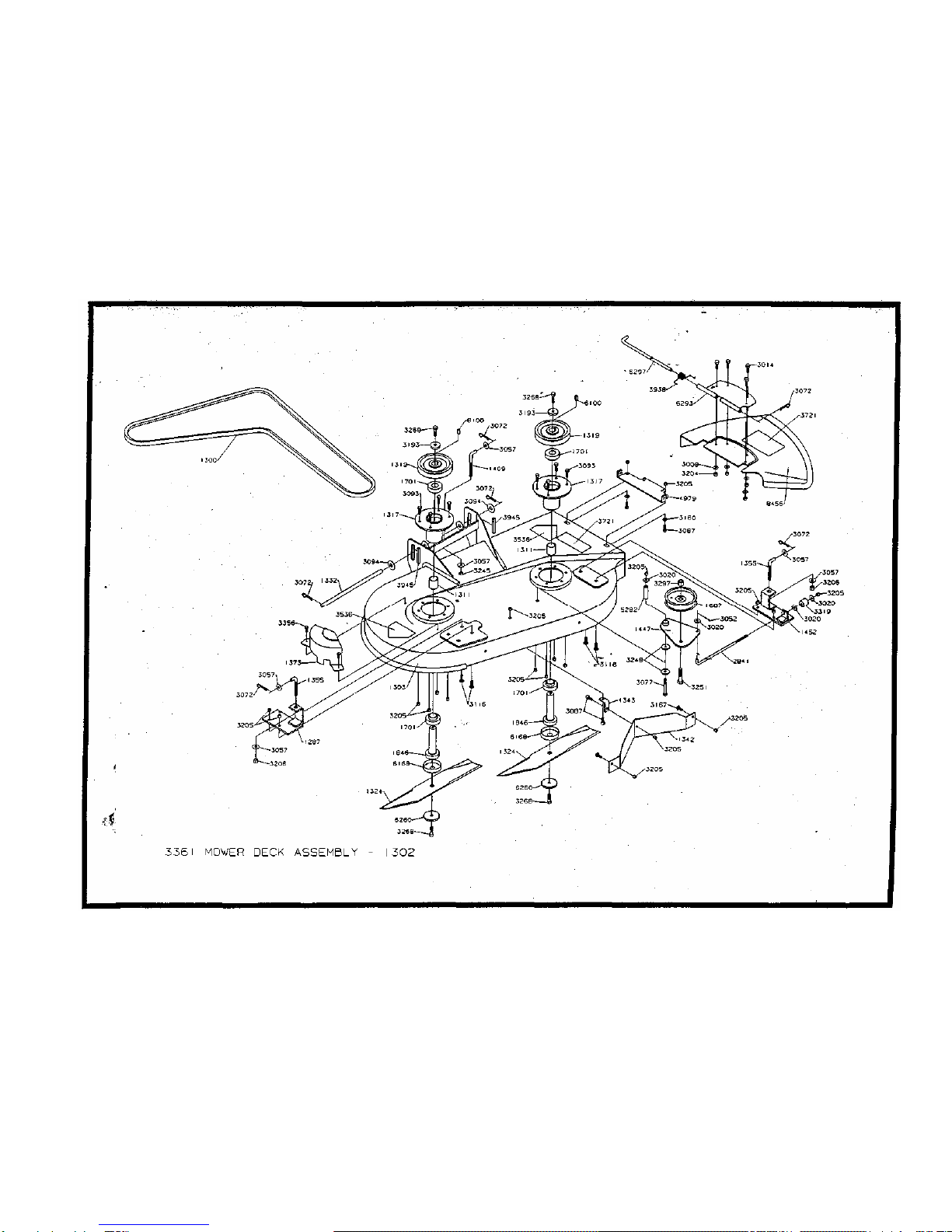

3361 MOWER DECK ASSEMBLY

36"

Page 7 of 8

Page 8 of 8

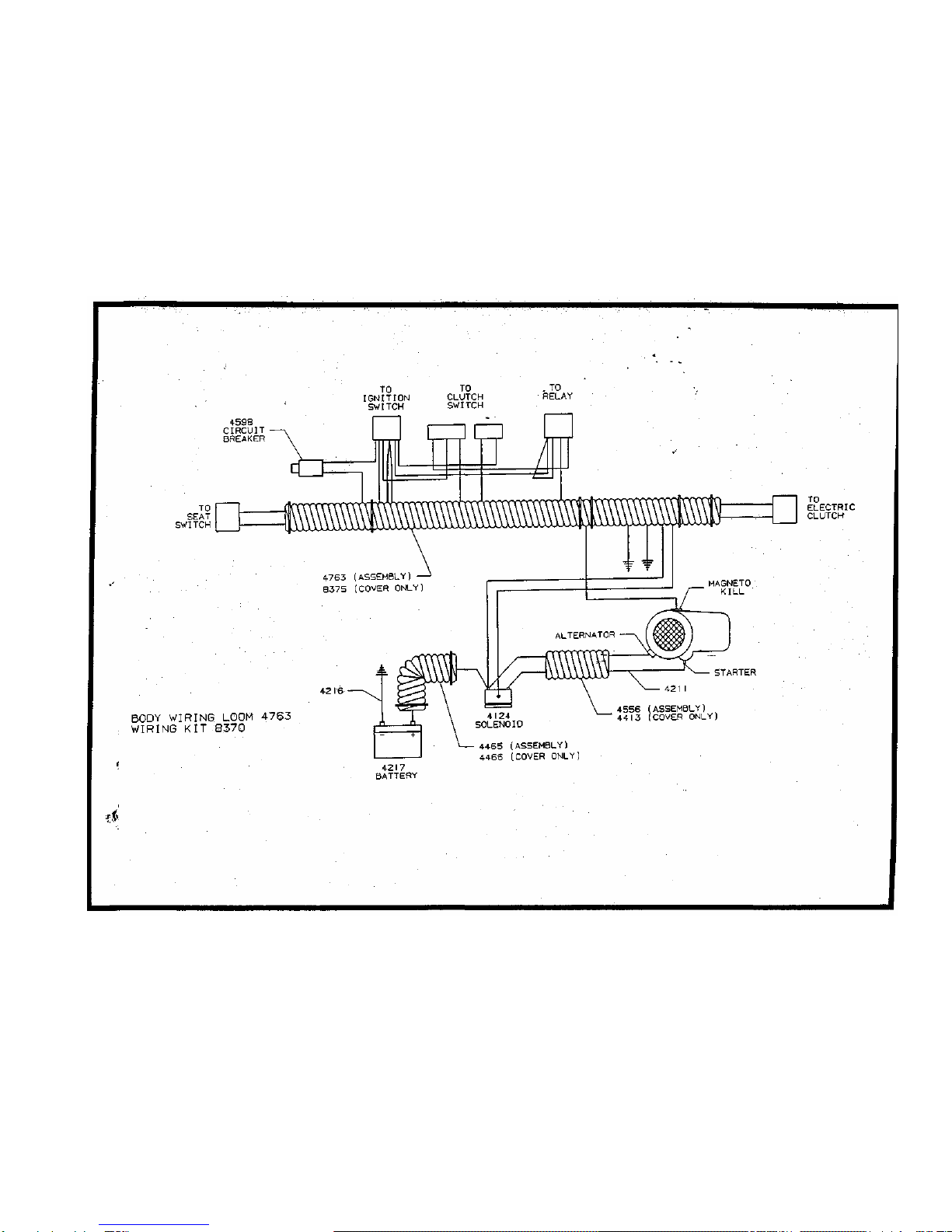

3361 WIRING ASSEMBLY
