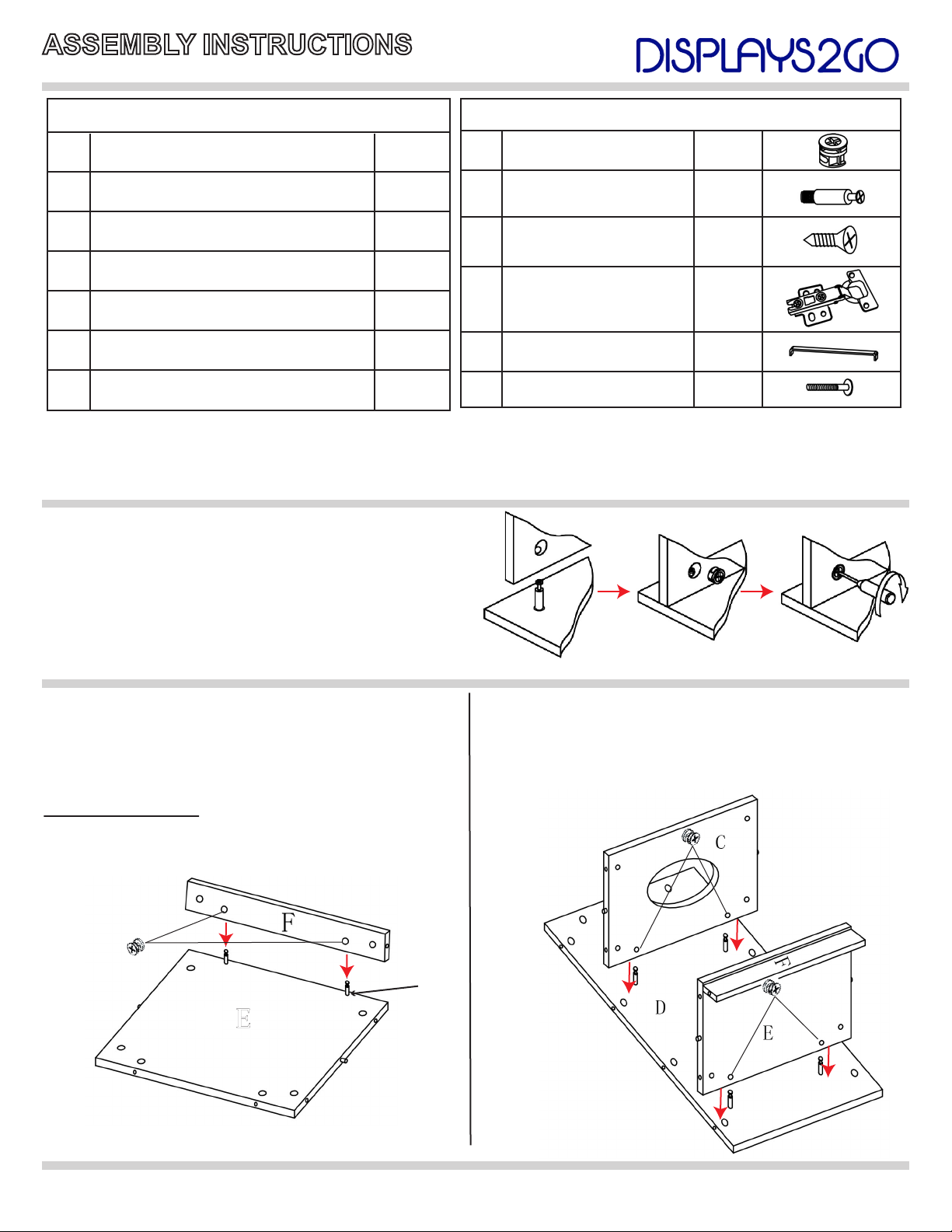

Displays2go CIRCULAR TOP OPENING Manual de usuario
ATTENTION: Unpack the unit and confirm all hardware are present. If any hardware required is missing, or if
you have any questions regarding our products, please contact D2G customer service at 844-221-3388.
Assemble the unit on a carpeted floor or on a soft surface work area to avoid any scratch. A phillips screw driver
is needed. 2 people recommended.
1. Insert 2 cam posts (H2) into holes in Panel E. Tighten only
until snug. Fit cam holes in the edge of Panel F over the cam
posts. Insert 2 cam locks (H1) into cam lock holes on Panel F,
use a phillips screw driver to turn cam locks clockwise to
secure cam posts.
DO NOT over-tighten.
2. Insert 4 cam posts into holes in Panel D as shown below.
Attach Panel C and assembled Panel E to Panel D by inserting
cam posts into the cam lock holes. Insert 2 cam locks into cam
lock holes on Panel E, turn cam locks clockwise with a phillips
screw driver to secure cam posts.
Fix Panel C the same way.
H1
Cam Lock H2
Cam Post
E
How to join 2 boards with CAM lock:
(a) (b) (c)
PARTS
A Top Panel
B Side Panel
C Middle Panel
1pc
2pcs
1pc
1pc
1pc
1pc
1pc
H1 Cam Lock
H2 Cam Post
H4 Concealed Hinge
H6 Screw
30pcs
30pcs
12pcs
2pcs
1pc
2pcs
ASSEMBLY INSTRUCTIONS
TRASH RECEPTACLE - CIRCULAR TOP OPENING
1 of 2
Wood Screw
Hinge Cup
5. Insert 6 cam posts into another Panel A.
Assemble the Panel A with rest panels by inserting the cam
posts into corresponding holes. Fix the top panel with the
rest cam locks.
6. Assemble the door handle (H5) with screws (H6).
Open and close the door a few times to check the alignments.
loosen or tighten the hinge adjustment screws as needed to
refine the fit of the door. Turn screws a little at a time until the
door reaches desired position and works properly.
Wood
Screw
Hinge Plate
3. Insert 9 cam posts into holes in Panel B as shown below.
Attach the panel assembly in STEP 2 to Panel B and use
cam locks to securely lock it in place.
4. Insert 9 cam posts into another Panel B. Assemble this Panel
the same way as in STEP 3.
Horizontal
Adjustment
Horizontal
Adjustment
Lateral
Adjustment
Lateral
Adjustment
2 of 2
