Discount Car Stereo A2D-AIMV1 Manual de usuario

Courtesy of: DiscountCarStereo.com

Serving the internet community since 1995

Created August 27, 2019

Revised: August 19, 2022

PRODUCT SAFETY & DISCLAIMER

READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE

PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY

•This installation guide is provided as a GENERAL installation guide, some vehicles vary and

may require additional steps. We do not accept responsibility for third party labor charges

or modifications. Exercise due-diligence when installing this product.

•We do not accept any responsibility for vehicle damage or personal injury resulting from

the installation of this product.

•Careless installation and operation can result in equipment damage

Requirements:

Functioning cd auto changer in trunk

Introduction

Portable audio products are everywhere, reflecting demand from active people

all over the world to take their music on the road. The A2D-AVM1 provides a

Bluetooth Music streaming option for any A2DP enabled Smartphone or Tablet

and allows users to stream music apps including turn by turn directions, audio

books, Apple music and more directly into the audio system via the CD changer

port. This module now supports Bluetooth 5.0 + APX™codec which ensures

higher quality audio over Bluetooth. The required CD changer remains

connected and operational.

The A2D-AVM1 does not support hands-free calls.

Frequently Asked question at the end of this guide for more details.

Installation –to CD plug in trunk or hatch

Warning: For the A2D-AMV1 to work, vehicle must have a fully functional CD

changer. CD changer remains connected and operational.

Locate cd changer in trunk

1. At the rear of the CD changer, locate short black pigtail cable (CD changer

has a single cable) See Fig. 2

Fig. 1

2. Disconnect CD changer from plug (do not twist)

Fig. 2

CD changer plug/socket

3. Insert factory male plug (See Fig. 2) to module socket (See Fig. 3) by

aligning arrow marks on both, then push-inwards to connect (do now

twist)

Fig. 3

module

Warning: Module male right-angle plug does not have arrow marking. To

connect, align imaginary mark shown in Fig. 4 with mark on the CD

changer socket (See Fig. 2), Ignoring this warning may damage both plug

and connector.

Fig. 4

4. Use included add-a-fuse circuit to tap accessory supply from fuse box

(see Fig 5)

Fig. 5

8. Crimp module accessory wire to blue butt connector, remove fuse (e.g., F1)

from fuse box, place F1 fuse (5A) into add-a fuse open slot, then insert add-

a-fuse circuit blade to vacant F1 slot in fuse box.

Accessory power available from trunk fuse box (See Fig.6) F1, F3, F5 etc. Please start

engine, turn radio on, press CD button and test for engine noise prior to finalizing install.

Secure module and proceed to next section

Fig. 6

Pairing

Pairing process varies among devices but basic steps are the same. This

process is done upon initial install and will not have to be repeated.

1. Turn Ignition and Radio “ON”

Green LED inside module peephole will flash (pairing mode)—some

clicking may also be heard (this is normal)

2. On A2DP device: Go to

Settings, Wireless & Networks, Bluetooth

Settings

3. Select

Bluetooth

and turn on.

4. Go to Bluetooth settings

5. Tap Scan

(Search)

for devices.

6. Wait for below Bluetooth device name (see Fig. 7) to appear then tap to

select.

Green LED inside module peephole will glow steady (paired)

Fig. 7

Operation

1. Turn ignition to accessory position and radio ON.

2. Press “CD” button.

Fig. 8

3. Launch audio device streaming application.

4. Set audio device initial volume to 50%, then raise radio volume control

button to set playback level. If distorted, lower audio device volume.

Warning: Playlist and Track selection is *NOT* possible from the radio.

You must use Smartphone built-in controls to access music files

To play CD’s

a. Press “CD” button on radio

b. Disable Bluetooth on audio device (e.g., Smartphone) CD playback resumes.

Control CD changer from radio buttons as customary.

2. To resume streaming:

Re-enable Bluetooth on audio device.

Note: Streaming has priority and remains until device is no longer paired. CD

changer playback is only possible when not paired or device is out of range

If correct operation is confirmed go ahead and reinstall rack and panels.

Optional –Smart remote control

Optional smart remote control is not required for module to operation;

however instead of fumbling smartphone to change tracks etc., use remote

control functions and keep eyes on the road. Remote does not operate radio

functions.

Operate the following smartphone functions:

1. Control music wirelessly

2. Activate VR commands (Google play only)

3. Track up/down

4. Volume up/down

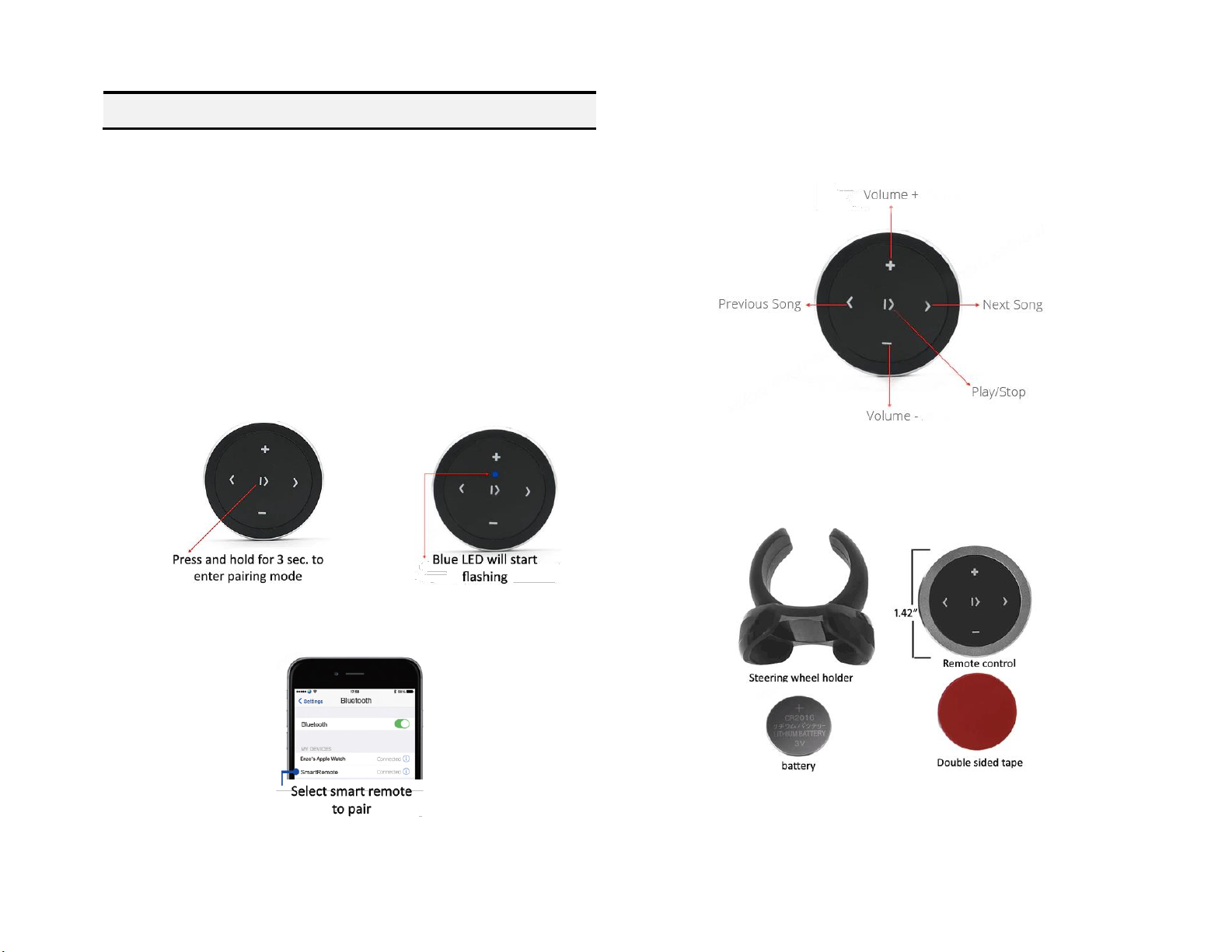

Pairing wireless remote:

Smart remote operation:

Use smart remote to perform the following functions on any iOS7.0 and higher

or Android 4.4 and higher.

Package Contents:

Frequent ask questions & troubleshooting

1. Can I pair more than one device to Bluetooth module?

YES; pairing multiple devices is possible, however only one device can

connect at a time. Disconnect first device to allow pairing to another device.

2. How do I listen to the CD changer?

In order to listen to CD’s, disable Bluetooth on audio device.

3. How good is sound quality playback from this module?

Without starting a debate, the answer to this question will be limited to your

own experience. APTX is very good, we like the sound through our loaner

vehicle speakers. The sound is just different not necessarily better or

worse if you have good speakers.

4. Can I install the A2D-AMV1 module at the radio?

NO;the A2D-AMV1 module connects to CD changer plug in trunk.

5. What is the vehicle application and where does module connect?

The A2D-AMV1 is specific to the following Jaguar vehicles:

2001-07 Aston Martin Vanquish with CD changer in trunk.

6. Will I be able to make/receive phone calls using this module?

NO. The A2D-AMV1 supports music streaming. Not for hands-free calls

7. I hear clicking sounds as I use my device, how can I stop this?

Go to device settings and disable touch sounds.

8. My module does not always pair when entering vehicle. How to I

remedy this?

Ensure module has not already paired with another device. Cycle ignition or

disable/enable Bluetooth on audio device.

9. It is possible to change Bluetooth name to my own?

This may be possible on some devices but not so on recent iPhones:

Make sure module is powered on and connected.

Go to Phone settings and tap Bluetooth.

Tap next next to DISCARST, then tap Name

Enter a new name (e.g. Jaguar-BT etc.) tap Done on keyboard, then tap

The custom name given now appears in Bluetooth settings of your device.

10. Playback is distorted, how do I fix this?

If playback is distorted it’s likely because audio device volume setting is too

high. To fix, turn radio volume up to comfortable level, then lower volume on

device until it no longer distorts.

11. Will the Vanquish radio display song tittle, name or playlist?

NO. Song/track information not displayed on Vanquish radio screen. User

must use audio device display and built-in controls buttons for music

selection and display.

Disclaimer

• This product has no affiliation with Aston Martin

• We’re not liable for misuse of this product.

•Professional installation recommended

For help email support@discountcarstereo.com

subject to change without notice. Other products and companies referred to herein are

trademarks or registered trademarks of their respective companies or mark holders.
