Dirt Devil DD2505 Manual de usuario

CYCLONE

VACUUM CLEANER

800W

220-240V~50/60HZ

ITEM: 871125247532

A.I.&E. Adriaan Mulderweg 9-11

5657 EM Eindhoven, The Netherlands

DD2505

YEAR

GUARANTEE

7,5M

2,5L

4,7KG

80dB

Points de collecte sur www quefairedemesdechets.fr

Cet appareil,

ses accessoires,

piles et cordons

se recyclent

À DÉPOSER

EN MAGASIN À DÉPOSER

EN DÉCHÈTERIE

FRFR

INSTRUCTION MANUAL

2.5 LITER

AINSTRUCTION MANUAL

BAGLESS SINGLE CYCLONE

VACUUM CLEANER

ITEM NO: 871125247532

MODEL: DD2505 / V8223

IMPORTANT SAFETY INSTRUCTIONS

This appliance should only be used for domestic cleaning and not for

commercial or industrial use. Please ensure that this guide is fully

understood before

operating the appliance.

WARNING: DANGER TO THE PERSON!

IMPORTANT: Damage to the appliance!

In addition we offer the following safety advice:

LOCATION

• Do not use or keep this product outside when it is raining.

• Do not store the appliance near hot ovens or heating appliances.

• Store your vacuum cleaner in a cool, dry area. If lters have been

cleaned as per user guide instructions ensure they are thoroughly dry

before storing away.

MAINS LEAD

• Do not allow the mains lead to become strained or run this

appliance over it.

• If the electrical cable becomes damaged, the complete cable

assembly must be replaced. Do not attempt this task yourself.

Contact the local retailers.

• Agency service: To ensure the continued safe and efcient

operation of this appliance we recommend that any servicing

or repairs are

only carried out by an authorized Agency service

engineer.

CHILDREN

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

• Children shall not play with the appliance

• This appliance can be used by children aged from 8 years and above.

Scan QR-Code for

extended manual

PERSONAL SAFETY

• The plug must be removed from the wall socket before cleaning or

maintaining the appliance.

• Never modify the cleaner in any way.

• Never use in the presence of explosive liquids or vapors.

• Never pick up inammable or poisonous liquids such as petrol,

copier toner or other volatile substances. Never pick up acids,

asbestos or asbestos dust.

• Repairs to electrical appliances are only to be undertaken by

trained personnel.

• Unprofessional repairs can be dangerous for users.

• The appliance must never be left running when unsupervised.

PRODUCT SAFETY

• Never use the appliance without the lters being installed.

• Never use the appliance to vacuum hot ashes, broken glass, sharp

objects or liquids.

• To protect against re, electric shock and personal injury do not

immerse cord, plug or cleaner in water or other liquid.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Cleaning and user maintenance shall not be made by children

without supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in

order to avoid a hazard.

• Always switch off the vacuum cleaner before

disconnecting or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may

affect the airow/suction.

• Do not use the appliance to clean animals or people.

ELECTRICAL REQUIREMENTS

• Check that the voltage on the rating plate corresponds with your

house electricity supply which must be A.C (alternating current).

PRODUCT DESCRIPTION

1. Separator and shroud 6. Dirt container

2. Hose entry point 7. Carry handle

3. Dirt container release button 8. Dirt container lid

4. Cord rewind button 9. Power On/Off button

5. Post motor lter (hidden)

and cover 10. Wheel outer

HOW TO INSTALL / OPERATE THE MACHINE

BEFORE YOU START

• Always switch off and unplug the vacuum cleaner before

connecting or disconnecting the hose/attachments, or removing

and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for

any reason the vacuum cleaner does overheat the thermostat

will automatically turn the vacuum cleaner off. If this happens,

switch the vacuum cleaner off and unplug from electrical

socket. Remove and empty the dirt container and also check

the vacuum cleaner for blockages. Allow the vacuum cleaner

to cool for approximately 1 hour (if you have cleaned the lters

please wait 24 hours for the lters to fully dry before putting

back into the machine).

• Clean the pre-motor lter every time the dirt container is

emptied and replace the lters every 12 months.

• If the vacuum cleaner is blocked, switch off and unplug before

removing the blockage.

• When using the accessories always make sure the brush bar is

switched to the off position.

IMPORTANT: The base of the vacuum cleaner should always

be positioned at on the oor when starting and in use. The

dirt container should be locked into place before lifting the

vacuum cleaner by the carry handle.

ASSEMBLING YOUR MACHINE

IMPORTANT: The condition of the lters affects the

performance of your machine. Please check and clean lters

periodically (depending on the level of use). For full cleaning

instructions, see ‘taking care of your machine’.

1. Insert the end of the hose into the unit. Ensure the hose has

clicked into place.

2. Insert the handle into the telescopic extension tube.

3. Press the button on the telescopic extension tube and adjust to the

required length.

4. Insert the other end of the telescopic tube into the oorhead until it

clicks into place.

HOW TO USE

IMPORTANT: The motor is equipped with a thermal cut-out. If

for any reason the unit should overheat, the thermostat will

automatically turn off.

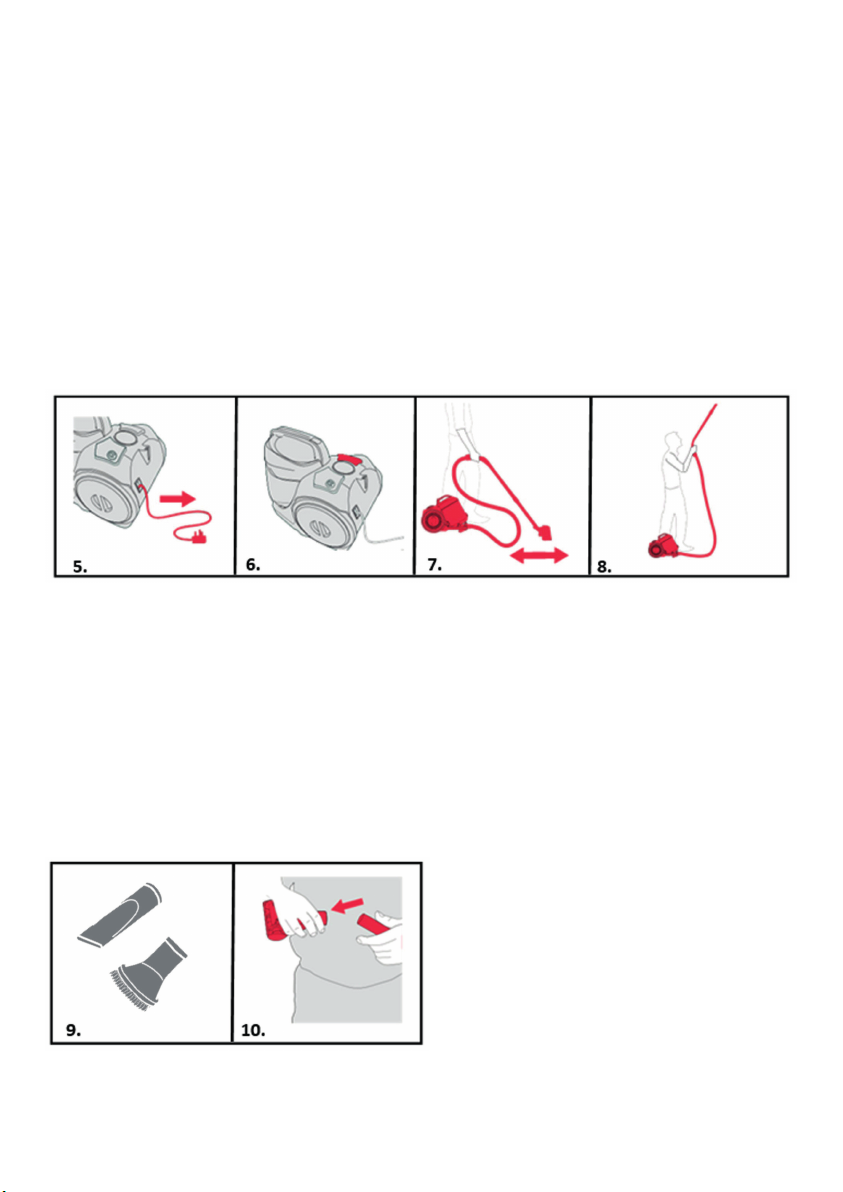

5. Fully unwind the power cord. A yellow mark on the cord indicates

the recommended cord length. Do not exceed the cord beyond the

yellow mark.

6. Plug in and switch the unit on by pressing the power button.

7. Use the vacuum by moving the oorhead backwards and forward

for an effective clean.

8. Remove the oorhead to use in harder to reach places.

USING YOUR ACCESSORIES

9. Choose an accessory

10.Push the accessory onto the telescopic extension tube or hose.

EMPTYING AND CLEANING THE DIRT CONTAINER

IMPORTANT: Always switch off and unplug the vacuum

cleaner from the electrical socket before assembling,

opening or emptying the dirt container, or before connection

/ disconnecting the attachments. Check the pre-motor lter

every time you empty the dirt container and tap against a bin

to remove dirt/debris if required.

11. Remove dirt container by pushing down the dirt container

release button and lifting the dirt container.

12.Hold the dirt container over a bin. Press the dirt release clip

at the bottom of the container, the dirt release door will open

allowing dirt/debris to fall out.

CLEANING THE PRE-MOTOR FILTER

13.Hold the dirt container and twist the lid anti-clockwise.

14.Lift the lid to reveal the pre-motor lter.

15.Lift out the pre-motor lter.

16.Tap the pre-motor lter against a bin to remove any dirt/debris.

17.Rinse the pre-motor lter under water (max 40

°C).

18.Leave to dry for 24 hours or until fully dry before placing back

in the machine.

CLEANING THE SHROUD

19.Hold the dirt container and twist the lid anti-clockwise.

20.Lift the lid to reveal the pre-motor lter.

21.Lift out the pre-motor lter.

22.Twist the separator cap anti-clockwise to unlock and remove.

23.Lift and remove the separator from the dirt container.

24.Tap the separator against a bin to remove any dirt/debris.

25.Make sure the rectangular hole in the dirt container lines up with

the rectangular hole on the separator.

26.Replace the separator cap, twist clockwise to lock.

27.Replace the pre-motor lter. Close dirt bin lid making sure it clicks

and locks into place.

Note: For easier cleaning, follow the 3-step clean process

located on the back of the dirt container. Don’t over ll the dirt

container. Replace the lters every 6-9 months.

POST-MOTOR FILTER MAINTENANCE

28.Post-motor lter is located in the right side wheel. Hold the center

of the wheel and twist wheel cover anti-clockwise.

29.With the wheel cover off the post-motor lter is easily removed.

30.Check the post-motor lter for discoloration.

IMPORTANT: The exhaust lter is designed to offer long life with

no maintenance. The lter should be checked periodically and

when heavily discolored it should be replaced. Please do not

wash, scrub or brush the lter as this will damage the delicate

lter media.

CAUTION: Do not wash the post motor lter.

REMOVING BLOCKAGES FROM THE HOSE

31.Remove the hose from the vacuum cleaner and telescopic

extension tube. Remove any blockage by inserting a wire coat

hanger into the hose.

NOTE: To test for a blockage in the hose, drop a small ball

of paper into the hose. The paper will drop through if the

hose is clear.

TROUBLE SHOOTING

Should you have any problem with you cleaner, follow this simple

check list before calling the agency customer service center.

A: Some accessories are missing

1) Check the packaging content that is mentioned below the

product specications to be sure the parts included with the

appliances.

B: Appliances have no power

1) The plug is not connected (well) into the electrical socket.

2) Check if the plug need to be replaced.

3) The motor thermostat may have tripped. If this has happened,

unplug the vacuum cleaner. Remove and empty the dirt

container and check the hose for blockages. Clean the lter

sand allow the vacuum cleaner to cool for approximately 1 hour

(if you have washed the lters you will need to wait 24 hours for

the lters to fully dry before putting them back into the vacuum

cleaner).

C: Vacuum cleaner won’t pick up dust

1) The dirt container may not be correctly tted, remove the dirt

container from the vacuum cleaner and check it’s assembled

correctly, ret ensuring it’s locked into place.

2) The lter may be clogged, clean the lter.

3) The dirt container may be blocked, empty the dirt container.

4) There may be a blockage in the hose/tube. Disconnect from the

vacuum cleaner and carefully remove any blockages.

D: Dust is escaping from the vacuum cleaner

1) The lters may be clogged, clean the lter.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Aspiradora de Dirt Devil

Dirt Devil

Dirt Devil DD9003 Manual de usuario

Dirt Devil

Dirt Devil Rebel 20 DD 2200 Manual de usuario

Dirt Devil

Dirt Devil M0850 Manual de usuario

Dirt Devil

Dirt Devil gator m138 Manual de usuario

Dirt Devil

Dirt Devil Power Express Lite SD22020 Manual de usuario

Dirt Devil

Dirt Devil Centrixx TS Manual de usuario

Dirt Devil

Dirt Devil VERSO wet & dry M410 Manual de usuario

Dirt Devil

Dirt Devil BD20045 Manual de usuario

Dirt Devil

Dirt Devil INFINITY REBEL 54 Manual de usuario

Dirt Devil

Dirt Devil Centrixx TS Manual de usuario

Dirt Devil

Dirt Devil LET'S GO SD20000 Manual de usuario

Dirt Devil

Dirt Devil DD2425 Series Manual de usuario

Dirt Devil

Dirt Devil Black Label CP -1 Manual de usuario

Dirt Devil

Dirt Devil 88150 Manual de usuario

Dirt Devil

Dirt Devil Detailer MCV2000 Manual de usuario

Dirt Devil

Dirt Devil Power DUO UD70170 Manual de usuario

Dirt Devil

Dirt Devil UD20010 Manual de usuario

Dirt Devil

Dirt Devil Samurai DD699 Manual de usuario

Dirt Devil

Dirt Devil M083410 Manual de usuario

Dirt Devil

Dirt Devil M086035 Manual de usuario

Dirt Devil

Dirt Devil SD40190 Manual de usuario

Dirt Devil

Dirt Devil Swivel Glide Vision M088920 Manual de usuario

Dirt Devil

Dirt Devil Handy Pro Manual de usuario

Dirt Devil

Dirt Devil M08230RED Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
