Dimplex CDFI1000-PRO Manual de usuario

Owner’s Manual

6909660300

6909660400

Model

CDFI1000-PRO

CDFI500-PRO

7214300200R03

IMPORTANT SAFETY INFORMATION: Always read this manual

rst before attempting to install or use the Opti-myst®cassette. For

your safety, always comply with all warnings and safety instructions

contained in this manual to prevent personal injury or property

damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this unit.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations.................. 3

IMPORTANT INSTRUCTIONS .............. 4

Installation ............................... 6

Operation ............................... 14

Maintenance............................. 17

Accessories ............................. 18

Warranty ................................ 19

Technical Support......................... 22

Welcome & Congratulations

Thank you and congratulations for purchasing an Opti-myst®cassette

from Dimplex. Please use our convenient online registration page to

record your model and serial numbers for future reference at

www.dimplex.com/register

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-7539

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

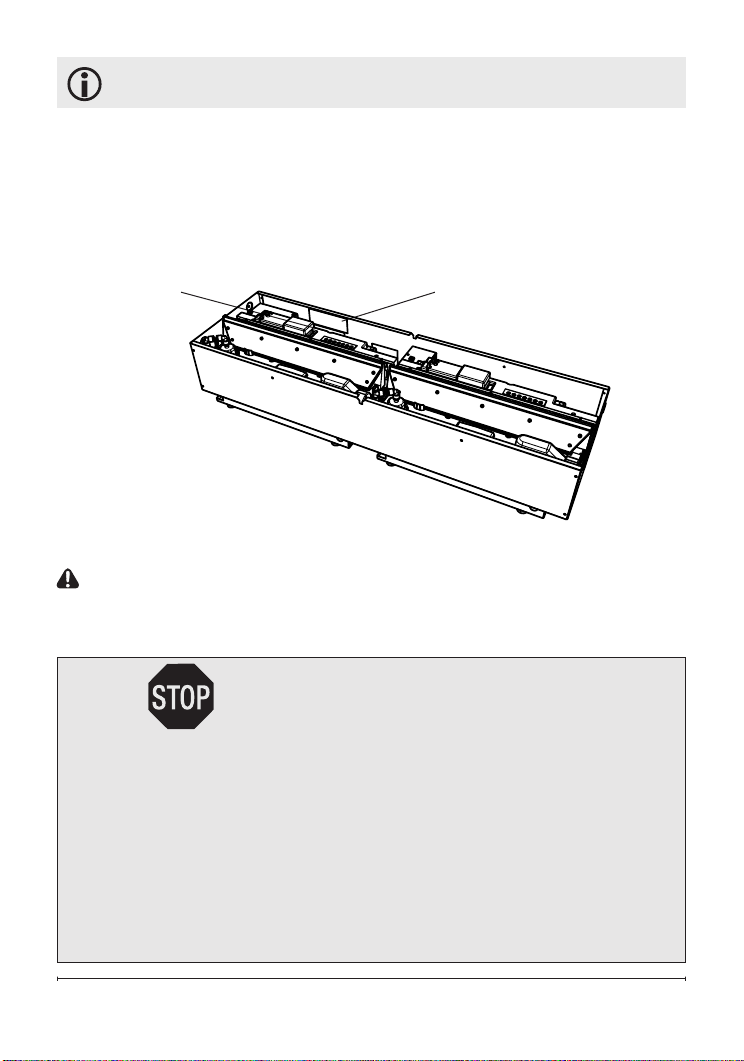

In order to better serve you, please have your model and serial number

ready or register your product online before calling (See above)

Serial Number

Label Rating Label with

Model Number

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result

in a possible electric shock, re hazard and will void the warranty.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using the unit.

② Do not operate any unit if the

unit has been dropped or damaged

in any manner. Contact Technical

Service at 1-888-346-7539.

③ Do not use outdoors.

④ Extreme caution is necessary

when any heater is used by or near

children or invalids and whenever

the heater is left operating and

unattended.

⑤ Do not operate any heater after

it malfunctions. Disconnect power

at service panel and have heater

inspected by a reputable electrician

before reusing.

⑥ To disconnect the unit, turn the

controls OFF, disconnect power at

the service panel.

⑦ Do not insert or allow foreign

objects to enter any ventilation or

exhaust opening as this may cause

an electric shock or re, or damage

the heater.

IMPORTANT INSTRUCTIONS

⑧ To prevent a possible re, do not

block air intakes or exhaust in any

manner.

⑨ All electrical heaters have hot

and arching or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable liquids

are used or stored.

⑩ Do not modify the unit. Use it

only as described in this manual.

Any other use not recommended by

the manufacturer may cause re,

electric shock or injury to persons.

⑪ Do not burn wood or other

materials in the unit.

⑫ Always use a certied electrician

should new circuits or outlets be

required.

⑬ Disconnect the power supply

before performing any cleaning,

maintenance or relocation of the

unit.

⑭When transporting or storing the

unit, keep in a dry place, free from

excessive vibration and store so as

to avoid damage.

SAVE THESE INSTRUCTIONS

WARNING: Remote control

contains small batteries. Keep away

from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install

battery backwards, charge, put

in re or mix with used or other

battery types - may explode or leak

causing injury.

!NOTE: Changes or

modications not expressly

approved by the party responsible

for compliance could void user's

authority to operate the equipment.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

CAUTION: This equipment has been

tested and found to comply with the limits

for Class B digital device, pursuant to part

15 of the FCC Rules. These limits are

designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses

and can radiate radio frequency energy

and, if not installed and used in accordance

with the instructions, may cause harmful

interference to radio or television reception,

which can be determined by turning the

equipment OFF and ON, the user is

encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and the receiver.

• Connect the equipment into an outlet on

a circuit di󰀨erent from that to which the

receiver is connected.

• Consult the dealer or an experienced

radio/TV technician for help.

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) This device

may not cause harmful interference, and

(2) this device must accept any interference

received, including interference that may

cause undesired operation.

FCC CAUTION: Any changes or

modications not expressly approved by

the party responsible for compliance could

void the user’s authority to operate this

equipment.

6 www.dimplex.com

8.50 in. (216 mm)

40.08 in. (1018 mm) Logset: 13.94 in. (353 mm)

11.94 in. (303 mm)

40.08 in. (1018 mm)

Media Plate: 11.94 in. (303 mm)

8.50 in. (216 mm)

20.04 in. (509 mm)

11.94 in. (303 mm)

Logset: 13.94 in. (353 mm)

Adjustable from

9.13 in. (232 mm)

to 9.63 in. (245 mm)

Media Plate: 11.94 in. (303 mm)

CDFI1000P

CDFI500P

Adjustable from

9.13 in. (232 mm)

to 9.63 in. (245 mm)

8.50 in. (216 mm)

40.08 in. (1018 mm) Logset: 13.94 in. (353 mm)

11.94 in. (303 mm)

40.08 in. (1018 mm)

Media Plate: 11.94 in. (303 mm)

8.50 in. (216 mm)

20.04 in. (509 mm)

11.94 in. (303 mm)

Logset: 13.94 in. (353 mm)

Adjustable from

9.13 in. (232 mm)

to 9.63 in. (245 mm)

Media Plate: 11.94 in. (303 mm)

CDFI1000P

CDFI500P

Adjustable from

9.13 in. (232 mm)

to 9.63 in. (245 mm)

Installation

The CDFI1000-PRO and

CDFI500-PRO are supplied in an

assembled state and are designed

to be permanently installed. The

units come ready for hardwire

installation and the use of the

water rell containers.

WARNING: Construction and

electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING: To reduce the risk of

re, do not store or use gasoline

or other ammable vapours or

liquids in the vicinity of the unit.

!NOTE: A 15 Amp, 120 Volt

circuit is required. A dedicated

circuit is preferred but not essential

in all cases. A dedicated circuit will

be required if, after installation,

the circuit breaker trips or the fuse

blows on a regular basis when the

cassette is operating. Additional

!NOTE: When preparing the

opening for the unit ¼ in. (6.4

mm) of clearance should be

maintained from each surface

to ensure easy installation.

!NOTE: Optimal installation height is

60" (152.4 cm) to the bottom of the media

plate or log set. Installing the product

above this height may reduce the ame

visibility.

Product Dimensions

CDFI500-PRO

CDFI1000-PRO

Installation

appliances on the same circuit may

exceed the current rating of the

circuit breaker.

WARNING: Failure to install the

cassette as instructed below

may result in damage to the

equipment and or may expose

the user to the risk of re,

serious injury, illness or death.

WARNING: Do not attempt to

wire your own new outlets or

circuits. To reduce the risk of

re, electric shock or injury to

persons, always use a licensed

electrician.

WARNING: Ensure that the

On/O󰀨 switch is set to the OFF

position (refer to Operation

section) and that the circuit on

which the unit is to be installed

has the power cut o󰀨 at the

service panel until installation is

complete.

!NOTE: Please read all

instructions before installing.

Cassette Plumbing

The units come equipped with

rell containers for manual lling

of the reservoir. The unit can be

hard plumbed with the plumbing

accessory kit - CDFIPLUMB-KIT,

available from your local Dimplex

dealer, or with standard 1/4 in

(6.4mm) tubing, using the information

outlined below.

NOTE: The plumbing accessory kit

is designed for use with copper piping.

CAUTION: Ensure that all

plumbing connections meet local

plumbing code requirements.

CAUTION: Ensure that the

location of the plumbing connection

allows for easy access to allow

for shuto󰀨 during scheduled

maintenance.

1. Locate a cold water line in the

vicinity of the desired location

of the cassette.

!NOTE: Normal tap water can

be used in the Opti-myst® as long

as the tap water is not considered

to be hard water. In the event

your tap water is hard, softened or

ltered water is recommended.

Figure 1

Ball

Valve

To water

source

Ball

Valve

To water

source

CDFI500-PRO

CDFI1000-PRO

Filter

Route the 2 pin wire as shown. 2 pin

wire for connecting to optional Heater

Air in

Electrical

Junction Box

Electrical

Junction Box

Air in

8 www.dimplex.com

Exit for Water Supply

Fresh Air Inlet

CDFI500-PRO: 40 in² (258 cm²)

CDFI1000-PRO: 80 in² (516 cm²)

Exit for Electrical

Installation Surface

Air Path

CDFI500-PRO: 20 ⅜ in (518mm)

CDFI1000-PRO: 40 ⅜ in (1025mm)

Log Set: 14¼ in (362mm)

Media Plate: 12¼ in (311mm)

Adjustable from

9 in to 9½ in

(229 mm to 241 mm)

Installation

2. Turn OFF the main water

supply and drain the line of any

standing water (if possible),

before proceeding to tie into

the water line.

!NOTE: Once the new plumbing

connections are complete ensure

that the lines are ushed to prevent

any debris from going into the unit.

3. On the cassette, remove the

top cover assemblies (Figure

10, page 18) and prime each of

the water reservoirs with 33.5

oz (1L) of water.

4. Replace the top cover

assemblies and ensure that the

two plumbing caps are securely

attached to the top cover of the

water reservoirs. (Figure 10,

page 18)

5. Locate the ball valve located

in the bottom center of the unit

(near the back). (Figure 1)

6. Attach one end of the ¼ in

(6.4 mm) tubing to the ball

valve. Insert the tubing into the

ball valve tting so that it is fully

inserted (approximately ½ in

(12 mm)).

!NOTE: Ensure that the end of

the tubing is cut square, to prevent

leaking.

7. Route the tubing to the area of

the water source.

8. Verify that all of the

connections are fully inserted,

and begin opening each of the

valves, ensuring that no leaks

are present.

Figure 2a

Installation

Connecting Multiple Units

Together

When connecting multiple units

together, the plumbing should be

constructed in a manifold style

conguration, sized appropriately

for the number of units that are

being installed so a consistent

volume water and pressure is being

supplied to each unit.

New Construction

When determining a location for the

Opti-myst® cassette, ensure that the

unit will not be susceptible to drafts,

vents, ceiling fans and other air

currents. Similar to a candle, large

movements of air will a󰀨ect the

unit’s ability to create and maintain

the ame e󰀨ect.

(77 mm)

3 in.

10 in.

(254 mm)

10 in.

(254 mm)

10 in.

(254 mm)

(77 mm)

3 in. (77 mm)

3 in.

(77 mm)

3 in. (77 mm)

3 in.

Figure 3

Air Inlet

CDFI500-PRO: 40 in2 (258 cm2)

CDFI1000-PRO: 80 in2 (516 cm2)

Glass, plexi-glass, etc.

Figure 2b

AND

10 www.dimplex.com

Installation

If the desired location is susceptible

to signicant air movement, i.e.

air vents, the di󰀨erent installation

options illustrated in Figure 3 can

be used. It is important that the

surface surrounding the top of the

cassette have at least a 3 in

(72 mm) clearance from any vertical

surface and the barrier be 10 in

(254 mm) high from the installation

surface, to ensure optimal ame

production.

!NOTE: It is recommended

that during drywall installation

and nishing the media plate be

installed with the provided bag

to prevent dust and debris from

entering the unit.

1. Use studs to frame an

enclosure with the following

minimum internal/opening

dimensions. Note that the

Media Plate (supplied) and Log

Set (optional) require di󰀨erent

opening widths - see Figure 2.

!NOTE: A fresh air inlet that

is a minimum of 80in2 (516 cm2)

for the CDFI1000-PRO and 40in2

(258 cm2) for the CDFI500-PRO, is

required. The air intake must allow

for air to reach the underside of the

Opti-myst Cassette (Figure 2 & 3).

If installing into the Opti-myst Pro

Box Heater (optional), no additional

air intake is required. The Opti-

myst Pro Box Heater is designed

with air intakes included.

For optimal performance, a

clearance of 18 in (457 mm)

between the installation surface

and any surface above should be

maintained. A minimum clearance

of 16 in (405 mm) must be

maintained.

2. In the back left corner of

the unit, locate and remove

the electrical cover plate, by

removing the two securing

screws.

3. Install a ⅜ in (10 mm) or ½ in

(13 mm) cable connector, not

included, suitable for mounting

in a ⅞ in (22 mm) hole, to the

cable plate and feed the supply

cable through the connector.

The cable plate can be

removed by removing the two

securing screws on either side,

to allow for easier access.

CAUTION: Use two conductor,

non-metallic sheath cable with

Cable Plate

Electrical Cover Plate

Holes for

securing to

framing

Cord Outlet

for Tethered

Controller

Figure 4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex DS5629 Manual de usuario

Dimplex

Dimplex SCANDIC DELUXE Manual de usuario

Dimplex

Dimplex PF2325CG Manual de usuario

Dimplex

Dimplex ELECTRALOG CFP3913 Manual de usuario

Dimplex

Dimplex DFG2562 Manual de usuario

Dimplex

Dimplex Atherton ATH20 Manual de instrucciones

Dimplex

Dimplex Avola AVA20 Manual de usuario

Dimplex

Dimplex OPTIMYST CAS400L Manual de usuario

Dimplex

Dimplex BLF3451-INT Manual de usuario

Dimplex

Dimplex DWF1203B Manual de usuario

Dimplex

Dimplex Chadwick Suite CDW15WW Manual de usuario

Dimplex

Dimplex 25 FIREBOX Manual de usuario

Dimplex

Dimplex Vivente Plus V V T75 Manual

Dimplex

Dimplex BF42ST-230 Manual de operación

Dimplex

Dimplex SS5800PB Manual de usuario

Dimplex

Dimplex Opti-Myst Cassette 500 Manual de usuario

Dimplex

Dimplex DF2608-AU Manual de usuario

Dimplex

Dimplex Revillusion RBF24DLX Manual de usuario

Dimplex

Dimplex BFSL33 Manual de usuario

Dimplex

Dimplex IN-STUD V1525BT Manual de usuario

Dimplex

Dimplex Opti-myst Manual de usuario

Dimplex

Dimplex BLF50 Manual de usuario

Dimplex

Dimplex GDS33HG-1310RG Manual de usuario

Dimplex

Dimplex EWMC-CC-SS Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
