PRACTICAL USER’S GUIDE

FOR THE IN-STUD FIREPLACE

MODEL NUMBER:

V1525BT

V1525RT

Valued Customer,

We are pleased that you have chosen to purchase an

electric fireplace manufactured by Dimplex North America

Limited.

Over the years, valuable memories will occur around the

warmth and comfort of your hearth. Thank you for allowing

our product to be the backdrop for those special moments.

Serial Number _______________

Model Number _______________

Quality checked by:

CONTENTS

PAGE 1 – 2 Important Instructions

PAGE 4 Fireplace Installation

PAGE 13 Operation

PAGE 15 Maintenance

PAGE 18 Warranty

QUICK REFERENCE GUIDE

FOR THE IN-STUD FIREPLACE

1. Before using the In-Stud fireplace verify:

•Are the circuit breakers for the unit on?

•Are the light bulbs loose? (to check,

follow the instructions for replacing the

light bulbs under the maintenance

section of this manual)

2. The heater may emit a slight, harmless odor

when first used. This odor is a normal condition

caused by the initial heating of internal heater

parts.

3. The information regarding the model of your unit

can be found on the rating plate located on the

side of the unit. See page 4 for an illustration on

how to locate the rating plate.

4. If you have any questions or concerns regarding

the operation of your fireplace, contact Dimplex

customer service at 1-888-DIMPLEX (1-888-

346-7539)

IMPORTANT INSTRUCTIONS

RETAIN THIS USER’S GUIDE

FOR FUTURE REFERENCE

When using electrical appliances, basic

precautions should always be followed to reduce

the risk of fire, electric shock, and injury to persons.

1. Read all instructions before using the In-Stud

fireplace.

2. The heater is hot when in use. To avoid burns,

do not let bare skin touch hot surfaces. The

trim around the heater outlet becomes hot

during heater operation. Keep combustible

materials, such as furniture, pillows, bedding,

papers, clothes, and curtains at least 3 feet

(0.9m) from the front of the unit.

3. Extreme caution is necessary when any heater

is used by or near children and whenever the

unit is left operating and unattended.

4. Always disconnect power to the fireplace when

not in use for extended period of time.

5. Do not operate with a damaged cord or plug (for

units supplied with a cord), or if the heater has

malfunctioned, or if the fireplace has been

dropped or damaged in any manner. Contact

Dimplex Customer Services 1-888-346-7539

immediately.

6. Do not use outdoors.

7. Never locate heater where it may fall into a

bathtub or other water container.

8. Do not run the cord under carpeting (for units

supplied with a cord). Do not cover cord with

throw rugs, runners, or the like. Arrange cord

away from traffic area and where it will not be

tripped over.

9. To disconnect the unit, turn the controls off, and

then remove the plug from the outlet or switch

off at main power supply panel if the unit is

hardwired.

10. Do not insert or allow foreign objects to enter

any ventilation or exhaust opening as this may

cause an electric shock or fire, or damage to

theheater.

11. To prevent a possible fire, do not block air intake

or exhaust in any manner.

12. All electrical heaters have hot and arching or

sparking parts inside. Do not use in areas

where gasoline, paint, or flammable liquids are

used or stored or where the unit will be exposed

to flammable vapors.

13. Do not modify the fireplace. Use it only as

described in this manual. Any other use not

recommended by the manufacturer may cause

fire, electric shock or injury to persons.

14. This unit may have a polarized plug (one blade

is wider than the other). The plug will fit in a

polarized outlet only one way. If the plug does

not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to

install the proper outlet. Do not change the plug

in any way. Avoid the use of an extension cord.

Extension cords may overheat and cause a risk

of fire. If you must use an extension cord, the

cord must be No. 16 AWG minimum size and

rated no less than 1875 watts.

15. Do not burn wood or other materials in the

fireplace.

16. Do not strike the glass front.

17. Always use a certified electrician for build-in

hard-wiredinstallation.

18. Always use properly grounded, fused and

polarized outlets.

19. Disconnect all main power supply (unplug the

unit or switch off at main service panel) before

performing any cleaning, maintenance or

relocation of the unit.

20. Do not operate the fireplace without the glass

assembly and/or frame.

21. When transporting or storing the unit and cord,

keep in a dry place, free from excessive

vibration and store so as to avoid damage.

22. Do not put combustible material, liquid, small

articles such as sand inside glass assembly.

SAVE THESE

INSTRUCTIONS

If you have any questions about our products please

have the product model and serial numbers available

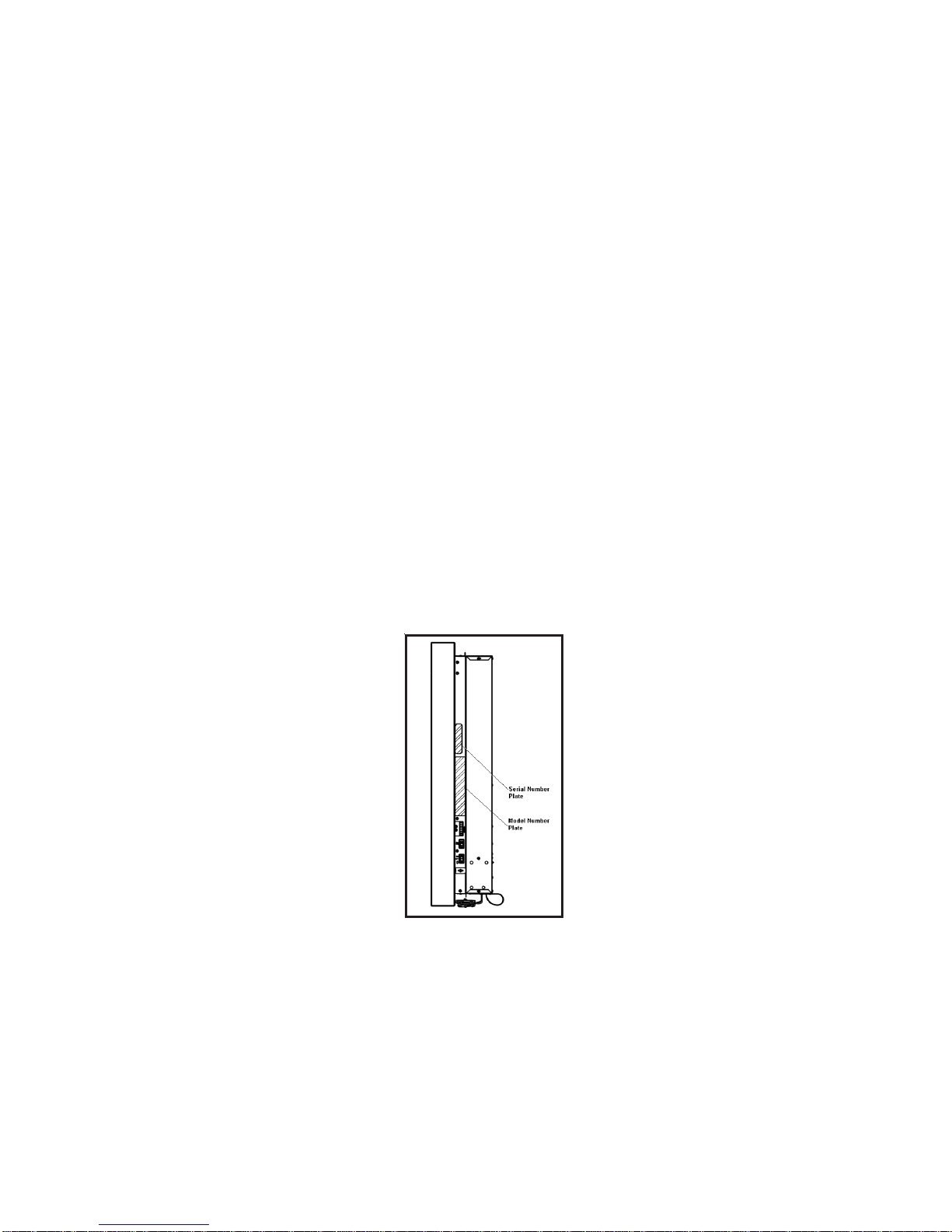

upon calling Dimplex customer service. To locate the

model and serial number see below.

NOTE: Procedures and techniques that are

considered important enough to emphasize.

CAUTION: Procedures and techniques, which, if not

carefully followed, will result in damage to the

equipment.

WARNING: Procedures and techniques, which, if not

carefully followed, will expose the user to the risk of

fire, serious injury, illness or death.

Step-by-Step Installation

NOTE

A15amp, 120-volt circuit is required. Adedicated

circuit is preferred but not essential in all cases. A

dedicated circuit will be required if, after installation, the

circuit breaker trips or the fuse blows on a regular

basis when the heater is operating. Additional

appliances on the same circuit may exceed the current

rating of the circuit breaker.

WARNING

Ensure the power cord is not installed so that it is

pinched or against a sharp edge and ensure that the

power cord is stored or secured to avoid tripping or

snagging to reduce the risk of fire, electric shock or

injury to persons.

Construction and electrical outlet wiring must comply

with local building codes and other applicable

regulations to reduce the risk of fire, electric shock and

injury to persons.

Do not attempt to wire your own new outlets or circuits.

To reduce the risk of fire, electric shock or injury to

persons, always use a licensed electrician.

WARNING

The In-Stud fireplace is wall mountable and can be

build-in the wall space 16" over-center between 2"x4"

wall studs. Follow the installation instructions for either

wall mount or built-in mounting; failure to do so may

cause damage or injury.

Remove glass assembly before installing fireplace

on or into a wall.

1. Remove screws securing glass assembly on

the mounting tabs. (Figure 1)

2. Use both handles on the sides of the glass

assembly, lift and remove the assembly from

the fireplace.

3. Please glass assembly with it’s back facing

down on a flat surface.

Wall Mounting Instructions:

1. Leave the trim uninstalled until step 9.

2. Select a location for the fireplace, preferably

above an electrical outlet and there must be at

least one wall stud behind for the fireplace to

mount onto. The bottom of the unit must be a

minimum of 4" space above the floor (mounting

holes 29.5" minimum above the floor). Access to

the electrical outlet must be maintained. Ensure

the installation meets the national and state/

provincial electrical codes.

FIGURE1

NOTE

It is recommended that the bottom of the unit not be

mounted higher than 48" from the ground to

maintain an optimized viewing angle of the flame.

CAUTION

The fireplace must be mounted at two points, one

of which must be on a wall stud.

WARNING

High temperatures may be generated under

certain abnormal conditions. Do not partially or

fully cover or obstruct the front of this heater.

Bottom of unit must be a minimum of 4" above

floor or any surface such as a tabletop to ensure

adequate ventilation through air intake located at

the bottom of the fireplace. (Figure 3)

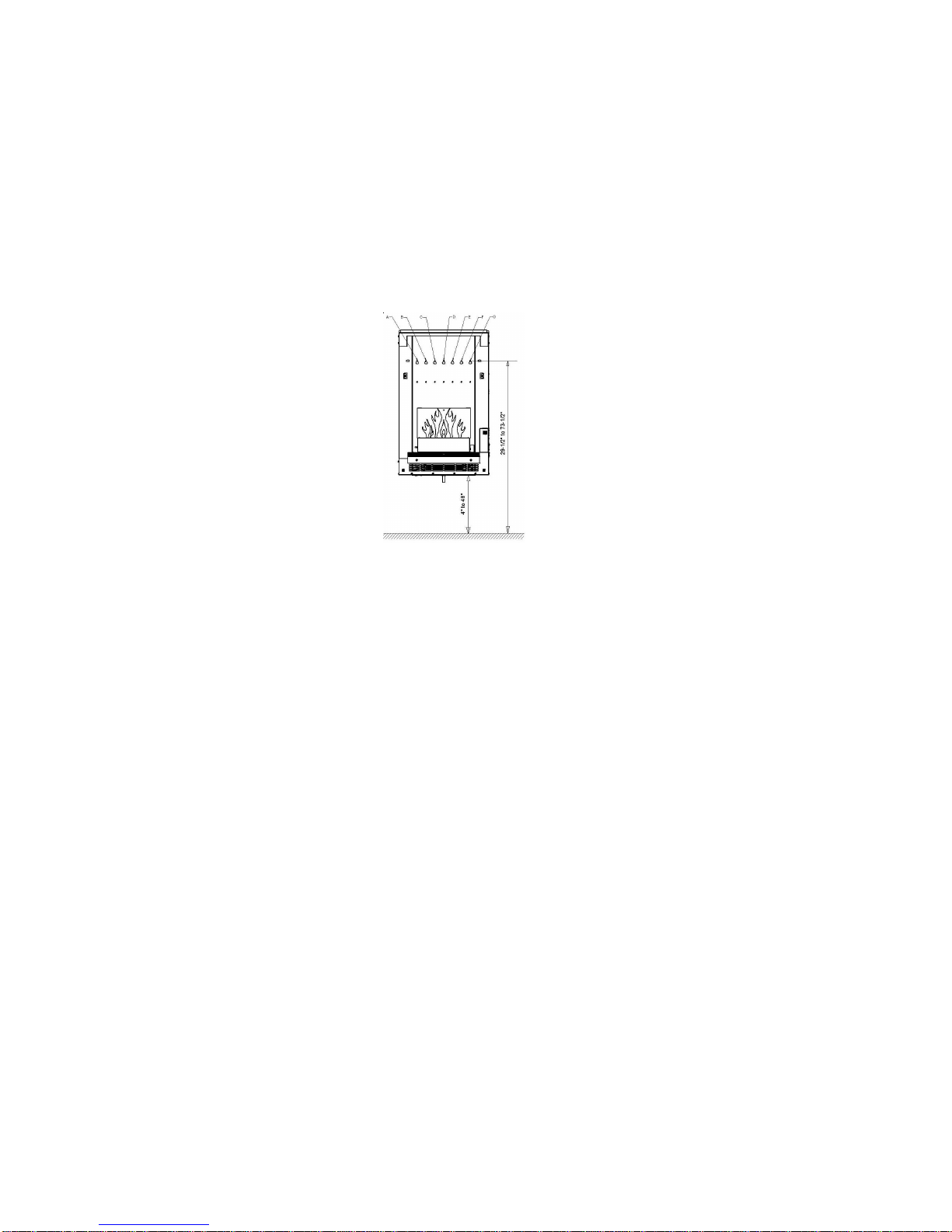

Figure2

Figure3

3. With a wall stud finder, locate the center of the

wall stud, drive a wood screw into stud and

leave approximately 1/8" exposed threads for

the fireplace to hang on.

4. The second mounting point should be picked

such that it is farthest (to the left or right)

relative to the first one among the seven

keyholes (A to G shown in figure 2) on the

fireplace for wall mounting, these keyholes

are 2" apart. For example, if you plan to use

hole B as the first mounting hole, the second

mounting hole must be G. Other available

combinations areA-G, C-G,A-F,A-E,A-D and

D-G.

5. Mark the second mounting screw location;

ensure that is level with the first with the help

of the provided bubble level and the fireplace

itself. Screw the threaded drywall anchor in

the drywall with a Philip’s head screwdriver

until the head is flat against the wall surface.

Caution should be taken when using a power

Air Circulation

tool to install a threaded drywall anchor as the

drywall may distort, tear or slightly buckle as a

result of over-torque.

6. With a Philip’s head screw driver, screw that

drywall anchor screw into the drywall anchor

already in the wall, leave about 1/8" exposed

threads for mounting the fireplace.

7. With the glass assembly taken off, mount the

firebox onto the two mounting screws.

8. Tighten both mounting screws with a

screwdriver. Be caution not to over tighten

the one mated with the drywall anchor.

9. Screw supplied wood screw into

corresponding hole that aligns with stud.

(Fig. 2)

10. Re-install glass assembly into fireplace.

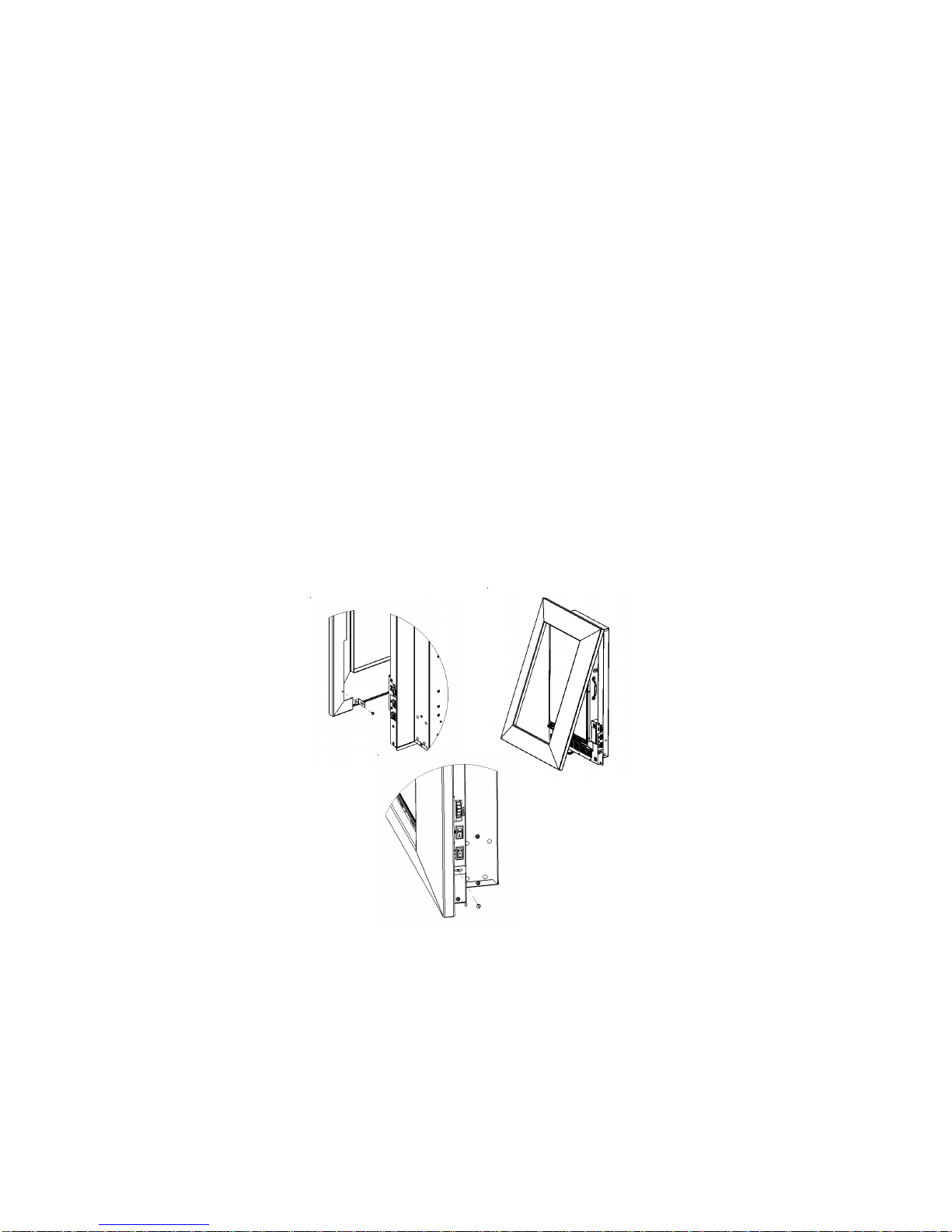

11.Install frame onto the firebox as shown in

below.

Install supplied

brackets as shown

on bothsides of

frame

Secureframeon

fireplacewith

suppliedself-tapping

screws

Installframe on to

fireplace

Figure4

Otros manuales para IN-STUD V1525BT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex VFA2927 Manual de usuario

Dimplex

Dimplex OPTIMYST CAS400L Manual de usuario

Dimplex

Dimplex Avola AVA20 Manual de usuario

Dimplex

Dimplex EF3003-230 Manual de usuario

Dimplex

Dimplex GDS28L8-1941WE Manual de usuario

Dimplex

Dimplex Revillusion RBF30 Manual de usuario

Dimplex

Dimplex DF2608-INT Manual de usuario

Dimplex

Dimplex MULTIFIRE DF3015 Manual de usuario

Dimplex

Dimplex DF3003 Manual de usuario

Dimplex

Dimplex Ropley RPL20 Manual de instrucciones

Dimplex

Dimplex COMPACT FIREPLACE Manual de usuario

Dimplex

Dimplex Revillusion RBF30-FG Manual de usuario

Dimplex

Dimplex WESTBROOK Manual de usuario

Dimplex

Dimplex BF33ST Guía de inicio rápido

Dimplex

Dimplex ENG56-400 Manual de usuario

Dimplex

Dimplex IN-STUD V1525BT Manual de usuario

Dimplex

Dimplex Dimplex VALENCIA Manual de usuario

Dimplex

Dimplex MIDI FIRE MIDI32B Manual de usuario

Dimplex

Dimplex DWF120330B Manual de usuario

Dimplex

Dimplex DF2426 Manual de usuario

Dimplex

Dimplex Pro Series Manual de usuario

Dimplex

Dimplex CHT20LE Manual de usuario

Dimplex

Dimplex PF2325 Manual de usuario

Dimplex

Dimplex VF2927L Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
