Owner’s Manual

Model

BF45DXP

BF39STP/DXP

BF33STP/DXP

7206360500R04

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this replace.

!NOTE: Procedures and

techniques that are considered

important enough to emphasize.

CAUTION: Procedures and

techniques which, if not carefully

followed, will result in damage to

the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ...................3

IMPORTANT INSTRUCTIONS .................4

Fireplace Installation ........................5

Operation ..................................6

Maintenance ...............................8

Accessories .............................. 11

Warranty ................................ 11

Replacement Parts .........................14

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your replace.

Model Number ______________ Serial Number ______________

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

Model

Number

XXXXX

SERIAL No.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using this appliance.

② This replace is hot when in

use. To avoid burns, do not let

bare skin touch hot surfaces.

The trim around the heater outlet

becomes hot during heater opera-

tion. Keep combustible materials,

such as furniture, pillows, bed-

ding, papers, clothes, and cur-

tains at least 3 feet (0.9m) from

the front of the unit.

③ Extreme caution is neces-

sary when any heater is used by

or near children or invalids and

whenever the replace is left

operating and unattended.

④ Do not operate any heater after

it malfunctions. Disconnect power

at the service panel and have the

heater inspected by a reputable

electrician before reusing.

IMPORTANT INSTRUCTIONS

SAVE THESE INSTRUCTIONS

⑤Do not operate any unit with

a damaged cord or plug, or if the

heater has malfunctioned, or if

the electric replace has been

dropped or damaged in any man-

ner, contact Dimplex Technical

Service at 1-888-346-7539.

⑥ Never locate this heater where

it may fall into a bathtub or other

water container.

⑦ Do not use outdoors.

⑧Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or fire, or

damage to the heater.

⑨ To prevent a possible fire, do

not block air intake or exhaust in

any manner.

⑩ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

liquids are used or stored

⑪ Do not modify this replace.

Use it only as described in this

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

IMPORTANT INSTRUCTIONS

manual. Any other use not recom-

mended by the manufacturer may

cause re, electric shock or injury

to persons.

⑫Do not burn wood or other

materials in this replace.

⑬ Do not strike replace glass.

⑭ Always use a certied electri-

cian for installation.

⑮ Disconnect all power coming

to replace at main service panel

before performing any cleaning,

or maintenance.

⑯ When transporting or storing

the replace, keep in a dry place,

free from excessive vibration and

store as to avoid damage.

!NOTE: Changes or modications

not expressly approved by the party

responsible for compliance could void

user's authority to operate the equip-

ment.

Fireplace Installation

Bathroom Installation

This rebox must be protected

by a GFI circuit. If a receptacle

is used it must be readily

accessible.

To prevent electrical shock this

unit is an electrical appliance

that is not watertight and must be

installed as to prevent water from

entering the unit. This unit must

be installed away from showers,

tubs, etc. Never locate replace

where it may fall into a bathtub or

other water containers. Keep tow-

els and other combustible materi-

als 3 feet (0.9 m) away from the

front of the unit.

6 www.dimplex.com

Operation

Figure 1

WARNING: This electric

rebox must be properly installed

before it is used.

Manual Controls

(Figure 1)

The controls for the Electric Fire-

place are located at the bottom

right hand corner of the unit.

CAUTION: Ensure that the

Voltage Selector switch is set

to the appropriate voltage

(115V or 230V)

A. On/Off Switch

The on/off switch energizes the

rebox and ame.

B. Mode Selector Switch

Select preferred feature:

• “o” for ame only

• “-“ for PurireTM only/ame.

• “=” for heat/PurireTM/ame

!NOTE: The heater may emit

a slight, harmless odor when rst

used. This odor is a normal con-

dition caused by initial heating of

internal heater parts and will not

occur again.

C. Voltage Selector Switch

Needs to be set to reect the in-

coming voltage to the unit - 115V

or 230V.

Resetting The Temperature

Cutoff Switch

The heater on this replace is

protected with a safety device to

prevent overheating. Should the

heater overheat, the Overheat

indicator will be activated (Fig. 1),

and an automatic cutout will turn

the heater off and it will not come

Overheat

Indicator

Manual Controls

B. Mode

Selector Switch

A. On/Off

Switch

C. Voltage Selector

Switch

Operation

back on without being reset. It

can be reset by switching the On/

Off switch to OFF and waiting 5

minutes before switching it to ON.

The overheat cutout will be trig-

gered if the lter is dirty. Follow

lter maintenance.

CAUTION: If you need to

continuously reset the heater, dis-

connect power and call Dimplex

customer service at

(1-888-346-7539).

Remote Controls

An optional remote control can

be purchased to operate the

replace - BFRC-KIT. This

will allow the user the ability to

toggle through the three stages

of operation: Flames, Flames and

PurireTM, and Flames/ PurireTM/

Heat, with a remote control.

Wall Mounted Controls

The replace can be installed with

wall mounted controls. These

controls include wall switches

and thermostats. (see individual

installation guides for details)

1. Wall Mounted Switches

This model may be installed

so that a wall mounted switch

energizes the rebox and

ame, (On/Off Switch must

be in the ON position). A

wall mounted switch may

also be used to override the

ame image, (On/Off Switch

must be in the ON position

in coordination with any

main power wall mounted

switch). A wall mounted

switch may also be used

to override the heater/Puri-

reTM option (Mode Selector

Switch must be in the “=”

position).

2. Wall Mounted Thermostat

This unit may be installed so

that a wall mounted ther-

mostat can adjust the heat

temperature to your individual

requirements. Please refer

to thermostat manufacturers

operation Instructions. Mode

Selector Switch must be

set to “=” for thermostat to

control heater/PurireTM.

3. Wall Mounted Remote Controls

(WRCPF-KIT)

Dimplex manufactures a

optional wall mounted remote

control which allows the user

to fully control the replace

from a central location with

the added functionality of a

built in thermostat.

8 www.dimplex.com

Maintenance

 WARNING: Disconnect power

and heater has cooled before

attempting any maintenance or

cleaning to reduce the risk of

re, electric shock or damage

to persons.

!NOTE: The replace should

not be operated with an accumu-

lation of dust or dirt on or in the

unit, as this can cause a build up

of heat and eventual damage. For

this reason the heater must be

inspected regularly, depending

upon conditions and at least at

yearly intervals.

Light Bulb Replacement

Light bulbs need to be replaced

when you notice a dark section

of the ame or when the clar-

ity and detail of the log exterior

disappears. There are four bulbs

under the log set which generate

the ames and embers.

Helpful Hints: It is a good idea to

replace all light bulbs at one time

if they are close to the end of their

rated life. Group replacement will

reduce the number of times you

need to open the unit to replace

light bulbs. Long life bulbs are

recommended to reduce the fre-

quency of bulb changes.

Light Bulb Requirements:

Quantity of 4 clear chandelier or

candelabra bulbs with an E-12

(small) socket base, 60 Watt rat-

ing. Example: GE 60BC or Phil-

ips 60CTC. DO NOT EXCEED 60

WATTS PER BULB.

CAUTION: When handling log

only apply force to the ember bed

section not directly to the logs.

To access the light bulb area

CAUTION: Allow at least 5

minutes for light bulbs to cool off

before touching bulbs to avoid ac-

cidental burning of skin.

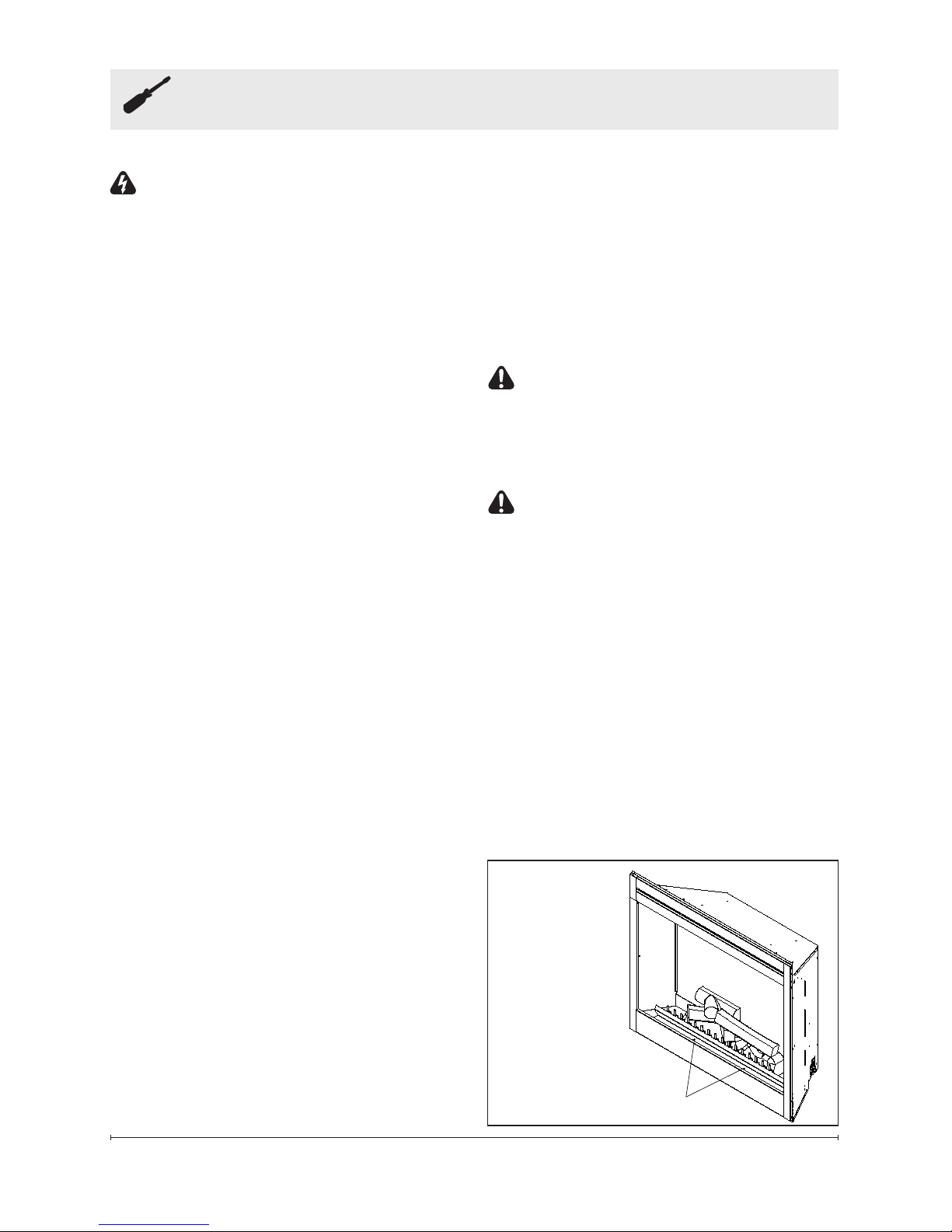

1. Open steel curtain (remove

glass doors if applicable).

2. Remove two screws on log

bracket and set aside

(Figure 2)

3. Pull front edge of plastic

ember bed or plastic grate up

and forward until rear tab re-

Screws

Figure 2

leases from the ledge located

at the bottom of the partially

reective glass (Figure 3).

!NOTE: Log set ts tightly into

rebox, some force may be nec-

essary to remove.

4. Set logset in front of rebox.

5. Disconnect the logset LED

wire harness from unit

(Figure 4).

6. Examine the bulbs to de-

termine which bulbs require

replacement.

7. Unscrew bulbs counter clock-

wise.

8. Insert new bulbs.

9. Re-connect the logset LED

wire harness to the unit.

10. Replace the log by inserting

the rear tab of the logset un-

der the back ledge of the re-

place and push down on the

front edge of the logset until it

snaps into place (Figure 3).

11. Replace log grate using two

screws previously removed.

Purire™ Filter

The Purire™ lter supplied in

your replace is reusable and

washable. The lter should be

cleaned or replaced on average

once a year, or if overheat indica-

tor lamp is activated. To clean

the lter gently tap lter on a hard

surface to dislodge any loose dirt

or debris, and then clean with

water. Do not use soap or clean-

ing products, as they may dam-

age the lter. The lter size is 20”

X 10” X 1” rated at MERV 10. If

using an after market lter follow

the manufacturers recommended

replacement instructions.

To replace lter:

Maintenance

Side Section

Back

Ledge

Rear

Tab

Log

Ember

bed

Front

Edge

LED Wire

Harness

Figure 3

Figure 4

10 www.dimplex.com

1. Remove the 2 mounting

screws from the air lter

bracket.

2. Slide forward to remove the

air lter bracket assembly

from the rebox.

3. Slide lter out of air lter

bracket.

4. Reassemble in reverse order

as above.

!NOTE: If after market air

lter is used ensure it is installed

according to the manufacturers

recommended instructions.

Maintenance

Purire™

Filter

Bracket

Mounting

Screws

Figure 6 Partially Reective Glass

Cleaning

The partially reective glass is

cleaned in the factory during

the assembly operation. During

shipment, installation, handling,

etc., the partially reective glass

surface may collect dust particles.

These can be removed by bufng

lightly with a clean dry cloth.

To remove ngerprints or other

marks, the partially reective

glass can be cleaned with a damp

cloth using high quality house-

hold glass cleaner. The partially

reective glass should be com-

pletely dried with a lint free cloth.

To prevent scratching, do not use

abrasive cleaners or spray liquids

on any surface.

Fireplace Surface Cleaning

Use warm water only to clean

painted surfaces of the Compact

Fireplace. Do not use abrasive

cleaners.

Servicing

Except for light bulb replacement

and cleaning described above, an

authorized service representative

should perform any other servicing.

Otros manuales para BF45DXP

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Dimplex

Dimplex

Dimplex LIBERTY SUITE LBY15-AU Manual de usuario

Dimplex

Dimplex PF2325 Manual de usuario

Dimplex

Dimplex CDFI1000-PRO Manual de usuario

Dimplex

Dimplex SCANDIC DELUXE SDC20RC Manual de usuario

Dimplex

Dimplex DIMPLEX ELECTRIC FIREPLACE Manual de usuario

Dimplex

Dimplex Romero de Luxe Manual de usuario

Dimplex

Dimplex GDS28L8-1802W Manual de usuario

Dimplex

Dimplex Osbourne Manual de usuario

Dimplex

Dimplex BFSL33 Manual de usuario

Dimplex

Dimplex Barletta Manual de usuario

Dimplex

Dimplex 6901860100 Guía de inicio rápido

Dimplex

Dimplex Vivente Manual de instrucciones

Dimplex

Dimplex BF9000 Manual de usuario

Dimplex

Dimplex ORVIETO MCFP15O Manual de usuario

Dimplex

Dimplex CDFI400RH Manual de usuario

Dimplex

Dimplex TOLUCA TLC20 Manual de usuario

Dimplex

Dimplex DWF1203 Manual de usuario

Dimplex

Dimplex BF33STP Manual de usuario

Dimplex

Dimplex SP16 Manual de usuario

Dimplex

Dimplex BF33STP Guía de inicio rápido

Dimplex

Dimplex Charlotte CRT20BR Manual de usuario

Dimplex

Dimplex MULTIFIRE DF3015 Manual de usuario

Dimplex

Dimplex VIVALDI DE LUXE Manual de usuario

Dimplex

Dimplex Exbury Manual de usuario

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
