INSTRUCTION MANUAL

For domestic household use

1.8kW Panel Heater

Model: DHPH20F

only.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE

INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your product

for the first time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be

followed to reduce the risk of fire, electrical shock and injury to persons,

including the following:

• If the appliance is damaged, check with the supplier before installation

and operation.

- Do not use outdoors.

- Do not use in the immediate surroundings of a bath, shower or

a swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to

the wall, as applicable.

• Do not locate the appliance immediately below a fixed socket outlet or

connection box.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• Do not use this appliance in series with a thermal control, a program

controller, a timer or any other device that switches on the heat

automatically, since a fire risk exists when the appliance is accidentally

covered or dis-placed.

• In the event of a fault, unplug the appliance.

• Unplug the appliance when not required for long periods.

• This product is only intended for INDOOR RESIDENTIAL applications

only.

• DO NOT cover cord with carpeting, throw rugs, runners, or similar

coverings.

• DO NOT route cord under furniture or appliances. Take care to position

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED

FOR FUTURE REFERENCE. Note also the information presented on the

appliance

the cord away from traffic areas and where it will not be a tripping

hazard.

• This appliance must not be used in a bathroom.

• Although this appliance complies with safety standards, we do not

recommend its use on deep pile carpets or on long hair type of rugs

• The appliance must be positioned so that the plug is accessible.

• If the supply cord is damaged it must be replaced by the manufacturer

or service agent or a similarly qualified person in order to avoid a hazard.

• Keep the supply cord away from the front of the appliance.

• Do not use this heater in small rooms when they are occupied by

persons not capable of leaving the room on their own, unless constant

supervision is provided.

• To reduce the risk of fire, keep textiles, curtains and or flammable material

a minimum distance of 1m from the air outlet.

• In order to avoid overheating, DO NOT COVER the appliance. Do

not place material or garments on the appliance, or obstruct the air

circulation around the appliance, for instance by curtains or furniture, as

this could cause overheating and a fire risk.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-

out, this appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched

on and off by the utility.

• DO NOT use the unit with an extension lead or power board.

• CAUTION: Some parts of this product can become very hot and cause

burns. Particular attention has to be given where children and vulnerable

people are present.

• Do not use this appliance in series with a thermal control, a program

controller, a timer or any other device that switches on the heat

automatically, since a fire risk exists when the appliance is accidentally

covered or dis-placed.

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED

FOR FUTURE REFERENCE. Note also the information presented on the

appliance

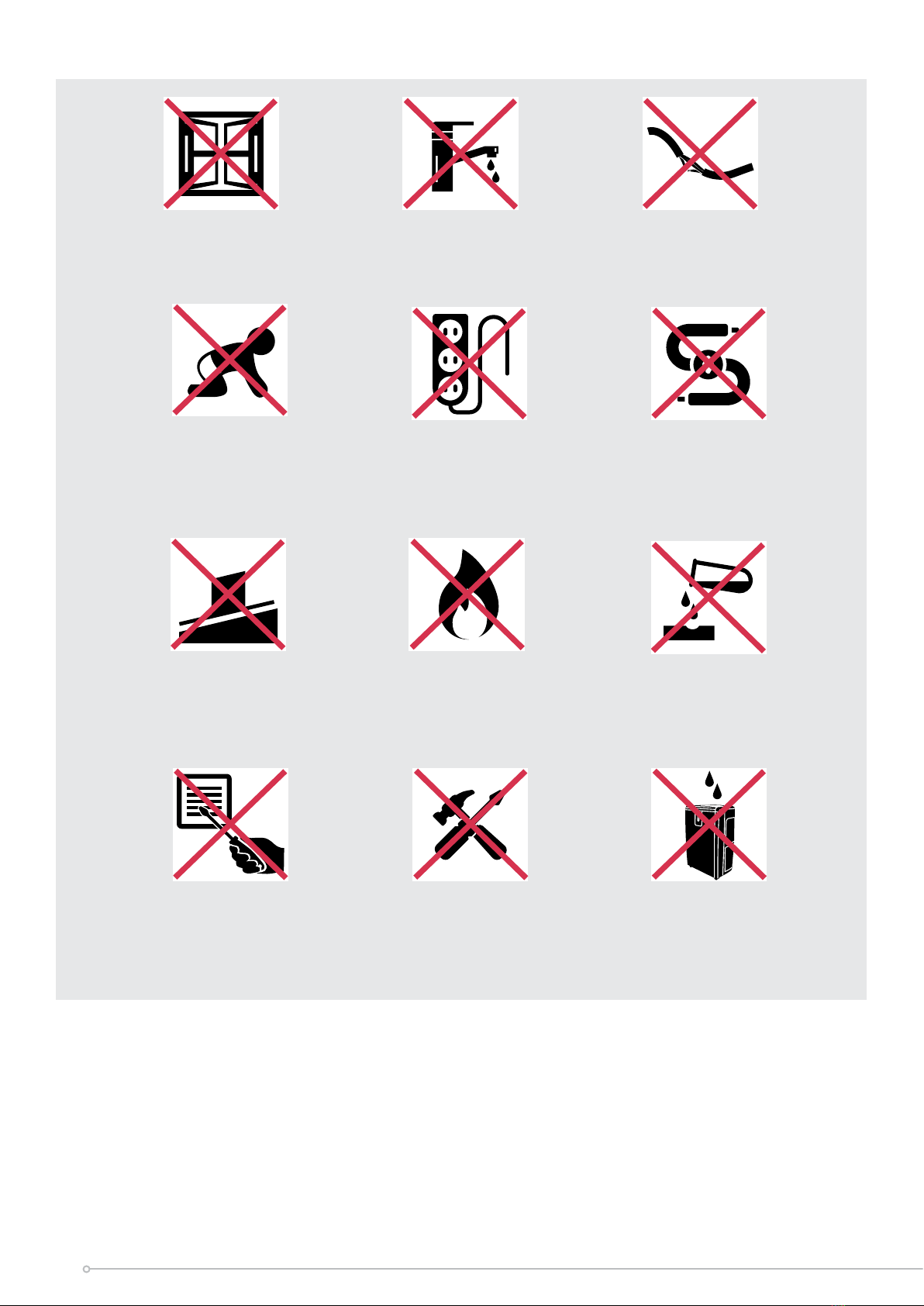

Exposed to the

weather outdoors

Near water If the power cable

wires are frayed or cut

Where small children

may be left unattended

No extension leads or

power boards

Where there is risk

of fire or close to

a naked flame

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may be

damaged by

chemicals

If there is a risk

of water falling on

the unit

Where there is a risk

of interference by

foreign objects

This product is not

made for DIY repair

Model no. DHPH20F

Power supply

220-240V~50-60Hz

Rated power

1800W

Heat settings

Thermostat Y

Wall mountable N

Castors Y

Tilt Switch Y

Timer N

Turbo Fan N

Weight (net) 3.8kg

Dimensions (w x d x h) 651 x 89.4 x 504mm

Specifications

For greater precision, please always refer to the rating label placed on the product.

Parts

Grille

Feet

Controls

Low Heat

High Heat

Off

Assembly

1. Place the unit upside down and remove the pre-installed screws on the bottom of

the unit.

2. Insert each foot into the opening slots, ensuring they align correctly.

3. Place the screws back into position through the holes in the foot, and tighten to

secure to the unit.

4. Place the unit back into its upright position.

Clip here

Operation

Note: Before plugging in for use, ensure the thermostat is set anti-clockwise to the

MIN setting, and the heater switch is set to OFF.

1. Rotate the thermostat completely clockwise, until it reaches the MAX position.

2. To turn on the heating function, set the controls to your desired heat setting,

either LOW HEAT or HIGH HEAT. An indicator light will illuminate, showing that

the heater is on.

3. When your room reaches the desired temperature, slowly rotate the

THERMOSTAT anti-clockwise until you hear a click. The THERMOSTAT can now

be left at this setting. As soon as the room temperature has dropped below

the set temperature , the unit will switch itself on automatically until the set

temperature has been reached again. This allows the room temperature to remain

constant and perform economically.

4. To change the room temperature setting, rotate the thermostat clockwise to raise

the temperature, and anti-clockwise to lower it.

5. To switch the heater off, set the THERMOSTAT to MIN and the control to OFF.

Then switch the power off at the mains and remove the plug from the outlet.

Min

Max

Positioning

Select the position for the heater ensuring there is clearance from any furniture and

fittings of at least 300mm each side. The heater should only be operated on a flat

stable surface.

NOTE: The Panel heater is designed for operation on an AC electricity supply, and is

only suitable for domestic use and similar indoor locations.

Tips

• The Panel heater is fitted with castors and handles for ease of movement.

• A power switch provides the ability to choose an available heat output and

an adjustable thermostat enables the room temperature to be controlled

accordingly.

• Once the castors have been correctly fitted, no other assembly is required, just

plug in and play!

Safety Features

This appliance incorporates a number of safety devices. In addition to the ‘Important

Safety Advice’ section your attention is drawn to the following;

Tilt Switch

The tilt switch will prevent the heater from working if it is accidentally tipped over on

its side.

If the radiator is tipped over while it is hot, disconnect the power and allow it to cool,

then stand the radiator back upright. Reconnect the power - normal operation should

be resumed.

WARNING - ALWAYS DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE

HEATER.

• Do not use detergents, abrasive cleaning powder or polish of any kind on the

body of the panel heater.

• Allow the panel heater to cool, then wipe with a dry cloth to remove dust and

a damp cloth (not wet) to clean off any marks. Be careful not to allow moisture

into to the heater.

Storage

If the heater is not required for long periods, for example during the summer, it should

be stored in a dry place and preferably covered to prevent the accumulation of dirt

and dust. The supply cord should be neatly coiled around the cable wrap ensuring that

the plug does not trail on the floor.

Cleaning
