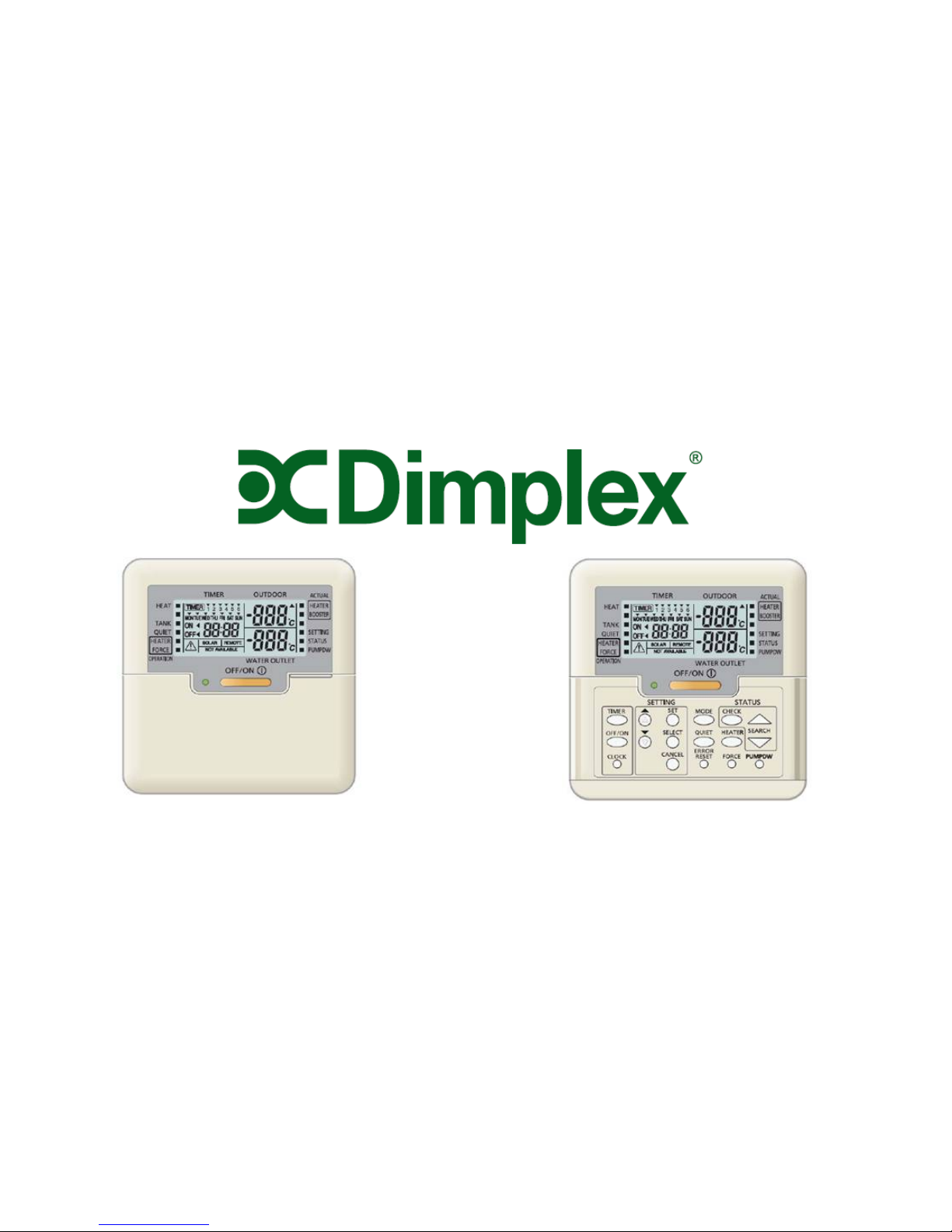

Dimplex LA MI Manual de usuario

LAMI

Settings

Function

ProgrammingOverview

8/60381/0 1

Index

•Page3–ClockAdjustment

–HydraulicConfiguration

•Page6–PreConfiguration

–HydraulicConfiguration

•Page13–SystemSetting

–Heating&DHWsettings

•Page18–HeatPumpRun

–HPOn/Runningcommand

•Page20–Mode&Heaters

–Operationmodesandinline

heateroperation

•Page25–TimerFunction

–Settingtheadvancedtimer

function.

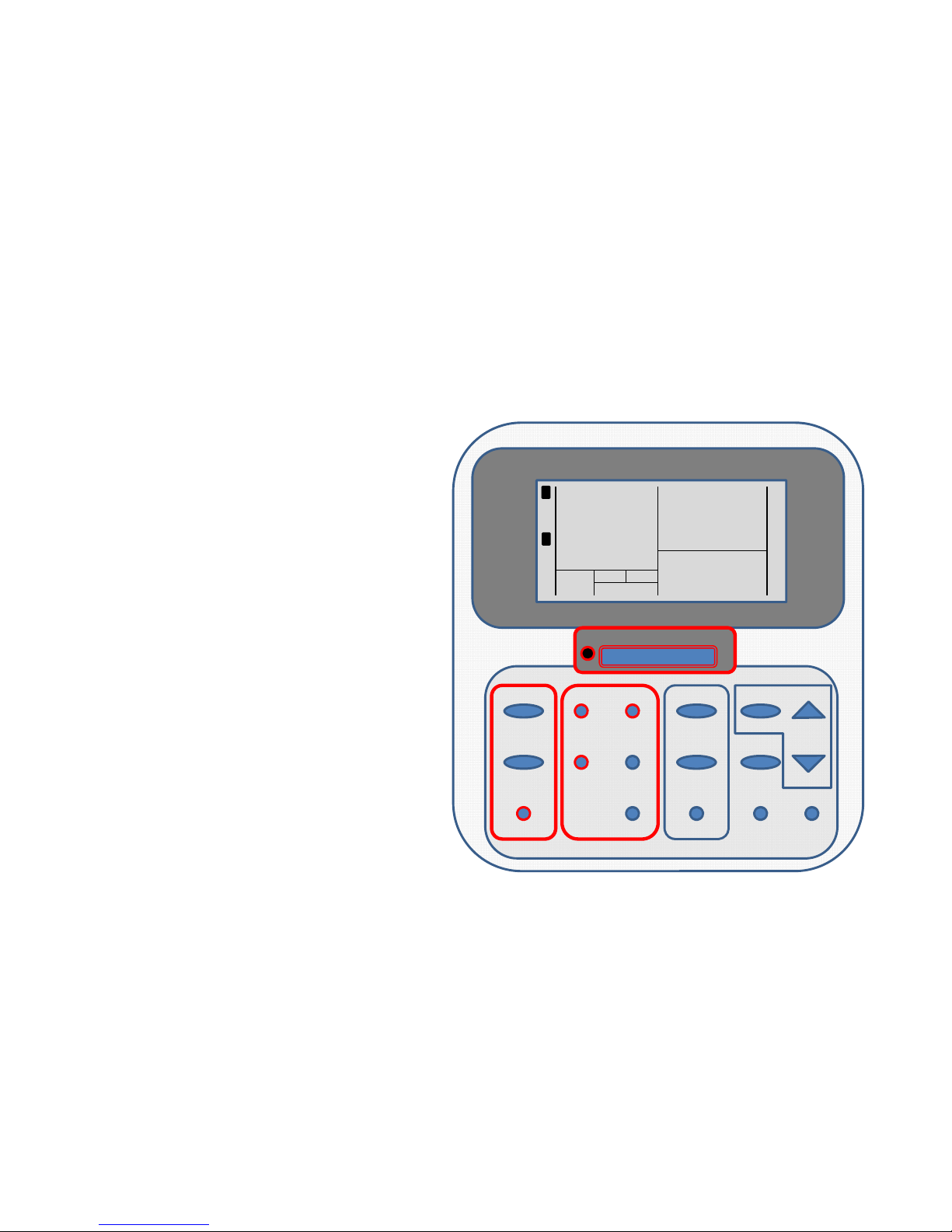

SettingTheTime

SettingTheClock–Time

•USINGTHEREDOUTLINED

AREAS&BUTTONS

•ENSUREGREENLEDISOFF

•CLOCKBUTTON

•SETBUTTON

•▲UPBUTTON

•▼DOWNBUTTON

PRESSCLOCKBUTTONFOR5

SECONDSTOENTERCLOCKSET

CONTINUEDBELOW

HEAT

TANK

QUITE

HEATER

FORCE

OPERATION

ACTUAL

HEATER

BOOSTER

TIMER OUTDOOR

WATER OUTLET

OFF / ON Ф

TIMER

OFF/ON

CLOCK

▲

▼

SET

SELECT

CANCEL

SETTING

MODE

QUITE

ERROR

RESET

CHECK

HEATER

FORCE

PUMPDW

STATUS

SETTING

STATUS

PUMPDW

18 °c

25°c

SOLAR REMOTE

MON

08:30

SettingTheClock

Sets the current day of the week.

M O N – Sets Monday as the day of the week.

Sets the current hour of the day.

0 8 : – Set 8 am as the hour of the day.

Sets the minute past the hour.

: 3 0 – Set 30 minutes past the hour.

STEP 2 –SETTING THE HOUR

H O U R Flashes

Press ▲▼

Select Hour 0 8 :

Press S E T

See STEP 3

STEP 1 –SETTING THE DAY

D A Y Flashes

Press ▲▼

Select Day ReqdM O N,

Press S E T

See STEP 2

STEP 3 – SETTING THE MINUTES

MINUTES Flash

Press ▲▼

Select Minutes : 3 0

Press S E T

COMPLETED

PreConfiguration

PreConfiguration–HydraulicSetUp

•USINGTHEREDOUTLINED

AREAS&BUTTONS

•ENSUREGREENLEDOFF

•CHECK&SETBUTTONS

•SELECTBUTTON

•▲UPBUTTON

•▼DOWNBUTTON

•CANCELBUTTON

PRESSSET&CHECKBUTTONS

SIMULTANEOUSLYFOR5SECONDSTO

ENTERPRECONFIGURATIONMENU

CONTINUEDBELOW

HEAT

TANK

QUITE

HEATER

FORCE

OPERATION

TIMER OUTDOOR

WATER OUTLET

OFF / ON Ф

TIMER

OFF/ON

CLOCK

▲

▼

SET

SELECT

CANCEL

SETTING

MODE

QUITE

ERROR

RESET

CHECK

HEATER

FORCE

PUMPDW

STATUS

SETTING

STATUS

PUMPDW

■

18°c

25°c

MON

08:30

ACTUAL

HEATER

BOOSTER

■

OPTION 3 – HOT WATER PREPARATION – NO

TANK █, con

Press SELECT

Press ▲▼

Display NO

Press S E T to Store

Option 4 Press▼

OPTION 2 – ROOM THERMOSTAT – YES

HEAT █, room, con

Press SELECT

Press ▲▼

Select YES

Press S E T to Store

Option 3 Press▼

OPTION 1 – ROOM THERMOSTAT – NO

HEAT █, room, con

Press S E L E C T

Press ▲▼

Select N O

Press S E T to Store

Option 2 Press▼

PreConfiguration–HydraulicDesign

Is the heat pump interlocked with a room thermostat.

(Horstmann PRT1)

Either NO or YES as Indicated in OPTION 2.

N O - There is no room thermostat proving heat pump

interlocking, the heating will be regulated by flow

temperature.

Is the heat pump interlocked with a room thermostat.

(Horstmann PRT1)

Either NO or YES as Indicated in OPTION 1.

Y E S - the heat pump is interlocked with a room thermostat

proving the heat pump with a demand signal.

Is the heat pump preparing hot water via a suitable hot

water cylinder & temperature sensor.

Either NO or YES as indicated in OPTION 4.

NO - the heat pump is not preparing hot water.

OPTION 6 – SPACE HEATING PRIORITY

HEAT █, PrY

Press SELECT

Press ▲▼

Display NO

Press S E T to Store

Option 7 Press▼

OPTION 5 – SPACE HEATING PRIORITY

HEAT █, PrY

Press SELECT

Press ▲▼

Display YES

Press S E T to Store

Option 6 Press▼

OPTION 4 – HOT WATER PREPARATION – YES

TANK █, con

Press SELECT

Press ▲▼

Display YES

Press S E T to Store

Option 5 Press▼

PreConfiguration–HydraulicDesign

Is the heat pump preparing hot water via a suitable hot

water cylinder.

Either NO or YES as Indicated in OPTION 3.

Y E S - the heat pump is preparing hot water and is

connected to a suitable heat pump hot water cylinder.

Is space heating to be given priority.

Either NO or YES as Indicated in OPTION 6.

Y E S - the heat pump gives priority to space heating.

Hot water will only be prepared once the space heating

demand is satisfied.

Is space heating to be given priority.

Either NO or YES as Indicated in OPTION 5.

N O - the heat pump gives priority to hot water preparation

based upon the following settings, OPTION 7 & OPTION 8

Below.

OPTION 9 – BOOSTER HEAT DELAY TIME

BOOSTER █,00:00, dLY

Press SELECT

Press ▲▼

Set Duration 1 : 3 0

Press S E T to Store

Option 10 Press▼

OPTION 8 – TANK HEATING INTERVAL SET

HEAT █,00:00, int.

Press SELECT

Press ▲▼

Set Duration 1 : 3 0

Press S E T to Store

Option 9 Press▼

OPTION 7 – SPACE HEATING INTERVAL SET

TANK █,00:00, int.

Press SELECT

Press ▲▼

Set Duration 1 : 0 0

Press S E T to Store

Option 8 Press▼

Sets a delay period during simultaneous space heating and

hot water demands. Space heating remains covered during

this period. The heat pump switches over to hot water

priority once the time period has elapsed.

1 : 0 0 – Sets a 1hr delay. Space heating continues to be

met for 1hr before the hot water demand is covered.

PreConfiguration–HydraulicDesign

Sets the maximum time period hot water preparation will be

covered. Switching back over to cover the space heating

demands.

1 : 3 0 – Sets a 1hr time period when hot water preparation

is terminated and the space heating request is covered.

Sets the maximum time the heat pump will prepare hot

water for before turning on the cylinder immersion heater to

achieve the desired cylinder temperature.

1 : 3 0 – Sets a 90 minutes time period before the cylinder

immersion switches on to complete the hot water request.
