Dimplex GDH-RD24C Manual de usuario

.

Comfort. By design

GDH-RD24C Radiant Heater

OWNERS MANUAL

.

Please retain these instructions for future reference

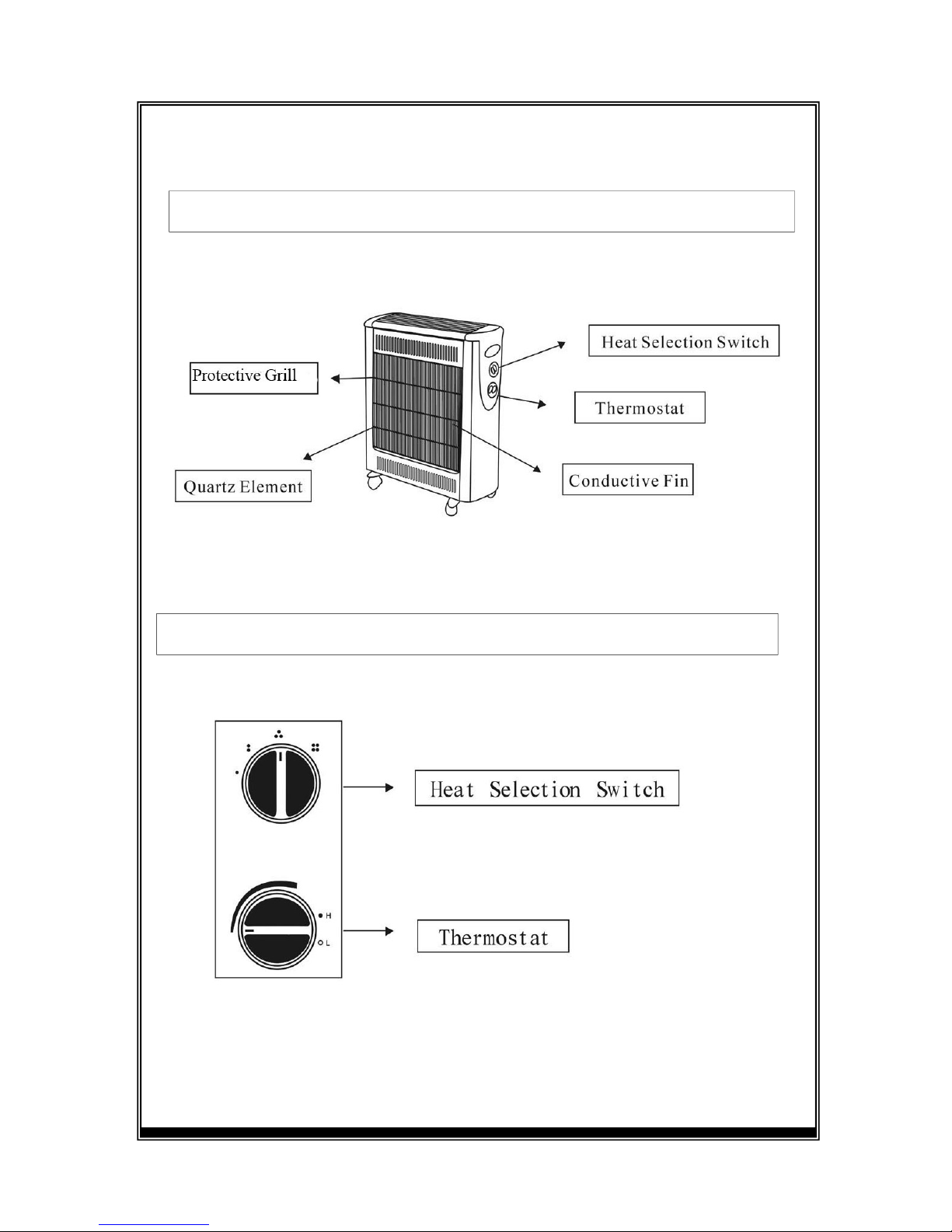

Parts identification

Control Panel

OPERATING THE HEATER

The heater has two switches which control the temperature settings

The Heat selection switch

This switch has five settings

The Thermostat switch

This switch moves the thermostat settings from low to high and

will only operate if position or have been selected on the

heat selection switch.

To operate, set the heater switch to or and turn the

thermostat switch to high, this will give the most warmth.

When the temperature reaches the desired level, turn the

thermostat toward low until you hear a click. This sets the heat

output of the heater to your desired temperature.

The elements will automatically turn back on when the room

drops below the desired temperature and will switch off when

the room reaches the set temperature.

REMEMBER THE FIRST TWO ELEMENTS WILL REMAIN ON

UNTIL THE HEATER SWITCH IS TURNED OFF. THE

THERMOSTAT ONLY FUCTIONS WHEN EITHER THREE OR

ALL ELEMENTS ARE ON.

This switch has five settings

OFF Turns all the heating elements off

One heating element on 600W

Two heating elements on 1200W

Three heating elements on 1800W

Four heating elements on 2400W

SAFETY PRECAUTIONS

• Use the appliance only for its intended purpose. The

manufacturer is not responsible for any damage caused by

improper or faulty use

• Do not expose the appliance to outdoor elements such as rain,

for indoor use only

• Unplug the appliance from the wall before any maintenance or

cleaning

• Do not cover the heater

• Do not use if any of the elements are broken

• Do not use the heater with a programmer, timer or any device

that switches the heater on automatically

• Do not use the heater around water eg. Bath, shower or

swimming pool

• Keep away from combustible materials like curtains and fur-

nishings

• Make sure the heater is placed on a flat stable surface

IMPORTANT NOTES

IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPAIRED BY A REGISTERED

ELECTRICIAN

WARNING: IT IS A FIRE RISK TO COVER THE HEATER OR PLACE NEAR COMBUSTIBLE

MATERIALS SUCH AS CURTAINS OR FURNISHINGS.

SPECIFICATIONS

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instructions concerning use of the

appliance by a person responsible for their safety.

• This heater must not be located immediately below a wall

socket
