Owner’s Manual

Model

CDFI-BX1000

6909910100

7215020100R00

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use the Opti-myst®Pro Box Heater. For

your safety, always comply with all warnings and safety instructions

contained in this manual to prevent personal injury or property

damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this unit.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations .................. 3

IMPORTANT INSTRUCTIONS ................ 4

Installation ................................ 6

Operation ................................ 11

Maintenance ............................. 12

Warranty................................. 13

Technical Support ......................... 15

Welcome & Congratulations

Thank you and congratulations for purchasing an Opti-myst Pro Box

Heater from Dimplex. Please use our convenient online registration

page to record your model and serial numbers for future reference at

www.dimplex.com/register

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

In order to better serve you, please have your model and serial number

ready or register your product online before calling (See above)

Model Number

and Serial

Number

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in

a possible electric shock, re hazard and will void the warranty.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

①Read all instructions before

using the heater.

②The heater is hot when in

use. To avoid burns, do not let

bare skin touch hot surfaces.

The surface around the heater

outlet becomes hot during heater

operation.

DANGER: High temperatures

may be generated under certain

abnormal conditions. Do not

partially or fully cover or obstruct

the front of this heater.

③Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④Always disconnect the heater

when not in use.

⑤Do not operate any heater

after it malfunctions. Disconnect

power at the service panel and

have the heater inspected by

a reputable electrician before

reusing.

IMPORTANT INSTRUCTIONS

⑥ Do not operate any unit with a

damaged cord or if the heater has

malfunctioned, or if the heater

has been dropped or damaged

in any manner, contact

Dimplex Technical Service at

1-888-346-7539.

⑦Do not use outdoors.

⑧The heater is not intended for

use in bathrooms, laundry areas

and similar indoor locations.

Never locate heater over a

bathtub or other water container.

⑨To disconnect the unit, turn

the controls OFF, disconnect

power at the service panel.

⑩Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage to the heater.

⑪ To prevent a possible re, do

not block air intake or exhaust in

any manner.

⑫All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

liquids are used or stored.

SAVE THESE INSTRUCTIONS

⑬Do not modify the heater. Use

it only as described in this manual.

Any other use not recommended

by the manufacturer may cause

re, electric shock or injury to

persons.

⑭ Always use a certied

electrician should new circuits or

outlets be required.

⑮Always use properly

grounded, fused and polarized

outlets.

⑯ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

unit.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

⑰ When transporting or storing

the unit, keep in a dry place, free

from excessive vibration and

store so as to avoid damage.

!NOTE: Changes or

modications not expressly

approved by the party responsible

for compliance could void

user's authority to operate the

equipment.

6 www.dimplex.com

Installation

WARNING: ANY

INSTALLATION AND

SERVICE WORK SHOULD BE

PERFORMED BY QUALIFIED AND

AUTHORIZED PERSONNEL. ALL

INSTALLATIONS MUST COMPLY

WITH ALL LOCAL CODES AND

BY-LAWS, AND INSPECTED AND

APPROVED FOR OPERATION BY

LOCAL GOVERNING AUTHORITY

PRIOR TO USE.

WARNING: Construction and

electrical wiring must comply with

local building codes and other

applicable regulations to reduce the

risk of re, electric shock and injury

to persons.

Opti-myst Cassette

The Opti-myst Pro Box Heater works

exclusively with the

Opti-myst Cassette (CDFI1000-

PRO). Controls for the heater are

found on the cassette.

New Construction

When determining a location for

the Opti-myst®Pro Box Heater,

ensure that the unit will not be

susceptible to drafts, vents, ceiling

fans and other air currents. Similar

to a candle, large movements of

air will affect the unit's ability to

create and maintain the ame effect.

Hardwire Installation

The Opti-myst Pro Box Heater is

supplied in an assembled state

and is designed to be permanently

installed. The unit comes ready for

hardwire installation.

WARNING: Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of re,

electric shock or injury to persons,

always use a licensed electrician.

NOTE: Please read all

instructions before installing.

1. For rough in framing, the

opening should follow the

recommended dimensions

located in Figure 1.

NOTE: Dimensions provided

are minimum clearances and will

vary depending on type of support

framing and nishing options.

NOTE: Framing should be

constructed to support 160 lbs

(73 kg)

WARNING: To reduce the risk of

re, do not store or use gasoline or

other ammable vapours or liquids

in the vicinity of the unit.

2. Allow at least 4 ft. (122 cm) of

service cable for connecting

Installation

!NOTE: Use minimum 14 AWG supply

cable with two insulated copper conductors

(white and black) and one bare ground wire.

A B C D E F G H I

CDFI-

BX1000

44.9"

(114 cm)

31.75"

(80.5 cm)

14.7"

(37.3 cm)

9.5"

(24 cm)

4.8"

(12.2 cm)

15.5"

(39.3 cm)

16.2"

(41.2 cm)

45.2"

(115.2 cm)

32.3"

(82 cm)

Figure 1

a power supply wire to the

Opti-myst Cassette when installing before

nishing wall.

NOTE: A 15 amp, 120 volt alternating

current (VAC) circuit is required. A dedicated

circuit is preferred but not essential in all

cases. A dedicated circuit will be required if,

after installation, the circuit breaker trips or the

fuse blows on a regular basis when the heater

is operating. Additional appliances on the

same circuit may exceed the current rating of

the circuit breaker.

Mounting

Flanges Heater

Exhausst

8 www.dimplex.com

Installation

Do not use cable with aluminum

conductors.

NOTE: It is recommended

that all drywall installation and

nishing be completed after

unit is fully installed.

3. The Opti-myst Pro Box Heater

can be installed to be two sided

or one sided. For one sided

installations remove the 4

anges on the back if there is

not enough depth in the framing

for them. Using the same

screws, replace the back panel.

See Figure 2. For two sided

installations, remove anges and

back panel and using the same

screws, replace the anges.

NOTE: The heater only exhausts

from one direction. Note this

direction when installing in a 2

sided conguration"

CAUTION: When inserting the

unit take care not to damage or

pinch any of the power cables that

are concealed in the wall.

4. Mount the Opti-myst Pro Box

Heater to the framing with

the mounting brackets using

appropriate screws for the

application (Figure 1).

5. Feed the wire through the

opening on the back left of

the Opti-myst Pro Box Heater.

Remove the outer jacket and

strip the individual conductors ½

in. (1.3 cm) from the end.

6. Do not remove cardboard

backing from the Opti-myst Pro

Flange

Back

Panel

Plumbing

Routing

Wire

Routing

Figure 2

Installation

Box Heater until the Opti-myst

Cassette is installed. This will

help prevent scratches and

damage to the sides of the Opti-

myst Pro Box Heater.

7. Follow the installation

instructions provided with the

Opti-myst Cassette to install

within the Opti-myst Pro Box

Heater. Use the provided

screws to fasten the cassette to

the Opti-myst Pro Box Heater

through the holes in the cassette

(Figure 3).

8. In the back left corner of the

Opti-myst Cassette (Figure 3),

locate and remove the electrical

cover plate by removing the two

securing screws.

9. Install a cable connector (not

included) suitable for mounting

in a ⅞ in. (22 mm) hole, to the

cable plate and feed the supply

cable through the connector.

The cable plate can be removed

by removing the two securing

screws on either side, to allow

for easier access.

CAUTION: Use two conductor,

non-metallic sheath cable with

ground wire (3 wires total) for the

incoming power supply on the

cassette. Use appropriate wire to

meet local and national electrical

codes for rated power.

10. Connect the black wires (live)

from the Opti-myst Cassette and

Opti-myst Pro Box Heater to the

live from the power supply.

11. Connect the white wires

(neutral) from the Opti-myst

Cassette and Opti-myst Pro Box

Heater to the neutral wire from

the power supply.

12. Connect the green wires

(ground) from the Opti-myst

Cassette and Opti-myst Pro Box

Heater to the ground wire from

the power supply.

13. Place all connectors inside the

Opti-myst Cassette and secure

the cable clamp to unit, making

sure that the cable clamp grips

only the jacket of service cable.

CAUTION: Ensure the wire

connectors are securely tightened,

so no bare wires (live or neutral) are

exposed.

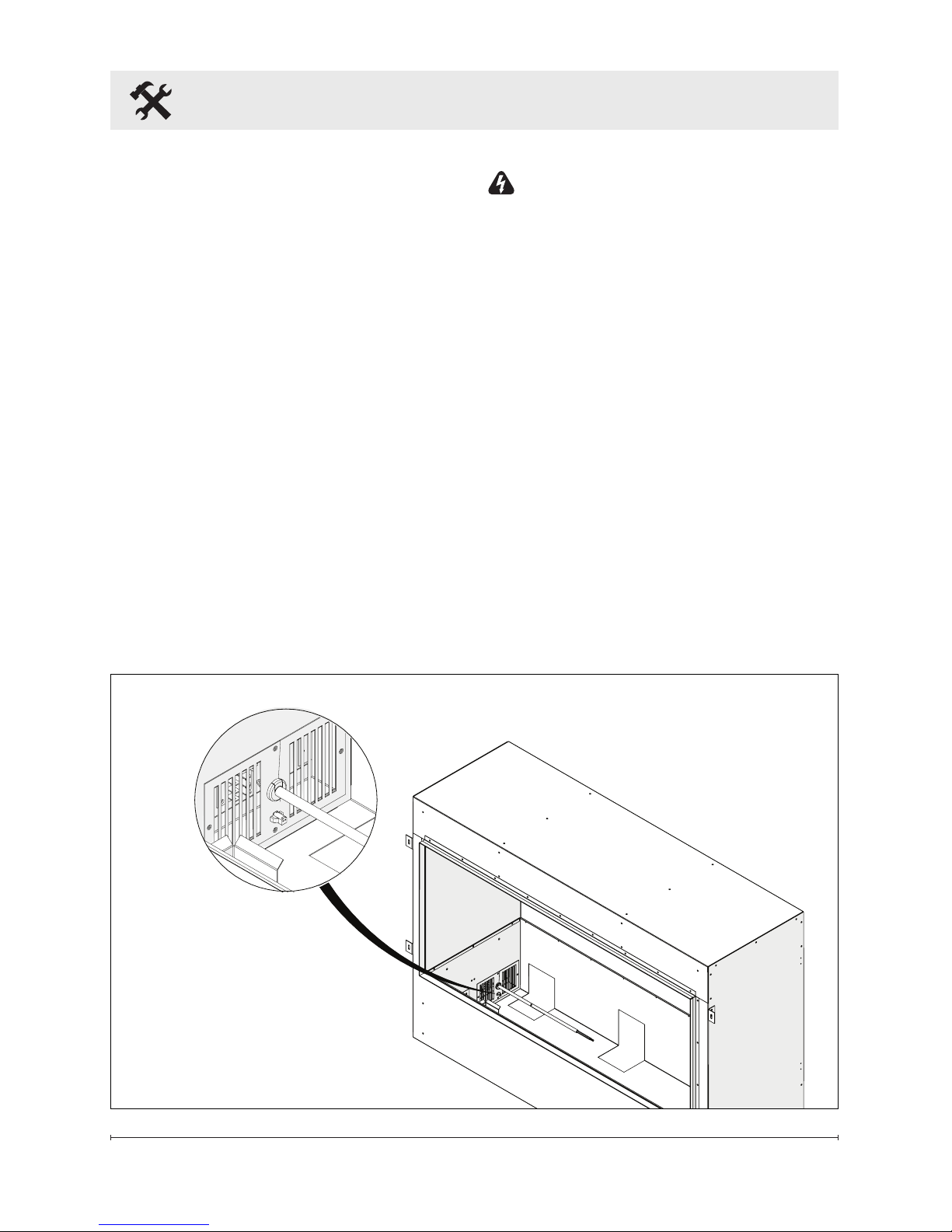

Figure 3

Cable Plate

Electrical Cover Plate

Holes for

securing to

framing

10 www.dimplex.com

14. Connect the 2 pin connector

from the Opti-myst Cassette to

the Opti-myst Pro Box Heater

(Figure 4).

15. Finish surrounding wall. There

are 3 different options for

nishing the wall:

• Permanent - install drywall

right up to the ange that

surrounds the opening.

• Semi Permanent - nish

around edge using ashing

material (not included)

• Flexible - create opening big

enough to access mounting

anges and a false front that

can be removed.

Installation

Figure 4

WARNING: Disconnect

power before attempting any

maintenance or cleaning to

reduce the risk of re, electric

shock or damage to persons.

16. The media plate that came

with the Opti-myst Cassette is not

required and can be discarded.

After completing installation, place

the media tray that came with the

Opti-myst Pro Box Heater in position

over the Opti-myst Cassette. The

tray can be used to hold a variety

of media. Please note that the tray

gets warm, so choose materials

appropriately.

Otros manuales para CDFI-BX1000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Calentador eléctrico de Dimplex

Dimplex

Dimplex QSH-70 Manual de usuario

Dimplex

Dimplex RT 204 U Manual de usuario

Dimplex

Dimplex EF12 series Manual de usuario

Dimplex

Dimplex Danube DNB20 Manual de usuario

Dimplex

Dimplex Cheriton Fire CHT20 Manual de usuario

Dimplex

Dimplex PUH1500 Manual de usuario

Dimplex

Dimplex CUH05B31T Manual de usuario

Dimplex

Dimplex BUH19BWS Manual de usuario

Dimplex

Dimplex GDH-RAD24F Manual de usuario

Dimplex

Dimplex TRFB 150 Manual de servicio

Dimplex

Dimplex CDFI500-PRO Manual de usuario

Dimplex

Dimplex CDFI-TMHEAT Manual de usuario

Dimplex

Dimplex CKHA Series Manual de usuario

Dimplex

Dimplex DLG1058 Manual de usuario

Dimplex

Dimplex DLG1106 Manual de usuario

Dimplex

Dimplex QRAD050 Manual de instrucciones

Dimplex

Dimplex Adagio Fire ADG20 Manual de usuario

Dimplex

Dimplex EMC4240 Manual de usuario

Dimplex

Dimplex WFC 3NS Manual de usuario

Dimplex

Dimplex RITZ Manual de usuario

Dimplex

Dimplex PLX075SPL Manual de usuario

Dimplex

Dimplex Danube DNB20 Manual de usuario

Dimplex

Dimplex 316CHE Manual de usuario

Dimplex

Dimplex DGWH4031 Manual de usuario

Manuales populares de Calentador eléctrico de otras marcas

Heatscope

Heatscope PURE Guía rápida

Sunbeam

Sunbeam Calentador SFH457A Manual de usuario

Dura Heat

Dura Heat DH2000C Manual de usuario

Harvia

Harvia K10.5GS Manual de usuario

Harvia

Harvia GL70 Manual de usuario

Heylo

Heylo DE 2 XL Manual de usuario

Heylo

Heylo DE 20 SH Manual de usuario

Harvia

Harvia PP70SP Manual de usuario

Tylo

Tylo SENSE SPORT Manual de usuario

Dirna

Dirna ecodirna SUN Manual de instrucciones

Creda

Creda Heating Solution Manual de usuario

THERMEx

THERMEx Frame E Wi-Fi Series Manual de usuario

SHUFT

SHUFT UniMAX-R 1400VE EC Manual de usuario

HUUM

HUUM CLIFF Series Manual de usuario

Harvia

Harvia HL70S Manual de usuario

Radialight

Radialight SIRIO Manual de usuario

Polaris

Polaris PRE E 0715 H Manual de usuario

HeatQ

HeatQ HTL Manual de usuario
