Digitus DS-23200 Manual de usuario

8-Port / 16-Port

COMBO KVM SWITCH OVER IP

Quick Installation Guide

EnglishGermanFrenchDutchItalySpanishRussianPolishPortuguesTurkish

8-Port / 16-Port COMBO KVM SWITCH OVER IP

Quick Installation Guide

1. System Requirements

Hardware

Local Host side :

The following equipment must be equipped with each computer or server

A VGA, SVGA or Multisync card

Type A USB port or PS/2 6 pin mini-DIN for Keyboard and Mouse.

Local console side:

A VGA, SVGA, Multisync monitor capable of the highest resolution.

PS/2 and/or USB Keyboard/Mouse.

Remote Console side:

One Computer or Multiple Computers are linked into the network

Cables

The Combo Free KVM Switch must be used specific custom 4-in-1 cables.

To purchase the specific cable sets, please contact your dealer.

Remote Console side

1 Java Runtime Environment : version 1.5 or above.

2 Browser: Microsoft Internet Explorer version 6.0 or above or Netscape or

Mozilla or Safari.

2. Installation

2.1. Front View

8-Port

Figure 1: 8-port IP-KVM front view

16-Port

Figure 2: 16-port IP-KVM front view

LED Indicators:

Selected: BLUE LED indicates that the IP-KVM is selected to the corresponding PC.

On-Line: GREEN LED indicates that the IP-KVM is ready to the corresponding PC.

Reset Switch :

Press Reset switch when you want to reset the system. This switch must be pushed

with a thin object like the end of a paper clip, or a ball point pen.

English

2.2. Rear View

8-Port

Figure 3: 8-port IP-KVM rear view

16-Port

Figure 4: 16-port IP-KVM rear view

Ethernet LED Indicators:

IP-Ready:

ORANGE LED blinking per second when system is ready.

Ethernet-Link:

GREEN LED indicates that Ethernet connection established.

2.3. Single stage installation

2.3.1. Precaution:

Please turn off computers and devices when you start to install KVM Switch.

For computers with Keyboard Power On function, please unplug the power

cords in advance. Otherwise, the switch might not work properly.

If your computeres work under Windows 98, please connect KVM switch to

computers via PS/2 ports, because Windows 98 does not support installation

at first time as through USB HID installation driver.

Some kind of old computers must enable USB setting in BIOS in advance

to make USB interface work.

This KVM switch does not guarantee to fully support USB keyboard with

USB HUB.

(Optional) Connect the USB connectors of USB A-mini cable to the host

computer and the IP-KVM module while for remote mass storage control.

Connect one end of Ethernet cable to ethernet jack of IP-KVM, and the

other end to the Remote Console computer.

English

2.3.2. Console connection:

Plug keyboard, mouse and monitor to the console ports on the real panel of

IP-KVM. (Figure 5)

Figure 5: Console connection

2.3.3. System connection:

Please use Custom combo KVM cable to connect your computers.

Please refer to the figures and instruction shown below for system connection.

Note: Please contact your dealer to purchase the custom combo 4-1 cables

if you need.

Figure 6: Custom combo 4-in-1 cable

English

You can connect IP-KVM to computers via three methods shown below:

A. Connect USB, PS/2 (keyboard/mouse) and VGA connectors to computers.

We recommand users to connect computers in this way. (Figure 7)

Figure 7: USB & PS/2 (Keyboard & Mouse) and VGA connected

B. Connect only PS/2 (keyboard/mouse) and VGA connectors to

computers (Figure 8).

Figure 8: PS/2 (Keyboard & Mouse) and VGA connected

C. Connect only USB and VGA connectors to computers.

(Figure 9).

Figure 9: USB and VGA video connected

English

2.4. Cascade Chaining

Combo Free 8-port & 16-port KVM switch support 3 level cascades; control up to 8/64/512

PCs ( for 8-port only ) and 16/256/4096 PCs ( for 16-port only ), from a single console;

cascaded chaining units do not need special configuration. Cascaded configuration

expands system ability and allows you to select computers connected to the Master or

Slave. After connected, KVM Switches automatically configure Master and Slave.

Note: IP-KVM should be the first layer master KVM Switches, and the second &

third layers could use Standard KVM Switches without Over-IP function (

Combo KVM Switches connected to 2nd & 3rd layers ).

To install cascade chain function, please follow the instruction below:

A. Please turn off computers and devices when you start to install KVM Switch.

B. Uses the custom combo 4-in-1 cable set (See Figure 6)to connect one or more

Slave KVM Switches to any PC port of Master KVM Switch. The connection

between KVM to KVM must be connected through PS/2 connection. ( Please

refer to Figure 7 & Figure 8 ).

C. You can do console Master KVM Switch via either USB and/or PS/2 keyboard

and mouse at will.

D. Plug in the power adapter of the first level Master KVM Switch and connect Master

KVM switch to computers.

E. Next, plug in power adapter for each level Slave KVM Switch and connect Slave

KVM switch to computers .

F. The power on sequence should be:

1. Master KVM Switch

2. Second level Slave KVM Switch (connecting to Master KVM Switch) if any.

3. Third level Slave KVM Switch (connecting to second level Slave KVM Switch)

if any.

4. All computers connecting to Master/Slave KVM Switch.

G. After all KVM Switches are powerd by power adaptor, trun on the computers.

Initial Plug-in Process:

Please plug in the Master KVM Switch first before turning on any other devices

like montior or computers.

Hot plug and Hot Swap:

Combo Free 8-port & 16-port KVM switch support Hot plug and Hot swap

function.

English

Figure 10: Cascade chaining

2.5. Firmware download connector

The min-USB female connector on the rear of KVM switch is for firmware upgrade function.

To update your KVM firmware, please contact with your dealer.

2.6. Rack Mounting

Figure 11: Rack mounting

Figure 11 shows you how to attach mounting brackets to the KVM Switches unit for

standard 19-inch rack cabinet.

1. Screw the mounting brackets into the sides of the KVM-Switches unit. (Figure 11)

2. Install the KVM-Switches unit into the rack cabinet.

English

3. Hot Key Operation

3.1. Call OSD Menu

Press < Scroll Lock> twice and <Enter>, then the OSD “Main Menu” will be displayed

on the monitor screen. All of the KVM parameters can be setup in OSD mode. You can

also execute some KVM functions in OSD.

3.2. Leading Hot Key Select

The two-steps hot key sequence is used for quick function execution.

The leading key is <Scroll Lock> by default. However, you can change

the leading hot key if you want.

By pressing <CTRL> twice, <New Hot Key>, then press <Enter>,

you can change the leading hot key.

The available leading hot key are <Scroll Lock>, < Num Lock > or

< Caps Lock > for option.

Setup leading hot key to < Scroll Lock >

< CTRL > →< CTRL > →< Scroll Lock > →< Enter >

Setup leading hot key to < Num Lock>

< CTRL > →< CTRL > →< Num Lock > →< Enter >

Setup leading hot key to < Caps Lock >

< CTRL > →< CTRL > →< Caps Lock > →< Enter >

Note: You can also change leading hot key by pressing <F1> in OSD main menu.

3.3. Channel Select - Single KVM

3.3.1. Specific channel selection

You can select the connected computers by using the two-step Hot Key

sequence. Press <Scroll Lock> key twice (Step 1), then press key (1 to 16)

and <Enter> (step 2) to select the computer you want to control.

Figure 12: Specific channel selection hot key

<Scroll Lock> →<Scroll Lock> →<1> →<Enter> or

<Scroll Lock> →<Scroll Lock> →<2> →<Enter> or

…

Note: You can also select computers in OSD menu. Move the indicator bar to the

chanel to switch by using <arrow key>, <Page Up> or <Page Down>, then

press <Enter> to select the connected computer.

English

3.3.2. Arrow Key Channel Shift Function

Press <Scroll Lock> twice, and press <Left Arrow> or <Right Arrow>

key to shift left/right one channel.

Switch to left one channel

Switch to right one channel

3.3.3. <ALT> Channel Shift Function

1. Start <ALT> Channel shift Function

< ALT > channel shift function default was off. You can press Hot-Key <Scroll

Lock> twice, <ALT> and then press <Enter> to turn on or turn off this function

alternately.

2. Shift the channel by <ALT> key

Press left < ALT > or right < ALT > key twice, the PC channel will automatically

shift to left or right one channel (channel decrease / increase to next) when

< ALT > channel shift function is enabled.

Enable/Disable <ALT> channel shift function

Switch to left one channel

Switch to right one channel

3.4. Channel Select - Cascade Chain Layer

You can select the active channel directly under cascade chain connection.

The following hot key sequence is used for quick channel selection. Press <Scroll Lock>

twice, <D>, the cascade channel number (1, 2, 3……16), and Press <Enter>.

Channel select to first layer

< Scroll Lock > →< Scroll Lock > →<D> →< CH-L1 > →< Enter >

Channel select to second layer

< Scroll Lock > →< Scroll Lock > →<D> →< CH- L1 >

→<D> →< CH-L2 > →< Enter >

Channel select to third layer

< Scroll Lock > →< Scroll Lock →<D> →<CH-L1 >

→<D> →< CH-L2 >

→<D> →< CH-L3 > →< Enter >

Note: With cascading 3 layers, you can select last layer directly;

Example: press <Scroll Lock> twice, then D2D5D7, and <Enter>:

D2 : layer 1 channel 2 links to

D5 : layer 2 channel 5 links to

D7 : layer 3 channel 7 selected

Note: You can also select active channel of cascade chain in OSD menu. Move the

indicator bar to the chanel selected to switch by using <arrow key>, <Page Up>

or <Page Down>, and then press <Enter> to switch to the target port.

English

3.5.

3.6.

uzzer so

ress <Sc

nabled alt

Scroll Lo

ote: You

uto-Scan

hen you

Enter>. T

he mouse

rrors such

r keyboar

.6.1. Sta

<Sc

─

.6.2. Sto

Pre

nd Disabl

oll Lock>

rnately. T

k> →<Sc

can also e

Function

nable Aut

e KVM S

and keybo

as erratic

in accide

t auto-sca

roll Lock>

hown on s

─┬

──

┬

││

│

└

──

─

└

──────

─

auto-sca

s any key

VM front p

/ Enable

wice, then

e buzzer s

roll Lock>

able/disa

Fig

-Scan fun

itch will sh

ard will be

ovement

n function

→<Scroll

reen to in

─

┬

─

└─

─

──────

─

──────

─

function

n keyboar

anel to sel

B> and <

ound defa

→<B> →

le buzzer

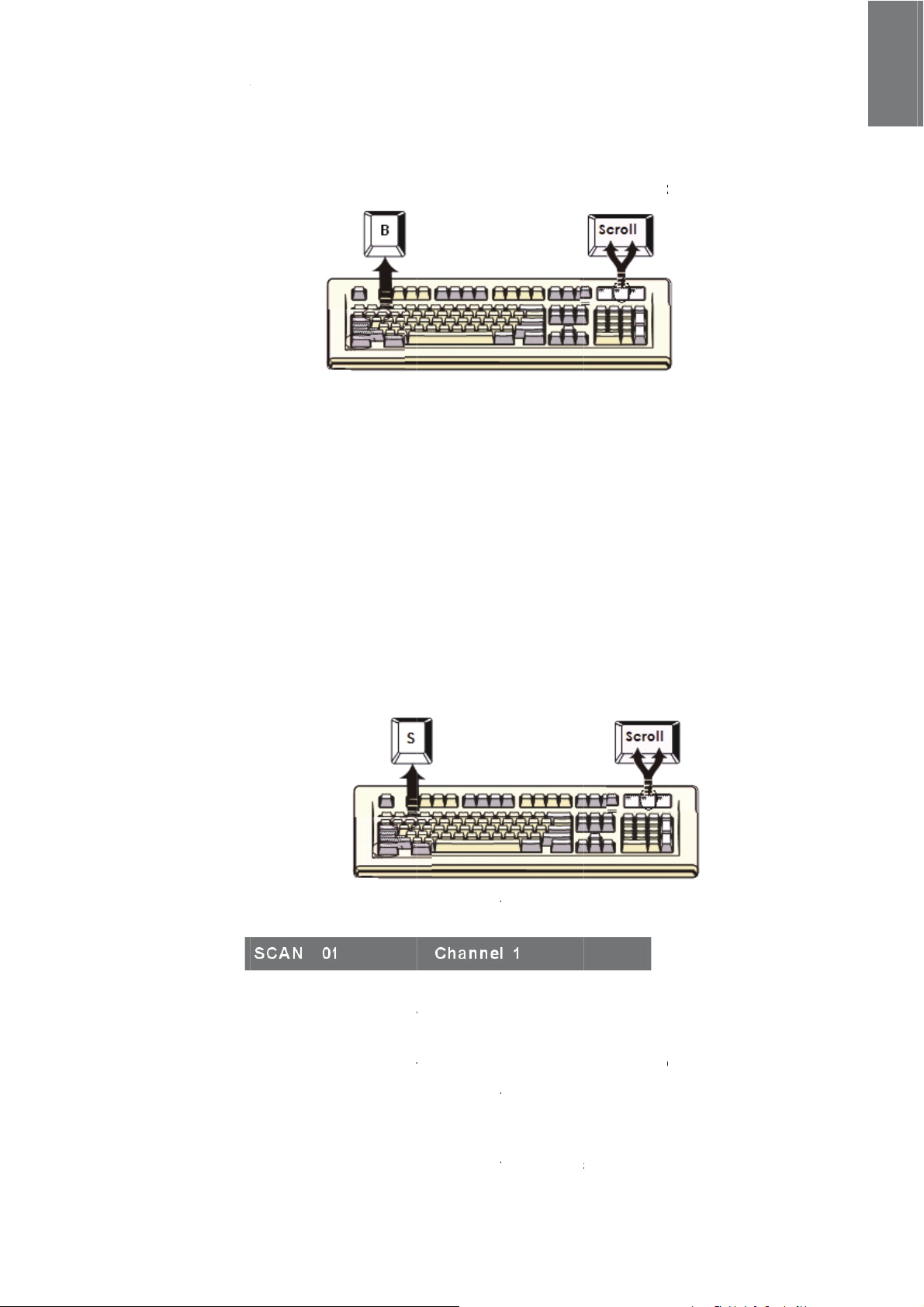

re 13: Buz

tion by pre

ft through

isabled u

nd wrong

Lock> →

icate the s

Figure 14:

─

────

─

─Indi

Figure 15:

to STOP

ct active p

nter>. Th

lt setting is

<Enter>

ound by pr

er setup h

sing <Scr

ll the ports

der this m

haracters

S> →<E

anning ch

uto-scan

nnel Nam

nnel Num

ate now i

uto-scan

he auto-s

rt can sto

buzzer so

ON.

ssing <F1

t ke

ll Lock> t

and displa

de. This is

o display

ter>. The

nnel.

ot ke

Scan Mod

anner

an function

the auto-s

und will be

>in OSD

ice, then

them on t

necessary

hen using

uto-scan b

. Press the

can

unctio

disabled /

ain menu.

S> and

he monitor

to prevent

the mouse

anner will

push butto

n, too.

English

Otros manuales para DS-23200

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cambiar de Digitus

Digitus

Digitus DA-70216 Manual de usuario

Digitus

Digitus DA-70231 Manual de usuario

Digitus

Digitus 8/16-Port Combo KVM OSD Switch For Usb And... Manual de usuario

Digitus

Digitus Switcher Manual de usuario

Digitus

Digitus DN-80112-1 Manual de usuario

Digitus

Digitus DN-95315 Manual de usuario

Digitus

Digitus DN-95359 Manual de usuario

Digitus

Digitus DA-73301 Manual de usuario

Digitus

Digitus DA-70135-3 Manual de usuario

Digitus

Digitus DA-70245 Manual de usuario

Digitus

Digitus DS-12910 Manual de usuario

Digitus

Digitus DS-45320 Manual de usuario

Digitus

Digitus 4-Port Desktop USB KVM Switch with USB 2.0... Manual de usuario

Digitus

Digitus DN-651160 Manual de usuario

Digitus

Digitus DA-70250-1 Manual de usuario

Digitus

Digitus DN-95341-1 Manual de usuario

Digitus

Digitus DS-15202 Manual de usuario

Digitus

Digitus DN-80071 BLACK RAPID 1000 Manual de usuario

Digitus

Digitus DN-50012-1 Manual de usuario

Digitus

Digitus DN-50021 Manual de usuario

Digitus

Digitus DA-70232 Manual de usuario

Digitus

Digitus DS-12860 Manual de usuario

Digitus

Digitus DN-651146 Manual de usuario

Digitus

Digitus DN-80068 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
