Digitus DN-650107 Manual de usuario
2
Package Contents
Check the following contents of your package:
•
Network Switch x 1
•
User Guide x1
•
Terminal block x 1
•
DIN Rail mount x 1
If any part is lost and damaged, please contact your local
agent immediately.
Introduction
The Industrial Fast Ethernet Switch is designed for harsh
environments where it is exposed to moisture, temperature
fluctuations and vibration. With a temperature range of -40°C
to 85°C, the Industrial Fast Ethernet Switch can be used
under the most adverse conditions. The PoE ports with
IEEE802.3af/at support can supply PoE capable devices with
up to 30 W per port. It ensures a constant availability in
highly sensitive areas such as transport, production, traffic
and safety monitoring. The simple plug and play system
allows the Industrial Fast Ethernet Switch to be quickly
integrated into the respective environment. With its Fast
Ethernet connectivity, the Industrial Fast Ethernet Switch is a
flexible, cost-effective solution for the industrial
environment.
3
Hardware Description
Front Panel

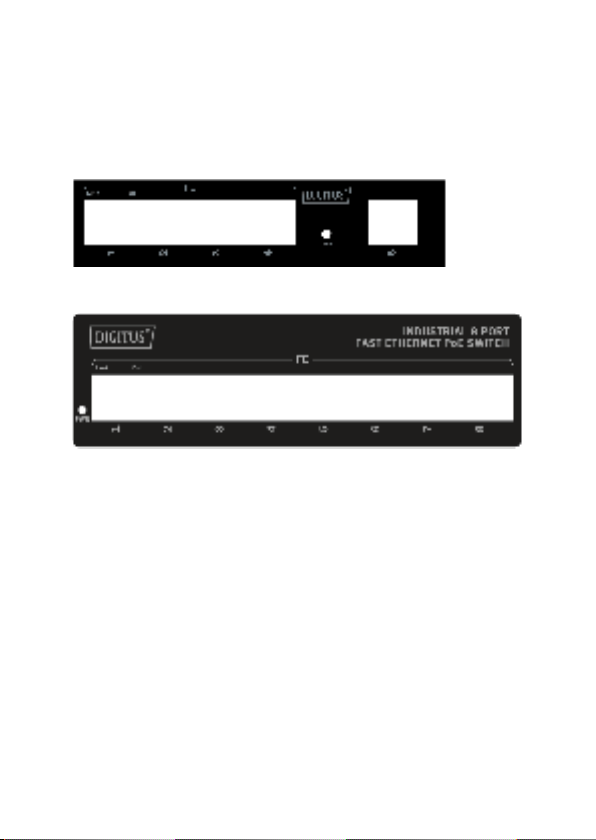

The Front Panel consists of Ethernet Ports.
The LED indicators are also located on the panel.
DN-651107
DN-651108
4
LED indicator
LED
Color
Function
PWR Red
Off: No Power supply
Light: Indicates the switch has power
LINK Orange
Off: No device is connected to the
corresponding port
Light: Indicates the link through that port
is successfully established at 10/100
Mbps
Blink: Indicates that the Switch is actively
sending or receiving data over that
port
PoE Green
Off: No PoE powered device (PD)
connected
Light: There is a PoE PD connected to be
port
Blink: Indicates port abnormal PoE
function
5
Upper Panel

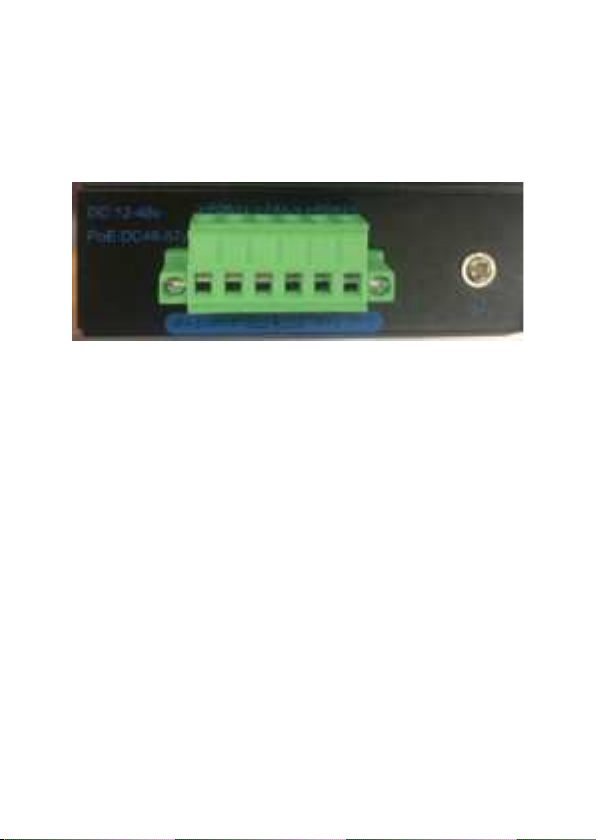

The upper panel has a standard 6-Pin industrial power input
terminal for double redundant power backup and accepts DC
power input.
Power input
This unit provides a 6-pin terminal block. It can be operated
using 48-57 V DC power source. Always make sure your input
voltage is within this supported voltage range.
To connect power:
This unit supports two power inputs. Follow the printed
polarity for +P1-, +P2- and ground. Connect positive wires to
V+, connect negative wires to V-, and connect a neutral wire
to the ground mark.
+P1- is for power input one connection (PWR1).
+P2- is for power input two connection (PWR2).
6
Figure:
WARNING:
Always SHUT OFF power source to connect power wire.
WARNING:
Any exceeded input voltage will not make this unit function
and may damage this unit.
Grounding column
The switch already comes with lightning protection
mechanism. You can also ground the switch through
the PE (Protecting Earth) with Ground Cable.
7
Installation of the Switch
This part describes how to install your Ethernet Switch and
make connections to it. Please follow the following
instructions to avoid incorrect installation causing device
damage and security threat.
•Before cleaning the switch, unplug the power plug of the
switch first. Do not clean the switch with wet cloth or
liquid;
•Do not place the switch near water or any damp area.
Prevent water or moisture from entering the switch
chassis;
•Do not place the switch on an unstable case or desk. The
switch might be damaged severely in case of a fall;
•Ensure proper ventilation of the equipment room and
keep the ventilation vents of the switch free of
obstruction;
•Make sure that the operating voltage is the same one
labeled on the switch;
•Do not open the chassis while the switch is operating or
when electrical hazards are present to avoid electrical
shocks
8
DIN-Rail Mounting

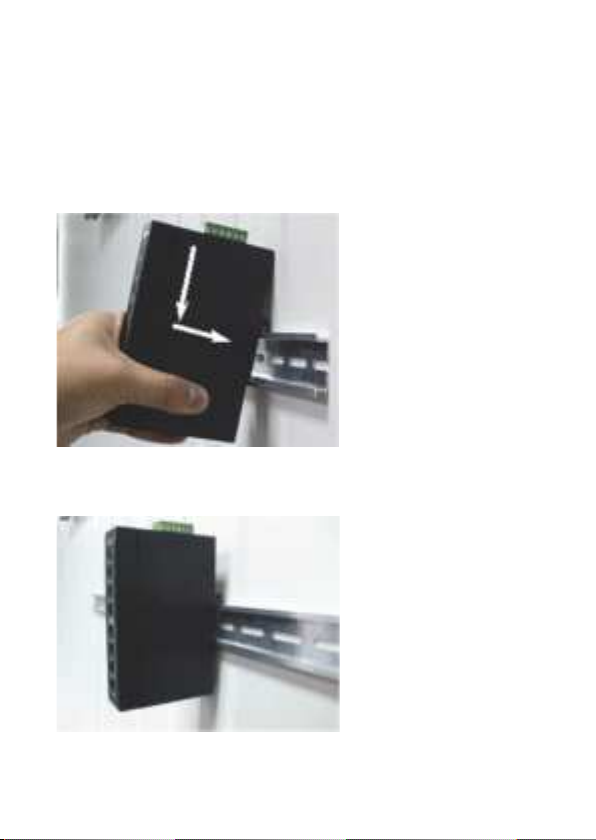

The DIN-Rail is already screwed on the Industrial Equipment.
Please refer to following figures and know how to hang the
Industrial Equipment:
Step 1: Lightly press the button of DIN-Rail into the track.
Install Industrial Equipment in DIN-Rail mount.
Step 2: Check the DIN-Rail is tightly on the track.
9
Remove DIN-Rail Mounting
Step 1: Please refer to following procedures to remove the
Industrial Equipment from the track.
Remove Industrial Equipment in DIN-Rail mount.
Step 2: Lightly press the button of DIN-Rail for remove it from
the track.
Specifications
Model
Industrial 4-Port
Fast Ethernet PoE+
Switch with
1 x uplink port
Industrial
8-port Fast
Ethernet PoE+
Switch
Standard
IEEE802.3, IEEE802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.3af, IEEE802.3at
Network Media (Cable)
10BASE-T: UTP category 3,4,5 cable
(≤100m)
100BASE-TX: UTP category 5 cable
(≤100m)
MAC Address Table
2K, Auto-learning, Auto-aging
10
Transfer mode
Store-and-Forward
Switching Capacity
1Gbps
1.6Gbps
Input power supply
DC:48-57V
Dimensions (L*W*H)
128*86*34mm
157*120*48mm
Fan
Fanless
PoE Port
Port1~4
Port1~8
PoE Power on RJ45
Mode A 1/2(+),3/6(-)
PoE Output
30W(Max)
Temperature
Operating Temperature:
-40°C ~ 85 °C
Storage Temperature:
-40 °C ~ 85°C
Humidity
Operating Humidity:
5% ~ 95% non-condensing
Storage Humidity:
5% ~ 95% non-condensing
Surge Protection
Differential mode ±4KV
Common mode ±6KV
MTBF
300,000 hours
Electrostatic standard
Contact 8KV, air 15KV
