Digital Watchdog STAR-LIGHT DWC-B2623WTIRW Manual de usuario
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
User's ManuallVVer.er. 10/22
n
stalling and using the camera, please read this manual carefully
.
t
o keep it hand
y
for future reference.
STAR-LIGHT Universal HD over
CoaxTM Bullet Camera
DWC-B6263WTIR – 2.8~12mm vari-focal lens, gray housing
DWC-B2623WTIRW – 2.8~12mm vari-focal lens, white housing
DWC-B2623WTIR650 – 6~50mm long-range lens, gray housing
DWC-B2623WTIR650W – 6~50mm long-range lens, white housing
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
This symbol indicates that dangerous voltage
consisting a risk of electric shock is present within
this unit.
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance
1. In the use of the product, you must be strict compliance with the electrical safety regulations of
the nation and region. When the product is mounted on a wall or ceiling, the device shall be
firmly fixed.
2. Be sure to use only the standard adapter specified in the specification sheet. Using any other
adapter could cause fire, electrical shock, or damage to the product.
3. Make sure the power supply voltage is correct before using the camera.
4. Incorrectly connecting the power supply or replacing the battery may cause an explosion, fire,
electric shock, or damage to the product.
5. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
excessive heat generation or fire.
6. Securely plug the power cord into the power source. An insecure connection may cause a fire.
7. When installing the camera, fasten it securely and firmly. A falling camera may cause personal
injury.
8. Do not install in a location subject to elevated temperature, low temperature, or high humidity.
Doing so may cause fire or electric shock.
9. Do not place conductive objects (e.g. screwdrivers, coins, metal items, etc.) or containers filled
with water on top of the camera. Doing so may cause personal injury due to fire, electric shock,
or falling objects.
10. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric
shock.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
WARNING
Safety Information
2
11. Do not install near any heat sources such as radiators, heat registers, or other products
(including amplifiers) that produce heat.
12. Keep out of direct sunlight and heat radiation sources. It may cause a fire.
13. If any unusual smells or smoke come from the unit, stop using the product at once.
Immediately disconnect the power source and contact the service center. Continued use in
such a condition may cause fire or electric shock.
14. If this product does not operate normally, contact the nearest service center. Never
disassemble or change this product in any way.
15. When cleaning the product, do not spray water directly onto parts of the product. Doing
so may cause fire or electric shock.
1. Use proper safety gear when installing and wiring the product.
2. Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibration or magnetic interference.
3. Do not use this product near water.
4. The product shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the product.
5. Avoid aiming the camera directly towards extremely bright objects such as the sun, as this
may damage the image sensor.
6. The Main plug is used as a disconnect device and shall stay readily operable at any time.
7. Remove the power adapter from the outlet when then there is lightning. Neglecting to do
so may cause fire or damage to the product.
8. Do not block any ventilation openings. Install following the manufacturer’s instructions.
9. A polarized or grounding-type plug is recommended for this product. A polarized plug has
two blades with one wider than the other. A grounding-type plug has two blades and a
third grounding prong. If the provided plug does not fit into your outlet, consult an
electrician for replacement.
CAUTION
Safety Information
3
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the product.
11. If any laser equipment is used near the product, make sure the surface of the sensor is not
exposed to the laser beam as that may damage the sensor module.
12. If you want to move the already installed product, be sure to turn off the power and then move or
reinstall it.
13. Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
14. If cleaning is necessary, please use a clean cloth to wipe it gently. If the device will not be used for
a long time, please cover the lens cap to protect the device from dirt.
15. Do not touch the camera’s lens or sensor module with fingers. If cleaning is
necessary, please use a clean cloth to wipe it gently. If the device will not be
used for a long time, please cover the lens cap to protect the device from dirt.
16. Use only attachments/accessories specified by the manufacturer.
17. Always use hardware (e.g. screws, anchors, bolts, locking nuts, etc.) compatible with the
mounting surface and of sufficient length and construction to ensure a secure mount.
18. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the product.
19. Unplug this product when a cart is used. Use caution when moving the cart/product combination
to avoid injury from tip-over.
20. Refer all servicing to qualified service personnel. Servicing is needed when the product has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the product, the product has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Legal considerations
Video surveillance can be regulated by laws that vary from country to country. Check the laws in your
local region before using this product for surveillance purposes.
Contents
Important Safety Instructions
4
Important Safety Instructions
Liability
Every care has been taken in the preparation of this document. Digital Watchdog cannot be held responsible
for any technical or typographical errors and reserves the right to make changes to the product and manuals
without notice.
Digital Watchdog makes no warranty of any kind regarding the material contained within this document.
Digital Watchdog shall not be liable nor responsible for incidental or consequential damages in connection
with the furnishing, performance, or use of this material. This product is only to be used for its intended
purpose.
Equipment modifications
This equipment must be installed and used in strict accordance with the instructions given in the user
documentation. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to use the equipment.
Trademark acknowledgments
Digital Watchdog, DW, DW Spectrum, MEGApix and Star-Light are registered trademarks or trademark
applications of Digital Watchdog in various jurisdictions.
Apple, Apache, Bonjour, Chrome, Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, Real, SMPTE,
QuickTime, UNIX, Windows, and WWW are registered trademarks of the respective holders. Java and all Java-
based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. The UPnP
Word Mark and UPnP Logo are trademarks of Open Connectivity Foundation, Inc. in the United States, or
other countries.
microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC
are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries, or both.
Safety
This product is intended to be supplied by a UL Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2”
and rated 12 Vdc, 0.37A min. (DWC-B6263WTIR) or 0.50A min. or 24 Vac, 50/60Hz 0.32A min. (DWC-
B6263WTIR650).
5
Regulatory Information
USA
This device complies with part 15 of the FCC Rules, subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, according to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used following the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Canada
This digital apparatus complies with CAN ICES-3 (Class B). The product shall be connected using a shielded
network cable (STP) that is properly grounded. Cet appareil numérique est conforme à la norme CAN NMB-3
(classe B). Le produit doit être connecté à l'aide d'un câble réseau blindé (STP) qui est correctement mis à la
terre.
Disposal and recycling
Digital Watchdog cares for the environment at all product manufacturing stages and is taking measures to
provide customers with more environmentally friendly products. When this product has reached the end of
its useful life, dispose of it according to local laws and regulations. For information about your nearest
designated collection point, contact your local authority responsible for waste disposal. Following local
legislation, penalties may be applicable for incorrect disposal of this waste.
Copyright © Digital Watchdog 2022. All rights reserved. Specifications and pricing are subject to change
without notice.
Important Safety Instructions
6
Contents
INTRODUCTION
Features
Product & Accessories
PartsName
Dimension
08
09
10
11
INSTALLATION
Installa�on
Connec�ng to Monitors
Control Board
Adjus�ng the Camera angle
12
14
16
18
APPENDIX
Troubleshoo�ng
Specifications
32
33
7
OSD MENU
Menu Tree
Exposure
Color
Day/Night
Function
Motion
Privacy
Setup
Exit
19
20
24
25
26
27
28
29
31
36 LIMITS AND EXCLUSIONS
37 WARRANTY INFORMATION
Features
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog
signal support
Star-Light™ super low light technology
2.1MP/1080p 1/3" image sensor at real-time 30fps
2.8~12mm varifocal p-iris lens (DWC-B6263WTIR model)
6~50mm varifocal p-iris lens (DWC-B6263WTIR650 model)
True wide dynamic range (WDR)
OSD control via coaxial (UTC)
100' Smart IR™ with intelligent camera sync. (DWC-B6263WTIR model)
150' Smart IR™ with intelligent camera sync. (DWC-B6263WTIR650 model)
Smart DNR™ 3D digital noise reduction
True day/night mechanical IR cut filter
De-Fog™ extreme weather image compensation
Highlight masking exposure (HME)
Auto sensing 24VAC/12VDC with line lock
Easy icon driven OSD menu with built-in joystick
Programmable Privacy Zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
UL listed
RS-485 built-in
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
5 year warranty
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
8
█
█
█
█

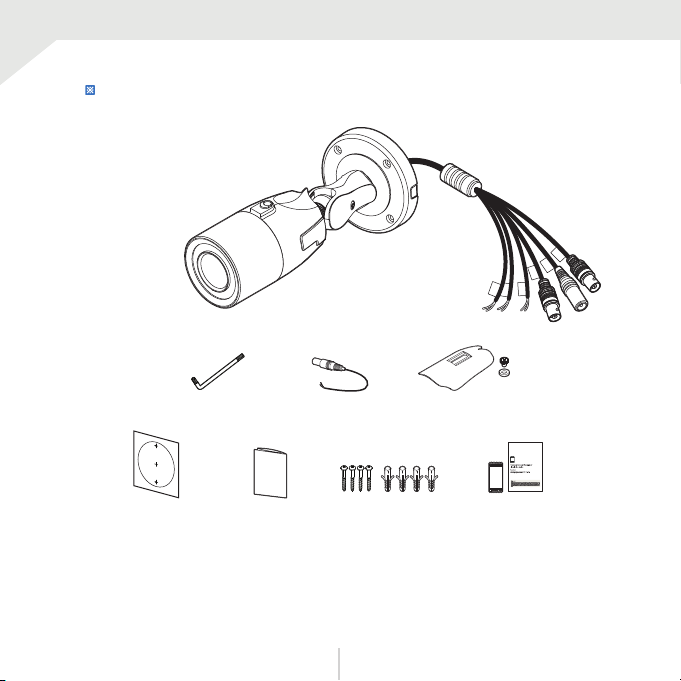

Product & Accessories
Camera
Quick Setup &
Installation Guides
Mounting Template Screws&
s
Moisture Absorber &
Absorber Guide
Star Wrench
(T-20)
DC Plug Cable Sunshield Cover &
S
Please check that all items below are included in the package.
9

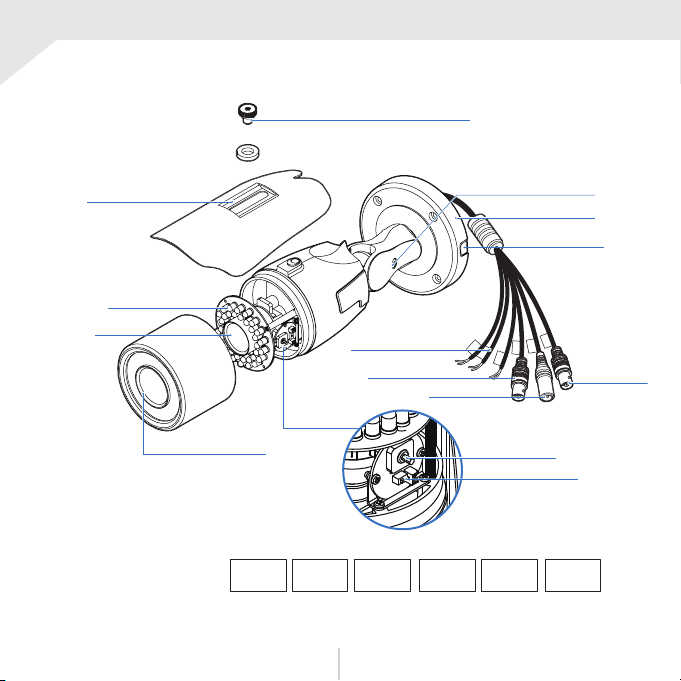

Part name
Front Case
IR Module
Lens
Sunshield Cover
Cable Guide
Rubber
UTP/Coax switch
Pan/Tilt/Rotate
Stopper Screw
UNIVERSAL DC12V
AC24V CVBS
UTP
BLUE +
DOT -
RS 485
ORG D+
DOT D -
ALARM
Power Cable
Universal Cable CVBS Cable
UTP, Alarm, RS485
10
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Cámara de seguridad de Digital Watchdog
Digital Watchdog
Digital Watchdog PTZ37X Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix DWC-MVT4Wi28 Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix Ai DWC-XSBA08Mi Manual de usuario
Digital Watchdog
Digital Watchdog Megapix DWC-MTT4Wi6 Manual de usuario
Digital Watchdog
Digital Watchdog Star-Light Plus DWC-VA853WTIR Manual de usuario
Digital Watchdog
Digital Watchdog DWC-V6763WTIR Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix DWC-MV84WiA Manual de usuario
Digital Watchdog
Digital Watchdog MegaPix Pano DWC-PZ21M69T Manual de usuario
Digital Watchdog
Digital Watchdog STAR-LIGHT Universal HD over Coax... Manual de usuario
Digital Watchdog
Digital Watchdog DWC-D1362D Manual de usuario
Digital Watchdog
Digital Watchdog STAR-LIGHT AHD DWC-V7753TIR Manual de usuario
Digital Watchdog
Digital Watchdog Star-Light DWC-V7253WTIR Manual de usuario
Digital Watchdog
Digital Watchdog DWC-MC355T Manual de usuario
Digital Watchdog
Digital Watchdog MEGAPIX DWC-MT95WW28TW Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix DWC-MPA20M Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix DWC-MPF5Wi4TW Manual de usuario
Digital Watchdog
Digital Watchdog B2372TIR Manual de usuario
Digital Watchdog
Digital Watchdog Star-Light Plus DWC-B6853WTIR Manual de usuario
Digital Watchdog
Digital Watchdog MEGApix CaaS DWC-MB44Wi650C6 Manual de usuario
Digital Watchdog
Digital Watchdog DWC-V7253TIR Manual de usuario
