Digital Watchdog MEGApix DWC-MVT4Wi6 Manual de usuario

DWC-MVT4Wi36 DWC-MVT4Wi28

DWC-MVT4Wi6

Template

Sheet

Rubber

Plug

Default Login Information

Username: admin Password: admin

Power

Ethernet

Cable

Ethernet

Cable

Quick Start Guide Quick Start Guide

WHAT’S IN THE BOX

Quick set up

guide 1

Tapping

screws PA

4x35 – 4pcs

1 Set

Mounting

template 1

Plastic

anchors

– 4pcs

1 Set

Waterproof

cap 1 Set Allen wrench 1

Rubber plug 1

1. The mounting surface must bear three times the weight of

your camera.

2. Do not let the cables get caught in improper places or the electric line

cover to be damaged. This may cause a breakdown or ﬁre.

3. For the installation process, remove the camera’s dome cover by

loosening the screws at the base of the dome.

4. Using the mounting template sheet or the camera itself, mark and drill

the necessary holes in the wall or ceiling.

6. To use the camera’s water proof wiring:

a. Install the LAN cable into .

b. will be assembled to with a 1/4 turn.

c. Thread tightly to .

7. Secure the camera to the mounting surface with the

provided screws.

8. Adjust the camera to obtain an optimum angle by using the camera’s

three axis gimbal. The camera’s max angles are:

Pan: 0°~ 240°

Tilt: 0°~ 68°

Rotation: 0°~ 220°

9. Remove the protection ﬁlm softly to complete the installation.

5. Pass the wires through the mount bracket and make all necessary

connections.

a. NETWORK CONNECTIONS – If you are using a PoE Switch,

connect the camera using an Ethernet cable for both data and

power.

b. NETWORK CONNECTIONS – If you are using a non-PoE switch,

connect the camera to the switch using an Ethernet cable

for data transmission and use a power adapter to power the

camera.

STEP 1 – PREPARING TO MOUNT THE CAMERA

STEP 3 – INSTALLING THE CAMERA

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power requirements Power consumption

DC 12V

POE IEEE 802.3af

LED on: 3.5W

LED o: 2W

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

Tilt: 0° ~ 68°

Pan: 0° ~ 240°

Rotation: 0° ~ 220°

NOTE: To ensure moisture seal, make sure the o-ring is in place

between and . In extreme environments use of an

outdoor rated sealer is recommended.

NOTE: When using the waterproof cap, crimp the RJ45 connector

after passing the cable through the waterproof cap.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/support-download/

2. Search your product by entering the part number in the ‘Search by Product’

search bar. Results for applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals, Quick Start

Guides (QSG), software and ﬁrmware will appear in the results.

Attention: This document is intended to serve as a quick reference for initial

set up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

7. To view the camera’s web viewer, click on ‘View Camera Website’.

8. To save the changes made to the camera’s settings, input the ID and

PW of the camera for authentication and click ‘Save’.

9. If the camera needs to be rebooted after the settings were changed,

press the ‘Reboot’ button. The camera will cycle power and will

appear back in the search results once the reboot is complete.

6. The camera’s default network information is:

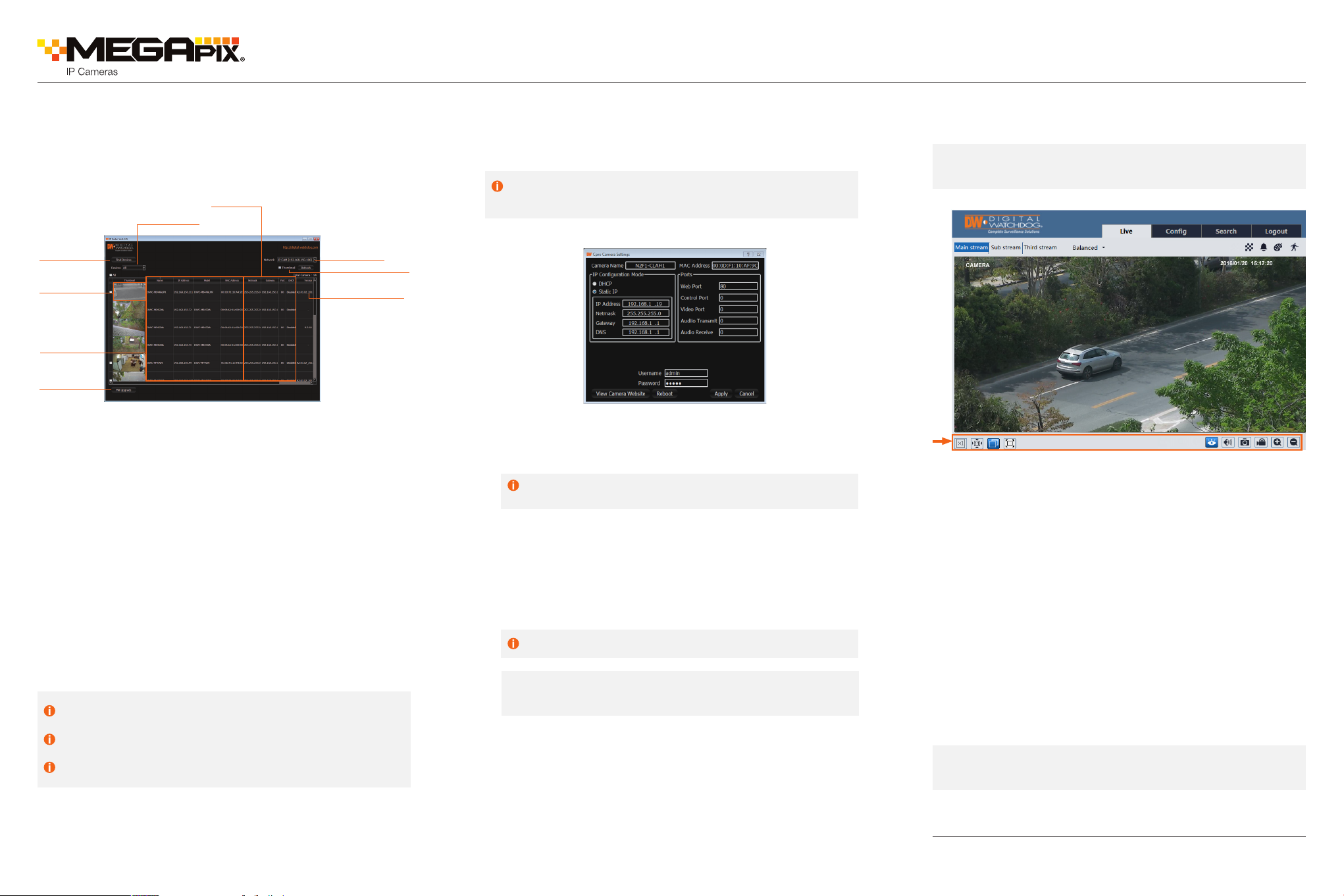

STEP 4 – DW IP FINDER™

Use the DW IP Finder™ software to scan the network and detect all

MEGApix® cameras, set the camera’s network settings or access the

camera’s web client.

Rev Date: 09/19

Speciﬁcations and pricing are subject to change without notice.

Select DHCP if the internet service is dynamic IP. This will allow the camera

to receive its IP address from the DHCP server.

Select STATIC to manually enter the camera’s IP address, subnet mask,

Gateway and DNS information.

Contact your network administrator for more information.

Default TCP/IP information

• IP: DHCP

‘Port Forwarding’ has to be set in your network’s router for external

access to the camera.

Default ID / PW : admin / admin

Network Setup

1. Go to: http://www.digital-watchdog.com

2. Search for ‘IP Finder’ on the quick search bar at the top of

the page.

3. The latest IP Finder software will appear in the search results. Click on

the link to download the ﬁle to your computer.

4. The software will scan your network for all supported cameras and

display the results in the table. Allow up to 5 seconds for the IP Finder

to ﬁnd the camera on the network.

5. Select a camera from the list by double-clicking on the camera’s

image or clicking on the ‘Click’ button under the IP Conf. column. The

camera’s network information will appear. If necessary, you can adjust

the camera’s network type.

Quick Start Guide

STEP 5 – WEB VIEWER

NOTE: Some Menu options may not be available based on the

camera model. See the full manual for more information.

NOTE: This camera’s web client must be accessed via Internet

Explorer web browser only.

The GUI display may dier by camera models.

Once the camera’s network settings have been setup properly, you can

access the camera’s web viewer using the DW IP Finder™.

To open the camera’s web viewer:

1. Find the camera using the DW IP Finder™.

2. Double-click on the camera’s view in the results table.

3. Press the ‘View Camera Website’. The camera’s web viewer will

open up in your default web browser.

4. Enter the camera’s username and password

(default are admin / admin).

5. If you are accessing the camera for the ﬁrst time, install the

ActiveX player for web ﬁles in order to view video from

the camera.

Search for Devices

Device’s

Network Settings

Devices Firmware Version

Select which

Network to Scan

Camera’s Live

Thumbnail View

Show/Hide Thumbnail View

Filter Search Results

Device Name,

Model, IP Address,

and MAC Address

Firmware Upgrade

NOTE: For security purposes, it is highly recommended to

change the cameras default password.
