Digital Projection E-Vision Laser 5000 XGA Manual de usuario

Rev A December 2017

E-Vision Laser 5000 Series

High Brightness Digital Video Projector

4USER MANUAL

119-127A

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

This publication, including all photographs, illustrations and software, is protected under international

be reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no

representations or warranties with respect to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of

the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued

registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other

countries.

MHL, the MHL logo, and Mobile High-Definition Link are trademarks or registered

trademarks of MHL licensing, LLC.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

All other product names used in this manual are the properties of their respective owners and are

acknowledged.

Digital Projection

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These

safety and usage instructions will ensure that you enjoy many years of safe use of the projector.

Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause

personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this

example:

“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

Do not open the unit case. There are no user-serviceable parts inside the unit.

For servicing, contact qualified service personnel via your suppling dealer.

Follow all warnings and cautions in this manual and on the unit case.

To avoid damage to eyes, do not look into the lens when the light source is on.

Do not place the unit on an unstable surface.

Avoid using the system near water, in direct sunlight, or near a heating device.

Do not place heavy objects on the unit.

Notice

This product is intended for use by adults who are competent to operate this machine.

Please write down your projector model number and serial number and keep the information for

maintenance purposes in the future. Should the equipment be lost or stolen, the information could also be

used for a police/insurance report.

Model number:

Serial number:

Digital Projection

Preface

E-V

ISION

ASER

5000

ERIES

SER

ANUAL

ANUARY

2018

iii

LASER WARNING

This symbol indicates that there is a potential hazard of eye exposure to laser

radiation unless the instructions are closely followed.

CLASS 3R LASER PRODUCT

This Laser Product is designated as Class 3R during all procedures of operation.

LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Do not point laser or allow laser light to be directed or reflected toward other people or

reflective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included instructions are not

followed.

Caution – use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

Laser Parameters

Wavelength 450nm - 460nm (Blue)

Mode of operation Pulsed, due to frame rate

Pulse width 1.34ms

Pulse repetition rate 120Hz

Maximum laser energy 0.698mJ

Total internal power >100w

Apparent source size >10mm, at lens stop

Divergence >100 milliradian

CAUTION: Do not look into the lens

Caution – Possibly hazardous optical radiation emitted from this product.

Do not stare at operating light source.

May be harmful to eyes.

The non-laser emission from this projector is tested according to the IEC/EN 62471-5:2015

(“Photobiological safety of lamps and lamp systems – Part 5: Image projectors”) standard.

The projector is Risk Group 2 (low risk).

Digital Projection

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

Product labels

Product Label locations

1. Projector Hazard Warning Symbol

and Laser Aperture Label

2. Projector Explanatory Labels

Complies with FDA performance standards for laser

products except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007

LASER RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 3R LASER PRODUCT

Emitted wavelength : 450-460 nm

Max. Pulse energy: 0.698 mJ, Pulse duration: 1.34 ms

激光輻射避免眼睛受到直接照射3R类激光產品

波長:450-460nm

最大脈衝能量:0. mJ,脈衝時間: . 4ms698 1 3

RAYONNEMENT LASER

EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX

APPAREIL LASER DE CLASSE 3RÀ

longueur d'onde : 450-460nm

maximum ergie de impulsion : 0. mJ,én 698

dur de impulsion : . 4 msée 1 3

GB 7247.1-2012 / IEC/EN 60825-1:2007

CLASS 1 LASER PRODUCT

IEC/EN 60825-1:2014

PRODUIT LASER DE CLASSE 1

IEC/EN 60825-1:2014

Digital Projection Preface

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

3. Laser Pointer Remote Control Explanatory Label

Digital Projection

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

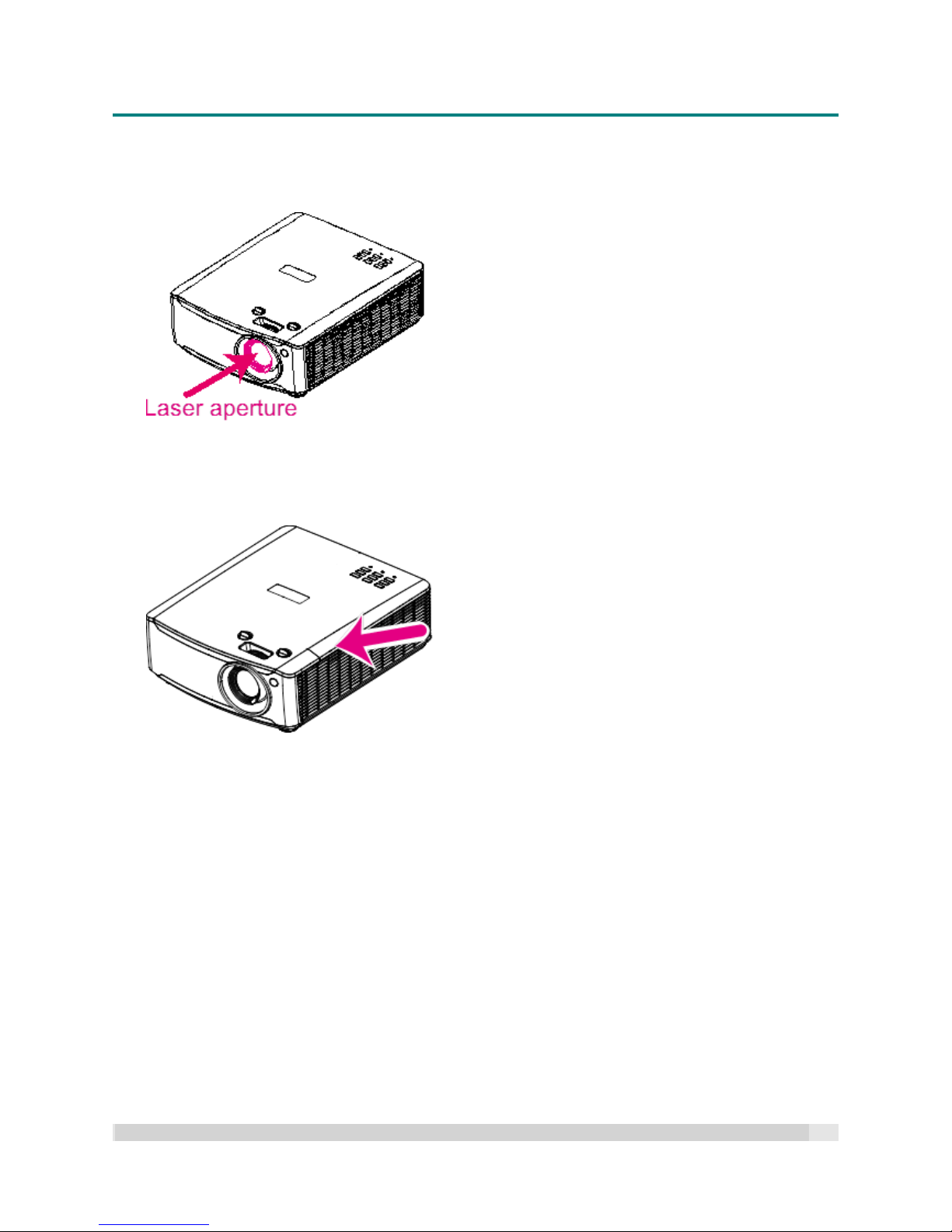

Location of laser aperture

The drawing below shows the laser aperture location.

Be careful not to look directly into the light emitted from the laser aperture.

Safety Interlock switch

The projector has a top cover safety interlock switch to protect the user from laser light Leakage.

This safety interlock will power-off the projector if the top cover is removed.

Digital Projection Preface

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

vii

Projector Installation Notice

There is no limitation angle for projector installation.

Allow at least 50 cm clearance around the exhaust vent.

Ensure that the intake vents do not recycle hot air from the exhaust vent.

When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed the projectors operational temperature range whilst the

projector is running, and that the air intake and exhaust vents are unobstructed.

All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the projector to shutdown even if the enclosure temperature

is with the acceptable operational temperature range.

Minimum 500mm

(19.69 inch) Minimum 500mm

(19.69 inch)

Minimum 500mm

(19.69 inch)

Minimum 500mm

(19.69 inch) Minimum 300mm

(11.81 inch)

Minimum 100mm

(3.94 inch)

Minimum 500mm

(19.69 inch)

Minimum 500mm

(19.69 inch)

Digital Projection

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

viii

Verify the Installation Location

To supply power, a 3-blade (with Earth) socket should be used to ensure proper grounding and an

equalized ground potential for all of the equipment in the Projector System.

The 3-blade power cord provided with the Projector should be used.

Other qualified 3-blade (with Earth lead) power cords can be used as a substitution for the supplied

power cord; however do not use a 2-blade power cord.

Verify if the voltage is stable, grounded properly and there is no electrical leakage.

Measure the total power consumption which should not higher than the safety capacity of the

system and avoid safety issues and short circuits.

Turn on “Altitude Mode” when the projector is located in high altitude areas.

When installed using a projector mounting bracket, make sure that the manufacturers certified

weight limit of the mounting bracket is not exceed and that the mounting bracket is firmly secured.

Avoid installing near an air conditioner duct or a subwoofer where airflow can be affected.

Avoid installing in high temperature, insufficient cooling and dusty locations.

Keep your product away from fluorescent lamps (>1 Metre) to avoid any malfunctions

caused by Infrared (IR) interference

The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted

tightly, with the screws on both sides securely fastened to ensure a proper connection of the signal

wire for achieving an optimal display.

The AUDIO IN connector should be connected to the AUDIO IN port only and CANNOT be

connected to the AUDIO OUT or other ports (BNC, RCA); otherwise, it will lead to a muted output

and can even DAMAGE the port.

The power cord and signal cables should be connected before powering on the projector.

During the projector starting and operating process, DO NOT insert or remove signal cables or the

power cord to avoid damaging the projector.

Cooling notes

Air outlet

Make sure the air exhaust outlet is 50 cm clear of any obstruction to ensure sufficent cooling.

The projectors air exhaust outlet locations should not be located in front of the lens of another

projector to avoid causing image distortions on the other projectors image.

Keep the air exhaust outlet at least 1 Metre away from the air inlets of other projectors

The projector generates heat during use. The internal fans continue to dissipate this heat during

the shutting down process, this process will continue for a period of time to ensure the projector

has cooled sufficiently. After the projector enters STANDBY mode you can then remove the power

cord from the projector.

DO NOT remove the power cord during the shutdown process, as it may cause damage to the

projector and the delayed heat radiating within the unit will also affect the service life of the

projector. The shutdown process may vary depending on the projector model used. Whatever the

case may be, be sure to not disconnect the power cord till until after the projector enters the

STANDBY mode.

Air inlet

Make sure there is no object blocking an air input within 30 cm.

Keep the air inlet away from other heat sources.

Avoid dusty environments.

Digital Projection Preface

E-VISION LASER 5000 SERIES USER MANUAL REV AJANUARY 2018

Power Safety

Only use a 3-blade power cord.

Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

Remove the batteries from the remote control when storing or not in use for a prolonged period.

Cleaning the Projector

Unplug the power cord before cleaning. See section Cleaning the Projector.

Allow the light source to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in section Regulatory Compliance.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for

disposal of electrical and electronic equipment. EU countries require the use

of separate recycling collection services.

Special Care for use with other Laser Beam equipment !

Special care should be considered when DLP projectors and high power laser equipment are used in the

same area, as the direct or indirect hit of a laser beam onto the projector lens can severely damage the

digital micromirror device (DMD™) within the projector.

Sun light Warning

Avoid using in direct sun light.

Sun light on the projector lens can severely damage the digital micromirror device (DMD™).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Digital Projection

Digital Projection

Digital Projection M-Vision LED 1000 1080p Manual de usuario

Digital Projection

Digital Projection THUNDER 10000sx Manual de usuario

Digital Projection

Digital Projection TITAN sx+ Pro Series 3 Manual de usuario

Digital Projection

Digital Projection Titan 930 Manual de usuario

Digital Projection

Digital Projection E-Vision Laser 8500 Series Manual de funcionamiento

Digital Projection

Digital Projection M-Vision Cine 230 Manual de usuario

Digital Projection

Digital Projection TITAN LASER WUXGA Hoja de datos

Digital Projection

Digital Projection HIGHlite 12000Dsx+ Manual de usuario

Digital Projection

Digital Projection LIGHTNING 30isx+ Manual de funcionamiento

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manual de usuario

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manual de usuario

Digital Projection

Digital Projection M-Vision Cine 320 3D series Manual de usuario

Digital Projection

Digital Projection HIGHlite 740 Series Manual de usuario

Digital Projection

Digital Projection THUNDER 10000Dsx Manual de usuario

Digital Projection

Digital Projection LIGHTNING 30sx+c Manual de usuario

Digital Projection

Digital Projection Insight Laser 4K Manual de usuario

Digital Projection

Digital Projection SHOWlite 6000gv Manual de usuario

Digital Projection

Digital Projection M-Vision 1080p-260 series Manual de usuario

Digital Projection

Digital Projection dVision Scope 1080p Manual de usuario

Digital Projection

Digital Projection TITAN Quad 1080p-3D Manual de usuario

Digital Projection

Digital Projection Vision 30 Series Manual de usuario

Digital Projection

Digital Projection dVision 30sx+ Manual de usuario

Digital Projection

Digital Projection TITAN sx+ Dual 3D Ultra Contrast Manual de usuario

Digital Projection

Digital Projection E-Vision Laser 15000 Series Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
