Digital In-Vehicle Event Recorder Video System

Installation Guide

DVM-100 and DVM-400

860-00187-00.docx

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Table of Contents

SECTION - 1: BEFORE YOU BEGIN ..............................................................................................1-1

TOOLS NEEDED....................................................................................................................................1-1

CAUTIONS AND NOTES ........................................................................................................................1-1

SECTION - 2: PARTS, CABLES AND ACCESSORIES..................................................................2-1

DVM-100 ............................................................................................................................................2-1

Parts and Accessories List.............................................................................................................2-1

Cables and Optional Accessories..................................................................................................2-2

DVM-100 Wiring Diagram...........................................................................................................2-3

DVM-400 ............................................................................................................................................2-4

Parts andAccessories List.............................................................................................................2-4

Cables and Optional Accessories..................................................................................................2-5

DVM-400 Wiring Diagram...........................................................................................................2-6

SECTION - 3: INSTALLATION INSTRUCTIONS.........................................................................3-1

STEP 1: FACTORY MIRROR REMOVAL ...........................................................................................3-1

STEP 2: DVM INSTALLATION.........................................................................................................3-2

STEP 3: MIRROR CONNECTIONS ....................................................................................................3-3

STEP 4: CAMERA INSTALLATION (DVM-400 ONLY)......................................................................3-5

STEP 5: POWER,IGNITION,AND GROUND CONNECTION ...............................................................3-6

STEP 6: DWM-800 INSTALLATION AND TRIGGER CONNECTION...................................................3-6

STEP 7: WI-FI ANTENNA (OPTIONAL)............................................................................................3-7

SECTION - 4: TESTING THE INSTALLATION ............................................................................4-1

SECTION - 5: SUPPORT....................................................................................................................5-1

SOFTWARE UPDATES............................................................................................................................5-1

PERFORMING A RESET .........................................................................................................................5-1

TROUBLESHOOTING.............................................................................................................................5-1

SECTION - 6: CONTACT INFORMATION ....................................................................................6-1

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Section - 1: Before you Begin

This document covers the installation of the DVM-100 and DVM-400 systems only.

Tools Needed

•#2 Phillips head screwdriver

•#20 Torx screwdriver or bit •1/8" (4 mm) flat-blade screwdriver

•Digital Volt Meter

Cautions and Notes

Please read and follow the instructions and precautions in this installation guide when installing

DVM-100 and DVM-400 products.

•For assistance, a qualified installation technician or mechanic should be consulted.

•Do not use excessive force when removing the mirror from the windshield. The mirror

mounting plate may become separated from the windshield and/or the windshield may

break if excessive force is used. If you are unfamiliar with rearview mirror removal seek

professional assistance.

•Do not route wiring and cabling over sharp metal edges where they may become damaged

or cut.

•To prevent electrical shorts or breakage in the wiring and cabling, do not allow wiring and

cabling to be pinched behind trim pieces, panels, or other physical objects.

•Do not run wires or cables in areas where they may become damaged by heat from the

engine or the exhaust system.

•Do not install any DVM components or wiring in the deployment path of the air bag(s).

•When installing the cables or making wire connections, it is recommended you leave a little

‘slack’ in the cable connections to allow for service loops and for movement of the mirror so

the connections do not get pulled or accidentally disconnected.

•Where possible, avoid running cables parallel to other wiring and/or antenna coax that may

be installed in the vehicle.

•Where possible, do not leave excessive cable above the headliner.

•We recommend at least 2 feet of distance between our cabling and that of other systems

which may carry a signal for transmit and/or receive.

Additional precautions within this document are denoted with and

notes are designated with

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Section - 2: Parts, Cables and Accessories

DVM-100

Parts and Accessories List

The diagram and table below outline the parts that are included with the DVM-100 Package.

Cables and optional accessories are not included in the base DVM-100

package and are ordered separately. Refer to page

2-2 for a list of these

items.

Part Number


Description

Quantity

006-08163-00

DVM-100

Base mirror with mount & 8GB

SD card

002-05095-00

DWM-800 Wireless Microphone System 1

008-01372-01

Cable Assembly, BTR800 to DVM-100 1

008-01373-01

Power Cable Assembly 1

002-00028-00

Card Reader 1

008-01271-00 USB Cable 1

259-00176-00 Security Key Kit 1

363-00046-00 8 GB Memory Card 1

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Cables and Optional Accessories

The table below outlines cables and optional accessories for the DVM-100 package.

Part Number


Description

001-00010-00

Wi-Fi Assembly

002-05030-00

Drop Mount

002-05102-00

Big Ball Mirror Mount

004-09058-00

Covert Rear Seat Microphone

002-05112-00

Windshield Mount Adapter Kit ( 2011-

2012 Dodge Charger only)

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

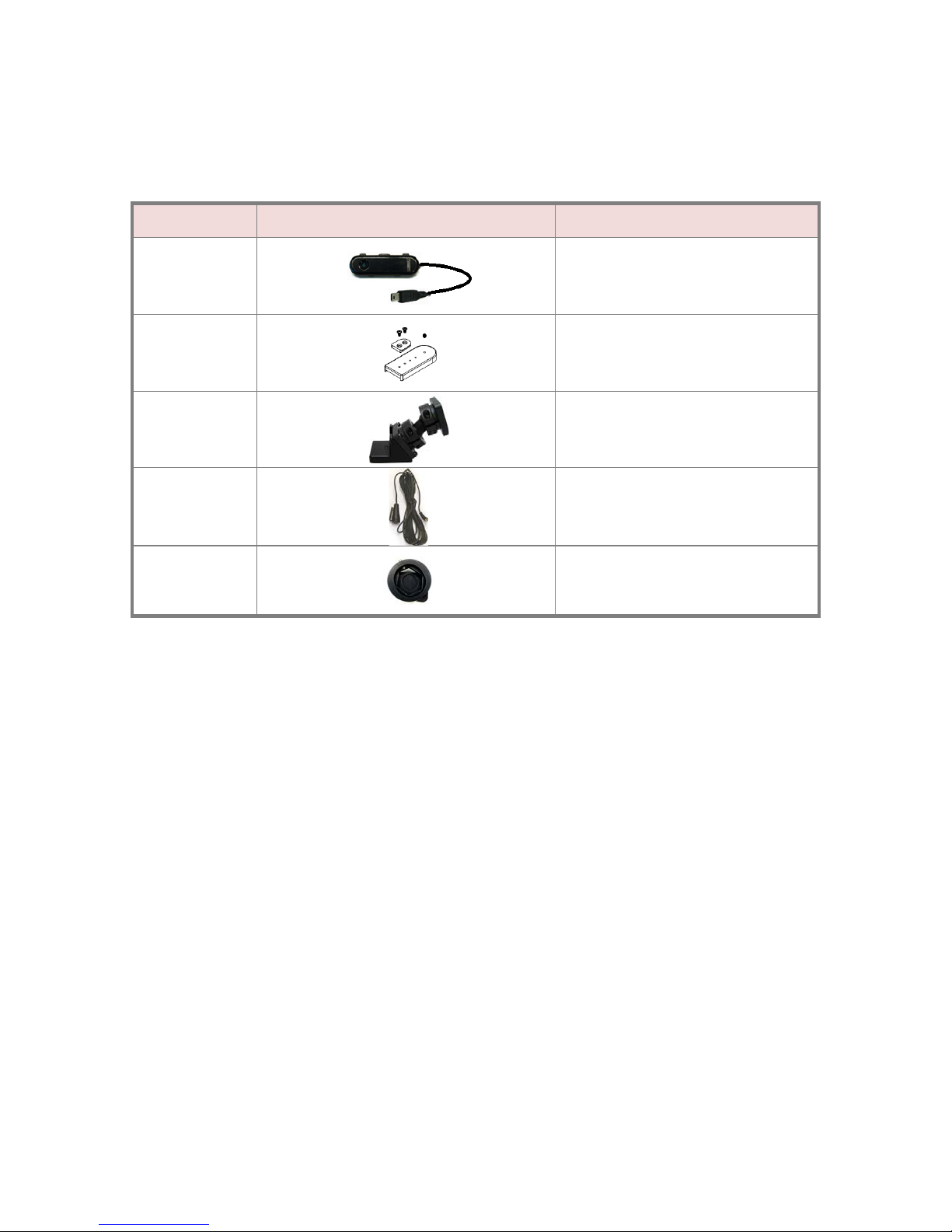

DVM-100 Wiring Diagram

Optional Wi-fi Antenna

Wireless microphone and charger

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

DVM-400

Parts and Accessories List

The diagram and table below outline the parts that are included with the DVM-400 Package.

Cables and optional accessories are not included in the base DVM-400 package;

these items are ordered separately.

Refer to page 2-5 for a list of these items.

Part Number


Description

Quantity

006-08177-00

DVM-

400 Base mirror with mount & 8GB

SD card

CAM-10XC

Main Camera 10X Zoom 1

566-00039-00

External or Backseat Camera with

mounting hardware 1

002-05095-00

DWM-800 Wireless Microphone System 1

006-0030 Visor Mount for Main Camera 1

008-01372-01

Cable Assembly, BTR800 to DVM400 1

008-01393-00

Camera Cable, DVM400 to CAM1 and

CAM2 1

008-01373-01

Power Cable Assembly 1

002-00028-00 Card Reader and USB cable 1

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Cables and Optional Accessories

The table below outlines cables and optional accessories for the DVM-400 package

Part Number


Description

001-00010-00 Wi-Fi Assembly

002-05030-00

Drop Mount

002-05102-00

Big Ball Mirror Mount

004-09058-00

Covert Rear Seat Microphone

002-05112-00

Windshield Mount Adapter Kit ( 2011-

2012 Dodge Charger only)

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

DVM-400 Wiring Diagram

Optional Wi-fi Antenna

Fuse

Wireless microphone and charger

Front Camera

Rear Camera

DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A

Section - 3: Installation Instructions

The current factory rearview mirror must be removed from the windshield mounting plate. There

are several versions of mirror mounting systems. Below are the most common methods of

rearview mirror removal. If you are unfamiliar with rearview mirror removal, seek professional

assistance.

Be very careful and do not use excessive force when removing the mirror

from the windshield. The mirror mounting plate may bec

ome separated from

the windshield and/or the windshield may break if excessive force is used.

Use one of the following methods below that matches the mirror mounting configuration of your

vehicle:

Screw Mount Rearview Mirror Removal

1. Using a Philips screwdriver or #20 Torx bit, loosen the screw in the base of the mirror.

2. After loosening the screw, gently lift upward to slide mirror off of mirror mount.

Wedge (screw-less) Mount Rearview Mirror Removal

1. Using a small 1/8" (4 mm) flat-blade screwdriver, insert the flat end into the opening at

the bottom of the mirror mount next to the windshield.

2. Slide the screwdriver into the center of the mirror mount until resistance is felt.

3. Gently apply a small amount of additional upward force to lift away the locking spring

inside the mount.

4. While still applying upward pressure with the screwdriver, grasp the mirror bracket and

wiggle side to side. Lift the mirror up toward the headliner and off the windshield mount

button.

Cam Lock Rearview Mirror Removal

1. With your right hand, grip the mirror and keep it stabilized.

2. With your left hand, grip the base of the factory mount where it meets the glass.

3. Apply a small amount of inward pressure toward the glass and rotate the base

clockwise.

4. The spring loaded factory mount should release from the windshield puck. See picture

below.

Factory Mirror RemovalStep 1:
