Digisol DG-WM2003SIE Manual de usuario

DG-WM2003SIE

User Manual

V1.0

2017-11-08

As our products undergo continuous development the specifications are subject to change without prior notice.

DG-WM2003SIE User Manual

Company has an ongoing policy of upgrading its products and it may be possible that information

in this document is not up-to-date.

Please check with your local distributors for latest information. No part of this document can be

copied or reproduced in any form without written consent from the company.

Trademark

DIGISOL TM is a trademark of Digisol Systems Ltd. All other trademarks are the property of the

respective manufacturers.

DG-WM2003SIE User Manual

INDEX

1. Hardware and Operation Mode Instruction……………........…………………….......………………………………4

1.1. LED indicator:………………………………………….......………………………………………………………..…….4

1.2. AP Router Interface:…………………………………………….......………………………………………………..…4

1.3. Power Supply:…………………………………………………………….......……………………………………………4

1.3.1. PoE Adapter Power Supply:…………………………………….......…………………...………………...4

1.3.2. PoE Switch Power Supply…………………………...................................………........………....5

1.4. AP Router installation:…..............................................................................................….....5

2. Connect Wireless AP Router with PC:……………………………………………..…..………………………………………7

3. Login………………………………………………………………………........………………………………………………………….8

4. WEB GUI interface Setting:……………………..........…………………………………………………………………………10

4.1. Status……………………………………………….….....………………………………………………………………..…10

4.2. Wizard Configuration:…………………………….…………………….......…………….………………………….12

4.2.1. Gateway Mode:…………………………….…………………………….....………………………………...13

4.2.2. WiFi Repeater mode……………………….…………………………………….....……………………….16

4.2.3. WISP Operation mode:…………………….……………………………….....…….……………………..18

4.2.4. AP Operation mode:……………………………………………………………....…………………………20

4.3. Advanced Setting:…………………………………………………….…………...…………………………………….22

4.3.1. Device Status:……………………………………………………………………...…………………………...22

4.3.2. Wireless Setting…………………………………………………………....……….....……………………..23

4.3.3. Virtual AP……………………………………………………………………………......……………………….24

4.3.4. Access Control……………………………………………………………..……....……….………………...25

4.3.5. Advanced Settings……………………………………………………………………………………………..26

4.3.6. Network setting…………………………………………………………………………………………………26

4.3.7. Management…………………………………………………………………………….……………………...27

5. Share Internet and Obtain IP address automatically…………………………….….……..………………………..29

Trouble Shooting………………………………………………………………………………….……………………………………...30

DG-WM2003SIE User Manual

1. Hardware and Operation Mode Instruction

Package Contents

Before using this access point, please check if there is anything missing in the package, and

contact your dealer of purchase to claim for missing items:

DG-WM2003SIE Ceiling Mount AP Router

DC 12V Power Adapter

Patch Cord

User Manual CD

Mounting Screws

1.1. LED Indicator

Green:- Power Indicator

Blue:- WiFi Indicator

1.2. AP Interface

RST

Reset Button, it make AP Router revert to default settings after pressing it for 15

seconds.

WAN

WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under

Wireless AP Router and WiFi Repeater operation mode

LAN

LAN Port to end users

LED

LED Indicator for WAN port and LAN port

DC power connector

DG-WM2003SIE User Manual

1.3. Power Supply

1.3.1 PoE Adapter Power Supply:

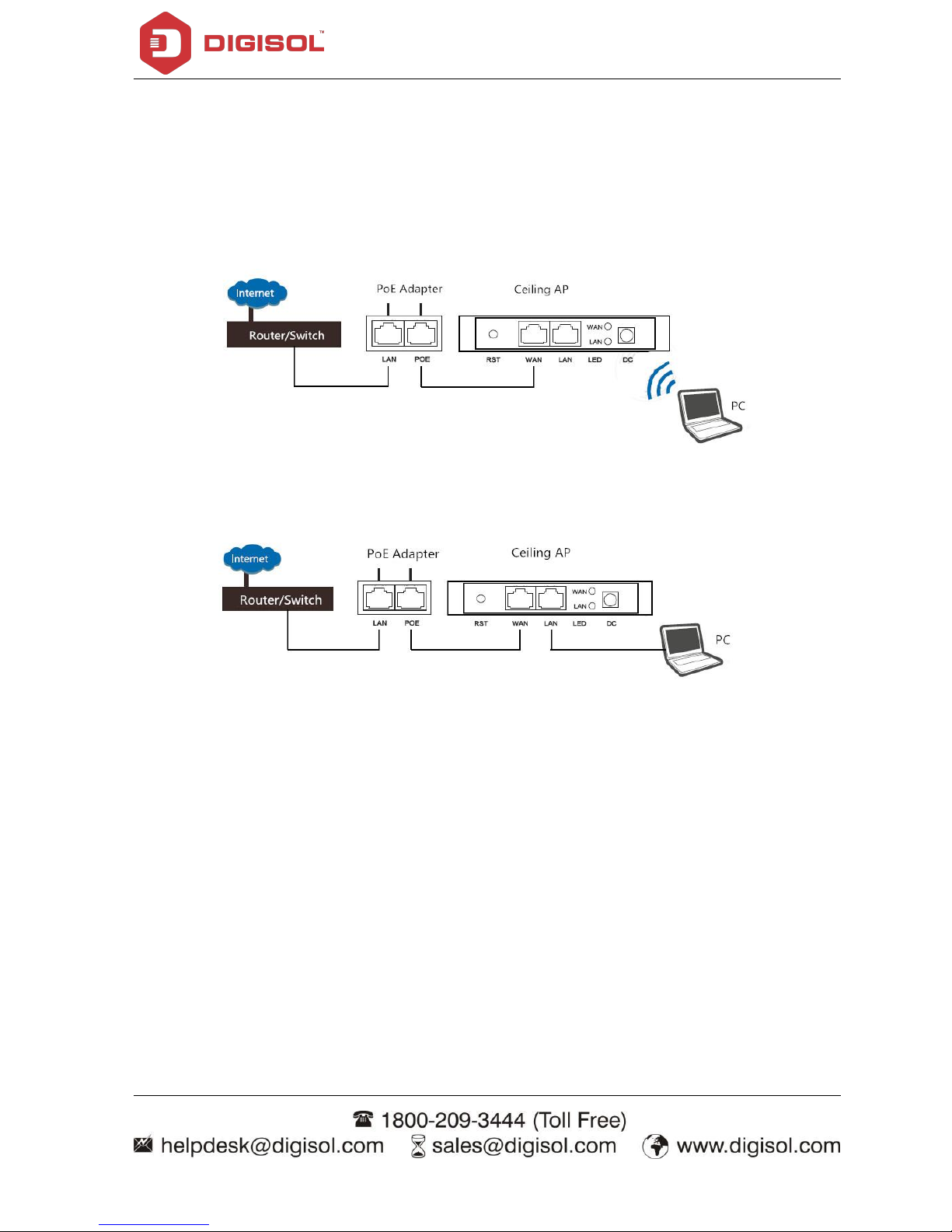

The connection diagram shown as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP

Router’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP Router

through cable or wireless.

The wireless AP Router support 48V IEEE802.3af PoE, so PoE adapter should be 48V IEEE802.3af

PoE standard.

1.3.2. PoE Switch Power Supply

The connection diagram shown as P2, Internet cable from PoE Switch to Ceiling AP Router’s WAN

Port, then PC access into ceiling AP Router via wired/wireless.

Pls note the wireless AP Router support 48V IEEE802.3af PoE, the PoE switch should comply with

48V IEEE802.3af PoE standard.

1.4. AP Router Installation

For the Ceiling Wireless AP Router, will be installed under ceiling based on following steps:

DG-WM2003SIE User Manual

2. Connect Wireless AP Router with PC

You can connect the PC with wireless AP Router by Wireless SSID and LAN cable:

The diagram of wireless connection showed as follow:

Pls note: the default SSID is DG-WM2003SIE, SSID’s password is blank

P3. Connect the PC to AP Router using WiFi as shown above

P4. Connect the PC to AP Router using LAN cable as shown above

DG-WM2003SIE User Manual

3. Login

1. Connect the Ceiling AP Router with computer by wired or wireless

2. The default IP address of this wireless AP Router is 192.168.1.200. Configure the PC’s local

connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is 255.255.255.0.

DG-WM2003SIE User Manual

3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin.

P7: Login Page

4. After login the following page appear which shows Device Status. This page will show the device

default operation mode, Channel, Connection status, CPU usage, Wireless settings, LAN Setting,

Wireless AP’s Location, Hardware/Firmware version.

P8: Device Status

DG-WM2003SIE User Manual

4. WEB GUI interface Setting

4.1. Status

After login, the Device Status and home page will be showed

P9: Device Status

This page, show the device default operation mode, channel, end user QTY, connection status, CPU

usage status, Wireless, LAN and AP location info.

Then in Wireless Setting, GUI configuration page shown as below:

User can configure the SSID, Password, Band width, Channel then Apply to finish.
