Digilent Pmod Con1 Module Board Manual de usuario

D

Di

ig

gi

il

le

en

nt

t

P

Pm

mo

od

d

C

Co

on

n1

1

M

Mo

od

du

ul

le

e

B

Bo

oa

ar

rd

d

R

Re

ef

fe

er

re

en

nc

ce

e

M

Ma

an

nu

ua

al

l

TM

www.digilentinc.com

Revision: 4/12/05

246 East Main | Pullman, WA 99163

(509) 334 6306 Voice and Fax

Copyright Digilent, Inc. 1 page Doc: 502-065

Overview

The Digilent Pmod Con1Module Board (the

Con1) is designed for use with a Digilent

system board and conveys I/O signals

between six screw terminals and a 6-pin

header connection. Two of the terminals can

be used to provide power from an outside

source, and the other four can be used for data

signals.

The Con1 can be easily attached to a Digilent

system board using a Digilent Modular

Interface Board (MIB) and a six-pin cable.

Signals from an outside device can be

attached to the Con1 using the screw

terminals.

Features include:

•a 6-pin header

•six screw terminals

•small form factor (1.10” x 0.80”).

Functional Description

The Con1 allows input and output to travel

between screw terminals and a 6-pin header.

Each pin has a corresponding screw terminal.

There is a terminal for ground, one for voltage,

and the remaining four can be used to connect

to outside devices.

The Con1 has a 6-pin header for easy

connection to a Digilent system board. Some

system boards, like the Digilent Pegasus

board, have a 6-pin header that can connect to

the Con1 with a 6-pin cable. To connect the

Con1 to other Digilent system boards, a

Digilent Modular Interface Board (MIB) and a

6-pin cable may be needed. The MIB plugs

into the system board, and the cable connects

the MIB to the Con1.

For more information see www.digilentinc.com.

GND

P1

P2

P3

P4

VCC

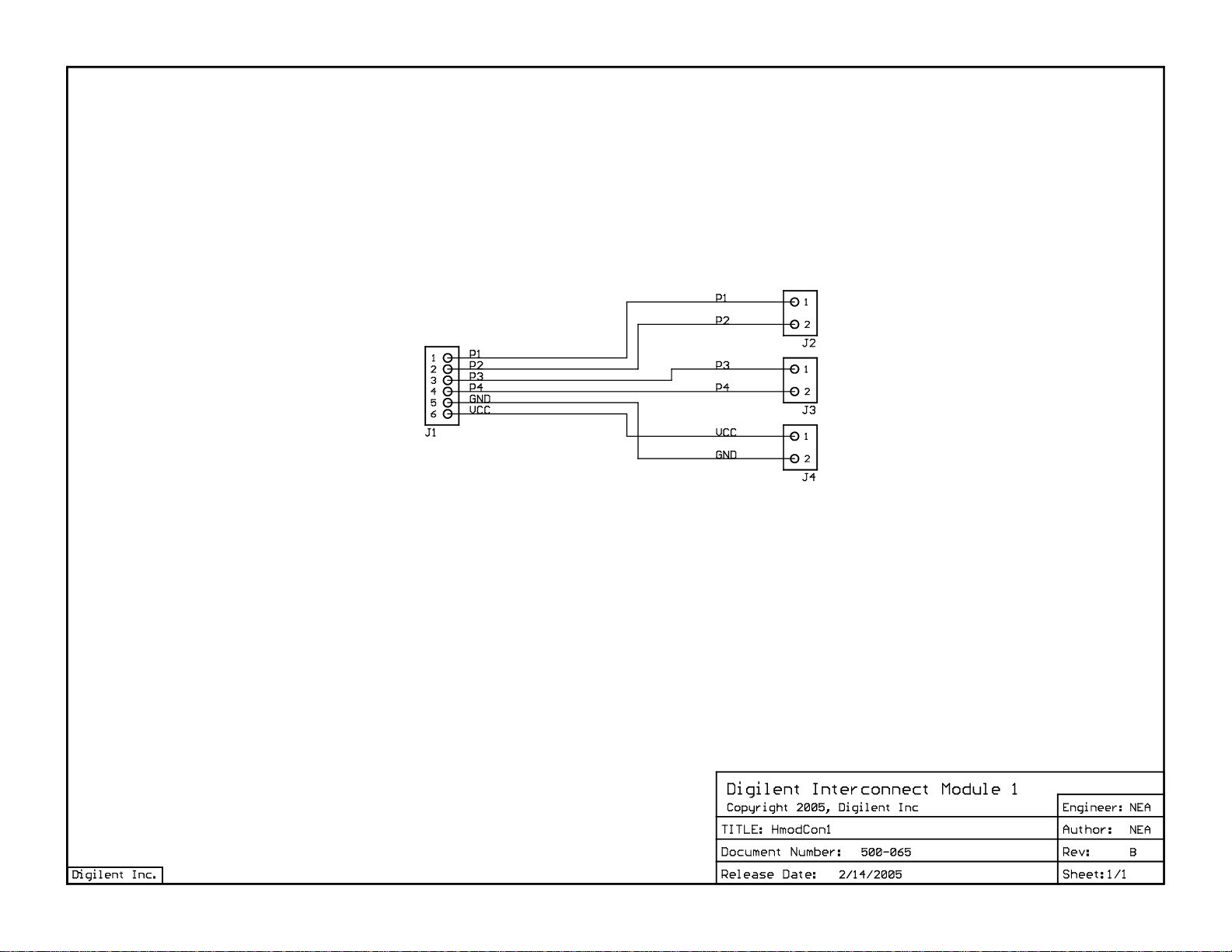

Con1 Circuit Diagram

J1 Connection

Terminal

Blocks
