Digilant SA02-04 Manual de usuario

Standalone Surveillance Camera

Installation Manual

WARNING

•This Camera is installed at owners own risk. The owner of this camera

should check all state and federal privacy laws, if existing, prior to using and

operating this device.

•This Camera and optional battery charger must only be operated with

genuine battery packs, sourced and supplied by Moreton Bay Systems The

substitution and consequent use of any other battery pack will not only void

the warranty but could cause serious injury if the battery pack ignites or

explodes.

•Moreton Bay Systems (MBS) shall not be held liable of any misuse or

unlawful operation of this product.

NOTICE

No part of this material may be reproduced or duplicated in any form or by any

means without the written permission of Moreton Bay Systems. Moreton Bay

Systems reserves the right to make changes to this material without notice.

Moreton Bay Systems does not assume any liability of any kind arising out of

inaccuracies contained in this material or due to its application.

The product is designed to detect moving objects and capture images. It can also be

connected to a third party alarm system. Being only a part of a security system,

Moreton Bay Systems is not responsible for any damages or other consequences

resulting from an intrusion.

All other product names mentioned herein are trademarks and/or registered

trademarks of their respective companies.

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 1

ABLE OF

ONTENTS

LISTOF FIGURES 2

INTRODUCTION 3

VERVIEW

PECIFICATIONS

URVEILLANCE

AMERA

PTIONAL

CCESSORIES

IRCUIT

OARD

AYOUT

INSTALLATION 7

ETTING

TARTED

HOOSING

AMERA

OCATION

XTERNAL

RIGGER

CAMERA OPERATION 14

APTURED

MAGES

VAILABLE

APTURING AN

NSTANT

MAGE

THER

LED

ATTERNS

HOOSING

MAGE

EQUENCE

EMORY

ARD

EMORY

ARD

APACITY

EMORY

ARD

ORMATTING

EMORY

ARD

ONTENTS

ATTERY

PERATION

ATTERY

OWERED

AMERA AND

EMOTE

ONTROL

ECHARGING

ATTERY

IFE

NSTALLING THE

ATTERY

OFTWARE

TROUBLE SHOOTING 26

APPENDIX A:SECURITY SYSTEM INSTALLATION 30

APPENDIX B: LED PATTERNS 33

DECLARATION OF CONFORMITY 35

DISPOSAL OF ELECTRONIC PRODUCTS IN EU 35

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 2

IST OF FIGURES

Figure 1 - Camera Components............................................................................................................... 5

Figure 2 - Optional Accessories .............................................................................................................. 5

Figure 3 - Circuit Board Layout .............................................................................................................. 6

Figure 4 - Formatting the memory card..................................................................................................18

Figure 5 - Rapid Battery Charger ...........................................................................................................22

Figure 6 - Battery Installation................................................................................................................24

Figure 7 – Camera Setup Software.........................................................................................................25

Figure 9 – Security System Wiring Examples.........................................................................................30

Figure 10 - Armed and External Trigger Wiring.....................................................................................32

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 3

NTRODUCTION

OVERVIEW

The Digilant Standalone Camera is a low power digital camera that captures images

when motion is detected within its field of view. The images are stored on a removable

memory card for easy viewing on a computer.

For fast and easy setup, the camera comes pre-configured with all the settings

required for standalone surveillance operation and only needs the date and time to

be set. This document outlines the steps involved with installing and using the camera

based on these settings.

Please read this entire manual before using the camera in order to get the most

out of its features and functions.

A complete set of Installation and ser Manuals can be found on the Camera Setup

CD in the ‘User Manuals’ folder. These documents are also copied into an ‘All

Programs/Digilant’ folder in the Start Menu during Camera Setup soft are installation

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 4

SPECIFICATIONS

Camera nit

Image Type Colour or B&W, JPEG compressed

VGA (640x480pixels), QVGA (320x240)

Camera Lens Standard: 3.7mm, 54˚ horizontal, 39˚ vertical

Image Sensor Sensitivity Colour: 3.8 V/Lux-sec, B&W: 4.9 V/Lux-sec

Motion Sensor Type: PIR

Range: 0-5 m (16’) (Typical), 0-8 m (26’) (Maximum)

Field Of View: 100˚ horizontal, 82˚ vertical

Memory Card MMC™ Card (v4.2) or SD™ Card (v1.1), FAT16 file format

Storage Capacity 2GB Memory Card: VGA: 32,000 images, QVGA: 65,000

images

External Power Supply 9VDC to 13.8V DC, 250 mA (Plug tip polarity + or -)

InternalBattery Capacity High Capacity (HC) – Lithium Ion, 3.7V 3000mAh

Photo-relay Specifications 60VDC, 400mA

Power Consumption Standby: 1.9 mA

Running: 100 mA

Charging: 200 mA

Case Dimensions 116 x 67 x 55 mm (4.6” x 2.6” x 2.2”)

Weight 172g (6 oz), including battery

Operating Temperature -20˚C to +60˚C (-4˚ F to +140˚ F)

PC Software Requirements Windows 2000 (SP4),Windows XP (SP2),Windows Vista

Remote Control

Transmission type Infrared

Operating distance 0 – 5m (typical)

Battery 12V Alkaline, type 23A

Dimensions 57 x 37 x 16 mm

Weight 26 g (Including battery)

Operating Temperature 0˚C to 50˚C

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 5

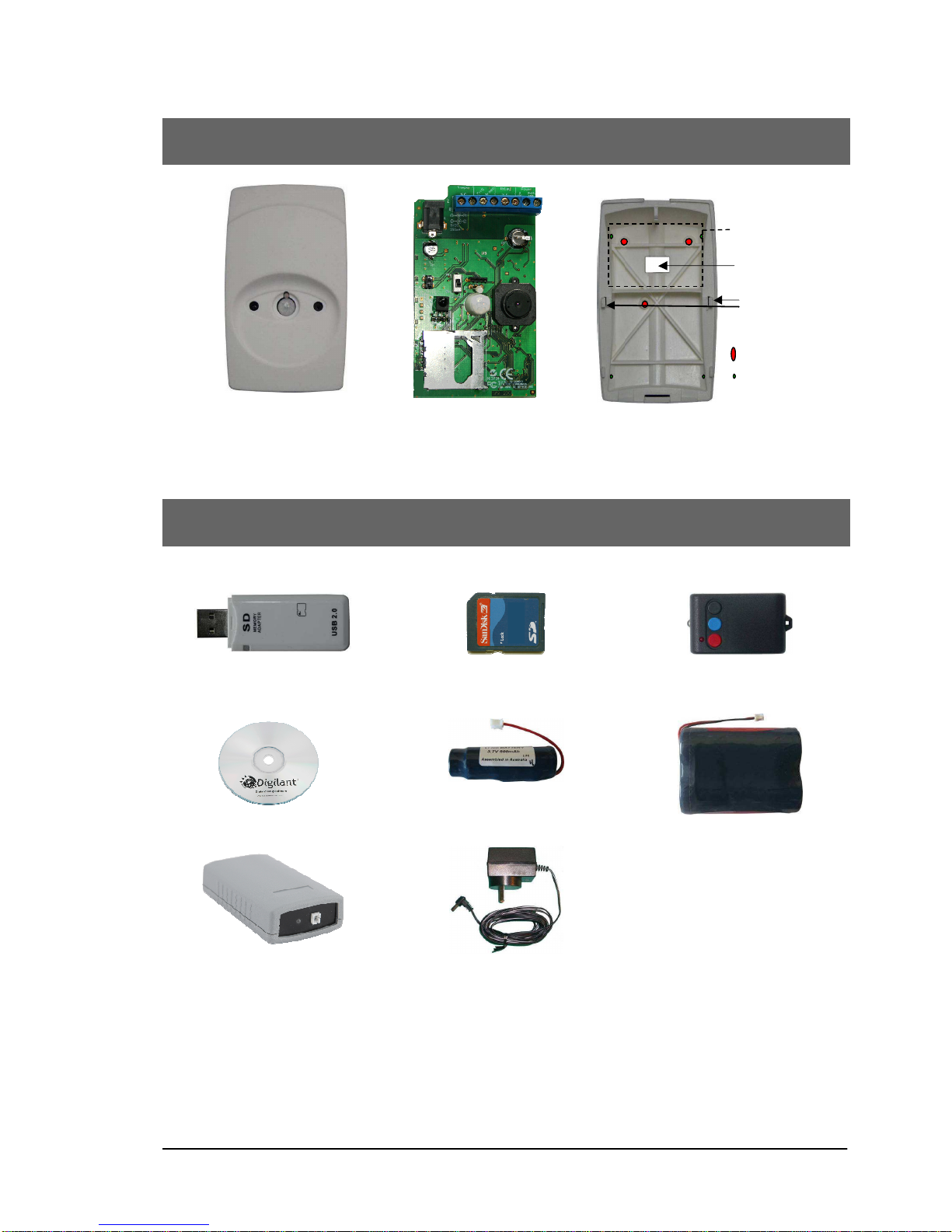

SURVEILLANCE CAMERA

Front Case Circuit Board Rear Case

IGURE

AMERA

OMPONENTS

OPTIONAL ACCESSORIES

USB Memory Card Reader

Memory Card

Remote Control

Software CD

Back up Battery

High Capacity Battery

Rapid Battery Charger

DC Power Pack

IGURE

PTIONAL

CCESSORIES

*Accessories may vary from those pictured here

4. Flush mounting

screw holes

2. Wiring inlet

3. Side clips

5. Bevelled edge

mounting screw

1. Battery

compartment

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 6

CIRCUIT BOARD LAYOUT

IGURE

IRCUIT

OARD

AYOUT

Legend

1. 9V DC Power Socket

2. Tamper/Auto-arm Switch

3. Power Switch: UP = ON, DOWN = OFF

4. Infrared Receiver

5. Motion Sensor

6. Memory Card Socket

7. Status LED

8. Image Sensor and Lens

9. Screw Terminal Block

10. Optional Siren/Strobe module

12V

Power

Relay

N.C.

Trig

Armed

Tamper

N.C.

DC Power Plug

Off

Power

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 7

INSTALLATION

GETTING STARTED

Step 1 – Recharge the battery

For more information on battery operation, refer to page 17.

Step 2 – Install Camera Setup Software

Insert CD Follow screen prompts to

install software

Insert memory card reader

Start program using the desktop

short cut

Wait up to ~34 hours**

Apply DC power via jack

or terminal strip

0V,12Vdc

9Vdc

Connect battery

Plug-in connector

** The camera itself only

trickle charges the battery

The optional rapid battery

charger however will reduce

the charging time to ~ 5

hours to enable 24/7

surveillance using battery

swapping.

SA02-04

NSTALLATION

ANUAL V

1.1.2

(

APRIL

2009) 8

Step 3 – Obtain current camera settings

After removing the card from the camera it ill contain a file ith settings in it. The

format of the contents of this file is critical to the camera operating correctly and should

only be changed using Camera Setup soft are.

If the settings file has been modified via a third party editor and the camera does not

function properly, delete settings.txt from the card and repeat step 5. A ne file

containing the current settings ill automatically be generated by the camera.

Step 4 – Set Camera Date and Time

Insert

Remove

Power

switch ON

(UP)

Wait up to 30s until 1

green blink per motion

trigger

Insert card in reader

Start Camera Setup software

and select ‘Configuration’

(Default) then click on

‘Continue’

Step 3 - Obtain current camera settings

Ensure memory card contains

current camera settings
