Digi XTend-PKG-R Manual de usuario

Quick Start Guide

Create a Long Range Wireless Link In Minutes.

XTend-PKG-R™

RS-232/422/485 RF Modem

To install the modem and test its range, you need:

• 2 XTend RF Modems. The two XTend RF Modems are referred to as "Radio1" and "Radio2".

• Accessories (Loopback adapter, RS-232 cable, 2 RPSMA antennas, 2 power supplies)

Host PC Radio1

(w/ loopback adapter)

Radio2

RS-232 cable

1. Set both Radio DIP Switches to RS-232, point-to-point modes. [Switches 1

and 5 are ON (up), and the remaining 4 switches are OFF (down)].

2. Connect the included RS-232 cable to the female DB-9 connector of

Radio1 and the male DB-9 connector of the PC.

3. Attach the serial loopback adapter to the female DB-9 connector of Radio2.

(The serial loopback adapter configures Radio2 to function as a repeater by

looping data back into the module for retransmission, as shown.)

4. Attach RPSMA antennas to each RF modem.

5. Power Radio1 & Radio2 through their respective power connectors.

RPSMA antennas

123456

WARNING: When operating with 1 Watt power output, transmitting in close

proximity of other RF modems can damage modem front-ends. Observe a

minimum separation distance of 2' (0.6 m) between RF modems.

Connect Hardware

Hardware Setup

Install Software

• PC Settings: Set up PC serial com ports to interface with the RF modem

• Range Test: Test RF modem's range under varying conditions

• Terminal: Read/Set RF modem parameters and monitor data communications

• Modem Configuration: Read/Set RF modem parameters

• 1 Windows PC loaded with X-CTU Software

Go to the X-CTU Software page at www.digi.com/xctu and launch the latest X-CTU installer.

Follow the prompts on the installation screens.

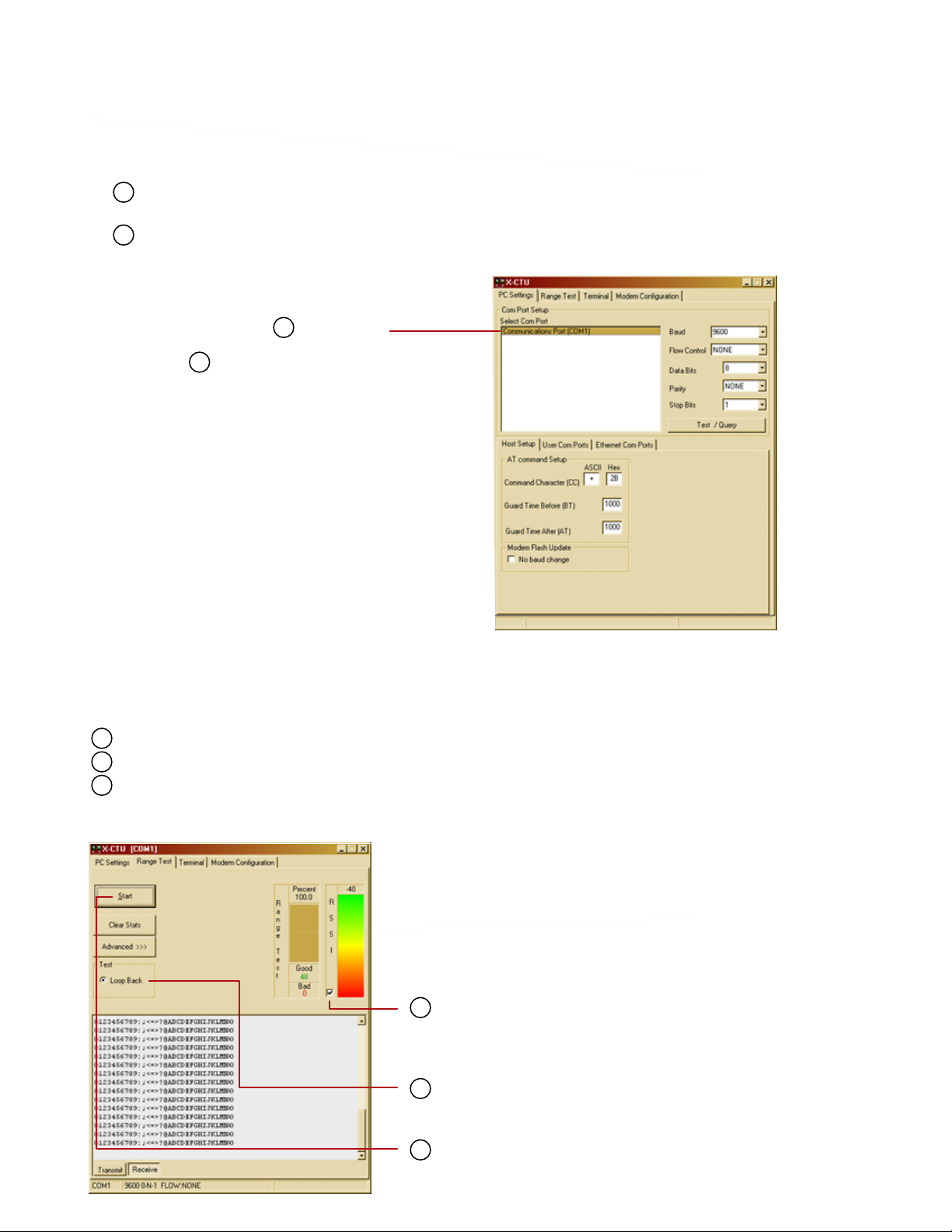

Congure Serial Port-Modem Communications

1. Launch the X-CTU Software:

Start > Programs > Digi > X-CTU

On the PC Settings tab, from the dropdown list, select the PC serial Com port

that will be used to connect to Radio 1.

Select the baud rate that matches the I/O interface rate (serial data rate)

of Radio1. Use default values for remaining fields.

PC Com Port

Default Values

Default RF data rate is 9600 baud

Other Default Values:

Flow Control = None

Data Bits = 8

Parity = None

Stop Bits = 1

Configure a serial port to communicate with the modem:

(Optional) Check the box in the RSSI section to enable display of signal strength.

The Loopback option is automatically selected.

Click the Start button to begin the range test.

Determine the RF Modem’s Range

Range Test tab

RSSI check box

RSSI stands for "Received Signal Strength Indicator".

Loopback option

Start/(Stop) button

(Packet Information)

Click the Range Test tab.

Move Radio2 (with loopback adapter) away from Radio1 to determine the

maximum range of the wireless link.

PC Settings tab

Additional Conguration Options

Out-of-box, the XTend-PKG-R RF Modem is configured to provide immediate wireless

links between devices. The modem's default configuration supports a wide range of

RF communications.

If the RF Modem must be configured to support specific needs of a data system,

several programming options are available.

Restoring Modem Defaults (DIP Switch Method)

Other Conguration Options

Using the DIP Switch to configure the modem is one of several ways to configure

modem parameters. Other options include using the X-CTU Software Terminal and

Modem Configuration tabs, and binary programming. See the XTend-PKG-R RF Modem

User’s Guidefor more information about these options.

Using the Digi RF Modem DIP Switch

The DIP switch allows users to configure the following RF modem settings.

Serial Interface

Switches 1 & 2

TX/RX Mode

Switches 5 & 6

1 2 3 4 5 6

RS-485/422

Termination

(Optional) Switches 3 & 4

=2-wire RS-485

Termination

=4-wire RS-485/422

Termination

None=

= Point-to-Point

= ON (up)

= OFF (down)

= Restore Defaults

=4-wire

RS-485/422

= RS-232

= 2-wire RS-485

= not used = User Defined

Multipoint-

Base

=Multipoint-

Remote

1. Set switches 1 & 2 of the DIP Switch to their ON (up) positions, and the remaining

four switches to their OFF (down) positions.

2. Turn off the power supplying the RF modem, then on again

If the XTend Modem is not responding or cannot enter into Command Mode, try

restoring the modem to its original default parameter values.

Digi, Digi International, the Digi logo, and XTend are trademarks or registered trademarks of Digi International, Inc.

in the United States and other countries worldwide.

DIP Switch Settings (applied only when powering on)

Phone: (801) 765-9885, Live Chat: www.digi.com, E-mail: [email protected]

Contact Digi (Office hours are 8am – 5pm U.S. mountain standard time)

90000812-88
