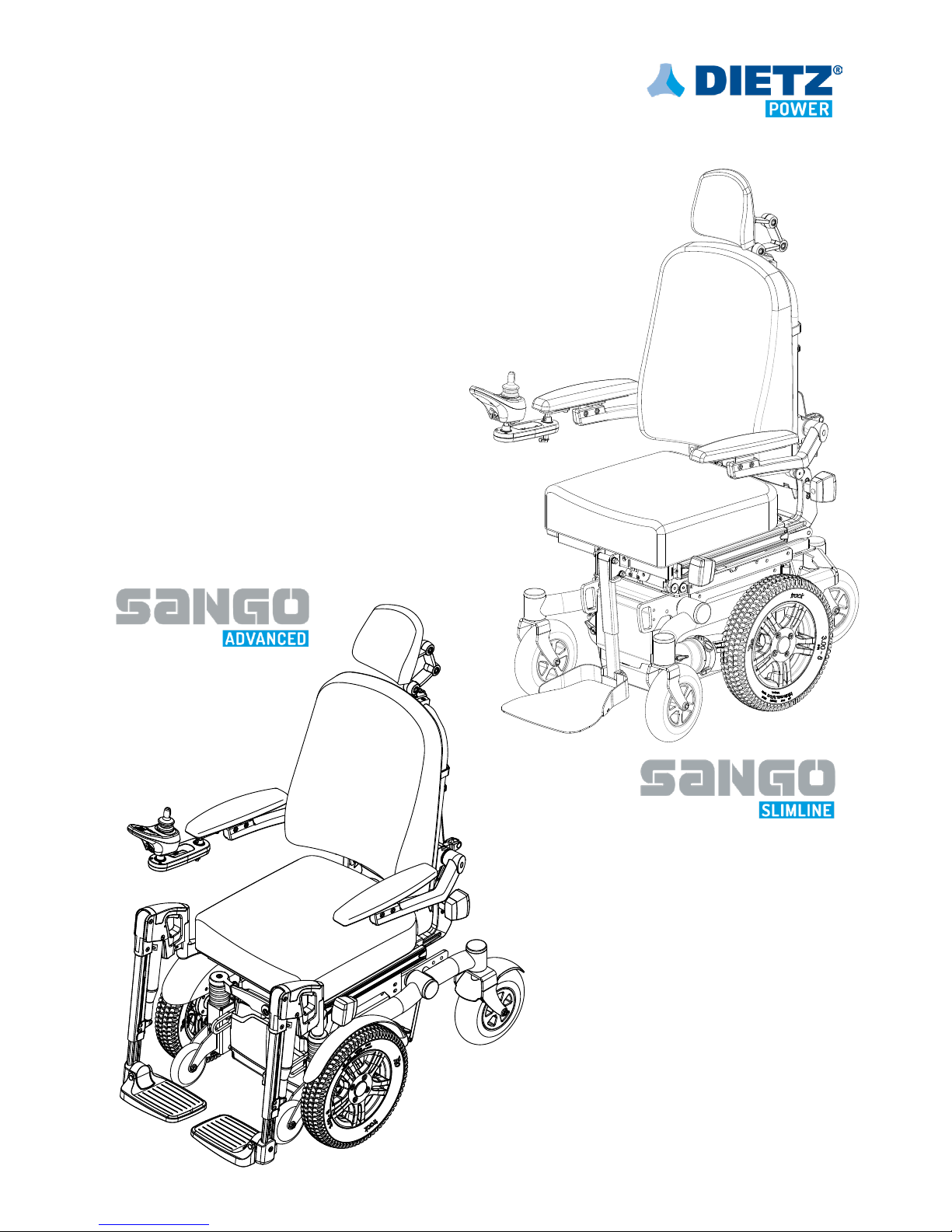

Dietz SANGO ADVANCED Series Manual de usuario
Sango Advanced R
Sango Advanced F
Sango Advanced M
Sango Slimline M
USER MANUAL
2 - SANGO ADVANCED / SLIMLINE
© 2017 DIETZ-Power BV
All rights reserved.
The information provided may in no way be reproduced and/or published in any
form or by any means (electronically or mechanically) without the express prior
written consent of DIETZ-Power BV.
The information provided is based on general data pertaining to constructions
known at the time of issue. DIETZ-Power BV pursues a policy of continuous
product development and therefore reserves the right to make changes.
The information provided applies to the standard version of the product.
DIETZ-Power BV can therefore not be held liable for any damage resulting from
specications deviating from the standard version of the product.
The information made available has been compiled with the greatest care.
However, DIETZ-Power BV cannot be held liable for any errors in the information
or for the consequences thereof. DIETZ-Power BV cannot be held liable for any
damage resulting from work carried out on the wheelchair by third parties.
Under legislation relating to the protection of trademarks, those commercial
names, trade names, trademarks, etc. used by DIETZ-Power BV may not be
regarded as being free of rights.
SANGO ADVANCED / SLIMLINE - 3
Table of contents
1 Preface ............................................................................................................ 5
1.1. About this manual 5
1.2. Symbols used in this manual 5
2 Safety............................................................................................................... 6
2.1. Temperature 6
2.2. Moving parts 6
2.3. Electromagnetic radiation 7
2.4. Markings on the wheelchair 8
3 General description ....................................................................................... 9
3.1. Congurations 9
3.2. The user 10
3.3. Operating environment 11
4 General procedures..................................................................................... 12
4.1. Seat cushion 12
4.2. Back cushion 12
4.3. Leg rests 13
4.4. Headrest 13
5
Wheelchair settings (qualied specialists only) .............................................14
5.1. Tools 14
5.2. Adjusting the centre of gravity (seat position) 14
5.3. Seat height and seat angle setting 15
5.4. Seat depth setting 15
5.5. Seat width setting 15
5.6. Backrest angle setting 15
5.7. Leg rest settings 16
5.8. Armrest settings 18
5.9. Controller settings 19
5.10. Headrest settings 20
5.11. The positioning belt (option) 20
6 Wheelchair adjustments ............................................................................. 21
6.1. Powered adjustments 21
6.2. Mechanical adjustments 22
7 Using the wheelchair .................................................................................. 23
7.1. Checking the wheelchair 23
7.2. Getting into and out of the wheelchair 23
7.3. Driving the wheelchair 24
Table of contents
4 - SANGO ADVANCED / SLIMLINE
7.4. Driving on slopes or ramps 25
7.5. Obstacles 26
7.6. Pushing the wheelchair 26
7.7. Storage of the wheelchair after use 27
8 Transport ...................................................................................................... 28
8.1. Transporting the wheelchair in motor vehicles 28
8.2. The wheelchair as a driver’s seat in a car with Dahl docking system
(option) 30
8.3. Special transport 31
9 Wheelchair maintenance ........................................................................... 32
9.1. Cleaning the wheelchair and its upholstery 33
9.2. Batteries 33
9.3. Tyres 34
9.4. Disposing of the wheelchair 35
10 Technical specications ........................................................................... 36
10.1. Standards and requirements 36
10.2. Specications operating force 36
10.3. Specications Sango Advanced Sego Comfort 37
10.4. Specications Sango Slimline Sego Comfort 38
10.5. Specications batteries 39
10.6. Electrical diagrams 39
11 Warranty conditions.................................................................................. 40
11.1. Warranty period 40
11.2. Warranty provisions 41
11.3. Warranty procedure 41
Table of contents
1 Preface
1.1. About this manual
The user manual for this powered wheelchair consists of three separate booklets:
• The general user manual (this booklet)
• The manual for the controller
• The manual for the battery charger
Read through these user manuals carefully before using the wheelchair for the
rst time. The information they contain is essential for the safe use and proper
maintenance (cleaning) of the wheelchair. If any of the manuals are missing on
delivery of your wheelchair, please contact your dealer immediately.
A service manual for qualied specialists is also available.
1.2. Symbols used in this manual
Warning
Follow the instructions given under warnings! Failure to exercise due care in
following these instructions may result in physical injury, damage to the wheelchair
or damage to the environment. Where possible, the warnings are given in the
section that is most relevant.
Section references
A reference to another chapter or section in this manual is given in parentheses
enclosing the phrase ‘see’. Example (see 2) or (see 2.4).
Cross-reference symbol
Where required, this general manual makes reference to the other manuals. This
is done in the following way:
CONTROLLER Please refer to the user manual for the controller.
CHARGER Please refer to the user manual for the battery charger.
SERVICE Please refer to the service manual of the product (qualied specialists
only).
If you have a visual impairment, you can nd a PDF version of
this user manual at www.DIETZ-Power.com.
You can also request a large-print paper version by contacting
DIETZ-Power. Contact information can be found on the back
cover of this user manual.
SANGO ADVANCED / SLIMLINE - 5
1 Preface
2 Safety
All of the very latest information relating to product safety and any product recalls
can be found on our website at www.DIETZ-Power.com.
Warning
Follow the instructions given under warnings! Failure to exercise due care in
following these instructions may result in physical injury, damage to the wheelchair
or damage to the environment.
2.1. Temperature
Warning
• Avoid any physical contact with the motors of the wheelchair at all times. When
the wheelchair is in use, the motors are in constant motion and can reach high
temperatures. Any physical contact with the motors could result in burns. After
use, the motors cool down slowly.
• Ensure that the wheelchair is not exposed to direct sunlight for long periods of
time when not in use. Some parts of the wheelchair (such as the seat, backrest
and armrests) can become hot if exposed to the sun for too long. This may
result in burns or skin sensitisation.
2.2. Moving parts
Warning
Wheelchairs contain moving and rotating parts (gure 1). Contact with moving
parts may result in serious physical injury or damage to the wheelchair. You should
avoid any contact with the moving parts of the wheelchair.
A. Wheels (turning and pivoting)
B. Swing-away controller arm
C. Powered backrest adjustment
D. Powered tilt adjustment
E. Powered leg rests
F. Powered lift adjustment
6 - SANGO ADVANCED / SLIMLINE
A
F
D
C
BE
1
2 Safety
2.3. Electromagnetic radiation
The standard version of your powered wheelchair has been tested for compliance
with the applicable requirements relating to electromagnetic radiation (EMC
requirements).
Warning
Despite testing, the following cannot be ruled out:
• electromagnetic radiation interfering with the wheelchair. For example mobile
telephones, large medical devices or other sources of electromagnetic radiation
• the powered wheelchair interfering with electromagnetic elds. For example
shop doors, burglar alarm systems in shops or garage door openers.
• in some congurations equipped with a R-net controller, where it is possible
that extreme electrical discharge situations due to static electricity, may cause
a fault message (‘ISM over-current’) ashing on the screen. If this occurs simply
turn o your wheelchair for a few seconds and back on to clear the fault.
In the unlikely event of such problems arising, please notify your dealer
immediately.
SANGO ADVANCED / SLIMLINE - 7
2 Safety
2.4. Markings on the wheelchair
Warning
• The markings, symbols and instructions on the wheelchair are part of the safety
features. They must not be covered up or removed. They must remain on the
wheelchair and be clearly legible for the whole lifespan of the wheelchair.
• Immediately replace or repair any markings, symbols or instructions that
become damaged or illegible. Contact your dealer in such cases.
Symbols used on the wheelchair
Consult the manual before
use.
Identication plate
A. Type
B. Year of manufacture
C. Usage indoor or outdoor
D. Manufacturer
E. Maximum load in kg
F. Identication number
Freewheel switch
• Drive position
• Push position
Warning
Never set the freewheel
switch to the 'Push'
position when the
wheelchair is on a slope.
Warning (yellow-black)
Pinch point hazard: Keep
hands and ngers away
from moving parts when
adjusting the height
and/or tilt angle of the
wheelchair.
Location identication plate:
on the batterybox at the right side
Securing point for
transportation inside a
vehicle.
CONTROLLER
Battery charging point.
8 - SANGO ADVANCED / SLIMLINE
MWD
FWD
RWD
2 Safety
3 General
description
Front-, mid- and rear-wheel drive
wheelchairs and their major components
(gures 2, 3 and 4)
A. Drive wheels
B. Castor wheels
C. Freewheel switch
D. Controller
E. Battery
F. Seat cushion
G. Backrest
H. Armrest
I. Leg rest
J. Headrest
3.1. Congurations
Broadly speaking, the wheelchair is made
up of an undercarriage with the SEGO
seating system on top of it for excellent
support for the head, torso, arms and
legs.
The wheelchair is available as a front-
wheel drive (FWD), rear-wheel drive (RWD)
or mid-wheel drive (MWD) in dierent
speeds (6 km/h, 10 km/h and 12,5 km/h).
Warning
• No changes may be made to the
technical specications.
• Do not make any adjustments to the
electrical circuit.
• Modication of the wheelchair or its
component parts is not permitted.
C
F
B
J
G
I
E
H
A
D
A
C
J
G
B
F
I
E
H
D
C
F
A
J
G
I
E
H
B
D
4
2
3
3 General description
SANGO ADVANCED / SLIMLINE - 9
3.2. The user
Driving a powered wheelchair requires the user to have cognitive, physical and
visual abilities. The user must be capable of estimating the consequences of any
action taken while driving the wheelchair and of correcting action where required.
The wheelchair must not carry more than one person. The maximum user
weight is 160 kg, unless otherwise stated on the identication plate (see 2.4). Any
additional weight in the form of a bag, accessories or medical equipment must
be added to the user's weight, with the resulting total weight not exceeding the
maximum user weight.
The user must also be aware of the contents of this manual before using the
wheelchair for the rst time. The wheelchair user must also have received
thorough instruction from the dealer before using public roads. A trainer/
consultant must supervise the user's rst experience of driving the wheelchair.
Warning
• The wheelchair user shall at all times be fully responsible for compliance with
locally applicable safety regulations and guidelines.
• You must not drive the wheelchair while under the inuence of any substances
that may aect your driving ability.
• Your eyesight must be good enough to allow you to use the wheelchair in any
particular situation safely.
• Do not seat more than one person in the wheelchair.
• Do not allow children to drive the wheelchair without supervision.
3 General description
10 - SANGO ADVANCED / SLIMLINE
Otros manuales para SANGO ADVANCED Series
1
Este manual sirve para los siguientes modelos
5
Tabla de contenidos
Otros manuales de Silla de ruedas de Dietz
Dietz
Dietz SANGO ADVANCED Series Manual de usuario
Dietz
Dietz Caneo 200 Manual de usuario
Dietz
Dietz 197022 Manual de usuario
Dietz
Dietz Individual tauron dts Manual de usuario
![Dietz AS[01] Manual de usuario](/data/manuals/1u/i/1ui1k/sources/dietz-as-01--manual.jpg "Dietz AS[01] Manual de usuario")
Dietz
Dietz AS[01] Manual de usuario
![Dietz AS[01] Manual de usuario](/data/manuals/20/j/20jko/sources/dietz-as-01--manual.jpg "Dietz AS[01] Manual de usuario")
Dietz
Dietz AS[01] Manual de usuario
Dietz
Dietz CANEO_XL Manual de usuario
Dietz
Dietz Tauron Manual de usuario
Dietz
Dietz tauron rsi XXL Manual de usuario
Dietz
Dietz Tauron DTRS Manual de usuario
