DN Series™ Check Deposit Module

Operator Manual

01750333061 A

Legal Disclaimer

This document contains proprietary information of Diebold Nixdorf, Incorporated or its subsidiaries (col-

lectively “Diebold Nixdorf”) and may include information that is protected by copyright, trademark and

patent laws in the US, Germany, and globally. All rights, including rights created by patent grants or reg-

istration of a utility model or design, are reserved.

•No part of this document may be translated, reproduced, stored in a retrieval system, or trans-

mitted, in any form or by any means: electronic, mechanical, photocopying, recording, or oth-

erwise, without prior written permission from Diebold Nixdorf. Any violations of the foregoing

may give rise to a claim for damages.

•If the document pages state the information is confidential (or words of similar import), then

this document is intended solely for the use of the employees or other personnel of Diebold

Nixdorf unless expressly authorized in writing by Diebold Nixdorf. Other uses of this informa-

tion without the express written consent of Diebold Nixdorf are prohibited.

•This document should be treated as confidential material for security reasons. Any unautho-

rized disclosure or use of confidential material may violate the U.S. Theft of Trade Secrets

provisions of Section 1832 of Title 18 of the United States Code as well as comparable laws in

other jurisdictions throughout the world, and may be punishable by fine and imprisonment.

This document and the information contained herein are provided AS IS AND WITHOUT WAR-

RANTY. In no event shall Diebold Nixdorf or its suppliers be liable for any special, indirect, or

consequential damages of any nature resulting from the use of information in this manual. The in-

formation contained in this document is subject to change without notice. When using the document for

system implementation, please call your authorized Diebold Nixdorf sales or service representative for

any applicable changes.

Any trademarks, service marks, product names or company names not owned by Diebold Nixdorf, that

appear in this document are used for informational purposes only, and Diebold Nixdorf claims no rights

thereto, nor does such use indicate any affiliation with or any endorsement of Diebold Nixdorf or Diebold

Nixdorf products by the owners thereof.

Your use of this document and/or any of the information contained herein constitutes your agreement to

all of the terms stated on this page.

01750333061 A

Table of Contents

1 Introduction ................................................................................................................................ 1-1

1.1 Introduction ........................................................................................................................1-1

1.2 Information in this Manual ..................................................................................................1-2

1.3 Safety Precautions .............................................................................................................1-2

1.4 Signs, Labels and Symbols................................................................................................1-4

2 General safety instructions for the component ...................................................................... 2-1

3 Maintenance ............................................................................................................................... 3-1

3.1 Prerequisite Information .....................................................................................................3-1

3.2 Maintenance Procedures ...................................................................................................3-1

3.2.1 Checking the Print Quality .................................................................................. 3-2

3.2.2 Clearing a Jam.................................................................................................... 3-4

3.2.3 Inkjet Printer Cartridge ........................................................................................ 3-13

3.3 Beep Codes for Error Conditions .......................................................................................3-15

4 Supplies ...................................................................................................................................... 4-1

List of Figures

Figure 1-1 DN ™Series Check Deposit Module (Bin Side) ....................................................... 1-1

Figure 1-2 DN Series™ Check Deposit Module (PBCA Side)................................................... 1-2

Figure 3-1 Storage Bin............................................................................................................... 3-3

Figure 3-2 Green Tab for the Exception Bin.............................................................................. 3-5

Figure 3-3 Input/Output Assembly............................................................................................. 3-6

Figure 3-4 Open the Escrow Turn ............................................................................................. 3-7

Figure 3-5 Escrow Assembly ..................................................................................................... 3-9

Figure 3-6 Positions of the Escrow Assembly Kickstand........................................................... 3-10

Figure 3-7 Center and Deskew (CDS) Assembly Raised .......................................................... 3-11

Figure 3-8 Empty Escrow Roll Button........................................................................................ 3-12

Figure 3-9 Inkjet Printer Cartridge ............................................................................................. 3-13

List of Tables

Table 1-1 Warning signs used.................................................................................................. 1-4

Table 1-2 Used mandatory signs.............................................................................................. 1-4

Table 3-1 Dimensions of the Document ................................................................................... 3-1

Table 3-2 Bin Capacity ............................................................................................................. 3-1

Table 3-3 Recognized Fonts .................................................................................................... 3-1

Table 3-4 Beep Codes for Error Conditions ............................................................................. 3-15

01750333061 A

iii

1 Introduction

1.1

1.1 Introduction

The DN Series™ check deposit module (Figure1-1 and Figure1-2) accepts a stack of up to 30 docu-

ments and provides MICR data and image of each document to the banking network. Documents can be

inserted face up or face down, with the short edge first.

When the transaction has been completed, the module can print up to 80 characters on the document.

• If the document was inserted face up, the printing will be on the back of the document.

• If the document was inserted face down, the printing will be on the front of the document.

The documents are then deposited into the storage bin or the exception bin.

• The storage bin is designed to hold up to 600 documents.

• The exception bin holds up to 30 documents.

Figure1-1: DN ™Series Check Deposit Module (Bin Side)

01750333061 A

1-1

Introduction

Figure1-2: DN Series™ Check Deposit Module (PBCA Side)

1.2

1.2 Information in this Manual

This manual provides service and maintenance procedures for the check deposit module. Refer to the

operating guide for the system for information about other areas of the system.

1.3

1.3 Safety Precautions

Strictly observe the safety precautions when performing maintenance on the check deposit module. By

following these precautions, you can reduce the risk of equipment damage, severe personal injury, or

death.

01750333061 A

1-2

Introduction

WARNING

You must observe the following precautions when servicing the check deposit module to

avoid risk of death, severe personal injury, or equipment damage:

lDo not wear loose clothing or jewelry that can become caught in the equipment.

lUse caution to prevent long hair from getting caught in the equipment.

lNever insert scissors, screwdrivers, pens, or other instruments into the equipment un-

less you are instructed to do so in this document. Severe bodily injury, death from

electrical shock, or equipment damage can result.

The check deposit module might have any of the following warning or caution labels. Strictly observe the

following safety concerns to reduce the risk of severe personal injury, or death.

01750333061 A

1-3

Introduction

1.4

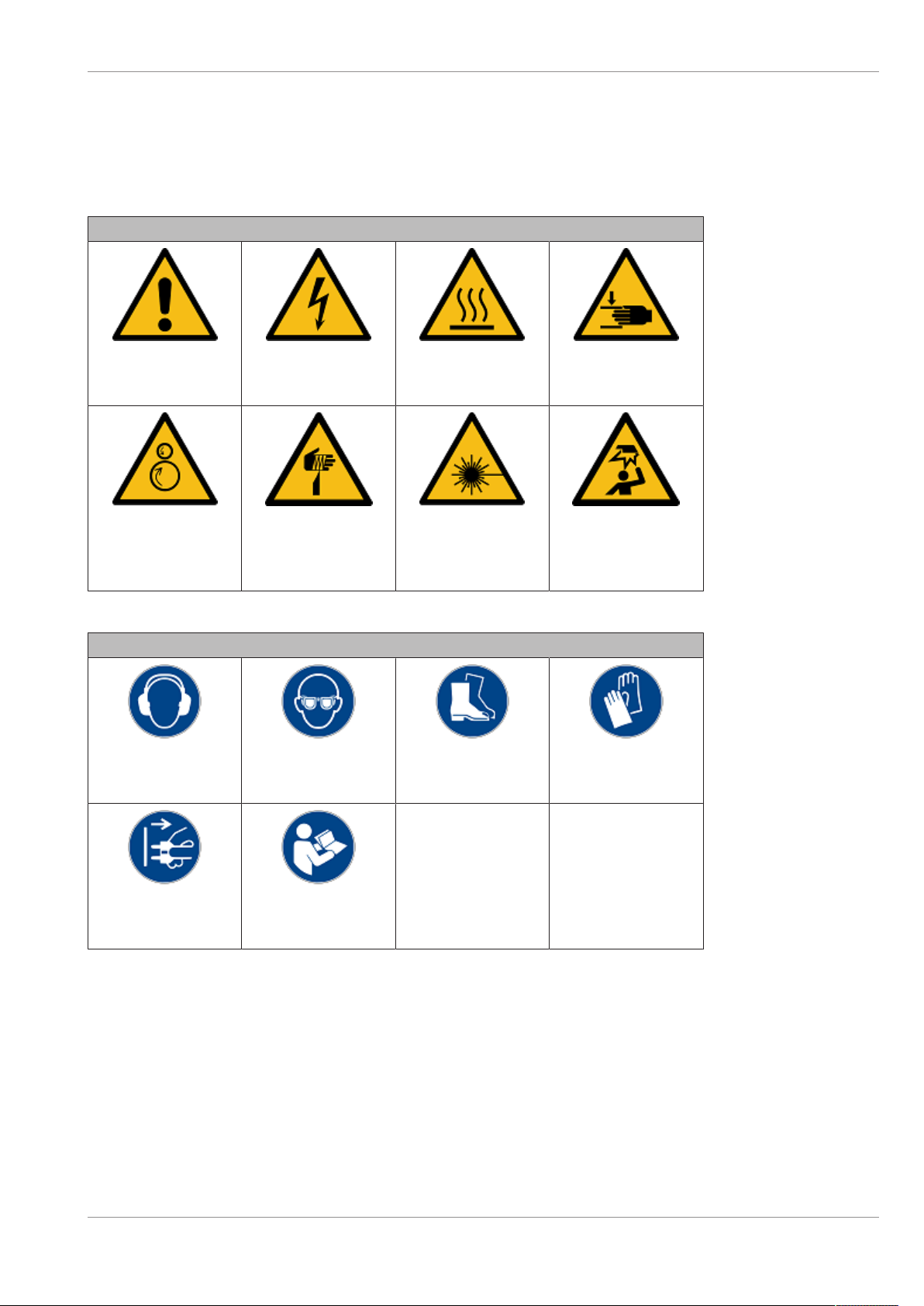

1.4 Signs, Labels and Symbols

The following labels can be used in these instructions, on the system or on the component.

Table1-1: Warning signs used

Warning signs

General

warning sign

Warning of

electric voltage

Warning of

hot surfaces

Warning of

hand injuries

Warning of

feed risk

Warning of

cut injuries

Warning of

laser beam

Warning of

obstacles in the

head area

Table1-2: Used mandatory signs

Mandatory signs

Use

hearing protection

Use

protection eyewear

Use

safety footwear

Use

protective gloves

Pull

mains plug

Read

manual

01750333061 A

1-4

2 General safety instructions for the component

NOTE

Read this entire manual carefully in order to obtain a thorough knowledge with respect to

the system and the components, in addition to their operation and maintenance.

Operate the system and the components correctly in accordance with this manual in order

to avoid injuries and damage to the plant.

Keep this manual available and consult it for guidance when you are unsure about how to

carry out one or another of the procedures.

DANGER

Electrical voltage

Risk of fatal injury through contact with parts carrying electrical voltage! Switch the system

off before performing any cleaning or maintenance tasks.

lSwitch off the power switch for the power distributor.

lSwitch off the UPS, if installed.

lDisconnect the mains connection, if installed, between the UPS (Uninterruptible

Power Supply) and the system itself (see section "General power interruption" in the

operating manual).

lDisconnect the connector of the power supply cable from the electrical socket in-

stalled by the building contractor.

Repairs

DANGER

Repair work on the system or on the components may be carried out only by authorized

specialist staff. Unauthorized opening of the system or repair work carried out improperly

could result in considerable danger to the user. In case of noncompliance, excludes all lia-

bility.

01750333061 A

2-1

3 Maintenance

3.1

3.1 Prerequisite Information

To perform the procedures described in this section, you must know how to perform the following proce-

dures:

• Open the system (refer to the operator manual for the system).

• Place the system in the service mode (refer to the operator manual for the system).

• Remove power from the system (refer to the operator manual for the system).

• Acess and use T/SOP diagnostics.

• Return the system to consumer operation (refer to the documentation for the system control soft-

ware).

Refer also to the specifications defined in Table3-1 through Table3-3.

Table3-1: Dimensions of the Document

Dimension Minimum Maximum

Width 69 mm (2.71 inches) 103 mm (4.05 inches)

Length 150 mm (5.9 inches) 222 mm (8.7 inches)

Thickness 0.07 mm (0.003 inch) 0.18 mm (0.008 inch)

Weight (of check deposit module

with documents)

approximately 15.5 kg (31.9 lb)

Table3-2: Bin Capacity

Bin Document Capacity

Storage 600

Exception 30

Table3-3: Recognized Fonts

MICR line E 13 B and CMC 7

3.2

3.2 Maintenance Procedures

WARNING

The following precautions must be followed when servicing the check deposit module to

avoid risk of equipment damage or severe bodily injury or death from electrical shock:

lRemove loose clothing or jewelry that can become jammed in the equipment.

lNever insert screwdrivers, scissors, pens, or other instruments into the check deposit

module.

01750333061 A

3-1

Maintenance

This section describes the following maintenance procedures:

• Checking the print quality (Section3.2.1)

• Clearing a jam (Section3.2.2)

• Removing and replacing the inkjet cartridge (Section3.2.3)

• Removing documents from the storage bin (Section3.2.1) and the exception bin (Section3.2.2.2)

3.2.1

3.2.1 Checking the Print Quality

1. Follow the institution's procedures to place the system in the service mode to gain access to the

check deposit module.

2. Access the check deposit module.

3. Unlock the storage bin (Figure3-1).

4. Use the green tab to lower and open the storage bin door.

5. Remove the most recent document from the bin.

6. Inspect the quality of the print. If the print is light or cannot be read, replace the inkjet cartridge

(Section3.2.3).

7. Raise the storage bin door.

8. Lock the storage bin (the lock locks both the storage bin and the exception bin).

9. Return the system to consumer operation.

NOTE

If the storage bin door is not closed, four long beeps will sound until the door of the bin is

closed.

01750333061 A

3-2

Otros manuales para DN Series

Tabla de contenidos

Otros manuales de Unidad de control de DIEBOLD NIXDORF

DIEBOLD NIXDORF

DIEBOLD NIXDORF RM4V Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
