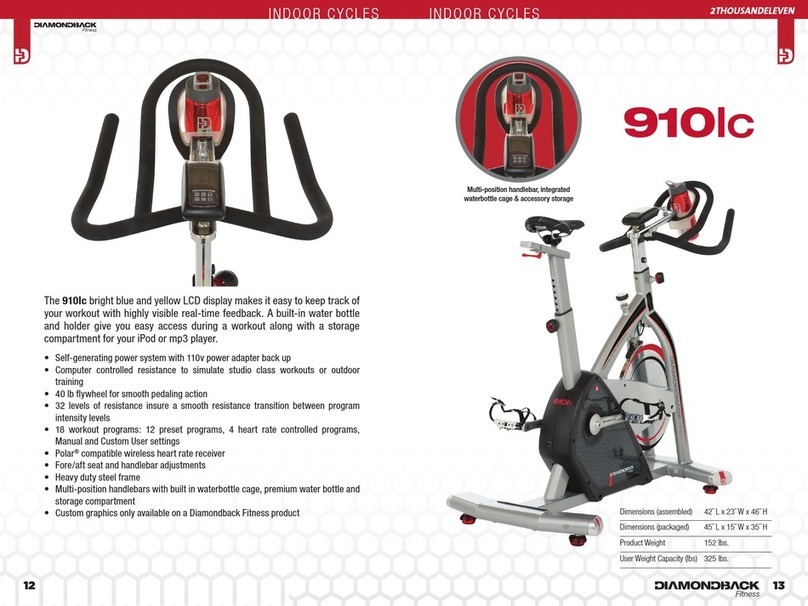

Diamondback 910IC Manual de usuario

910Ic Owner’s Manual

910Ic

Indoor Cycle

TABLE OF CONTENTS

Introduction ................................................5

Safety Instructions & Warnings ...............................6

Carton Contents ............................................8

910Ic Assembly Instructions..................................9

Final Installation & Setup ....................................13

Workout Guidelines .........................................14

Workout Quality & Quantity ..................................17

Console Overview & General Notes ...........................19

Console Keypad Funtion.....................................19

Console LCD Display ........................................20

Console Operation ..........................................21

Troubleshooting ............................................26

Maintenance ...............................................27

Warranty Information ........................................28

Purchaser’s reference Information ............................31

910Ic Owner’s Manual

Congratulations on the purchase of your new Diamondback Fitness computer-controlled indoor cycle. You have made a great choice and are

about to enjoy one of the most eective and technically-advanced methods of low-impact cardio-vascular exercise available today.

Founded in 1991 as an o-shoot of the legendary bicycle company, Diamondback Fitness was in many ways a complimentary addition to the

Diamondback brand. One might even say this extension grew as a natural evolution...an evolution from classic outdoor bicycle usage, toward

indoor-based cycling and cross training. It turns out that many ﬁtness enthusiasts were searching for ways to maintain conditioning during times

of inclement weather or simply looking for new and dierent cross-training options.

This trend still continues today, twenty years later, as the strong Diamondback brand resonates with both the boomers who grew up with the

bicycles, as well as the younger generations riding them today.

Diamondback Fitness continues to build upon this legendary brand identity by oering the cardio enthusiast a full line of upright exercise bikes,

recumbent cycles, and elliptical trainers, each oering superior value and quality with intuitive and visually-appealing design. Let’s just say, we

are already planning our next twenty years.

Thank you for choosing Diamondback Fitness.

For more information or questions regarding your equipment, please visit our website at www.diamondbackﬁtness.com.

INTRODUCTION

Every piece of Diamondback Fitness equipment is built for maximum safety and meets or exceeds all applicable domestic and international

standards. However, certain precautions must be taken when operating any piece of ﬁtness equipment.

NOTE: Please read the entire owner’s manual before operating the unit. Save this manual for future reference.

Cautions – For Safe Operation

• Keep hands and feet away from all moving parts and pinch points.

• If you have a history of heart disease, high blood pressure, diabetes, chronic respiratory diseases, elevated cholesterol, or if you smoke

cigarettes or experience any other chronic diseases or physical complaints, consult with a physician before beginning any exercise

program.

• If overweight or above the age of 35, consult with your physician before beginning an exercise program.

• Pregnant women should consult with their physician before beginning an exercise program.

• If you experience dizziness, nausea, chest pains or other abnormal symptoms during exercise, stop the exercise session immediately and

consult your physician.

• Consume water before, during and after each exercise session.

Warnings – To Reduce the Risk of Injury to Yourself and Others

• To ensure proper functioning of your unit, do not install attachments or accessories not provided or recommended by Diamondback

Fitness.

• Always wear proper clothing and shoes when exercising.

• User weight is not to exceed 325 pounds (147.4 Kg) for the 910Ic.

• Keep children away from the unit. Hands and feet may become entangled with the moving parts and could result in serious injury.

SAFETY INSTRUCTIONS & WARNINGS

910Ic Owner’s Manual

• Place the unit in an area that will meet minimum clearance requirements:

front & sides = 24 inches (61cm)

rear = 12 inches (30.5cm)

• The unit is intended for indoor use only.

• Place the unit on a solid, level surface. Always adjust the leveling feet before using to ensure stability.

• Ensure all adjustment knobs and levers are fastened securely before using the unit and after making an adjustment.

• Use the handlebars when stepping on and o the unit.

• The unit is heavy. Do not attempt to move alone.

• Never operate the unit if it is damaged or broken. Contact your local authorized Diamondback Fitness Dealer for service.

• Please unplug the unit after exercising.

• Always unplug the unit from the power source before moving or servicing.

• Do not remove the covers or other components. Only Authorized Diamondback Fitness Dealers or Authorized Technicians should perform

service on the unit.

CARTON CONTENTS

B-15

B-13

H-6 L

A-1

B-19

B-17

B-4

B-23

B-20

B-1

M-1

F-R

B-4

G-6

F-16

H-5

H-4

H-1 H-3 H-2 H-1D-2

H-1 H-3

Item Description Qty

A Console 1

A-1 Console Fixing Screw 4

B Handlebar Assembly 1

B-1 Handlebar Assembly Endcap 1

B-4 Fore-Aft Adjustment Lever 2

B-13 Water Bottle Cage Fixing Screw 3

B-15 Water Bottle Cage 1

B-17 Wire Harness (Upper) 1

B-19 Stem Assembly 1

B-20 Handlebar Assy Endcap Fixing Screw 1

B-23 Pulse Wire 1

C Rear Stabilizer Assembly 1

D Front Stabilizer Assembly 1

D-2 Leveling Foot Assembly 4

F-16 Power Input Jack 1

F (L&R) Pedal, Clip & Strap Assembly (pair) 1

G Main Frame 1

G-6 Stem/Seat Post Adjustment Knob 1

H Assembly Hardware / Tool Kit 1

H-1 Stablizer Assembly Fixing Screw 8

H-2 Stablizer Assembly Curved Washer 4

H-3 Stabilizer Assembly Flat Washer 4

H-4 Handlebar Assembly Fixing Screw 2

H-5 Handlebar Assembly Lock Washer 2

H-6 Handlebar Assembly Flat Washer 2

L Saddle 1

M-1 Emergency Stop Knob 1

N Power Supply/Adaptor 1

910Ic Owner’s Manual

910IC ASSEMBLY INSTRUCTIONS

H-1 H-3

D H-2 H-1

H-1 H-2

• Unpack the 910Ic from the carton. Please recycle.

• Verify the carton contains all parts from the list.

• Remove the blocking (the short section of tubing installed at the

factory to prevent damage to the front frame during shipping) by

removing the two ﬁxing screws shown in Figure 1 above. Discard

this piece.

• Align the front stabilizer (D) with the receiver located in the front

of the frame, and loosely install four (4) H-1 bolts, two (2) curved

washers (H-2) and two (2) ﬂat washers (H-3), making sure that the

correct shape of washers are installed on their correspond ving

surface proﬁle; i.e. ﬂat washer on the ﬂat surface, etc. When all bolts

have been inserted, tighten for ﬁnal installation.

• Repeat this process for the rear stabilizer assembly (C).

B-19

B-17

G-16

F-R

F-L

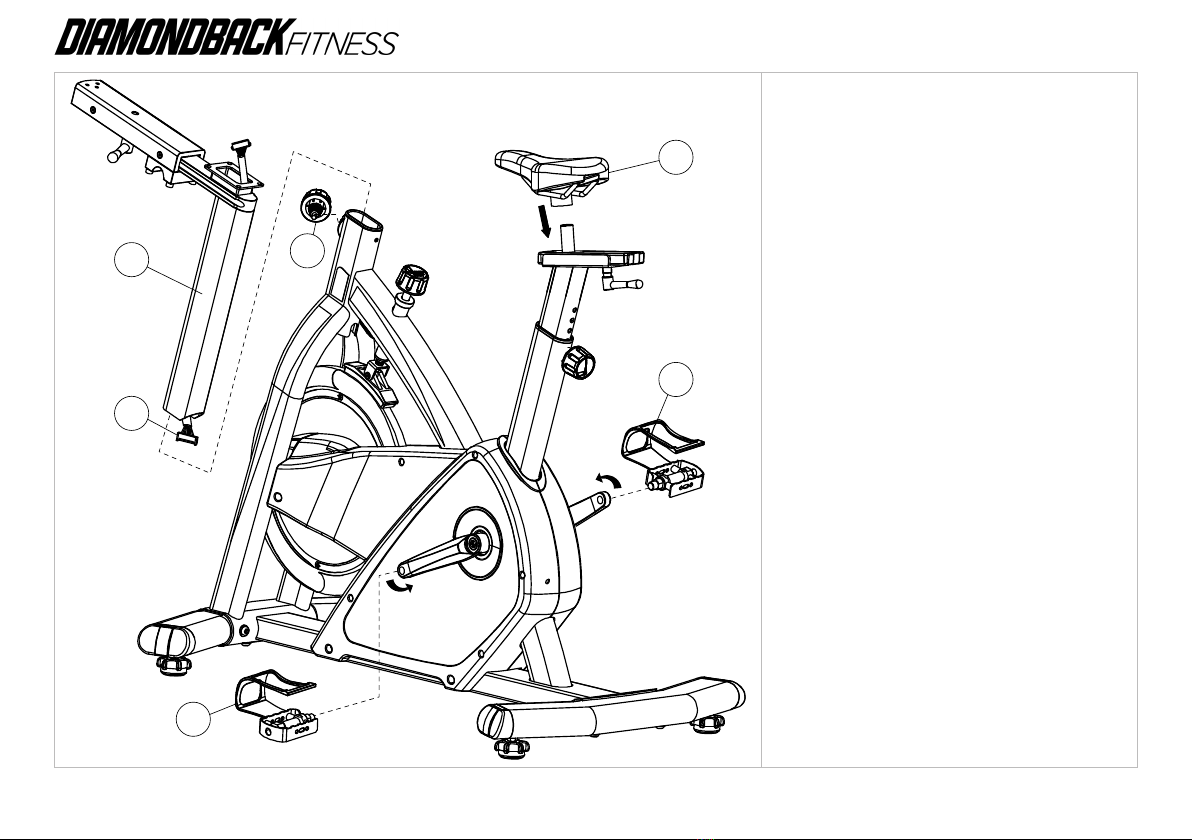

• Insert the stem assembly (B-19) into the

receiver on the main frame, paying care not

to pinch the wire harness connector (B-17).

• Loosen the stem height adjuster knob (G-16)

with two or three counter-clockwise rotations.

Adjust the stem/handlebar assembly to the

lowest position by pulling outward on the

knob to disengage the pop-pin. If the stem

assembly does not drop, loosen the knob

further and pull outward on the knob again.

Repeat these steps again if necessary.

• Tighten adjuster knob (G-16) to lock the

assembly in the lowest position.

• Install the saddle (L) onto the seat post and

tighten with the included wrench.

• Install the pedals (F-L & F-R) onto the

cranks by threading the left pedal by hand

(marked with an “L”) into the left crank with a

counter-clockwise rotation. Do not cross-

thread the cranks/pedals. The pedal must

be tight and installed completely to prevent

future damage to the cranks.

• Repeat the pedal installation steps for the

right side, noting that the pedal will thread

into the right crank with a clockwise rotation.
