Response by Diamondback Fitness • 6004 S. 190th Street, Suite 101 • Kent, WA 98032 • Ph: 800.776.7642

PM4273

DP #: 22-10-1218

Response U6c Owner’s Manual

PURCHASER’S REFERENCE INFORMATION

Product Name Response U6c by Diamondback Fitness Upright

Serial Number: E _ _ _ _ _ _ _ _ _ _

Record the serial number here.

Serial Number Location

The serial number will be located on the right side of the lower main

frame, just forward of the rear stabilizer (see figure to the right).

Record of Purchase

NOTE: Please record details associated with the purchase of your Response U6c below. This information will be

required in the event the unit requires future service. ATTACH THE PURCHASE RECEIPT.

Dealer Name: ___________________________________________ Dealer Telephone Number: ( ) _____________________________

Dealer Address: _________________________________________________________________________________________________________

Date Purchased: ________________________________________ Dealer Contact Name: ________________________________________

To Activate Your Warranty

Please register the unit at www.diamondbackfitness.com. Failure to comply may limit or void your warranty coverage.

SERIAL NUMBER

||||||| |||| |||||| |||||||||||

E000000000

WARNING: REMOVAL OR

DESTRUCTION OF THIS

LABEL VOIDS WARRANTY

SAMPLE

Release v.2 (04/2010)

Response U6c

Owner’s Manual

TABLE OF CONTENTS

PURCHASER’S REFERENCE INFORMATION ....................................................................2

Serial Number: .......................................................................................2

INTRODUCTION ..........................................................................................5

RESPONSE U6c ASSEMBLY & INSTALLATION...................................................................6

Response U6c Assembly Instructions ..................................................................... 7

SAFETY INSTRUCTIONS & WARNINGS .......................................................................10

WORKOUT GUIDELINES...................................................................................12

Good Health is an Exercise in Common Sense ............................................................. 12

Body Mass Index .................................................................................... 12

Heart Rate is an Important Key to Your Exercise ............................................................ 13

Touch Heart Rate Sensors ............................................................................. 13

Wireless Heart Rate Receiver ........................................................................... 13

Your Estimated Maximum Heart Rate & Target Training Zone ................................................... 14

WORKOUT QUALITY AND QUANTITY ........................................................................15

CONSOLE LAYOUT.......................................................................................17

LCD Display Windows ................................................................................ 17

Buttons And Keys ................................................................................... 19

MP3/iPod Input Jack and Speakers ...................................................................... 20

Default Settings ..................................................................................... 20

PROGRAMS ............................................................................................21

Quick Start ........................................................................................ 21

Manual Program .................................................................................... 22

Classic Programs .................................................................................... 23

User Program ...................................................................................... 23

Target Heart Rate ................................................................................... 24

MAINTENANCE..........................................................................................26

WARRANTY INFORMATION ................................................................................27

WARRANTY REGISTRATION CARD ..........................................................................30

INTRODUCTION

Congratulations on the purchase of your new Response U6c Exercise Bicycle. You have made a smart choice and are about

to enjoy one of the most effective and technically-advanced methods of cardiovascular exercise available today.

Founded in 1991 as an off-shoot of the legendary bicycle company, Diamondback Fitness was in many ways a complimentary

addition to the Diamondback brand. One might even say this extension grew as a natural evolution…an evolution from

classic outdoor bicycle usage, toward indoor-based cycling and cross training. It turns out that many fitness enthusiasts were

searching for ways to maintain conditioning during times of inclement weather or were simply looking for new and different

cross-training options.

This trend still continues today, twenty years later, as the strong Diamondback brand resonates with both the boomers who

grew up with the bicycles, as well as the younger generations riding them today.

Diamondback Fitness continues to build upon this legendary brand identity by offering the cardio enthusiast a full line of

upright exercise bicycles, recumbents, and elliptical trainers, each offering superior value and quality in an intuitive and

visually-appealing design. Let’s just say, we are already planning our next twenty years.

Thank you for choosing Diamondback Fitness.

Diamondback Fitness

6004 South 190th Street, Suite 101 Kent WA 98032 Ph. 1.800.776.7642 Fax: 1.800.776.2073

For more information or questions regarding your equipment, please visit our web site at DiamondbackFitness.com.

Part Description

A.......Front Stabilizer [Quantity: 1]

B.......Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]

C.......Rear Stabilizer [1]

D.......Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]

E1 ......Pedal – Left [1]

E2 ......Pedal – Right [1]

F .......Saddle [1]

G.......Seat Post Assembly [1]

H.......Lower Wire Harness Connector [1]

J .......Console Mast Assembly [1]

K1 ......Upper Wire Harness – Connector 1 [1]

K2 ......Upper Wire Harness – Connector 2 [1]

L .......Curved Washer – 8.0 x 19.0 x 2.0 mm [1]

M.......Flat Washer – 8.0 x 19.0 x 2.0 mm [4]

N.......Hex Bolt – M8 x 1.25 x 12 mm (6 mm socket) 5]

P.......Handlebar Assembly [1]

Q1 ......Handlebar Fixing Clamp [1]

Q2 ......Lock Washer – 7.0 x 13.0 x. 2.0 mm [2]

Q3 ......Flat Washer – 7.0 x 12.0 x 1.0 mm [2]

Q4 ......Handlebar Clamp Cover [1]

Q5 ......Spacer/Bushing – 7.0 x 12.0x 40 mm (plastic) [1]

Q6 ......T-Handle – M7 x 1.0 x 65 mm [1]

Q7 ......Hex Bolt – M7 x 1.0 x 30 mm [1]

R.......Console [1]

S.......Heart Rate Wire Harness – Console [1]

T .......Heart Rate Wire Harness – Handlebar [1]

U.......Rubber Grommet [1]

V .......Wire Harness - Console [1]

W.......Phillips Screw – M5 x 0.8 x 10 mm [4]

X .......AC Adaptor – US Plug; 120V, 60 Hz, 9V, 1A 1]

Y.......Console Mast Cover [1]

Z .......Crank Cap [2]

AA ......Leveling Foot/End Cap [2]

BB ......Seat Post Adjustment Knob [1]

CC......Input Jack [1]

RESPONSE U6c ASSEMBLY

E1Z

Q1Q3Q4Q2

Q6Q7

Assembly Notes

• Please read the entire Response U6c Owner’s Manual before beginning

the assembly. Review the package contents to ensure all listed parts are

included.

• The assembler will require a 15 mm box wrench, a 6 mm hex wrench, a 15

mm pedal wrench, and a Phillips screwdriver for assembly. All required tools

are included.

• The estimated assembly time of the Response U6c by a person familiar with

basic tool usage is thirty (30) to forty-five (45) minutes.

• Always inspect the unit to ensure handlebars are fixed and the seat post is

locked into position prior to using the unit.

Assembly Instructions

Bushing

ID 7.0 x OD 12.0 (1)

T-Handle M7 x 65 mm (1)

Model: Response U6c Assembly Hardware Kit Card

Year: DB Fitness 2010

Graphics Prepared by: Skip Reys; sreys@diamondbackfitness.com

Date Created:

30-Mar-10

Crank Bolt

& Nut

Wrench/

Screwdriver (1)

Pedal Wrench / Screwdriver (1)

Allen

Wrench (1)

Handlebar Clamp (1)

Lock Washers

for handlebar

clamp

ID 7.0 mm (2)

Hex Bolt for

handlebar clamp

M7 .0 x 1.0 x 30 mm (1)

Flat Washers

for handlebar

clamp

ID 7.0 mm (2)

Response U6c

Assembly Hardware Kit

DP #22-10-1220

Remove the hex fixing bolts (B & D)

from the front stabilizer (A) and rear

stabilizer (C).

Align the holes in the main frame with

the recessed nuts in the stabilizers

and thread the fixing bolts into place

Level the base by adjusting the

leveling feet integrated into each of the

stabilizer end caps (AA). Rotate the

knobs counter-clockwise to raise the

feet and clockwise to lower them.

NOTE: Always check the stability

of the unit after it has been moved

as serious injury can result.

3 42

MNK1

Slide the clamp on the underside of

saddle (F) onto the seat post (G) and

tighten the nuts evenly.

Slide the entire seat post assembly

into the main frame seat tube. Un-

thread the adjuster knob on the

right side of the seat tube, and pull

outward, away from frame to allow

post to enter the seat tube. Adjust the

seat to preferred height and release

the knob.

Do not extend the post beyond

the minimum insertion mark (MAX)

stamped into the post. . Ensure the

post is fixed in place, and tighten

knob.

Remove the left and right crank caps

(Z) by inserting a flathead screwdriver

into the cap opening and un-threading

counter-clockwise.

Tighten both crank nuts (clockwise)

with the enclosed box wrench and

replace the crank caps.

Thread the left pedal (E1) into the

left crank. Tighten firmly in a counter-

clockwise direction with the spanner

wrench.

Install the right pedal (E2) into the

right crank, tightening in a clockwise

direction. Reinstall the crank caps (Z).

Remove the five (5) hex bolts (N), four

(4) flat washers (M) and one (1) curved

washer (L) from the console mast (J).

Orient and slide the console mast

cover (Y) onto the console mast (J).

While supporting the console mast,

carefully join connectors (H) and (K1).

Slide the console mast into place onto

the main frame. Install only the lower

bolts, nuts and washers L, M & N.

Slide the console mast cover (Y)

downward and snap into place.

Re-install the two (2) bolts (N) and

washers (M) into the upper holes.

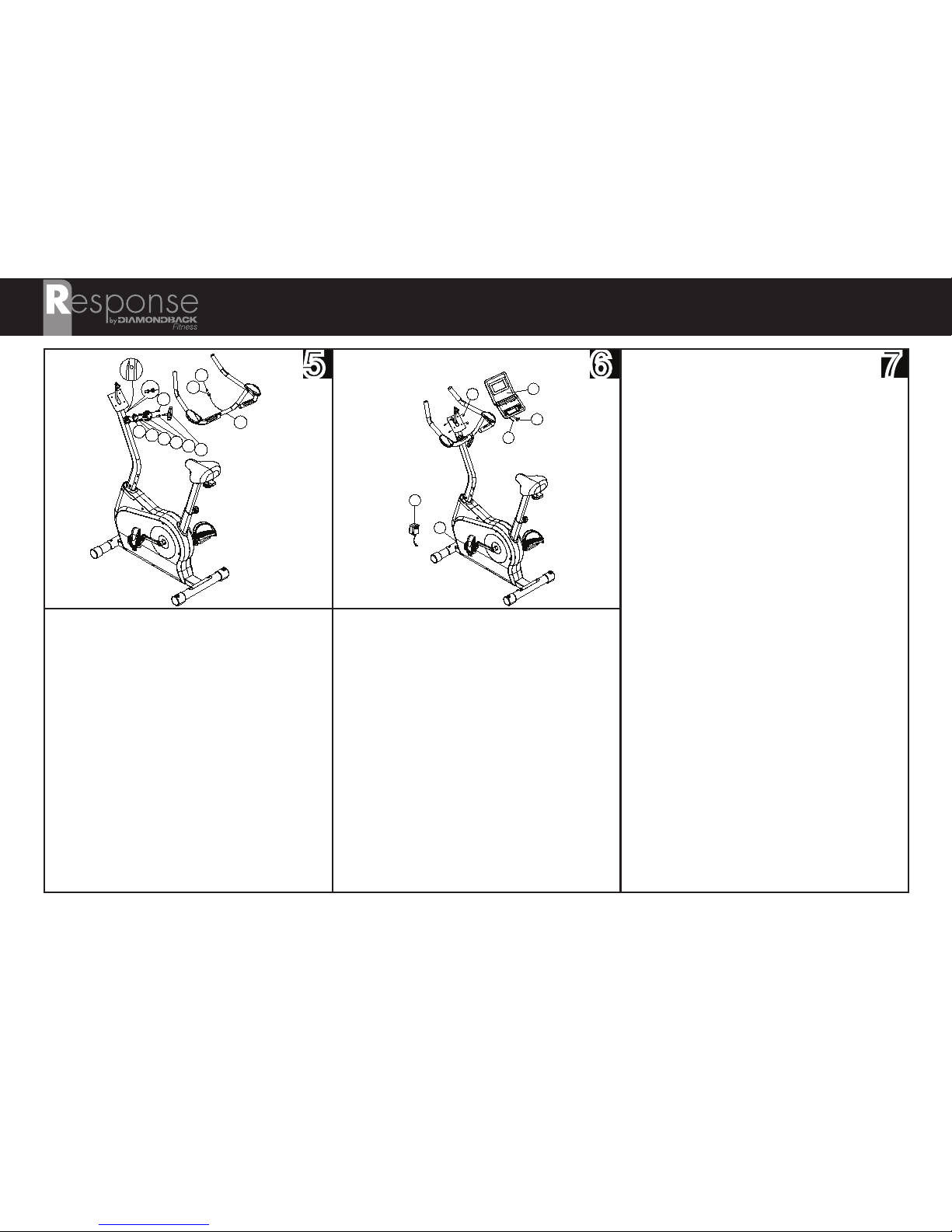

5 6 7

Remove the four (4) Phillips fixing

screws (W) from the back side of the

console.

While supporting the console (R), join

plugs Vand K2.

Join plug T with plug S.

Gently tuck the wires into the top of

the console mast.

Align the fixing holes in the back of

the console with those on the console

mast mounting plate. Re-install the

four console fixing bolts (W).

Install the rubber grommet (U).

Q2Q3Q4Q5

While supporting the handlebar (P),

assemble the handlebar clamp parts

(Q1, Q2, Q3, Q4, Q5, Q6 & Q7)

as per the diagram above. Adjust

handlebar to desired angle and fix by

rotating the-handle clockwise.

Thread the heart rate wire harness

connector (T) through the hole on the

right side of the console mast and up

through the opening at the top.

FINAL SETUP & INSTALLATION

Move the unit into final position with

the help of the front transport rollers.

Carefully lift and support the rear end

of the unit until both wheels touch the

ground. Slowly roll into position.

After moving the unit, ensure all four

feet touch the floor. Review assembly

step #1 above for leveling instructions.

Adjust the final position of the bars

(P) by loosening the T-Handle (Q6)

counter-clockwise. Select the desired

angle and re-tighten the T-handle.

To adjust the seat post height for the

proper riding position, unlock the seat

post adjustment knob (BB) by rotating

it counter-clockwise a few turns.

Support the seat post assembly and

pull outward on the knob to retract

the pin. Adjust the height, taking

care to not extend the post beyond

the minimum insertion mark (MAX)

stamped into the post. Release the pin

and ensure the post is fixed. Lock the

post into place by re-tightening the

adjustment knob (BB).

Inspect the unit for loose bolts,

hardware, knobs or pins.

Plug the AC adaptor in an outlet. Plug

the other end into the input jack (CC).

SAFETY INSTRUCTIONS & WARNINGS

Every piece of Diamondback Fitness equipment is built for maximum safety and meets or exceeds all

applicable domestic and international standards. However, certain precautions need to be taken when

operating any piece of fitness equipment.

NOTE: Please read the entire owner’s manual before operating the unit.

NOTE: Read all warnings posted on the unit. If the warning label to the right is missing from the

U6c Upright Cycle, contact Diamondback Fitness at (800) 776.7642 for a replacement.

Cautions – For Safe Operation

• Keep your hands and feet away from all moving parts and pinch points.

• If you have a history of heart disease, high blood pressure, diabetes, chronic respiratory diseases,

elevated cholesterol, or if you smoke cigarettes or experience any other chronic diseases or physical

complaints, consult with a physician before beginning any exercise program.

• If overweight, pregnant or above the age of 35, consult your doctor before beginning an exercise program.

• If you experience dizziness, nausea, chest pains or other abnormal symptoms during exercise, stop the

exercise session immediately and consult your physician.

• Consume water before, during and after each exercise session.

Warnings – Reduce the Risk of Injury to Yourself or Others

• To ensure proper functioning of your unit, do not install attachments or accessories not provided or

recommended by Diamondback Fitness.

• Always wear proper clothing and shoes when exercising.

• Never operate the unit without first verifying that both the handlebar and seat post are firmly fixed.

• Never extend the seat post beyond the MAX marking. See the installation instructions above for proper seat post adjustment.

• User weight is not to exceed 300 pounds / 136.4 kilograms.

• Keep children away from the unit. Hands and feet may become tangled in the moving parts which could result in serious injury.

WARNING

This Class C product is rated for

home (Class H) use only. Use

only DIAMONDBACK FITNESS

replacement parts. Failure to to

so will render the warranty void

and could result in personal

injury or even death. There is a

risk assumed by individuals who

use this type of equipment. To

minimize the risk, always follow

these simple rules:

Spining cranks and pedals

can cause injury. Only

operate unit when seated.

Operation of this unit should

only commence after the

entire Owner’s Manual has

been read.

User weight for the Response

U6c is not to exceed 300 lbs.

Keep children away from unit

at all times.

Contact DIAMONDBACK

FITNESS if you do not

understand these warnings,

are missing the Owner’s

Manual, or have questions

regarding the proper use and

maintenance of this unit.

DiamondbackFitness.com

800.766.7642

ES0835 U6c

Tabla de contenidos

Idiomas:

Otros manuales de Bicicleta estática de Diamondback

Diamondback

Diamondback 510Sr Manual de usuario

Diamondback

Diamondback APEX U6 Manual de usuario

Diamondback

Diamondback 910IC Manual de usuario

Diamondback

Diamondback 800 Series Manual de usuario

Diamondback

Diamondback 500IC Manual de usuario

Diamondback

Diamondback APEX Ic8 Manual de usuario

Diamondback

Diamondback 510Ic Manual de usuario

Diamondback

Diamondback 900Sr Manual de usuario

Diamondback

Diamondback 910IC Manual de usuario

Diamondback

Diamondback 910lc Manual de usuario

Diamondback

Diamondback 510Ic Manual de usuario

Diamondback

Diamondback 510UB Manual de usuario

Diamondback

Diamondback 1000SR Manual de usuario

Diamondback

Diamondback 500Sr Manual de usuario

Diamondback

Diamondback 1190 Sr Manual de usuario

Diamondback

Diamondback 910IC Manual de usuario

Diamondback

Diamondback APEX R8 Manual de usuario

Diamondback

Diamondback 500Sr Manual de usuario

Diamondback

Diamondback 1000SR Manual del propietario

Diamondback

Diamondback 910Sr Manual de usuario

Diamondback

Diamondback 300U Manual de usuario

Diamondback

Diamondback Response R8c Manual de usuario

Diamondback

Diamondback 1260ub Manual de usuario

Diamondback

Diamondback 1260Sc Manual de usuario

Manuales populares de Bicicleta estática de otras marcas

Weslo

Weslo Vector 302 Guía de inicio rápido

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Pro-Form

Pro-Form 345 Zlx Bike Guía del usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario
