Diamond DFV-511/TS Manual de usuario

Mod: DFV-511/TS

Production code: P8 RDT-105E DR 10DI 51

03/2017

COMBI DIRECT

105/110/115

605/610

PROGRAMMABLE TOUCH SCREEN

CONVECTION - STEAM OVEN

INSTRUCTIONS FOR THE INSTALLATION,

USE AND MAINTENANCE

READ CAREFULLY THE INSTRUCTIONS

BEFORE USING THE APPLIANCE

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

FOREWORD

The contents of this manual are generic and not all the functions described may be available on

your product.

The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to

printing or copy errors. We reserve the right to make on our own products those changes to be considered

necessary or useful, without jeopardizing the essential characteristics.

Read the instructions for use very carefully paying particular attention to the rules concerning safety de-

vices. This appliance must only be used for what it has been designed for and built for and that is: all baking

of dishes and regenerating pre-cooked and/or frozen food.

WARNING !

Before making any type of connection of this equipment (electrical or

hydraulic), carefully read the instructions in this manual.

The installation must be carried out only by qualied technical

personnel.

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

INDEX

0.0A Dimensions 5 x 1/1 GN

0.0B Dimensions 10 x 1/1 GN

0.0C Dimensions 15 x 1/1 GN

0.0D Dimensions 5 x 60x40

0.0E Dimensions 10 x 60x40

INSTALLATION

1.0 Declaration of Conformity

1.1 European Directive ROHS 2011/65/UE

1.6 Technical data for electrical connection

2.0 Installing the appliance

2.2 Electrical connection

2.3 Hydraulic connection – water inlet

2.3A Technical data table water connection

2.4 Hydraulic connection- water drainage

3.0 Control and safety devices

3.1 Spare parts replacing

3.2 Checking the functions

USE AND MAINTENANCE

4.0 Description of cooking cycle or cooking program

4.1 Starting the oven

4.2 Description of control panel components

4.3 Setting of CONVECTION mode in manual cooking

4.4 Setting of STEAM mode in manual cooking

4.5 Complementary functions

4.6 Starting manual cooking

4.7 Fast cooling

5.0 Automatic cooking programs

5.1 Starting an automatic cooking programs

5.2 Modication of a cooking program

5.3 Creation of a new cooking program

5.4 Elimination of a cooking program

5.5 Elimination of a phase of cooking program

6.0 Automatic washing system Simcleaner

7.0 Alarms

7.1 Serious alarms

7.2 Non serious alarms

8.0 Settings and regulations

9.0 Maintenance

9.1 What to do in the case of a breakdown and/or extended period of non use

10.0 Cooking tips

10.1 Remedies to cooking hitches

5 x 1/1 GN

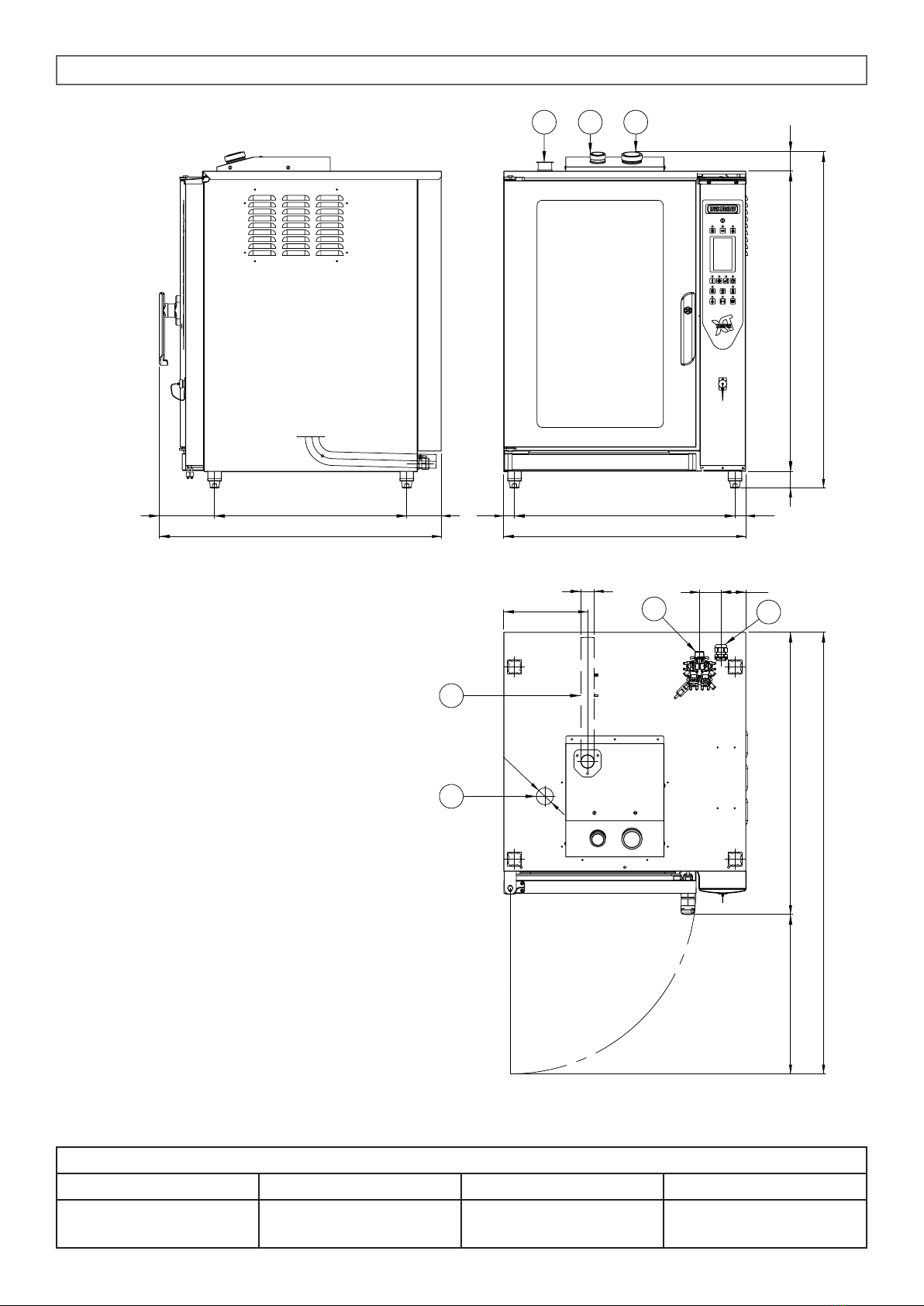

0.1A Dimensions mod. 5 x 1/1 GN

Dimensions Capacity Trays distance Empty weight

mm 709 x 827 x h 645 5 x 1/1 GN 67 mm 87 kg

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 50 mm

R- Rinsing tablet container

S- Detergent tablet container

59,5

161,9 563,2

60,4

31,9 646,2

31,1

709,2

121

540

48,7

101,9

827

70,8

40O63

O50

827468

1295

+10

246

645

D R S

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

10 x 1/1 GN

0.1B Dimensions mod. 10 x 1/1 GN

Dimensions Capacity Trays distance Empty weight

mm 709 x 826 x h 986 10 x 1/1 GN 67 mm 124 kg

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 50 mm

R- Rinsing tablet container

S- Detergent tablet container

R S

646

40O63

O50

32 31

88048+15

162 563 101

826 709

827468

1295

+10

246

986+15

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

15 x 1/1 GN

0.1C Dimensions mod. 15 x 1/1 GN

Dimensions Capacity Trays distance Empty weight

mm 749 x 846 x h 1685 15 x 1/1 GN 67 mm 165 kg

59,5

161,9 583,2

40O

266

787,5

101,1

1204,5423,7

1685

31,9 686,2 31,1

749,2

846,2

847507,5

1354,5

348 136

65,8

D R S

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 50 mm

R- Rinsing tablet container

S- Detergent tablet container

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

5 x 60x40

0.1D Dimensions mod. 5 x 60x40 (4 x 1/1 GN)

Dimensions Capacity Trays distance Empty weight

mm 800 x 897 x h 645 5 x 60x40 70 mm 96 kg

162 633

60,4

32 736 31

799

40O

286

540

102

897

369

645

897,4558,1

1455,5

145

121 D R S

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 50 mm

R- Rinsing tablet container

S- Detergent tablet container

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

10 x 60x40

0.1E Dimensions mod. 10 x 60x40 (9 x 1/1 GN)

Dimensions Capacity Trays distance Empty weight

mm 800 x 897 x h 986 10 x 60x40 70 mm 138 kg

59,5

161,9 633,2

60,4

31,9 736,2 31,1

799,2

101,9

897

121

88048,2

40O

286 369

897,4558,1

1455,5

145

D R S

986

A- Electrical connection

B- Water inlet Ø 3/4”

C- Water drainage Ø 40 mm

D- Cooking chamber relief valve Ø 50 mm

R- Rinsing tablet container

S- Detergent tablet container

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE

INSTALLATION

1.0 DECLARATION OF CONFORMITY

The Manufacturer declares that the appliances conform to the EEC norms.

They must be installed in accordance with current standards, especially regarding aeration of the prem-

ises and the exhaust gas evacuation system.

Note: The Manufacturer declines all and every responsibility for any direct damages caused by: an

incorrect use, wrong installation or bad maintenance.

1.1 EUROPEAN DIRECTIVE ROHS 2011/65/UE

This appliance is marked according to the European directive 2011/65/UE on Waste Electrical and Elec-

tronic Equipment (WEEE).

By ensuring this product is disposed correctly, you will help prevent potential negative consequences for

the environment and human health, which could otherwise be caused by inappropriate waste handling of

this product.

The symbol on the product, or on the documents accompanying the product, indi-

cates that this appliance may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for

waste disposal.

VERY IMPORTANT: according to the model of oven, its dimensions and its weight, use suitable facilities

to handle goods during transport and installation, able to guarantee stability in order to avoid overturning,

falls or uncontrolled movements of the appliance or its components.

Keep the oven packed until you reach the site where the oven is going to be installed.

The packaging makes the handling of goods easier and protects the oven from accidental push.

5 - 10 - 15 x 1/1 GN - 5 - 10 x 60x40 PROGRAMMABLE
