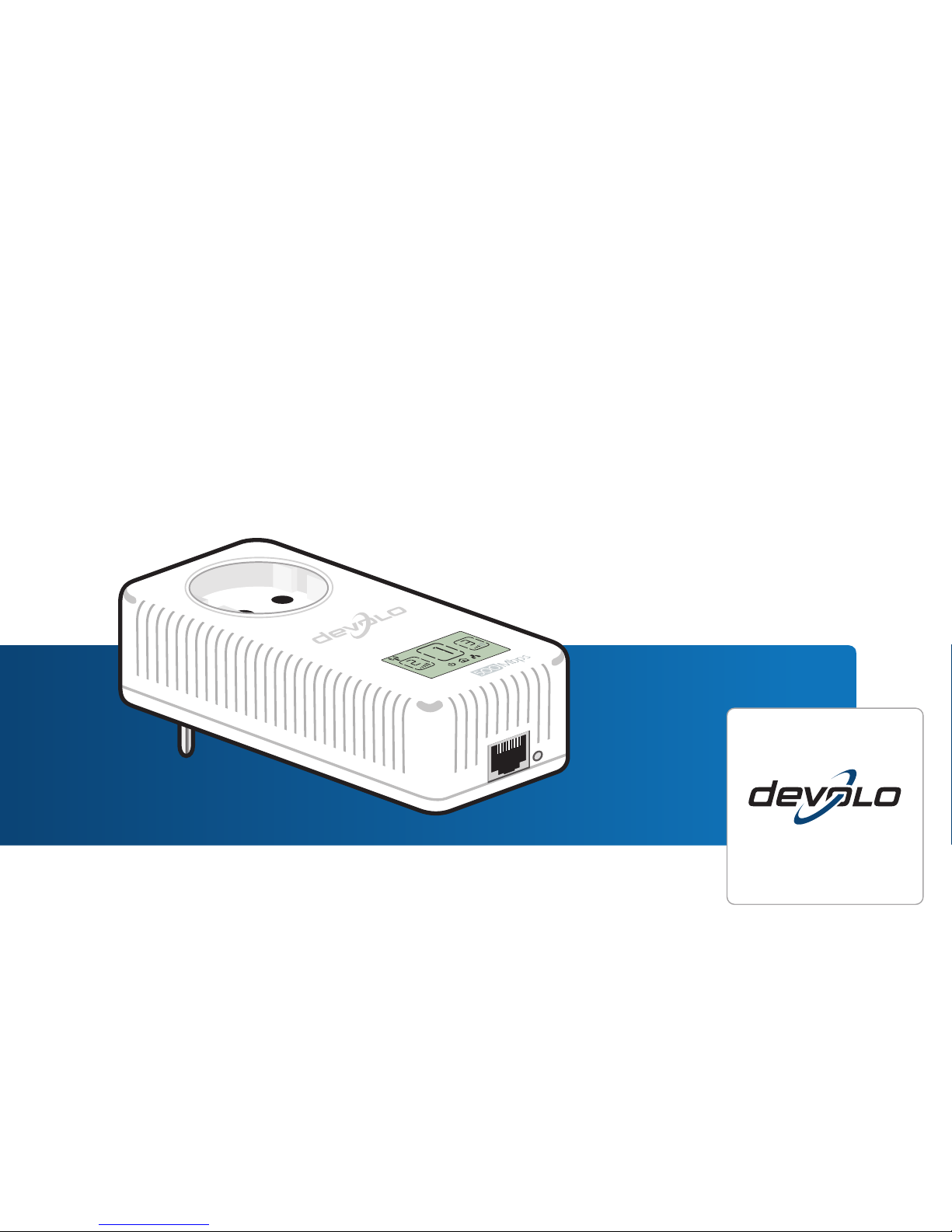

Devolo DLAN 500 AVsmart+ Manual de usuario

The Network Innovation

dLAN®

500 AVsmart+

devolo dLAN®500 AVsmart+

While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only

to the degree specified in the terms of sale and delivery.

The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from

devolo. We reserve the right to make any alterations that arise as the result of technical development.

Trademarks

HomePlug®is a registered trademark of HomePlug Powerline Alliance.

Linux®is a registered trademark of Linus Torvalds.

Ubuntu®is a registered trademark of Canonical Ltd.

Mac®and Mac OS X®are registered trademarks of Apple Computer, Inc.

Windows®and Microsoft®are registered trademarks of Microsoft, Corp.

devolo, dLAN®, Vianect®and the devolo logo are registered trademarks of devolo AG.

All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors

or omissions.

devolo AG

Charlottenburger Allee 60

52068 Aachen

Germany

www.devolo.com

Aachen, January 2012

Content

devolo dLAN 500 AVsmart+

Content

1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Thank you for placing your trust in this devolo product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 devolo—Up to speed on green IT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 dLAN 500 AVsmart+ at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Sample applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.3 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.3.1 LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3.2 Network connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3.3 Integrated electrical socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3.4 Encryption button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4 Connecting the dLAN 500 AVsmart+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.5 Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.5.1 Software for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.5.2 Software for Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.5.3 Software for Linux (Ubuntu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4 dLAN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1 Security in the dLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2 dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2.1 Encrypting a network with dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.3 dLAN AV network encryption at the touch of a button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Content

devolo dLAN 500 AVsmart+

5 Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.1 Bandwidth optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.2 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.3 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

5.4 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Preface 5

devolo dLAN 500 AVsmart+

1Preface

1.1 Thank you for placing your

trust in this devolo product.

The dLAN 500 AVsmart+ allows you to set up your

own home network with almost no effort. Because

the clever dLAN technology transmits the data over

the household electrical wiring, you do not have to

lay any new cables. You do not even have to do with-

out an electrical socket, as the dLAN 500 AVsmart+

provides an integrated socket to which you can con-

nect your terminal devices or multiple sockets as

usual. The integrated mains filter significantly im-

proves data transmission in the home network.

The convenient LCD display makes it easy for the

user to view the connection status of multiple dLAN

AV adapters in a network.

The fast transfer rate of up to 500 Mbps makes every

bandwidth-intensive Internet application a real mul-

timedia treat. The integrated "Quality of Service"

function measures the bandwidth requirement, opti-

mises the data flow and ensures excellent quality—

particularly for voice and video data.

To protect your data, simply press a button on the

dLAN 500 AVsmart+ to activate the convenient and

secure 128-bit AES (Advanced Encryption Standard)

encryption. In addition, the patented power saving

mode, which comes standard, automatically de-

creases the device's power consumption by more

than 90%.

About this manual

After a brief introduction to "dLAN" and "Green IT" ba-

sics in chapter 2, chapter 3 will cover successfully set-

ting up your dLAN 500 AVsmart+. Chapter 4 explains

how to configure your dLAN AV network. Tips for

bandwidth optimisation, safety notes and our warranty

conditions can be found in chapter 5 and conclude the

manual.

Description of the symbols

Here we briefly describe the meaning of the symbols

used in this manual.

Very important note. Failure to ob-

serve this note may result in damage.

Important note that should be ob-

served.

Additional information, background material

and configuration tips for your device.

6 Preface

devolo dLAN 500 AVsmart+

If you have any further ideas or suggestions related to

our products, we would be delighted to hear from you

at [email protected]!

devolo on the Internet

For detailed information on our products or "dLAN",

visit www.devolo.com. The Service centre area not

only contains product descriptions and documenta-

tion, but also updates of devolo software and your de-

vice's firmware.

1.2 CE conformity

This product complies with the technical requirements

of the EMV 2004/108/EC Directive and the other rele-

vant provisions of the FTEG, and it is designed for use

in the EU and Switzerland. The product is class B equip-

ment.

For the CE declaration for this product, refer

to the accompanying product CD under CE.

For the permitted voltage range for

operating the device and the power

consumption, refer to the label on the

rear side of the device. Additional

technical information is available in

the download area at www.devolo.com.

Introduction 7

devolo dLAN 500 AVsmart+

2 Introduction

dLAN is an intelligent, secure technology that lets you

set up a home network easily, quickly and economical-

ly via your household electrical wiring, without the

need for complex and expensive dedicated cabling.

The available performance and effort required for the

installation also compares favourably to traditional

methods—dLAN technology now attains speeds you

would expect from other LAN technologies, and install-

ing it is a breeze!

8 Introduction

devolo dLAN 500 AVsmart+

2.1 What exactly is dLAN?

dLAN (direct Local Area Network) uses the household

power grid to transfer data between computers

equipped with suitable adapters and other network

components. As a result, any power outlet can be used

as a network access point. The data is modulated prior

to transfer and sent as a signal via household power

lines. State-of-the-art technology ensures that the

power and data networks do not interfere with one an-

other. Networking via dLAN is fast and secure. The

data is encrypted using a key to prevent easy intercep-

tion by third parties.

2.2 devolo—Up to speed on green

The topic everyone is talking about is green IT. devolo

has an easy solution: the power saving mode, which

comes standard with the home network adapters, sets

the company apart from many competitors in the IT in-

dustry. And that has been the case even before global

warming and the scarcity of resources have become

concerns on everyone's mind.

Developers at devolo, have for a long time kept a close

eye on how much power dLAN adapters may consume.

After all, a devolo network via electrical sockets should

not only be convenient, but also require as little energy

as possible—particularly during times when it is not

being used.

That devolo can satisfy the demand for energy efficien-

cy is evidenced by the patented power saving mode

in the devices. It automatically lowers energy con-

sumption by more than 90 percent when the com-

puters in the dLAN network or connected equipment

are switched off.

The power saving mode in the adapters is not only a

tribute to environmental protection but also a real

service to the customer. Most people tend to forget to

regularly press the standby button on the hardware.

The patented technology in devolo adapters allows

you to save energy without having to do anything.

And if less energy is consumed, your electric meter will

turn more slowly. In other words, every minute the

adapter is in power saving mode, you will save money.

Introduction 9

devolo dLAN 500 AVsmart+

A dLAN adapter connected to a com-

puter can only go into power saving

mode if the network card of the

switched-off computer is also inactive.

If you are using a network card that re-

mains active even when the computer

is switched off, we recommend con-

necting the computer to an on/off

switch using a multiple socket so that

both the computer and the integrated

network card are de-energised.

2.3 dLAN 500 AVsmart+ at a

glance

쎲Easily monitor the connection status of multiple

dLAN AV adapters with the convenient LCD dis-

play.

쎲The dLAN 500 AVsmart+ quickly and easily estab-

lishes a network connection over the household

electrical wiring.

쎲Simple plug-and-play connection between the

routers, computers and other network-compatible

devices!

쎲The integrated electrical socket enables additional

terminal devices or multiple sockets to be con-

nected to the adapter just as a normal wall

socket—no power supply is lost.

쎲Safety—also for children! The power outlet of the

dLAN 500 AVsmart+ has an integrated child-

safety feature, so that no pointed objects can get

into the power outlet.

쎲Automatic data prioritisation ("Quality of Service")

ensures interference-free reproduction of voice

and video data.

쎲The integrated mains filter significantly improves

data transmission in the home network.

쎲Easy data encryption at the touch of a button or

via dLAN Cockpit.

쎲Thanks to the intelligent Dynamic PowerSave

technology, the dLAN 500 AVsmart+ reduces its

energy consumption automatically by over 90 per-

cent.

쎲With a high transfer rate of up to 500 Mbps, it is

ideal for all multimedia content such as video

clips, IPTV or gaming.

쎲Long data range of 300 m (656') between the

adapters and reliable network speed for setting up

a home network.

Otros manuales para dLAN 500 AVsmart+

Tabla de contenidos

Otros manuales de Adaptador de Devolo

Devolo

Devolo 200 AVplus Manual de usuario

Devolo

Devolo dLAN 1000 duo+ Manual de usuario

Devolo

Devolo DLAN 200 AV Wireless N Manual de usuario

Devolo

Devolo Highspeed Ethernet II Manual de usuario

Devolo

Devolo Magic 2 WiFi next Manual de usuario

Devolo

Devolo Magic 1 WiFi 2-1 Manual de usuario

Devolo

Devolo dLAN 500 duo+ Manual de usuario

Devolo

Devolo dLAN 500 WiFi Manual de usuario

Devolo

Devolo 200 AV Wireless G Manual de usuario

Devolo

Devolo Magic 2 LAN triple Manual de usuario

Devolo

Devolo Highspeed Ethernet II Manual de instrucciones

Devolo

Devolo dlan pro 1200+ wifi ac Manual de usuario

Devolo

Devolo Magic LAN 1-1-1 Manual de usuario

Devolo

Devolo Magic 2 LAN triple Manual de usuario

Devolo

Devolo dLAN 500 AVplus Manual de usuario

Devolo

Devolo 200 AVdesk Manual de usuario

Devolo

Devolo 200 AV Wireless G Manual de usuario

Devolo

Devolo dLAN 200 AVduo Guía de instalación

Devolo

Devolo dLAN 500 AV Wireless+ Manual de usuario

Devolo

Devolo TV Sat Manual de usuario

Devolo

Devolo dLAN 1200+ WiFi ac Manual de usuario

Devolo

Devolo dLAN 1000 mini Manual de usuario

Devolo

Devolo dLAN 200 AVpro Manual de usuario

Devolo

Devolo dLAN pro 1200+ Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario

Devolo dLAN 500 AVsmart+ Manual de usuario

Manuales populares de Adaptador de otras marcas
