5-CH SWITCHER

Users’ Manual

SWITCHER

Caution

Danger

Preparation Before Installation

●During transportation, handling, and installation of switchboard equipment, avoid collisions

between the switchgear equipment and doors, walls, shelves, etc.

●When the equipment is unpacked and transported, it is strictly forbidden to put it down and

drag it gently to avoid damage to the switchboard equipment.

●Do not place the switcher equipment in a flammable, explosive atmosphere or smoke

environment. Do not perform any operation in this environment.

●Operating equipment should be kept away from water and moisture. The water in the

switchgear or moisture will cause damage to the circuit of the switchgear equipment.

●A certain amount of heat will be generated during the operation of the switcher. Ensure that

the switchgear equipment is ventilated and the switcher device can operate normally.

●It is a fatal hazard that indirect contact with the power supply by wet objects is prohibited.

Unregulated, incorrect high-voltage operation can cause accidents such as fire or electric shock.

●It is forbidden to install and remove the switchgear equipment and power cord. When the power

cord is in contact with the conductor, an arc or spark may be generated, which may result in fire

or electric shock.

SWITCHER

Contents

1. Overview…………………………………………………………………………………..4

1.1 Introduction……………….…………………………………………………………..….4

2. Functional characteristics………….…………………………………………......5

2.1 Size……………………………………..………………….………………….……….….….6

3. Interface Specification..……………….………………………………………......7

3.1 Interface Introduction……………..…….…….………………….……………..….7

3.2 TALLY Interface……………………..………….….………………….……………..….8

3.3 Parameter……………………….……….……….…………………….……………..….9

4. Control Panel and Interface………..…………………..………………………..10

4.1 Control Panel.………………………..…………….………………….………………..10

4.1.1 Area Description……………..………………………….…….………………..10

4.1.2 Key Description……………..………….……………….…….………………...11

4.1.2.1 Function Area……………….….…………………………...…..…...11

4.1.2.2 Audio Control Area……………….……….……………….…..…...11

4.1.2.3 Transition Effect Control Area………………….……….……...13

4.1.2.4 Integrated Control Area.……………….……….……….…….....15

4.1.2.5 PGM & PVW Selection…………………….……….……………....17

5. System menu settings……..……………..………………………………………….19

6.Instructions for USB interface to OBS software…….…………………….21

7. Switcher software control…..…………………………………………………....23

8.Manual for synchronizing local time and upgrading the device….27

9. Failure and Maintenance…..……………………………………………………...30

SWITCHER

High-definition video switcher adopts a portable integrated design, metal casing, small size and

light weight. Standard size: 236mm * 105mm * 47mm, which can be used for small-scale

out-of-field video effects switching requirements. The device integrates multiview processor,

special effect generator, audio processor, control keyboard and other common components of the

switcher.

Switcher supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external

preview signal can be output simultaneously. The switcher supports HDMI embedded audio +

external analog audio. After mixed processing, it can be embedded in the output HDMI signal or

output from the analog port. The resolution of all input signals is automatically adapted, and the

output signal resolution can be selected according to requirements, which is quite flexible. For the

needs of video switching such as radio and television, program production, live production of

interviews and lectures, outdoor sports events, and school courseware production, the functions of

the switcher can be fully met.

1.Overview

1.1 Introduction

HD camera

Microphone

DP IN

HDMI IN

MIC IN

Switcher

Multiview out

PGM OUT

Monitor

Projector

PGM

Large screen

LINE IN

Mixer

Audio processor

Power amplifier

Sound

SWITCHER

◆Portable integrated design

◆Metal body, high strength and light

weight

◆Integrated control keyboard

◆Support up to 4 HDMI + 1 DP inputs

◆2 stereo MIC inputs

◆1 LINE IN input

◆1 LINE OUT output

◆Support 1 USB output video stream,

clear picture quality

◆Support PC remote control

◆The equipment comes with color bar

output screen

◆Support audio follow, mix function

◆Support HDMI audio de-embedding

◆PGM output: 1 HDMI

◆Multiview output: 1 HDMI

◆Support special effects switching such as MIX / FADE

◆Support CUT hard cut, supportAUTO special effect

switching

◆Support Tally / Network control

◆Support still function

◆Support PIP window function

◆Support vertical menu output, must

be used with PM1005, PM1007

Switcher five-channel high-definition video switcher is a multi-functional switcher, which

requires no professional knowledge and can perform video switching and audio mixing with simple

operations. This machine can be used in broadcasting, live broadcasting and various event venues.

2.Functional characteristics

SWITCHER

2.1 Size

Size:236mm*105mm*47mm

SWITCHER

NO.

Definition

Description

TALLY

DB15 pin, external call system

DCB

Cascade equipment, supporting TALLY lamp module (reserved)

Switch

Power switch button

DC 12V

Power Input

HDMI IN/DP IN

4 HDMI + 1 DP inputs, The first input can be switched to DP input

MULTIVIEW

Multiview output

HDMI OUT

1*PGM live output

STREAM OUT

Tpy_C interface, UVC output

MIC IN

2 stereo MIC inputs

LINE IN/OUT

Line audio input and output

RJ45

Network upgrade, PC remote control

3.Interface Specification

3.1 Interface Introduction

The Switcher interface is shown below.

SWITCHER

3.2 TALLY Interface

Function

PGM-IN1

PVW-IN1

PGM-IN2

PVW-IN2

PGM-IN3

PVW-IN3

PGM-IN4

PVW-IN4

GND

Note：PIN1 PIN2 not used.

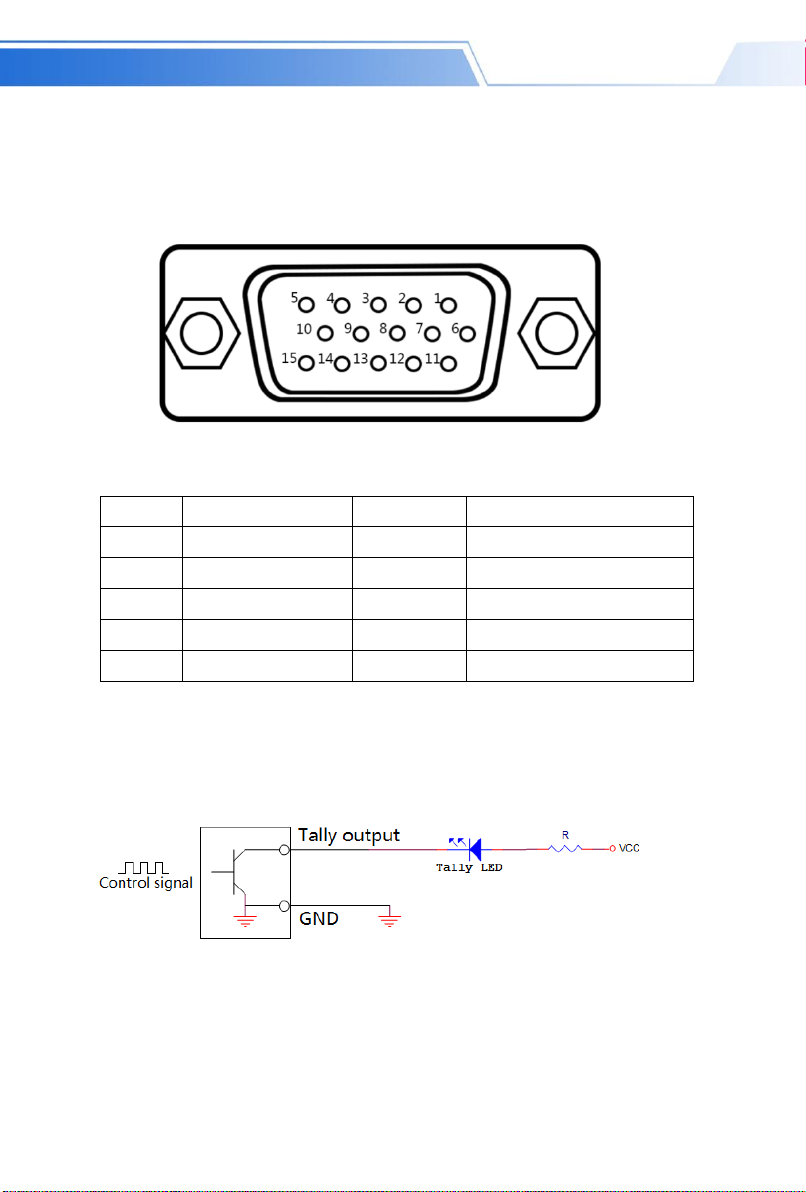

TALLY Online schematic：

Note：Tally LED: for external display device

Tally output：Active low (Tally LED is lit) High level is invalid (Tally out is off)

SWITCHER

3.3 parameters

Name

4*HDMI+1*DP Switcher

Video

Signal

Input

Input signal

HDMI/DP video signal

Rate

270Mbps~3Gbps

Connector

Standard

Reflection loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10%(HDMI)

Impedance

100Ω (HDMI)

Balance

Adaptive

DVD input HDMI

support

480i/576i,480p/576p,720p,1080i,1080p,

Computer HDMI input

support

1920x1080,1680x1050,1600x900,1440x1050,1366x768,1360x768,1360x768,1280x1024,1

280x960,1280x800,1280x768,1280x720,1280x600,1152x864,1024x768,800x600,

Video

Signal

Output

output signal

HDMI video output

Code rate

270Mbps~3Gbps

Connector

Standard

Return Loss

>15dB 5MHz~3GHz

Signal amplitude

800mV±10%(HDMI)

impedance

100Ω (HDMI)

DC offset

0V±0.5V

Clock recovery

Support

Control

Parameter

Control

9600 baud, 8 bits, 1 stop bit, no parity

Connection

15-pin D-port, 2-RX, 3-TX, 5-GND

Network control

RJ45,100M

General

Parameter

power supply

12V/DC

Power rate

18w

control panel

Support on-site production, integration of a variety of buttons.

Operating temperature

0℃~50℃, No condensation

Storage temperature

-20℃~75℃

Working humidity

20%~70%RH

Storage humidity

0%~90%RH，No condensation

SWITCHER

4.Control Panel and Interface

Before using the HD Mini Switcher, please take a few minutes to read this section. This chapter will

introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation.

The new high-strength characteristics of the new aluminum alloy with high-strength characteristics

improve the anti-drop, anti-shock and shock-proof capabilities of the whole machine, and effectively

protect the internal components of the equipment. Ultra-lightweight features make the unit easier to

transport and maintain without the need for additional equipment; it also offers unparalleled thermal

performance.

In addition to the innovation of the case, the HD switcher has also been completely optimized for the

interface connector. Environmentally friendly materials with new RoHS standards are More demanding in

terms of durability and environmental protection, to provide customers with more stable, more

environmentally friendly, more cost-effective products

4.1 Control Panel

No.

Name

Description

Function area

Currently supports F1/F2/F3 function

Audio control area

Mainly set the audio follow-up mix and audio volume control

Transition effect control area

Select transition effects

Integrated control area

PIP and STILL effects

Menu control area

Setting menu information with keys

PGM and PVW selection

Program and preview selection

Transition control area

Control transition switching and transition rate adjustment

4.1.1 Area Description

PGM and PVW selection

Audio control area

Function area

Integrated control area

FTB

Menu control area

Transition speed rate setting

Transition control area

Transition effect control area
