Desoutter FAS3000 Manual de usuario

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 1 of 204 Part No. 2050479303 Issue 1 10.02

Power-up sequence

Product identification

Firmware revision numbers

The count is the number of completed

fasteners in the batch. When the count

equals the batch, the count will go back to

zero and a GROUP ACCEPT output will be

enerated.

Parameter set Count

If this button is pressed, the operator

will be prompted for a four-digit

password before entering the program

menu.

Pressing the left or right arrows will advance the

display to the next or previous screen respectively.

During screen changes, a description of the next

value to be displayed will be shown momentarily.

This number denotes the number of fasteners to

be completed to get a GROUP ACCEPT. The

max

rou

is 255.

The TOTAL represents the number of completed

groups. If the total exceeds 9999, the total will

begin to scroll to show all five digits. The max total

is 65,535. After 65,535 is reached, the total will

reset to zero.

Operation

Normal operation of the FAS3000 is depicted below. On power-up, the unit will display a series of identifiers, code revisions, etc. and then

remain on the “count” window. The count window displays the current parameter set and the current number of fasteners completed toward

a GROUP. Other statistics are also available to the operator without a key or password by pressing the arrow keys on the keypad. These

options are described below.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 2 of 204 Part No. 2050479303 Issue 1 10.02

The key-switch is used to unlock the advanced

features of the FAS3000.

When the key is in the locked position, the

padlock-shaped symbol will be illuminated, the

program menu will not be accessible, and the

GROUP RESET will not be available.

When the key is in the unlocked position, the

padlock-shaped symbol will not be illuminated and

all the afore mentioned features will be available.

A four digit password may also be used to enter

the program menu or perform a GROUP RESET.

This button can be used to enter the program

menu when unlocked, or to display the password

prompt when the unit is locked.

Security

The advanced settings and the GROUP RESET features of the FAS3000 are governed by a key-switch on the front of the unit. Alternatively,

a password may be used to enter the program menu or perform a GROUP RESET.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 3 of 204 Part No. 2050479303 Issue 1 10.02

Indicates the parameter set (A-H) that will be used

to qualify the fastener.

Use the arrow buttons on the keypad to

change parameter sets.

Press this key to switch to the selected

parameter set.

Press this key to exit the menu option

without making the change.

Selecting Parameter Sets

The FAS3000 has eight different parameter sets that can be used to store the qualification conditions for eight differing fasteners. The

parameter sets are referred to as sets A through H. The current parameter set can be selected using the steps below:

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 4 of 204 Part No. 2050479303 Issue 1 10.02

These messages will each be displayed

momentarily to indicate to the operator that he or

she is now entering the program menu.

Use the Up and DOWN buttons on the

keypad to navigate the PROGRAM

MENU.

Press this key to select an item to edit

from the menu.

Press this button to exit or "go back" from

a selected menu item. If the program

menu was accessed with the password,

press this key to exit the program menu

and return to normal operation. The

FAS3000 will again be locked, and a

password or key will be needed to re-

enter the program menu.

Program Menu

The program menu provides access to all the setting, features, and qualification parameters of the FAS3000. The illustration below shows

the location of each of the menu options. Each menu option will be expanded in detail on the following pages.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 5 of 204 Part No. 2050479303 Issue 1 10.02

Indicates the parameter set that will be calibrated,

i.e. parameter set A.

Press this key any time to exit the Auto-

Cal process.

These statements will repeat until the proper

button is pressed to continue to the next step.

Auto-Calibration

Auto-Calibration allows the operator to record the signature of a properly tightened fastener by which to qualify succeeding fasteners. On the

FAS3000, the process will be performed as follows:

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 6 of 204 Part No. 2050479303 Issue 1 10.02

This number represents the number of fasteners in a GROUP.

One of the digits will be flashing. Use the up and down arrow keys

to increment or deincrement the flashing digit. Use the left and

right arrow keys to select the next digit for editing. The maximum

GROUP is 255.

Use these buttons to edit the next digit.

Press this key to save the change and

exit the menu option.

Press this key to exit the menu option

without making the change.

Use these buttons on the keypad to

increment or deincrement the flashing

digit.

Groups

The group setting is the number of fasteners that need to be completed before the FAS3000 issues a GROUP-ACCEPT output. If the

sequencing feature is turned on, the group setting represents the number of fasteners that must be completed before switching to the next

parameter set in the sequence. A GROUP ACCEPT will be issued after the final parameter set in the sequence is completed.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 7 of 204 Part No. 2050479303 Issue 1 10.02

This message will scroll until the ENTER or ESC key is pressed.

Press this key to set the total to zero and

exit the menu option.

Press this key to exit the menu option

without making the change.

Clearing the Total

The total count is the number of GROUP ACCEPTs that have accumulated for the selected parameter set. The maximum total is 65,535.

The total can be cleared by selecting TOT in the program menu and following the steps below.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 8 of 204 Part No. 2050479303 Issue 1 10.02

Use these buttons on the keypad to turn the

solenoid driver ON or OFF.

Press this key to save the change and

exit the menu option.

Press this key to exit the menu option

without making the change.

External Solenoid Driver

The FAS3000 has a +24VDC output that can be enabled to shut off an air tool in the event of a NOK. The output can be connected to an

external solenoid to close an air valve, and in turn, disable the tool. The solenoid driver can be enabled or disabled from the program menu

as follows:

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 9 of 204 Part No. 2050479303 Issue 1 10.02

Press this key to save the change

and exit the menu option.

Press this key to exit the menu option

without making the change.

Use these buttons on the keypad to

select the number of parameter sets

in the sequence.

Sequencing

The FAS3000 can be set to sequence through up to eight different parameter sets before issuing a GROUP ACCEPT. Under SEQU in the

program menu, the operator can choose the number of parameter sets to include in the sequence. The FAS3000 will start in parameter set

A. Upon completion of all the fasteners in group A, the FAS3000 will advance to parameter set B and so on. The parameters in the

sequence will have to be set up individually, i.e.: Auto-Cal, number of fasteners in the group, etc. A GROUP RESET operation will also reset

the sequence.

FAS3000

Desoutter Limited Eaton Road Hemel Hempstead Hertfordshire HP2 7DR England

Printed in USA 10 of 204 Part No. 2050479303 Issue 1 10.02

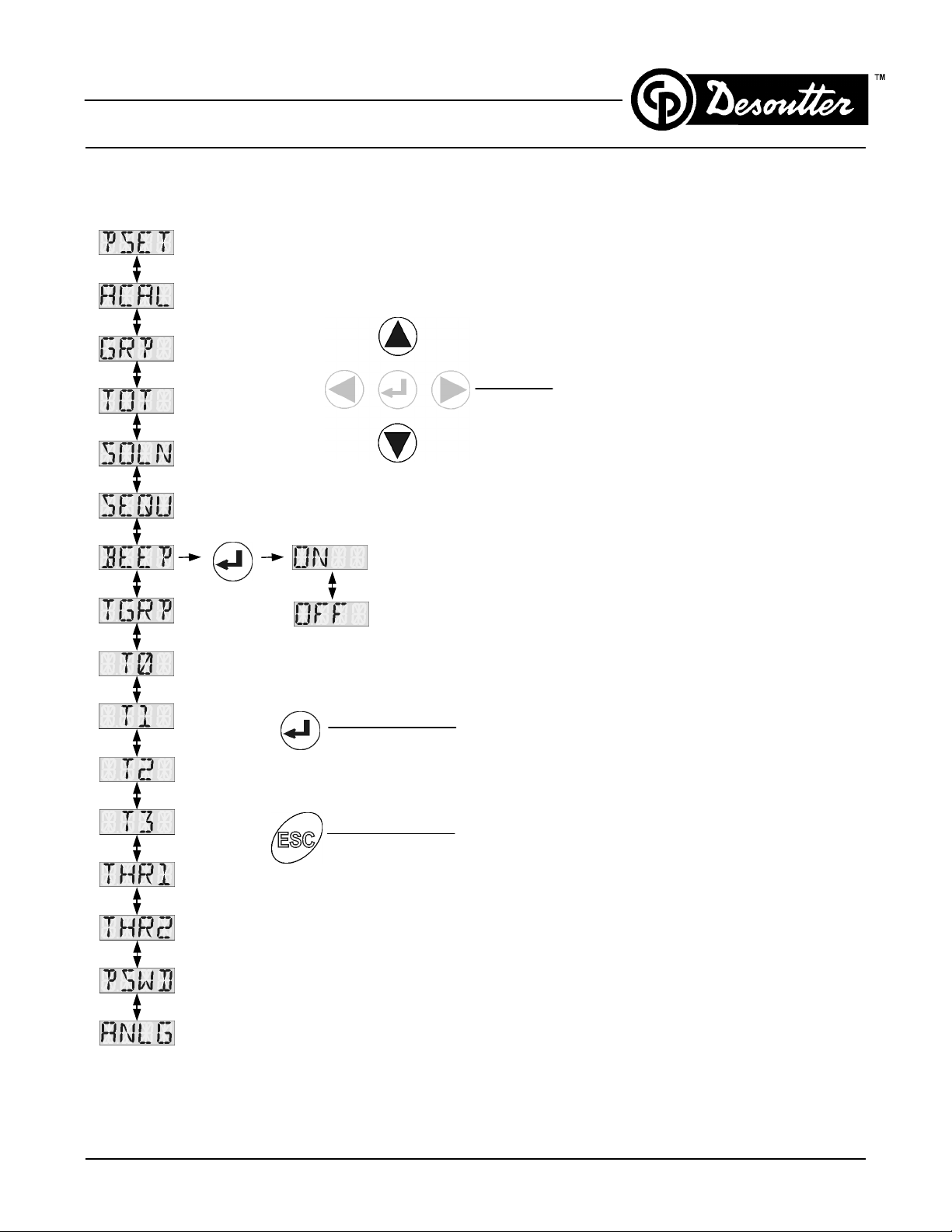

Use these buttons on the keypad to turn the

"beep on ACCEPT" feature ON or OFF.

Press this key to save the change and

exit the menu option.

Press this key to exit the menu option

without making the change.

Beep on ACCEPT

The FAS3000 will sound a double beep on GROUP ACCEPTS. This feature can be turned off in the program menu. The FAS3000 will still

beep on REJECTs.
