Desa GS38 Manual de usuario

InstalledVent-Free Insert and Surround Kit

For more information, visit www.desatech.com

Save this manual for future reference.

For Use With VI33NR/PR Vent-Free

Fireplace Inserts Only

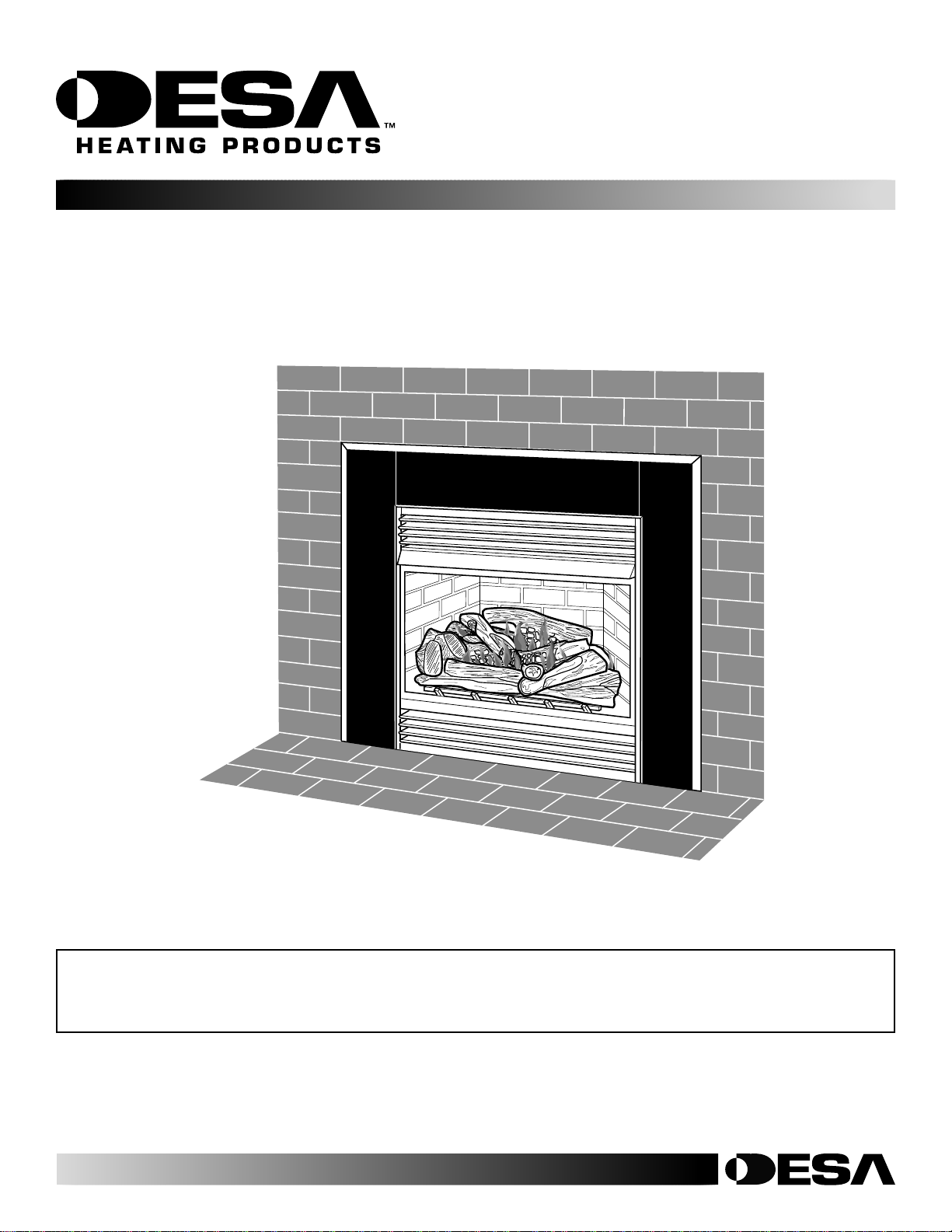

GS38 AND GS43 BLACK

FIREPLACE SURROUND

Assembly Instructions

IMPORTANT: Read entire instruction sheet before assembling or installing Black Fireplace Surround

Kit.ThisfireplacesurroundisonlyapprovedforusewithheaterModelsVI33NRandVI33PRnaturaland

propane/LP gas. Do not use fireplace surround with any other product.

105573-01B

For more information, visit www.desatech.com

Figure 1 - Removing Screws and Screen

This Black Fireplace Surround Kit contains the following pieces:

GS43 GS38

Perimeter Trim Kit 101240-01 101240-02

Surround, Left 105234-01CK 105234-02CK

Surround, Right 105235-01CK 105235-02CK

Surround, Top 105236-01CK 105236-02CK

Screw, 6-20 x .38 100587-01 (4) 100587-01 (4)

Screw, 10 x .38 098304-01 (14) 098304-01 (10)

Tools required:

• #2 Phillips Screwdriver

• 5/16" Socket or Nut Driver

Ifanyofthesepiecesaremissingordamaged,contactthedealerwhere

youpurchasedthiskitorDESAHeatingProductsat1-866-672-6040.

CAUTION: Close fireplace damper securely be-

fore installing heater insert. If chimney does not

have a damper, block or cap top of chimney. Failure

to cap an open chimney could cause drafts that can

affect the heater’s performance and increase sur-

face temperatures.

1. Using a 5/16" nut driver, remove two shipping screws and

screen (see Figure 1). Discard these screws. Remove 5/16"

screen mounting shoulder screws (do not discard).

2. Remove log packaging from firebox cavity.

Figure 2 - Attaching Left Surround Side Panel

Shipping Screw

(DISCARD)

Screen Mounting

Shoulder Screw (4)

(DO NOT DISCARD)

3. Align holes in left surround side panel with screen mounting

screw holes. Replace 5/16" screen mounting shoulder screws

removedinstep 1 (see Figure 2). Do not tighten. InstallPhillips

screw in bottom (see Figure 2). Repeat for right side.

4. Using Phillips screwdriver, remove four screws attaching

top louver (see Figure 3).

5. Place top surround panel at top of fireplace insert. Bottom

edge of panel will slide under top edge of insert. Align top

panel screw holes with those in insert. Install four #10 Phillips

screws, do not tighten.

Figure 3 - Remove Louver

Top Louver

Phillips Screws

Surround Side

Screen

Mounting

Shoulder

Screws (5/16")

Phillips Screw

Shipping Screw

(DISCARD)

105573-01B

For more information, visit www.desatech.com

6. Align screw holes in side panels with holes in top panel (see

Figure 5). Insert and tighten #10 Phillips screws.

7. Reinstall louver removed in step 4.

8. Carefully inspect fireplace surround assembly. Make sure

each part fits properly. Firmly tighten all screws installed

during assembly.

CAUTION: Do not overtighten. Metal can bend,

warp, or break under excessive strain.

Figure 4 - Attaching Top Surround Panel

Figure 5 - Attaching Side Panels to Top Panel

Top Surround

Panel

Top Panel

Side Panel

Phillips

Screws (4)

9. Remove three pieces of surround trim from packaging.

10. Locate four #6 screws, two adjusting plates with set screws,

and two shims in the hardware packet.

11. Align shim under adjusting plate as shown in Figure 6.

12. Slide one end of adjusting plate/shim in slot of top surround

trim (see Figure 6).

Slot

Side Surround

Trim

Top Surround

Trim

Set

Screws

Adjusting

Plate

Slot

Mitered Edge

Figure 6 - Assembling Surround Trim

Shim Mitered

Edge

Top Edge of

Fireplace Insert

Phillips Screws

13. Slide other end of adjusting plate/shim in slot on mitered edge

of side surround trim (see Figure 6).

14. While firmly holding edges of trim together, tighten both set

screws on the adjusting plate with slotted screwdriver.

15. Repeat steps 11 through 14 for other side.

16. Line up holes in surround trim with holes on side panels of

fireplace surround assembly.Attach with screws provided (see

Figure 7).

17. Move heater and surround assembly to fireplace opening.

Make sure heater and surround assembly fit properly.

WARNING: A qualified service person must in-

stall gas piping to heater. Follow installation instruc-

tions included in fireplace insert owners manual and

all local codes.

Proceed with installation instructions included with unit.

Figure 7 - Attaching Trim to Fireplace Surround

#6 Screws (4)

Trim

Fireplace

Surround

105573-01B

For more information, visit www.desatech.com

105573-01

Rev. B

04/03

2701 Industrial Drive

P.O. Box 90004

Bowling Green, Kentucky 42102-9004

Technical Service Department 1-866-672-6040

www.desatech.com

105573 01

NOT A UPC
