User Manual

Digital Multimeter+LCR

Model︰DE-5003/5004

Thank you for purchasing our products. Please read this instruction

manual before using the meter and keep it properly for contingent use.

7F, No.351, Sec. 2, Chung Shan Rd.,

Chung Ho Dist., New Taipei City 23504, Taiwan

TEL: (02)2226-6789(REP.) FAX: (02)2226-7979

E-mail:deree@deree.com

http://www.deree.com.tw

V0.3

- 31 -

- 1 -

User Manual ……Table of Contents

(1) Parts Identification...........................................................05 ~ 06

(2) Display ..............................................................................06 ~ 07

(3) Function Switch..........................................................................08

(4) Buttons Operations............................................................09 ~ 13

■SELECT ...............................................................................09

■RANGE ................................................................................09

■REL ............................................................................09 ~ 10

■HOLD...................................................................................10

■Backlit ( ).........................................................................10

■MAX/MIN.....................................................................10 ~ 11

■Integrate REL + HOLD.........................................................11

■Integrate REL + MAX/MIN...................................................11

■Integrate MAX/MIN + HOLD................................................12

■Integrate REL＋MAX/MIN+HOLD................................12 ~ 13

■θDQ......................................................................................13

■Buttons vs Measuring Functions.........................................14

(5) Measurement Functions.....................................................15 ~ 23

■Measuring AC Voltage ( )................................................15

■Measuring DC Voltage ( )................................................16

■Measuring DC / AC Millivoltage (mV) ............................17

■Measuring Resistance ( Ω )..................................................18

■Continuity Check ( )........................................................19

■Diode Test( )...................................................................20

■Frequency (Hz) + Duty (%) Measurements..........................21

■LCR Measurement................................................................22

■DC & AC Current Measurement (μA、mA、A)...............23

(6) Auto Power Off Function.............................................................24

(7) Replacing Fuses................................................................24 ~ 25

(8) Replacing Battery.......................................................................25

(9) Specifications.....................................................................26 ~ 29

- 2 -

For safety, read the users manual carefully and keep it

with the meter together for further reference.

Precautions：

To avoid possible electrical shock or personal injury, please pay

extra attention on those symbols indicated on the manual and

corresponding illustration.

Warning：Improper or careless may result in

personal injury or even death.

Caution：Improper or careless may result in

damage to the meter or other

equipment

Dual Insulation

AC- Alternating Current

DC- Direct Current

Grounding –Earth Terminal

Fuse

Warning

⚫Set the function switch and function key at the

proper position and function before measuring.

⚫Remove test leads from the circuit being tested

before switching functions.

⚫Do not apply more than the rated range of function

specified.

⚫Check and make sure the meter or test leads are

intact before use. Do not use the meter or test

leads if they appear damaged.

⚫When using the test leads, always keep hands

behind the guard ring.

- 3 -

⚫When measuring resistance, first switch off the

power to the circuit under test, and verify that the

voltage is zero.

⚫Keep the meter dry. Do not use it with wet hands

or if there is moisture in or on the meter.

Warning

Maximum input voltage according to overvoltage

installation category of safety standard.

Measuring Category

Maximum input

voltage

CAT. II

1000V

CAT. III

600V

Caution

⚫Do not use the meter near equipment emitting noise

or in environments with sudden temperature

changes. Unstable or inaccurate reading may occur.

⚫When finished measurement, turn the function

switch back to OFF position to turn off the meter

completely. There is minor power exhaustion if the

meter is power off by auto-power-off function.

⚫If it is necessary to clean the meter, use a soft cloth.

Never use solvents.

⚫Do not expose the meter to direct sunlight, extreme

temperatures or moisture.

⚫Do not attempt to open the case except the battery

door for replacing battery or fuses.

⚫Any impact or drop of battery will result leakage

afterwards and possibly damage the meter. Thus,

don’t use those batteries if occurred.

⚫Take the battery out of the meter if it will not be used

for several weeks or storage.

⚫When symbol displays, replace the battery

immediately.

- 4 -

Overvoltage Installation Category：

Maximum input voltage of the meter is according to overvoltage

installation category of safety standard. Do not apply more

than the rating voltage.

Measuring

Category

Description

Example

CAT. II

Measurements in electrical circuits

which are directly connected to the

low-voltage mains via plug

in household, office and

laboratory applications

CAT. III

Measurements in building installations

stationary consumers,

distributor terminals, devices

connected permanently to the

distributor

CAT. IV

Measurements at power sources for

low-voltage installations

Meters, mains terminals,

primary over current protection

device

•Warning

Radiation immunity affects the accuracy of meter under the conditions

specified in IEC61326-1 Also may result the meter malfunctions

where has equipments emitted strong electromagnetic interference.

Entrance cable

In-house mains power

power

distributor

Equipment

wall

socket

stationary

equipments

…etc

- 5 -

(1) Parts Identification

①Trademark & model

②Liquid crystal display ( LCD )

Display measuring symbols, units and readings

Refer to functions at page 6~7

③Buttons

Refer to functions at page 9~13

④Function switch

Refer to functions at page 8

⑤Range label

Indication of functions and terminals

drawing:DE-5004

- 6 -

⑥Input terminals

Terminal

Description

(for red test lead)

Positive input terminal for AC or DC

current measurement to 10A.

*11~20A overload for 30 seconds maximum.

**Pause 10 minutes at least before next

measurement.

μA mA

(for red test lead)

Positive input terminal for AC microampere /

milliampere or DC microampere /

milliampere measurement.

COM

(for black test lead)

Input terminal for all measurements.

V Ω

LCR

(for red test lead)

Positive input terminal for voltage,

resistance, diode, continuity, frequency, duty

& LCR (inductance / capacitance /

Resitance) measurements.

⑦Battery door

⑧Stand rack

⑨Test leads (red & black)

⑩Sheath

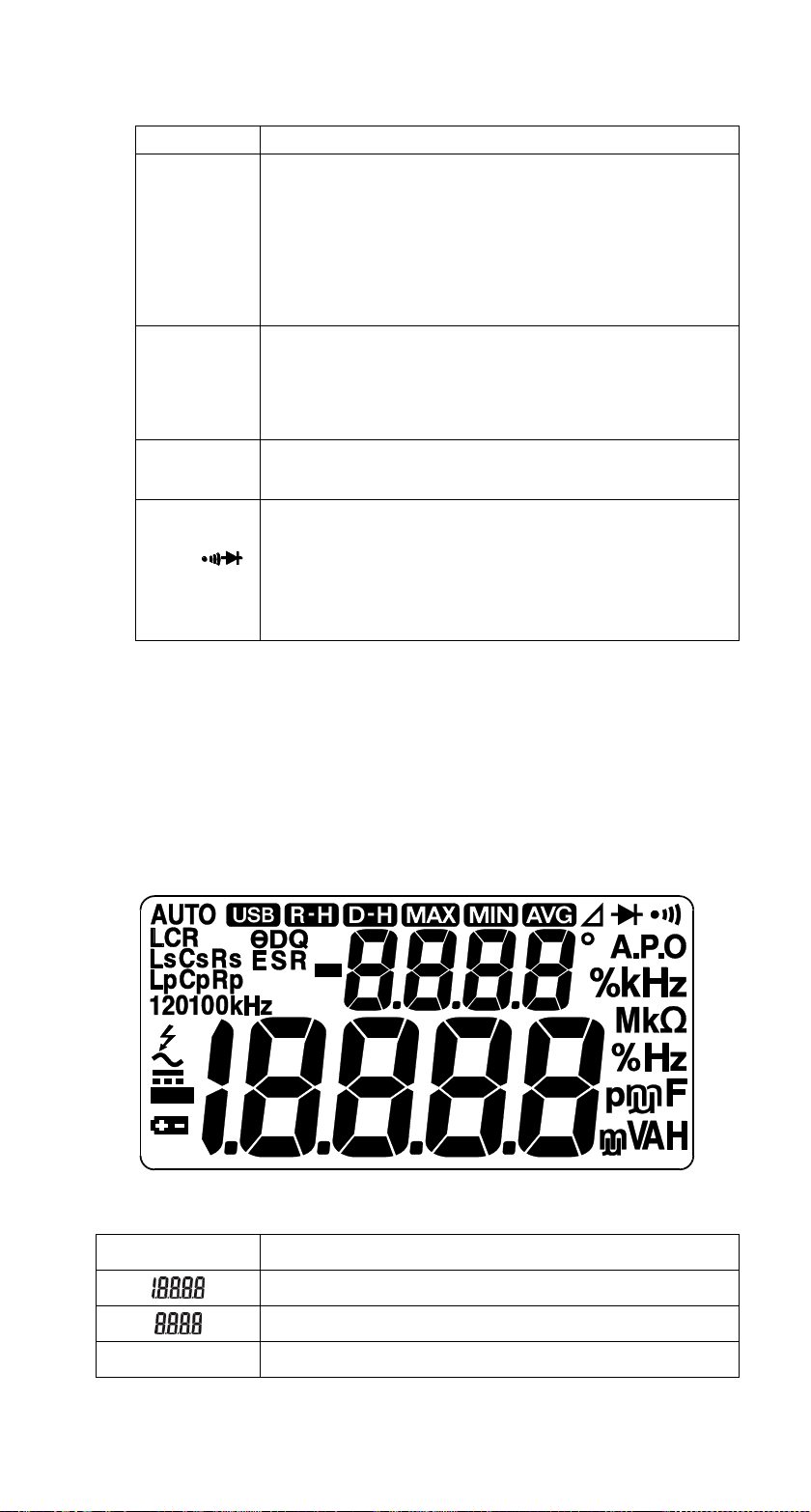

(2) Symbol on Display

Symbol

Description

Primary reading

Secondary reading

A.P.O

Auto power off

- 7 -

AC measurement mode

DC measurement mode

Negative polarity

Replace battery (low power indication)

Relative mode

AUTO

Auto range

Range hold

Data hold

Maximum value

Minimum value

Continuity

Diode

Input high Voltage alert

Hz , kHz ,

MHz

Units of frequency –Megahertz, Kilohertz

and Hertz

％

Unit of Duty

Ω, kΩ, MΩ

Units of resistance –Megaohms, Kiloohms

and Ohms

mV, V

Units of voltage - millivoltage & voltage

μA, mA, A

Units of current - microampere, milliampere

and ampere

LCR

L/C/R measurement mode

Ls Lp

Inductance in series

or parallel mode is active

Cs Cp

Capacitance in series

or parallel mode is active

Rs Rp

Resistance in series

or parallel mode is active

100Hz, 1kHz,

10kHz

Test frequency indication

pF, μF, mF

Units of capacitance –picofarad,

nanofarad, microfarad , millifarad and farad

μH, mH

Units of Inductance –

microhenry, millihenry and henry

Unit of phase angle

θDQ

Dissipation, Quality factor or Phase angle is

active for L & C measurement mode

- 8 -

(3) Rotary Switch Positions

Positions

Description

OFF

Power off

AC voltage measurement

DC voltage measurement

DC/AC millivoltage measurement

Resistance/ Continuity/ Diode measurement

--initial function is Resistance.

Hz %

Frequency / Duty measurement

LCR

Inductance/ Capacitance/ Resistance

Measurement.

-- initial function is Inductance

μA

DC/AC microampere measurement

--initial function is DC uA.

DC/AC milliampere measurement

-- initial function is DC mA.

DC/AC ampere measurement

--initial function is DCA.
