Denver DENVER IPC-1020 Manual de usuario
DENVER IPC-1020 DENVER IPC-1030
Packing list:
Note: Some models don’t have a separate antenna.
Installation procedure:
Note: For the first time use of IP Camera, please refer to the procedures above.
Connect the Hardware
Install the Search Tool
Login the IP Camera into LAN
Login the IP Camera to the PC
Client
Access by Mobile
Wireless Settings
End
Start
IP camera Mounting bracket Antenna Power Adaptor
CD Lan cable Installation guide Screws
Connect the camera with Internet cable to the router, and with the power cord to the mains,
like shown above.
PC
Internet Cable
Internet
Router
Power
WAN LAN
IP Camera
PC
Internet
Router
Internet Cable Power
WAN LAN
IP Camera
1. Installation of the Search Tool
Insert the CD and install the following software:
1. Open the File “IPC-1020 & IPC-1030”, click on “OCX setup” — “Next” — “Install” —
“Finish”
2. Open the File “Search Tool”, Copy the “Search Tool” to the desktop and launch it.
2. Login of the IP Camera into the LAN
After the hardware is connected properly, launch the search tool, and the IP address of the
camera will be displayed automatically.
Note: If the Search Tool issues the message "Subnet mask does not match, please click
Next
Double click the camera IP address in the search tool.

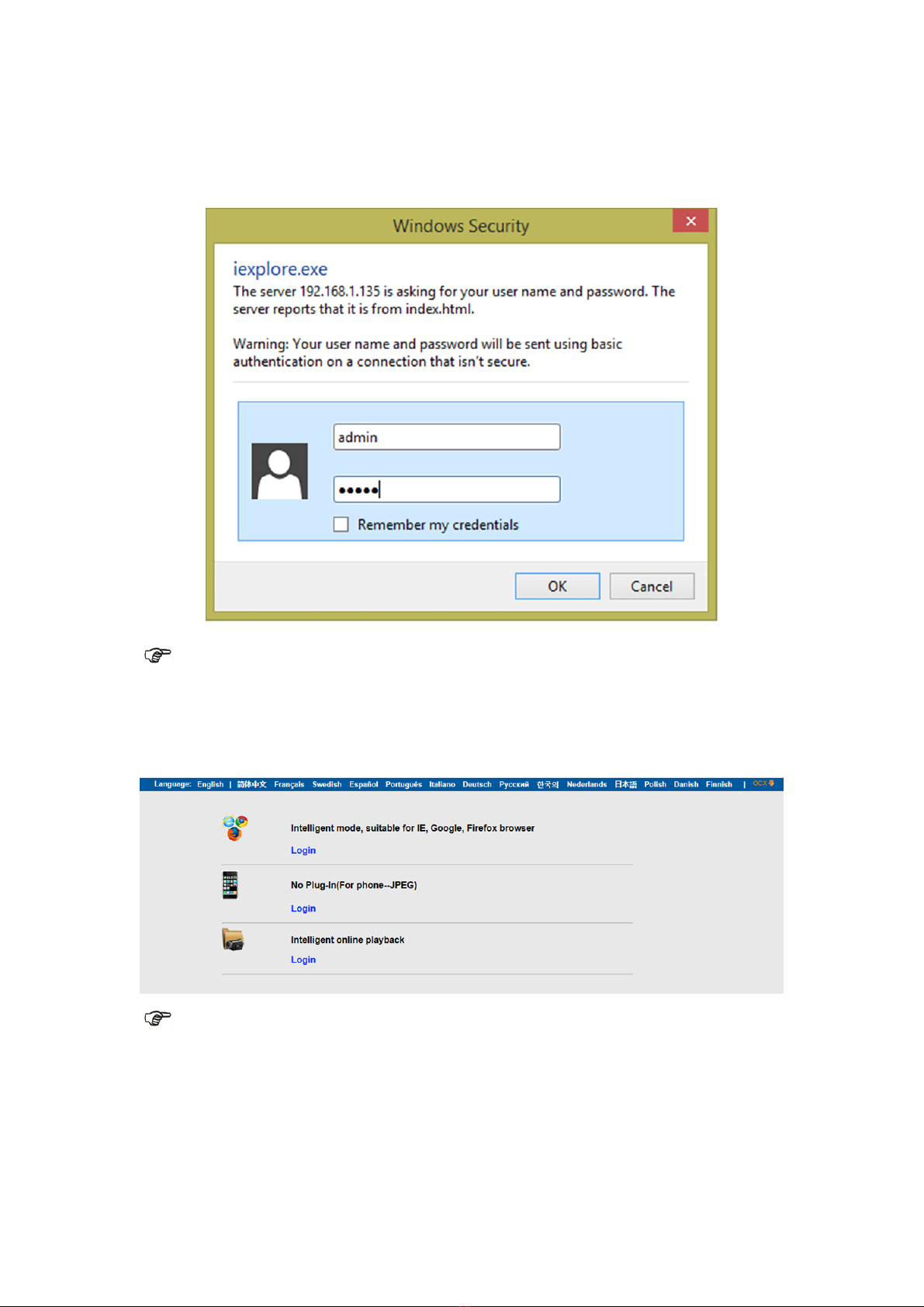

In your default browser a login screen like shown below will be displayed:
Note: Both the username and password are “admin”
(Please change the account user name and password for safety later)
After entering the correct user name and password, the Login screen will be displayed.
(It supports 6 visitors watching online at the same time)
Note: If the OCX already has been installed you may login directly. If not, please install
OCX.
A. Click on “OCX” to download and Install it.
B. Refresh the webpage and login again, the camera video will be displayed as below
Live video
3. Wireless Setting
1. Click on the button to access the “Wireless” settings.
2. Search for the WIFI signals and choose the desired SSID.
3. Make sure that all parameters are the same like in your router, enter the WIFI network
key.
4. After 30 seconds click on “Check”, the notification will show you if the WIFI settings are
successful.
5. If correct, just go back to select “Apply”, then disconnect the network cable.
Note: If the camera IP Address can not be found by the search tool, please connect the
internet cable again to check the WIFI settings.
Checking the WIFI signal connection status
4. Device information Setting
1) Click on the icon to access the “ Device information” settings
2) You will see all information for the IP camera
5. Time Settings
1) Click on the icon to access the “Time” settings
2) You may choose any NTP server, then click on “Apply”
3) Choose the desired time and click on “Apply” to activate it
6. Record settings
1) Click on the icon to access the “Record” settings
2) Choose “on”
3) Choose between ”First stream” or ”Second stream”
4) Choose the time schedule for recording
5) Click on “Apply”
7. Alarm Settings & Motion Detection
Configuration
1) First, you should activate the “Motion detection” and choose the display detail that
should be monitored (you may alter the detail as require).
2) You may choose the “Alarm trigger ringtone” and time schedule, then click on ”Apply”,
If the motion detect detects a motion in the configured display detail the alarm bell will
ring (The model without audio function is not provided with this alarm ring tone
notification)
8. Alarm Notification Setting & Email, FTP
1) The email configuration screen serves for the preparation of the alarm function. If the
motion detect activates your camera is triggered, you will receive an email containing
photos. Precondition for this is the correct setup and test of the service. Here the
configuration of a Gmail account as example:
Note: This function only works if the IP camera is connected to the network. If you use Gmail,
you must configure the port as 465, SSL as TLS. But the most important is, that you check if
your email client has SMTP enabled.
2) FTP service is a precondition for the alarm function. If the motion detect activates your
camera an email with photos will be submitted to you. For this it is required that you
configure the email service correctly in check it for functionality. For example:
