Denon AVC-A1H Manual de usuario

Quick

start

guide

AVC-A1H

INTEGRATED NETWORK AV AMPLIFIER

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 11. AVC-A1HE2_QSG_ENG_00A_221007.indd 1 2022/10/24 9:06:392022/10/24 9:06:39

Thank you for choosing a Denon AVR.

Use the Setup Assistant function to help conﬁgure the settings for this unit when you ﬁrst set it up.

Follow the guidance displayed on the TV screen connected to this unit to conﬁgure the settings.

This manual describes the procedure up until starting the Setup Assistant.

Please do not return this unit to the store – call for assistance.

If you need help… :

If you need additional help in solving problems, contact Denon customer service in your area.

www.denon.com

Welcome

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 11. AVC-A1HE2_QSG_ENG_00A_221007.indd 1 2022/10/24 9:06:392022/10/24 9:06:39

Before you begin

• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable

with Ethernet” that displays the HDMI logo.

• When connecting this unit to a device that is compatible with 8K and 4K 120Hz video, use a certiﬁed “Ultra High Speed HDMI cable”. If you

use a different HDMI cable, the video may not display or other problems may occur.

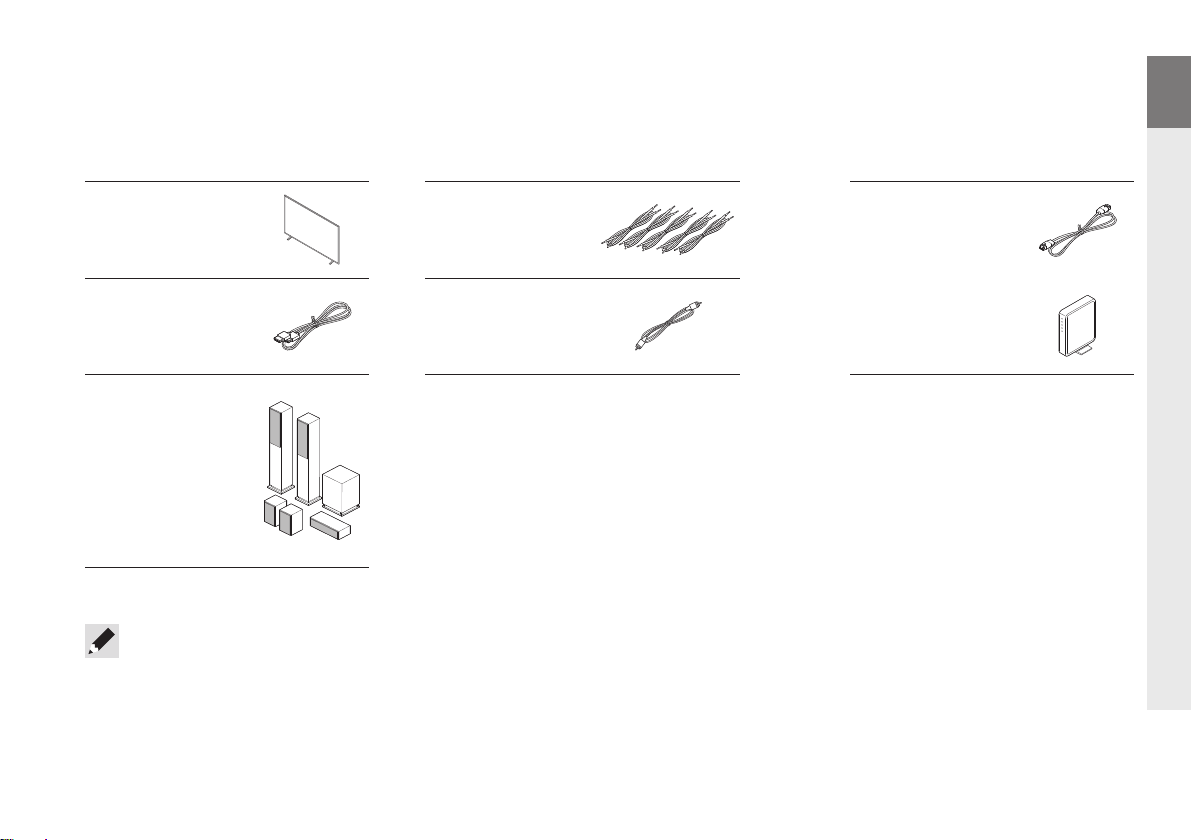

Required for setup

TV Speaker cables

HDMI® cable Subwoofer cable

Speakers

Optional

LAN cable

Wi-Fi® router

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 21. AVC-A1HE2_QSG_ENG_00A_221007.indd 2 2022/10/24 9:06:402022/10/24 9:06:40

What’s in the box

Quick start guide Cable labels Sound calibration

microphone stand

Safety instructions AVR Remote control

(RC-1250)

Cautions on using

batteries Power cord 2× R03/AAA batteries

Notes on radio Sound calibration

microphone

External antennas

for Bluetooth®/Wi-Fi

connectivity

• The included sound calibration microphone stand is convenient for performing speaker calibration. Using your own tripod or the supplied

Sound calibration microphone stand enables settings to be automatically conﬁgured to the optimum listening environment, providing

exceptionally high performance.

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 31. AVC-A1HE2_QSG_ENG_00A_221007.indd 3 2022/10/24 9:06:402022/10/24 9:06:40

Attach the included cable labels

The supplied cable labels include labels for the speaker and HDMI cables.

Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below.

This makes it easy to identify and properly connect the cables between your components.

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 41. AVC-A1HE2_QSG_ENG_00A_221007.indd 4 2022/10/24 9:06:402022/10/24 9:06:40

1) Place the antenna evenly over the antenna terminal

located at the upper left or right corner of the rear

panel.

2) Turn the antenna clockwise until it is fully connected.

Do not over tighten.

3) Rotate the antenna upwards for the best possible

reception.

1) 2) 3)

Setup

Optional

If you are connecting the AVR to a wired network, connect an

Ethernet cable (not included) between the AVR and your router.

Do not connect the Ethernet cable if you are connecting the

AVR to a wireless network.

Router

LAN port

• The antennas are required for both Bluetooth and Wi-Fi

functions.

Connect the antennas

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 51. AVC-A1HE2_QSG_ENG_00A_221007.indd 5 2022/10/24 9:06:412022/10/24 9:06:41

Place the AVR near your TV and connect the power cord.

AVR

Power cord

Connect the power cord

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 61. AVC-A1HE2_QSG_ENG_00A_221007.indd 6 2022/10/24 9:06:412022/10/24 9:06:41

HDMI IN

(ARC/eARC)

HDMI OUT

MONITOR 1

(ARC/eARC)

HDMI cable

AVR (Rear panel)

Connect the AVR to your TV

Using a high quality HDMI cable*, connect one end to the HDMI

port labeled “eARC” or “ARC” on your TV. Connect the other

end to the HDMI OUT MONITOR 1 port on your AVR.

What is ARC and eARC?

Audio Return Channel or “ARC” sends audio back to the AVR

using the same HDMI cable that sends video from your AVR

to your TV. This allows your AVR to process the sound from

your TV’s built-in tuner and apps. TVs with an Enhanced Audio

Return Channel or “eARC” port provide additional support for

high bitrate multichannel audio (Dolby Atmos, Dolby TrueHD,

DTS-HD and DTS:X). Please refer to your TV owner’s manual for

details about eARC support for your particular model.

* For 4K TVs, we recommend using an HDMI cable labeled

“High Speed” and “with Ethernet” .

* For 8K TVs, we recommend using an HDMI cable labeled

“Ultra High Speed”.

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 71. AVC-A1HE2_QSG_ENG_00A_221007.indd 7 2022/10/24 9:06:422022/10/24 9:06:42

TV remote control

Turn on the TV Select the appropriate HDMI

input on your TV

HDMI

TV/

VIDEO

INPUT

TV remote control

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 81. AVC-A1HE2_QSG_ENG_00A_221007.indd 8 2022/10/24 9:06:422022/10/24 9:06:42

Install batteries in the AVR

remote control

• Batteries can be taken out in reversed order.

• Press Xon the remote control.

Turn on the AVR

1. AVC-A1HE2_QSG_ENG_00A_221007.indd 91. AVC-A1HE2_QSG_ENG_00A_221007.indd 9 2022/10/24 9:06:422022/10/24 9:06:42
