TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Highlights & Features

•Universal AC input voltage range

•Power will not de-rate for the entire input voltage range

•Power Boost of 150% for 3 seconds and 200% for 2 seconds

•Full corrosion resistant aluminium casing

•SEMI F47 certified

•Conforms to harmonic current IEC/EN 61000-3-2, Class A

•Conformal coating on PCBAs to protect against common

dust and chemical pollutants

•Hazardous Locations approval to ATEX and Class I, Div 2

•Certified according to IEC/EN/UL 62368-1

Safety Standards

CB Certified for worldwide use

Model Number: DRP024V480W1AA

Unit Weight:1.80 kg (3.97 lb)

Dimensions (L x W x D): 121 x 160 x 118.5mm

(4.76 x 6.30 x 4.66 inch)

General Description

The DRP024V480W1AA is part of the CliQ DIN rail power supply series from one of the world’s leading power supply companies, Delta

Electronics Group. The rugged metal is both shock and vibration resistant according to IEC 60068-2 standard. The product operates

within a wide temperature range from -20°C to +80°C. The DRP024V480W1AA features universal AC input voltage range from 85Vac to

264Vac and the power will not de-rate for the entire input voltage range. The single phase power supply unit includes overvoltage,

overcurrent, over temperature and short circuit protections. The product features built-in Power Boost of 150% for 3 seconds and 200%

for 2 seconds. Such feature enables reserve power to be always available for reliable startup of loads with high inrush current, thus

eliminating the need of a more expensive power supply unit at higher power rating. Another great feature is the conformal coating on the

PCBA which allows DRP024V480W1AA to be certified to ATEX and Class I, Div 2 for use in hazardous locations.

Model Information

CliQ DIN Rail Power Supply

Model

Number

Input Voltage Range Rated Output

oltage

Rated Output Curr

ent

DRP024V480W1AA 85-264Vac (120-375Vdc) 24Vdc 20.0A

Model Numbering

DR P024V480W1AA

DIN Rail Power Supply Output Voltage Output Power Single Phase CliQ Series Metal Case

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Specifications

Input Ratings / Characteristics

Nominal Input Voltage 100-240Vac

Input Voltage Range 85-264Vac

Nominal Input Frequency 50-60Hz

Input Frequency Range 47-63Hz

DC Input Voltage Range* 120-375Vdc

Input Current < 5.70A @ 115Vac, < 2.80A @ 230Vac

Efficiency at 100% Load > 85.0% @ 115Vac, > 88.0% @ 230Vac

Max Power Dissipation 0% load < 6.0W @ 115Vac & < 3.5W @ 230Vac

100% load < 40W @ 115Vac & < 35W @ 230Vac

Max Inrush Current (Cold Start) < 50A @ 115Vac, < 150A @ 230Vac

Power Factor at 100% Load > 0.97 @ 115Vac, > 0.95 @ 230Vac

Leakage Current < 1.25mA @ 240Vac

*Safety approval according to IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1.

Output Ratings / Characteristics**

Nominal Output Voltage 24Vdc

Factory Set Point Tolerance 24Vdc ± 2%

Output Voltage Adjustment Range 22-28Vdc

Output Current 20.0A (continuously operating at 24)

30.0A (Power Boost for 3

seconds at 24V, refer to the details in

the Functions section)

40.0A (Power Boost for 2 seconds at 24V, refer to the details in

the Functions section)

Output Power 480W (continuously operating at 24V)

720W (Power Boost for 3 seconds at 24V, refer to the

details in

the Functions section)

960W (Power Boost for 2 seconds at 24V

, refer to the details in

the Functions section)

Line Regulation < 0.5% (@ 85-264Vac input, 100% load)

Load Regulation < 1.0% (@ 85-264Vac input, 0-100% load)

PARD*** (20MHz) < 240mVpp

Rise Time < 100ms @ nominal input (100% load)

Start-up Time < 1,000ms @ nominal input (100% load)

Hold-up Time > 20ms @ 115Vac & 230Vac (100% load)

Dynamic Response

(Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load

(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1kHz)

Start-up with Capacitive Loads 10,000µF Max

**For power de-rating from 50°C to 80°C, see power de-rating on page 3.

***PARD is measured with an AC coupling mode, 5cm wires, and in parallel with 0.1μF ceramic capacitor & 47μF electrolytic capacitor.

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Mechanical

Case Cover / Chassis

Aluminium

Dimensions (L x W x D) 121 x 160 x 118.5 mm (4.76 x 6.30 x 4.66 inch)

Unit Weight 1.80 kg (3.97 lb)

Indicator Green LED DC OK

Cooling System Convection

Terminal Input 3 Pins (Rated 300V/20A)

Output 4 Pins (Rated 300V/20A)

Wire Input AWG 16-14

Output AWG 12-10

Mounting Rail Standard TS35 DIN Rail in accordance with EN 60715

Noise (1 Meter from power supply) Sound Pressure Level (SPL) < 40dBA

Environment

Surrounding Air Temperature Operating -20°C to +80°C

Storage -25°C to +85°C

Power De-rating Vertical Mounting > 50°C de-rate power by 2.5% / °C

Operating Humidity 5 to 95% RH (Non-Condensing)

Operating Altitude 0 to 2,000 Meters (6,560 ft.)

Shock Test Non-Operating IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,

3 times per direction, 6 times in total

Vibration Non-Operating IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak);

90 min per axis for all X, Y, Z direction

Over Voltage Category III According to IEC/EN 62477-1 / EN 60204-1

(clearance and creepage distances) and

IEC 62103 (safety part)

Pollution Degree

Protections

Overvoltage 32V ±10%, SELV Output, Hiccup Mode,

Non-Latching (Auto-Recovery)

Overload / Overcurrent > 200% of rated load current, Hiccup Mode,

Non-Latching (Auto-Recovery)

Over Temperature < 80°C Surrounding Air Temperature @ 100% load,

Non-Latching (Auto-Recovery)

Short Circuit Hiccup Mode, Non-Latching

(Auto-Recovery when the fault is removed)

Internal Fuse at L pin T8A

Protection Against Shock Class I with PE* connection

*PE: Primary Earth

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Reliability Data

MTBF > 300,000 hrs. as per Telcordia SR-332

I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time 10 years (115Vac & 230Vac, 50% load @ 40°C)

Safety Standards / Directives

Electrical Equipment of Machines EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations IEC/EN 62477-1 / IEC 62103

Safety Entry Low Voltage PELV* (EN 60204-1), SELV (EN 60950-1)

Electrical Safety SIQ Bauart EN 60950-1, EN 62368-1

UL/cUL recognized UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)

UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)

CB Scheme IEC 60950-1, IEC 62368-1

Industrial Control Equipment UL/cUL listed

UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

CSA

CSA C22.2 No. 107.1-01 (File No. 181564)

Hazardous Location / ATEX cCSAus CSA C22.2 No. 213-M1987 and ANSI / ISA 12.12.01:2007

[Class I, Division 2, Group A, B, C, D T4, Ta= -20°C to +80°C

(> +50°C derating)]

ATEX EN 60079-0:2009, EN 60079-15:2010 [

II 3G Ex nA nC IIC

T4 Gc, Ta= -20°C to +80°C (> +50°C derating)]

Certificate No. EPS 09 ATEX 1 215 X

CE In conformance with EMC Directive 2014/30/EU and

Low Voltage Directive 2014/35/EU

In conformance with Equipment for explosive atmospheres

(ATEX) directive 2014/34/EU

Galvanic Isolation Input to Output 4.0KVac

Input to Ground 2.0KVac

Output to Ground 2.0KVac

*Output must be earthed in the final unit in order to comply with PELV requirements according to standard EN 60204-1.

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

EMC

Emission (CE & RE) Generic Standards: CISPR 32, EN 55032, EN 55011, FCC

Title 47: Class B

Immunity Generic Standards: EN 55024, EN 61000-6-2

Electrostatic Discharge IEC 61000-4-2 Level 4 Criteria A1)

Air Discharge: 15kV

Contact Discharge: 8kV

Radiated Field IEC 61000-4-3 Level 3 Criteria A1)

80MHz-1GHz, 10V/M, 80% modulation (1kHz)

1.4GHz-2GHz, 3V/M, 80% modulation (1kHz)

2GHz-2.7GHz, 1V/M, 80% modulation (1kHz)

Electrical Fast Transient / Burst IEC 61000-4-4 Level 3 Criteria A1)

2kV

Surge IEC 61000-4-5 Level 3 Criteria A1)

Common Mode2): 2kV

Differential Mode

: 1kV

Conducted IEC 61000-4-6 Level 3 Criteria A1)

150kHz-80MHz, 10Vrms

Power Frequency Magnetic Fields IEC 61000-4-8 Criteria A1)

100A/Meter

Voltage Dips and Interruptions IEC 61000-4-11 100% dip; 1 cycle (20ms); Self Recoverable

Low Energy Pulse Test (Ring Wave) IEC 61000-4-12 Level 3 Criteria A1)

Common Mode2): 2kV

Differential Mode

: 1kV

Harmonic Current Emission IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker IEC/EN 61000-3-3

Voltage Sag Immunity SEMI F47 - 0706, at 100Vac

1) Criteria A: Normal performance within the specification limits

2) Asymmetrical: Common mode (Line to earth)

3) Symmetrical: Differential mode (Line to line)

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Block Diagram

Device Description

1) Input terminal block connector

2) Output terminal block connector

3) DC Voltage adjustment potentiometer

4) DC OK control LED (Green)

5) Universal mounting rail system

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Dimensions

L x W x D: 121 x 160 x 118.5 mm (4.76 x 6.30 x 4.66 inch)

Engineering Data

Output Load De-rating VS Surrounding Air Temperature

Note

1. Power supply components may degrade, or

be damaged, when the power supply is

continuously used outside the shaded region,

refer to the graph shown in Fig. 1.

2. If the output capacity is not reduced when the

surrounding air temperature exceeds its

specification as defined on Page 3 under

“Environment”, the device may run into Over

Temperature Protection. When activated, the

output voltage will go into bouncing mode and

will recover when the surrounding air

temperature is lowered or the load is reduced

as far as necessary to keep the device in

working condition.

3. In order for the device to function in the

manner intended, it is also necessary to keep

a safety distance as recommended in the

safety instructions while the device is in

operation.

4. Depending on the surrounding air temperature

and output load delivered by the power

supply, the device can be very hot!

5. If the device has to be mounted in any other

orientation, please contact info@deltapsu.com

for more details.

Fig. 1 De-rating for Vertical Mounting Orientation

> 50°C de-rate power by 2.5% / °C

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Output Load De-rating VS Input Voltage

Assembly & Installation

The power supply unit (PSU) can be mounted on 35mm DIN rails in accordance with EN 60715. The device should be installed with input

terminal block at the bottom.

Each device is delivered ready to install.

Mounting

In accordance to EN 60950 / UL 60950 and EN 62368 / UL 62368, flexible cables require ferrules.

Use appropriate copper cables designed to sustain operating temperature of at least 75°C or more to fulfill UL requirements.

For stranded wires it is recommended to use suitable lug to crimp wires.

Dismounting

Fig. 2.1 Mounting

Snap on the DIN rail as shown in Fig. 2.1:

1. Tilt the unit upwards and insert it onto the DIN rail.

2. Push downwards until stopped.

3. Press against the bottom front side for locking.

4. Shake the unit slightly to ensure that it is secured.

Fig. 2.2 Dismounting

To uninstall, pull or slide down the latch with screw driver as

shown in Fig. 2.2. Then slide the power supply unit (PSU) in the

opposite direction, release the latch and pull out the power

supply unit (PSU) from the rail.

No output power de-rating across the entire

input voltage range

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Safety Instructions

Vertical Mounting

•ALWAYS switch mains of input power OFF before connecting and disconnecting the input voltage to the unit. If mains are not turned

OFF, there is risk of explosion / severe damage.

•To guarantee sufficient convection cooling, keep a distance of 50mm (1.97 inch) above and below the device as well as a

lateral distance of 20mm (0.79 inch) to other units.

•Note that the enclosure of the device can become very hot depending on the surrounding air temperature and load of the power

supply. Risk of burns!

•Only plug in and unplug connectors when power is turned off!

•DO NOT insert any objects into the unit.

•Hazardous voltages may be present for up to 5 minutes after the input mains voltage is disconnected. Do not touch the unit during

this time.

•The power supplies unit must be installed in an IP54 enclosure or cabinet in the final installation. The enclosure or cabinet must

comply with EN 60079-0 or EN 60079-15.

•CAUTION: “For use in a controlled environment”.

•Warning: Explosion Hazard - Substitution of components may impair suitability for Class I, Division 2.

•Warning: Explosion Hazard - Do not disconnect equipment unless the power has been switched off or the area is known to be non-

hazardous.

•It is NOT advised to install in horizontal mounting orientation, since it may cause damage to the PSU.

Horizontal Mounting

TECHNICAL DATASHEET

CliQ DIN Rail Power

Supply

24V 480W 1

Phase

/ DRP024V480W1AA

All parameters are specified at 25°C ambient and AC input unless otherwise indicated.

www.DeltaPSU.com (November 2020, Rev. 09)

Functions

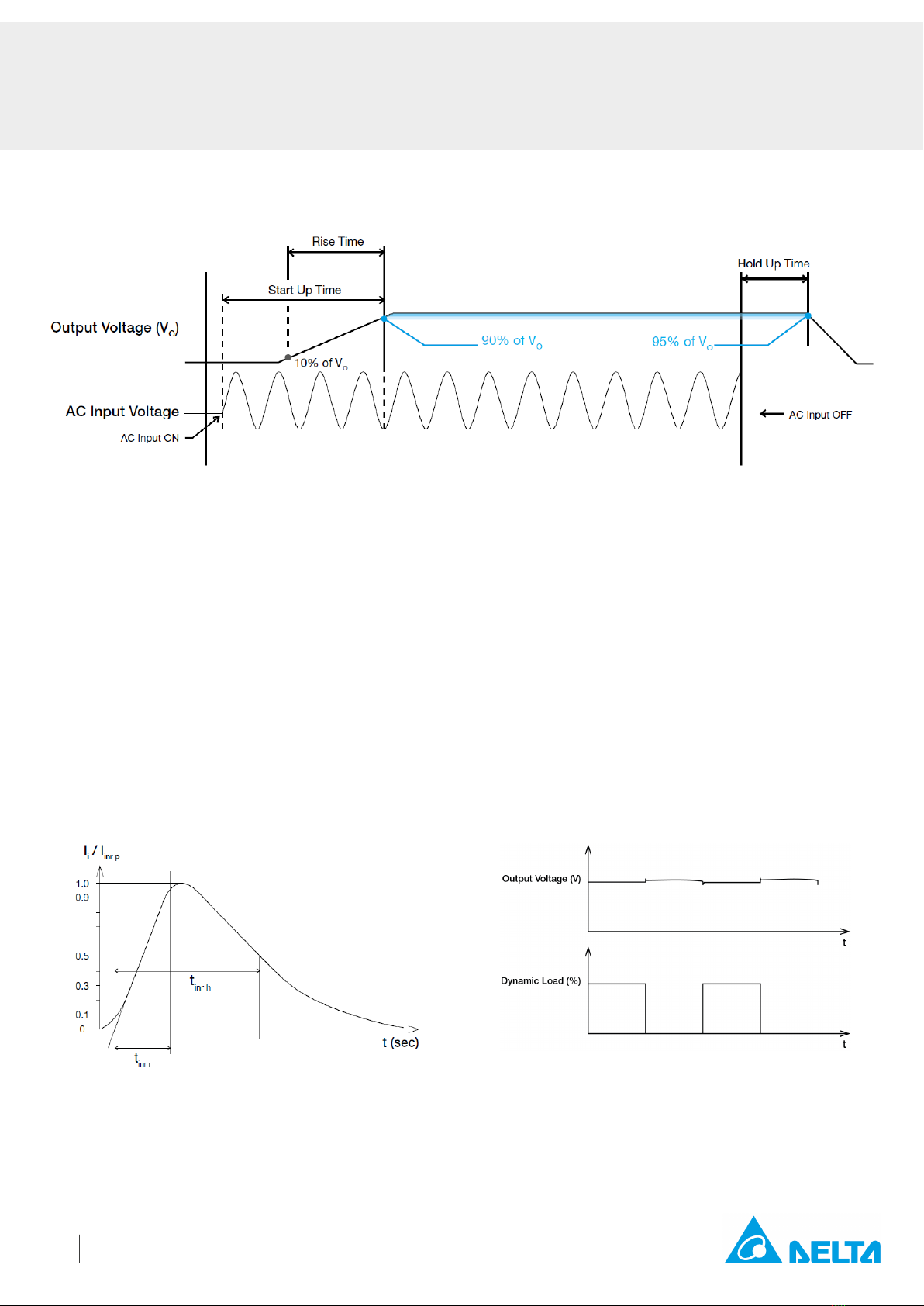

Graph illustrating the Start-up Time, Rise Time, and Hold-up Time

Start-up Time

The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied.

Rise Time

The time required for the output voltage to change from 10% to 90% of its final steady state set value.

Hold-up Time

Time between the collapse of the AC input voltage, and the output falling to 95% of its steady state set value.

Inrush Current

Inrush current is the peak, instantaneous, input current measured

and, occurs when the input voltage is first applied. For AC input

voltages, the maximum peak value of inrush current will occur

during the first half cycle of the applied AC voltage. This peak value

decreases exponentially during subsequent cycles of AC voltage.

Dynamic Response

The power supply output voltage will remains within ±5% of its

steady state value, when subjected to a dynamic load from 0% to

100% of its rated current.

50% duty cycle / 5Hz to 1kHz

Tabla de contenidos

Otros manuales de Fuente de alimentación de Delta

Delta

Delta PMT2 150 W Series Manual de instrucciones

Delta

Delta PMR V320WC Series Manual de usuario

Delta

Delta LYTE DRL-24V480W1A Series Manual de instrucciones

Delta

Delta PMU-27V155WC A Series Manual de usuario

Delta

Delta CliQ Manual de usuario

Delta

Delta IMA-1000 Series Instrucciones de instalación y funcionamiento

Delta

Delta DRP048V060W1B Series Manual de instrucciones

Delta

Delta CliQ DRP024V060W1AA Manual de instrucciones

Delta

Delta PMT-36V350W1A Series Manual de usuario

Delta

Delta PMC-24V150W1A Series Manual de usuario

Delta

Delta A9000 Manual de usuario

Delta

Delta CliQ II DRP024V060W1B Manual de instrucciones

Delta

Delta GPS-1000D8 A A22 Manual de usuario

Delta

Delta PMR V320WD Series Manual de usuario

Delta

Delta PMC-05V015W1A Series Manual de usuario

Delta

Delta PMC Series Manual de usuario

Delta

Delta PMC-12V035W1AA Manual de usuario

Delta

Delta D3000 Manual de usuario

Delta

Delta DRP024V060W1AZ Manual de instrucciones

Delta

Delta sync 24V 100W Series Manual de instrucciones

Delta

Delta PMC-24V100W1AA Manual de usuario

Delta

Delta PMC-24V100W1AB Manual de usuario

Delta

Delta LZ-16/POL/R19 Manual de usuario

Delta

Delta PMR-V320WD Series Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manual de usuario

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario
